DescriptionMaterial:Steel or 1.4305 stainless steel. Version:Trivalent passivated.
Stainless steel version bright.Note:LH thread refers to dimension D2.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

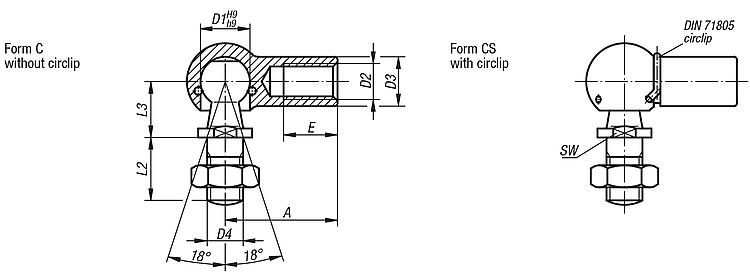

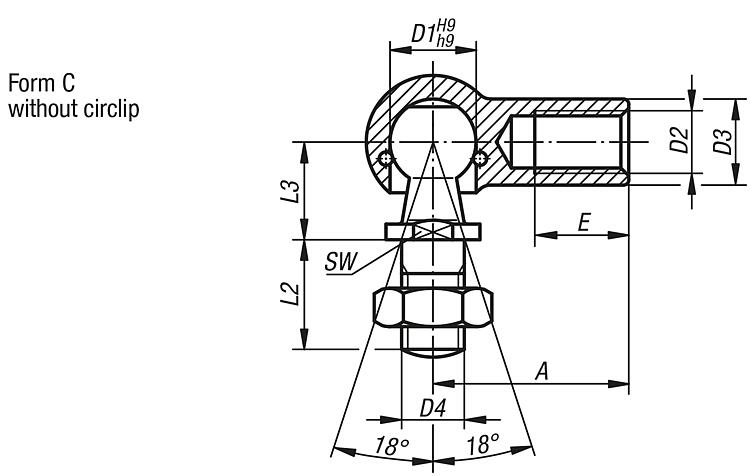

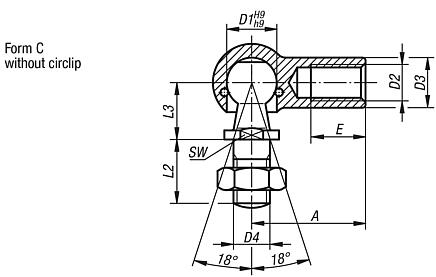

Drawings (total overview) |
| Order No. | Form
| Version
| Main
material | D1 | D2 | D3 | D4 | A | L2 | L3 | E | SW | CAD | Acc. | Price | Order |
|---|
| B0442.0805 | C | RH thread | steel | 8 | M5 | 8 | M5 | 22 | 10,2 | 9 | 10,2 | 7 |  | | 1.40 € | | | B0442.1006 | C | RH thread | steel | 10 | M6 | 10 | M6 | 25 | 12,5 | 11 | 11,5 | 8 | | | 1.65 € | | | B0442.1308 | C | RH thread | steel | 13 | M8 | 13 | M8 | 30 | 16,5 | 13 | 14 | 11 | | | 2.24 € | | | B0442.1610 | C | RH thread | steel | 16 | M10 | 16 | M10 | 35 | 20 | 16 | 15,5 | 13 | | | 3.34 € | | | B0442.1612 | C | RH thread | steel | 16 | M12 | 16 | M12 | 35 | 20 | 16 | 15,5 | 13 | | | 3.83 € | | | B0442.1914 | C | RH thread | steel | 19 | M14x1,5 | 22 | M14x1,5 | 45 | 28 | 20 | 21,5 | 16 | | | 7.45 € | | | B0442.1916 | C | RH thread | steel | 19 | M16 | 22 | M16 | 45 | 28 | 20 | 21,5 | 16 | | | 9.81 € | | | B0442.080501 | C | LH thread | steel | 8 | M5 | 8 | M5 | 22 | 10,2 | 9 | 10,2 | 7 | | | 1.75 € | | | B0442.100601 | C | LH thread | steel | 10 | M6 | 10 | M6 | 25 | 12,5 | 11 | 11,5 | 8 | | | 1.91 € | | | B0442.130801 | C | LH thread | steel | 13 | M8 | 13 | M8 | 30 | 16,5 | 13 | 14 | 11 | | | 2.56 € | | | B0442.161001 | C | LH thread | steel | 16 | M10 | 16 | M10 | 35 | 20 | 16 | 15,5 | 13 | | | 4.14 € | | | B0442.161201 | C | LH thread | steel | 16 | M12 | 16 | M12 | 35 | 20 | 16 | 15,5 | 13 | | | 4.65 € | | | B0442.191401 | C | LH thread | steel | 19 | M14x1,5 | 22 | M14x1,5 | 45 | 28 | 20 | 21,5 | 16 | | | 9.02 € | | | B0442.191601 | C | LH thread | steel | 19 | M16 | 22 | M16 | 45 | 28 | 20 | 21,5 | 16 | | | 10.84 € | |
|
| Order No. | Form
| Version 2 | Main
material | D1 | D2 | D3 | D4 | A | L2 | L3 | E | SW | CAD | Acc. | Price | Order |
|---|
| B0442.080351 | CS | RH thread | steel | 8 | M3,5 | 8 | M4 | 18 | 10,2 | 9 | 8 | 7 | | | 2.68 € | | | B0442.08051 | CS | RH thread | steel | 8 | M5 | 8 | M5 | 22 | 10,2 | 9 | 10,2 | 7 | |  | 1.61 € | | | B0442.10061 | CS | RH thread | steel | 10 | M6 | 10 | M6 | 25 | 12,5 | 11 | 11,5 | 8 | | | 1.80 € | | | B0442.13081 | CS | RH thread | steel | 13 | M8 | 13 | M8 | 30 | 16,5 | 13 | 14 | 11 | | | 2.38 € | | | B0442.16101 | CS | RH thread | steel | 16 | M10 | 16 | M10 | 35 | 20 | 16 | 15,5 | 13 | | | 3.49 € | | | B0442.16121 | CS | RH thread | steel | 16 | M12 | 16 | M12 | 35 | 20 | 16 | 15,5 | 13 | | | 4.04 € | | | B0442.19141 | CS | RH thread | steel | 19 | M14x1,5 | 22 | M14x1,5 | 45 | 28 | 20 | 21,5 | 16 | | | 7.76 € | | | B0442.19161 | CS | RH thread | steel | 19 | M16 | 22 | M16 | 45 | 28 | 20 | 21,5 | 16 | | | 10.23 € | | | B0442.080511 | CS | LH thread | steel | 8 | M5 | 8 | M5 | 22 | 10,2 | 9 | 10,2 | 7 | | | 1.87 € | | | B0442.100611 | CS | LH thread | steel | 10 | M6 | 10 | M6 | 25 | 12,5 | 11 | 11,5 | 8 | | | 2.10 € | | | B0442.130811 | CS | LH thread | steel | 13 | M8 | 13 | M8 | 30 | 16,5 | 13 | 14 | 11 | | | 2.74 € | | | B0442.161011 | CS | LH thread | steel | 16 | M10 | 16 | M10 | 35 | 20 | 16 | 15,5 | 13 | | | 4.39 € | | | B0442.161211 | CS | LH thread | steel | 16 | M12 | 16 | M12 | 35 | 20 | 16 | 15,5 | 13 | | | 4.75 € | | | B0442.191411 | CS | LH thread | steel | 19 | M14x1,5 | 22 | M14x1,5 | 45 | 28 | 20 | 21,5 | 16 | | | 9.39 € | | | B0442.191611 | CS | LH thread | steel | 19 | M16 | 22 | M16 | 45 | 28 | 20 | 21,5 | 16 | | | 11.21 € | | | B0442.08052 | CS | RH thread | stainless steel | 8 | M5 | 8 | M5 | 22 | 10,2 | 9 | 10,2 | 7 | | | 11.24 € | | | B0442.10062 | CS | RH thread | stainless steel | 10 | M6 | 10 | M6 | 25 | 12,5 | 11 | 11,5 | 8 | | | 12.60 € | | | B0442.13082 | CS | RH thread | stainless steel | 13 | M8 | 13 | M8 | 30 | 16,5 | 13 | 14 | 11 | | | 13.32 € | | | B0442.16102 | CS | RH thread | stainless steel | 16 | M10 | 16 | M10 | 35 | 20 | 16 | 15,5 | 13 | | | 23.88 € | | | B0442.16122 | CS | RH thread | stainless steel | 16 | M12 | 16 | M12 | 35 | 20 | 16 | 15,5 | 13 | | | 25.32 € | | | B0442.080521 | CS | LH thread | stainless steel | 8 | M5 | 8 | M5 | 22 | 10,2 | 9 | 10,2 | 7 | | | 11.58 € | | | B0442.100621 | CS | LH thread | stainless steel | 10 | M6 | 10 | M6 | 25 | 12,5 | 11 | 11,5 | 8 | | | 13.23 € | | | B0442.130821 | CS | LH thread | stainless steel | 13 | M8 | 13 | M8 | 30 | 16,5 | 13 | 14 | 11 | | | 14.00 € | | | B0442.161021 | CS | LH thread | stainless steel | 16 | M10 | 16 | M10 | 35 | 20 | 16 | 15,5 | 13 | | | 25.07 € | | | B0442.161221 | CS | LH thread | stainless steel | 16 | M12 | 16 | M12 | 35 | 20 | 16 | 15,5 | 13 | | | 26.58 € | |
|
