B0431Clevis joints, steel with snap-in pin DIN 71752 |
go back |
|
Item description/product images |
|
|

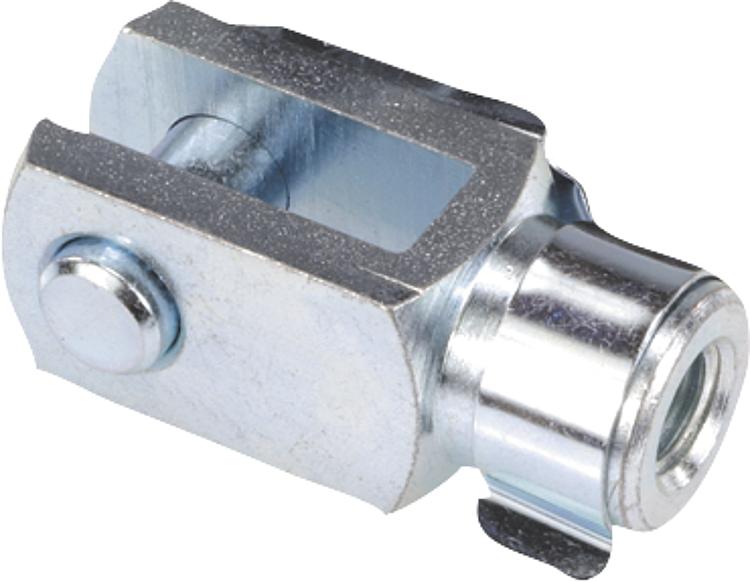

DescriptionMaterial:Clevis and pins free-cutting steel.
Spring, spring steel.Version:Trivalent passivated.Special features: DownloadHere is all the information as a PDF datasheet:

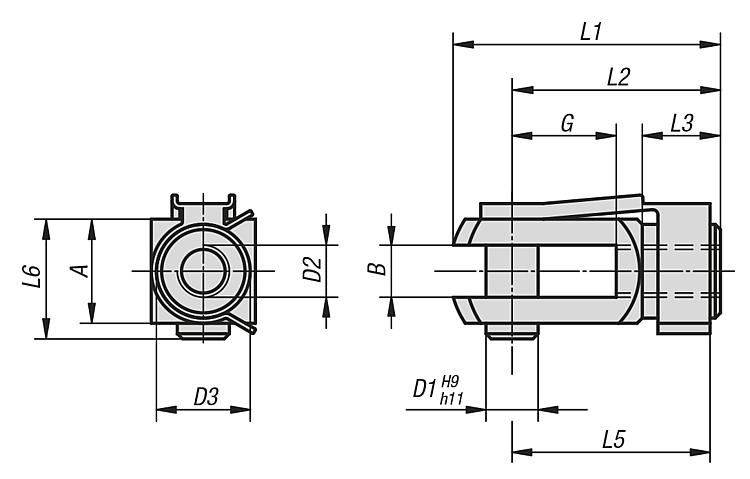

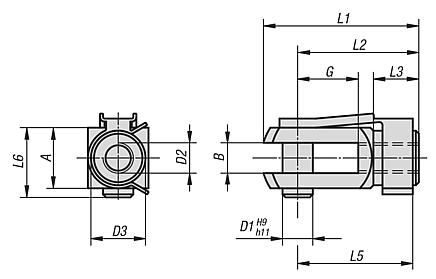

Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Version
| B | G | D1 | D2 | D3 | L1 | L2 | L3 | L5 | L6 | A | CAD | Acc. | Price | Order |
|---|
| B0431.03508 | RH thread | 4 | 8 | 4 | M3,5 | 8 | 21 | 16 | 6 | 15 | 10 | 8 |  | | 2.94 € | | | B0431.0510 | RH thread | 5 | 10 | 5 | M5 | 9 | 26 | 20 | 7,5 | 19 | 12 | 10 | | | 1.82 € | | | B0431.0612 | RH thread | 6 | 12 | 6 | M6 | 10 | 31 | 24 | 9 | 23 | 14 | 12 | | | 2.11 € | | | B0431.0816 | RH thread | 8 | 16 | 8 | M8 | 14 | 42 | 32 | 12 | 31 | 19 | 16 | | | 2.56 € | | | B0431.0832 | RH thread | 8 | 32 | 8 | M8 | 14 | 58 | 48 | 12 | 47 | 19 | 16 | | | 2.95 € | | | B0431.1020 | RH thread | 10 | 20 | 10 | M10 | 18 | 52 | 40 | 15 | 39 | 23 | 20 | | | 3.25 € | | | B0431.10120 | RH thread | 10 | 20 | 10 | M10x1,25 | 18 | 52 | 40 | 15 | 39 | 23 | 20 | | | 3.58 € | | | B0431.1040 | RH thread | 10 | 40 | 10 | M10 | 18 | 72 | 60 | 15 | 59 | 23 | 20 | | | 3.71 € | | | B0431.10140 | RH thread | 10 | 40 | 10 | M10x1,25 | 18 | 72 | 60 | 15 | 59 | 23 | 20 | | | 4.09 € | | | B0431.1224 | RH thread | 12 | 24 | 12 | M12 | 20 | 62 | 48 | 18 | 47 | 28 | 24 | | | 4.66 € | | | B0431.12124 | RH thread | 12 | 24 | 12 | M12x1,25 | 20 | 62 | 48 | 18 | 47 | 28 | 24 | | | 5.10 € | | | B0431.1248 | RH thread | 12 | 48 | 12 | M12 | 20 | 86 | 72 | 18 | 69 | 28 | 24 | | | 5.42 € | | | B0431.12148 | RH thread | 12 | 48 | 12 | M12x1,25 | 20 | 86 | 72 | 18 | 69 | 28 | 24 | | | 5.97 € | | | B0431.1428 | RH thread | 14 | 28 | 14 | M14 | 24 | 72 | 56 | 22,5 | 52 | 31 | 27 | | | 6.30 € | | | B0431.1632 | RH thread | 16 | 32 | 16 | M16 | 26 | 83 | 64 | 24 | 62 | 36 | 32 | | | 9.18 € | | | B0431.16132 | RH thread | 16 | 32 | 16 | M16x1,5 | 26 | 83 | 64 | 24 | 62 | 36 | 32 | | | 10.14 € | | | B0431.2040 | RH thread | 20 | 40 | 20 | M20 | 34 | 105 | 80 | 30 | 71,5 | 45 | 40 | | | 17.58 € | | | B0431.05101 | LH thread | 5 | 10 | 5 | M5 | 9 | 26 | 20 | 7,5 | 19 | 12 | 10 | | | 2.20 € | | | B0431.06121 | LH thread | 6 | 12 | 6 | M6 | 10 | 31 | 24 | 9 | 23 | 14 | 12 | | | 2.29 € | | | B0431.08161 | LH thread | 8 | 16 | 8 | M8 | 14 | 42 | 32 | 12 | 31 | 19 | 16 | | | 2.60 € | | | B0431.08321 | LH thread | 8 | 32 | 8 | M8 | 14 | 58 | 48 | 12 | 47 | 19 | 16 | | | 3.01 € | | | B0431.10201 | LH thread | 10 | 20 | 10 | M10 | 18 | 52 | 40 | 15 | 39 | 23 | 20 | | | 3.43 € | | | B0431.10401 | LH thread | 10 | 40 | 10 | M10 | 18 | 72 | 60 | 15 | 59 | 23 | 20 | | | 3.98 € | | | B0431.12241 | LH thread | 12 | 24 | 12 | M12 | 20 | 62 | 48 | 18 | 47 | 28 | 24 | | | 4.87 € | | | B0431.16321 | LH thread | 16 | 32 | 16 | M16 | 26 | 83 | 64 | 24 | 62 | 36 | 32 | | | 9.30 € | | | B0431.20401 | LH thread | 20 | 40 | 20 | M20 | 34 | 105 | 80 | 30 | 71,5 | 45 | 40 | | | 19.34 € | |
