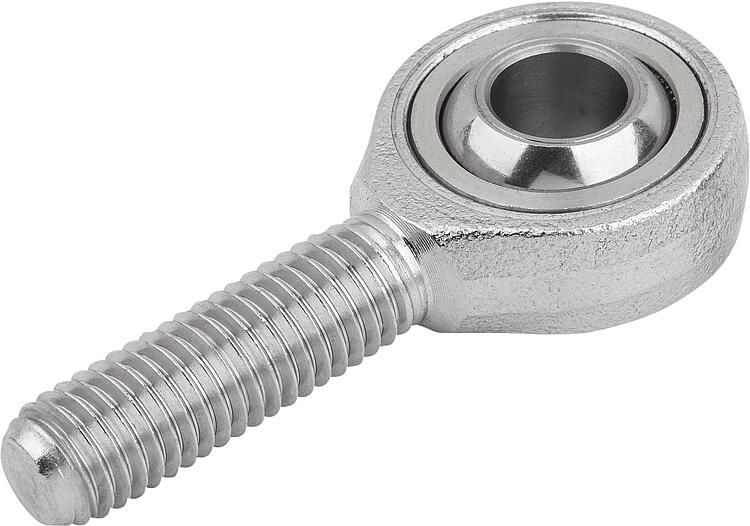

    - Rod ends with plain bearing, external thread, stainless steel, DIN ISO 12240-1 maintenance-free

Item description/product images

DescriptionMaterial:

Housing forged 1.4057 stainless steel.
Ball joint 1.4034 hardened and ground.
Bearing shell 1.4571 stainless steel.

Version:Polished.Note:The rod end bearing is maintenance-free. The connection dimensions comply with DIN 648 series KA.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

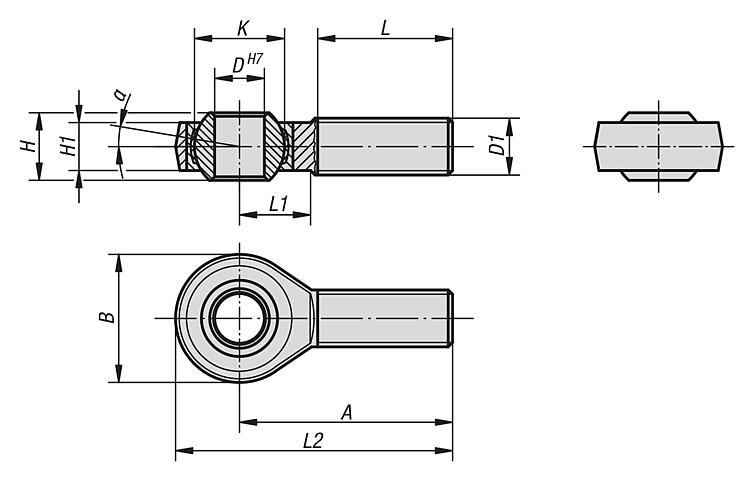

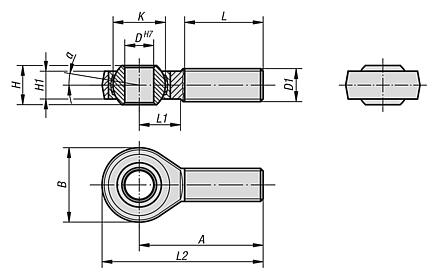

Order No.	Version 2	A	B	D	D1	H	H1	K	L	L1	L2	α	Dynamic base loads kN	Static base loads kN	Price
B0551.05	RH thread	33	18	5	M5	8	6	11,11	19	9	42	13	5,7	6	21.61 €
B0551.06	RH thread	36	20	6	M6	9	6,75	12,7	21	10	46	13	7,2	7,65	21.61 €
B0551.08	RH thread	42	24	8	M8	12	9	15,875	25	12	54	14	11,6	12,9	22.69 €
B0551.10	RH thread	48	28	10	M10	14	10,5	19,05	28	14	62	13	14,5	18	25.95 €
B0551.12	RH thread	54	32	12	M12	16	12	22,225	32	16	70	13	17	24	30.28 €
B0551.16	RH thread	66	42	16	M16	21	15	28,575	37	21	87	15	28,5	39	54.05 €
B0551.20	RH thread	78	50	20	M20x1,5	25	18	34,925	45	25	103	14	42,5	57	76.88 €
B0551.22	RH thread	84	54	22	M22x1,5	28	20	38,10	48	27	111	15	57	68	85.71 €
B0551.25	RH thread	94	60	25	M24x2,0	31	22	42,86	55	30	124	15	68	85	109.07 €
B0551.30	RH thread	110	70	30	M30x2,0	37	25	50,8	66	35	145	17	88	114	143.78 €
B0551.051	LH thread	33	18	5	M5	8	6	11,11	19	9	42	13	5,7	6	21.61 €
B0551.061	LH thread	36	20	6	M6	9	6,75	12,7	21	10	46	13	7,2	7,65	23.05 €
B0551.081	LH thread	42	24	8	M8	12	9	15,875	25	12	54	14	11,6	12,9	22.69 €
B0551.101	LH thread	48	28	10	M10	14	10,5	19,05	28	14	62	13	14,5	18	25.95 €
B0551.121	LH thread	54	32	12	M12	16	12	22,225	32	16	70	13	17	24	30.28 €
B0551.161	LH thread	66	42	16	M16	21	15	28,575	37	21	87	15	28,5	39	54.05 €
B0551.201	LH thread	78	50	20	M20x1,5	25	18	34,925	45	25	103	14	42,5	57	76.88 €
B0551.221	LH thread	84	54	22	M22x1,5	28	20	38,10	48	27	111	15	57	68	85.71 €
B0551.251	LH thread	94	60	25	M24x2,0	31	22	42,86	55	30	124	15	68	85	109.07 €
B0551.301	LH thread	110	70	30	M30x2,0	37	25	50,8	66	35	145	17	88	114	143.78 €
