B0549

Rod ends with plain bearing, external thread, steel, DIN ISO...

go back

Products
- Product news
  - New products
    - Rod ends with plain bearing, external thread, steel, DIN ISO 12240-1 maintenance-free

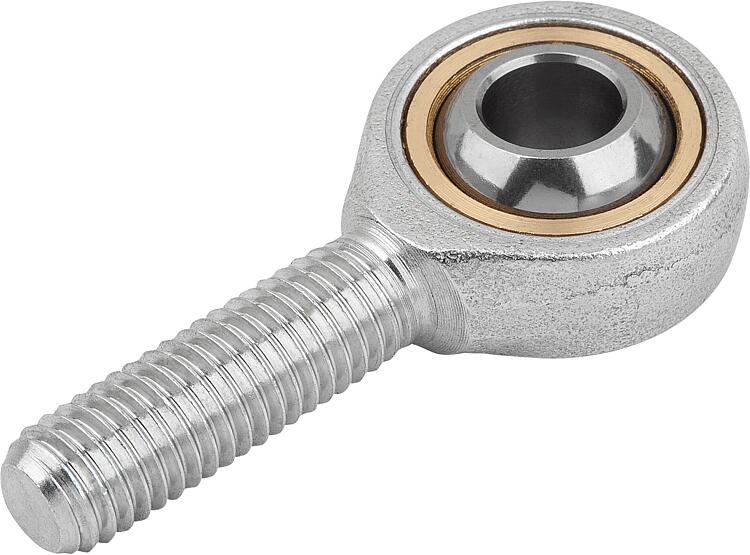

Item description/product images

DescriptionMaterial:Housing size (D) 5-12 turned free-cutting steel.
From size (D) 16 forged QT steel.
Ball joint: roller bearing steel, hardened, ground and polished.
Bearing shell bronze, with glued-in PTFE fabricVersion:Electro zinc-plated.Note:The rod end bearing is maintenance-free. The connection dimensions comply with DIN 648 series KA.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0549 Rod ends with plain bearing, external thread, steel, DIN ISO 12240-1 maintenance-free

236 kB

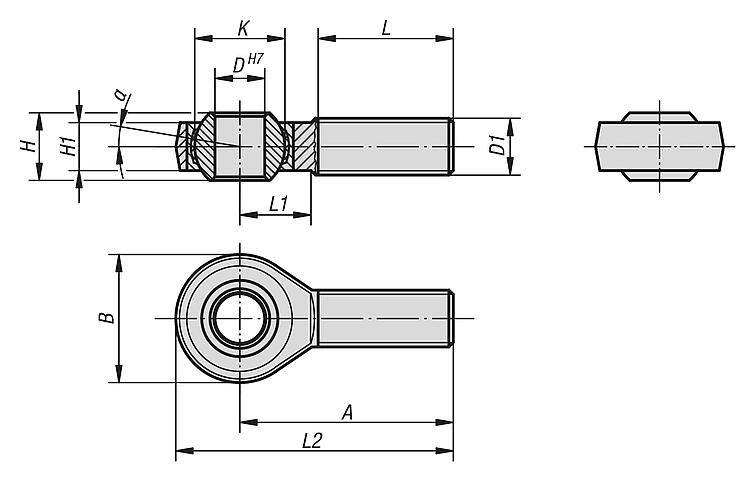

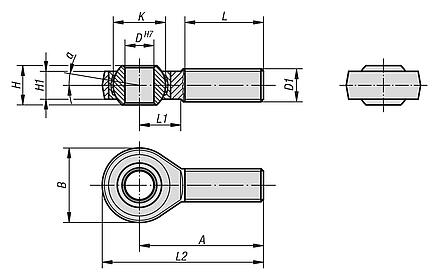

Drawings

Item selection/filter

Order No.	Version 2	Main material	A	B	D	D1	H	H1	K	L	L1	L2	α	Dynamic base loads kN	Static base loads kN		Price
B0549.05	RH thread	free-cutting steel	33	18	5	M5	8	6	11,11	19	9	42	13	5,7	6	0-32	8.92 €
B0549.06	RH thread	free-cutting steel	36	20	6	M6	9	6,75	12,7	21	10	46	13	7,2	7,65	0-32	8.92 €
B0549.08	RH thread	free-cutting steel	42	24	8	M8	12	9	15,875	25	12	54	14	11,6	12,9	0-32	9.91 €
B0549.10	RH thread	free-cutting steel	48	28	10	M10	14	10,5	19,05	28	14	62	13	14,5	18	0-32	10.91 €
B0549.12	RH thread	free-cutting steel	54	32	12	M12	16	12	22,225	32	16	70	13	17	24	0-40	14.87 €
B0549.16	RH thread	QT steel	66	42	16	M16	21	15	28,575	37	21	87	15	28,5	39	0-40	18.51 €
B0549.20	RH thread	QT steel	78	50	20	M20x1,5	25	18	34,925	45	25	103	14	42,5	57	0-40	30.91 €
B0549.22	RH thread	QT steel	84	54	22	M22x1,5	28	20	38,10	48	27	111	15	57	68	0-50	41.56 €
B0549.25	RH thread	QT steel	94	60	25	M24x2,0	31	22	42,86	55	30	124	15	68	85	0-50	53.79 €
B0549.30	RH thread	QT steel	110	70	30	M30x2,0	37	25	50,8	66	35	145	17	88	114	0-50	65.61 €
B0549.35	RH thread	QT steel	140	81	35	M36x2	43	28	57,15	85	40	180,5	16	106	142	0-50	89.47 €
B0549.40	RH thread	QT steel	150	91	40	M42x2	49	33	66,67	90	45	195,5	17	125	171	0-50	136.57 €
B0549.051	LH thread	free-cutting steel	33	18	5	M5	8	6	11,11	19	9	42	13	5,7	6	0-32	8.92 €
B0549.061	LH thread	free-cutting steel	36	20	6	M6	9	6,75	12,7	21	10	46	13	7,2	7,65	0-32	8.92 €
B0549.081	LH thread	free-cutting steel	42	24	8	M8	12	9	15,875	25	12	54	14	11,6	12,9	0-32	9.91 €
B0549.101	LH thread	free-cutting steel	48	28	10	M10	14	10,5	19,05	28	14	62	13	14,5	18	0-32	10.91 €
B0549.121	LH thread	free-cutting steel	54	32	12	M12	16	12	22,225	32	16	70	13	17	24	0-40	14.87 €
B0549.161	LH thread	QT steel	66	42	16	M16	21	15	28,575	37	21	87	15	28,5	39	0-40	18.51 €
B0549.201	LH thread	QT steel	78	50	20	M20x1,5	25	18	34,925	45	25	103	14	42,5	57	0-40	30.91 €
B0549.221	LH thread	QT steel	84	54	22	M22x1,5	28	20	38,10	48	27	111	15	57	68	0-50	41.56 €
B0549.251	LH thread	QT steel	94	60	25	M24x2,0	31	22	42,86	55	30	124	15	68	85	0-50	51.62 €
B0549.301	LH thread	QT steel	110	70	30	M30x2,0	37	25	50,8	66	35	145	17	88	114	0-50	65.61 €
B0549.351	LH thread	QT steel	140	81	35	M36x2	43	28	57,15	85	40	180,5	16	106	142	0-50	89.47 €
B0549.401	LH thread	QT steel	150	91	40	M42x2	49	33	66,67	90	45	195,5	17	125	171	0-50	136.57 €
