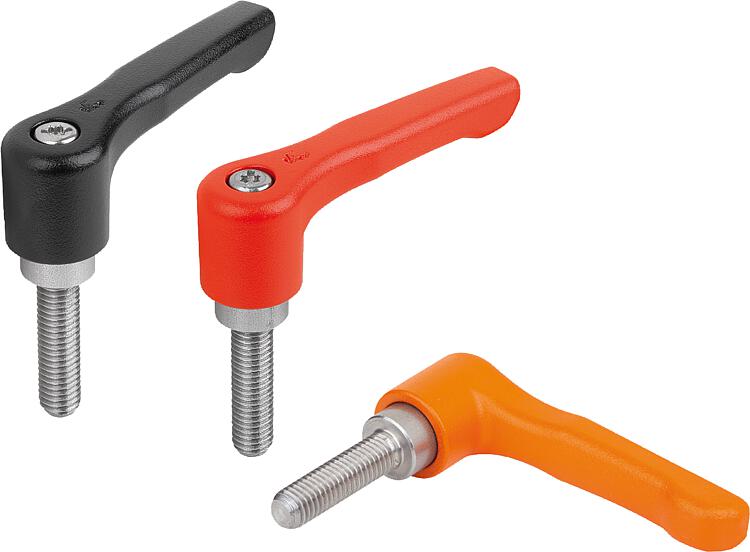

Klemmhebel Zinkdruckguss flach mit Außengewinde, Gewindeeinsatz Edelstahl
B0242

Klemmhebel Zinkdruckguss flach mit Außengewinde, Gewindeeinsatz...

zurück

Artikelbeschreibung/Produktabbildungen

BeschreibungWerkstoff:

Griffhebel aus Zinkdruckguss nach DIN EN 12844.
Stahlteile Edelstahl 1.4305.

Ausführung:Griffhebel kunststoffbeschichtet.
Edelstahlteile blank.
Hinweis:Bei L ≥ 60 mm beträgt die Gewindelänge 60 mm.Auf Anfrage:Weitere Außengewinde, Schraubenlängen, Farben sowie Sonderausführungen.
Maß "H1" auf Wunsch in anderen Längen gegen Aufpreis lieferbar.
Zeichnungshinweis:
1) Kegelkuppe DIN EN ISO 4753
Besonderheiten:
RoHS
DownloadHier gibt es die Informationen gesammelt als PDF:

Suchen Sie CAD Daten? Diese finden Sie direkt in der Produkttabelle.
 Datenblatt B0242 Klemmhebel Zinkdruckguss flach mit Außengewinde, Gewindeeinsatz Edelstahl 239 kB

Zeichnungen

Klemmhebel Zinkdruckguss flach mit Außengewinde, Gewindeeinsatz Edelstahl

Artikelübersicht (komprimiert)

Artikelauswahl/-filter
BestellnummerFarbe
Grundkörper
Oberfläche
Grundkörper
GrößeXDD1D2HH1H2H3H4AA1BZähnezahl

LCADZub.PreisBestellen
B0242.2061X15schwarz RAL 9005seidenmatt2M613,518,519,128,56,517,829,232,26574,510,12015 9,20 €
B0242.2061X20schwarz RAL 9005seidenmatt2M613,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.2061X25schwarz RAL 9005seidenmatt2M613,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.2061X30schwarz RAL 9005seidenmatt2M613,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.2061X40schwarz RAL 9005seidenmatt2M613,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.2061X50schwarz RAL 9005seidenmatt2M613,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.2061X60schwarz RAL 9005seidenmatt2M613,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.2081X15schwarz RAL 9005seidenmatt2M813,518,519,128,56,517,829,232,26574,510,12015 9,20 €
B0242.2081X20schwarz RAL 9005seidenmatt2M813,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.2081X25schwarz RAL 9005seidenmatt2M813,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.2081X30schwarz RAL 9005seidenmatt2M813,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.2081X40schwarz RAL 9005seidenmatt2M813,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.2081X50schwarz RAL 9005seidenmatt2M813,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.2081X60schwarz RAL 9005seidenmatt2M813,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.2101X20schwarz RAL 9005seidenmatt2M1013,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.2101X25schwarz RAL 9005seidenmatt2M1013,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.2101X30schwarz RAL 9005seidenmatt2M1013,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.2101X40schwarz RAL 9005seidenmatt2M1013,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.2101X50schwarz RAL 9005seidenmatt2M1013,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.2101X60schwarz RAL 9005seidenmatt2M1013,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.3081X20schwarz RAL 9005seidenmatt3M81621,222371023,83842809111,72220 10,56 €
B0242.3081X25schwarz RAL 9005seidenmatt3M81621,222371023,83842809111,72225 10,56 €
B0242.3081X30schwarz RAL 9005seidenmatt3M81621,222371023,83842809111,72230 10,56 €
B0242.3081X40schwarz RAL 9005seidenmatt3M81621,222371023,83842809111,72240 11,27 €
B0242.3081X50schwarz RAL 9005seidenmatt3M81621,222371023,83842809111,72250 11,27 €
B0242.3081X60schwarz RAL 9005seidenmatt3M81621,222371023,83842809111,72260 11,27 €
B0242.3101X20schwarz RAL 9005seidenmatt3M101621,222371023,83842809111,72220 10,56 €
B0242.3101X25schwarz RAL 9005seidenmatt3M101621,222371023,83842809111,72225 10,56 €
B0242.3101X30schwarz RAL 9005seidenmatt3M101621,222371023,83842809111,72230 10,56 €
B0242.3101X40schwarz RAL 9005seidenmatt3M101621,222371023,83842809111,72240 11,27 €
B0242.3101X50schwarz RAL 9005seidenmatt3M101621,222371023,83842809111,72250 11,27 €
B0242.3101X60schwarz RAL 9005seidenmatt3M101621,222371023,83842809111,72260 11,27 €
B0242.206181X15schwarz RAL 9005strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12015 9,20 €
B0242.206181X20schwarz RAL 9005strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.206181X25schwarz RAL 9005strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.206181X30schwarz RAL 9005strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.206181X40schwarz RAL 9005strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.206181X50schwarz RAL 9005strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.206181X60schwarz RAL 9005strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.208181X15schwarz RAL 9005strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12015 9,20 €
B0242.208181X20schwarz RAL 9005strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.208181X25schwarz RAL 9005strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.208181X30schwarz RAL 9005strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.208181X40schwarz RAL 9005strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.208181X50schwarz RAL 9005strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.208181X60schwarz RAL 9005strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.210181X20schwarz RAL 9005strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.210181X25schwarz RAL 9005strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.210181X30schwarz RAL 9005strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.210181X40schwarz RAL 9005strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.210181X50schwarz RAL 9005strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.210181X60schwarz RAL 9005strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.308181X20schwarz RAL 9005strukturmatt3M81621,222371023,83842809111,72220 10,56 €
B0242.308181X25schwarz RAL 9005strukturmatt3M81621,222371023,83842809111,72225 10,56 €
B0242.308181X30schwarz RAL 9005strukturmatt3M81621,222371023,83842809111,72230 10,56 €
B0242.308181X40schwarz RAL 9005strukturmatt3M81621,222371023,83842809111,72240 11,27 €
B0242.308181X50schwarz RAL 9005strukturmatt3M81621,222371023,83842809111,72250 11,27 €
B0242.308181X60schwarz RAL 9005strukturmatt3M81621,222371023,83842809111,72260 11,27 €
B0242.310181X20schwarz RAL 9005strukturmatt3M101621,222371023,83842809111,72220 10,56 €
B0242.310181X25schwarz RAL 9005strukturmatt3M101621,222371023,83842809111,72225 10,56 €
B0242.310181X30schwarz RAL 9005strukturmatt3M101621,222371023,83842809111,72230 10,56 €
B0242.310181X40schwarz RAL 9005strukturmatt3M101621,222371023,83842809111,72240 11,27 €
B0242.310181X50schwarz RAL 9005strukturmatt3M101621,222371023,83842809111,72250 11,27 €
B0242.310181X60schwarz RAL 9005strukturmatt3M101621,222371023,83842809111,72260 11,27 €
B0242.206182X15reinorange RAL 2004strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12015 9,20 €
B0242.206182X20reinorange RAL 2004strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.206182X25reinorange RAL 2004strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.206182X30reinorange RAL 2004strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.206182X40reinorange RAL 2004strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.206182X50reinorange RAL 2004strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.206182X60reinorange RAL 2004strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.208182X15reinorange RAL 2004strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12015 9,20 €
B0242.208182X20reinorange RAL 2004strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.208182X25reinorange RAL 2004strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.208182X30reinorange RAL 2004strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.208182X40reinorange RAL 2004strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.208182X50reinorange RAL 2004strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.208182X60reinorange RAL 2004strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.210182X20reinorange RAL 2004strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.210182X25reinorange RAL 2004strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.210182X30reinorange RAL 2004strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.210182X40reinorange RAL 2004strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.210182X50reinorange RAL 2004strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.210182X60reinorange RAL 2004strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.308182X20reinorange RAL 2004strukturmatt3M81621,222371023,83842809111,72220 10,56 €
B0242.308182X25reinorange RAL 2004strukturmatt3M81621,222371023,83842809111,72225 10,56 €
B0242.308182X30reinorange RAL 2004strukturmatt3M81621,222371023,83842809111,72230 10,56 €
B0242.308182X40reinorange RAL 2004strukturmatt3M81621,222371023,83842809111,72240 11,27 €
B0242.308182X50reinorange RAL 2004strukturmatt3M81621,222371023,83842809111,72250 11,27 €
B0242.308182X60reinorange RAL 2004strukturmatt3M81621,222371023,83842809111,72260 11,27 €
B0242.310182X20reinorange RAL 2004strukturmatt3M101621,222371023,83842809111,72220 10,56 €
B0242.310182X25reinorange RAL 2004strukturmatt3M101621,222371023,83842809111,72225 10,56 €
B0242.310182X30reinorange RAL 2004strukturmatt3M101621,222371023,83842809111,72230 10,56 €
B0242.310182X40reinorange RAL 2004strukturmatt3M101621,222371023,83842809111,72240 11,27 €
B0242.310182X50reinorange RAL 2004strukturmatt3M101621,222371023,83842809111,72250 11,27 €
B0242.310182X60reinorange RAL 2004strukturmatt3M101621,222371023,83842809111,72260 11,27 €
B0242.206184X15verkehrsrot RAL 3020strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12015 9,20 €
B0242.206184X20verkehrsrot RAL 3020strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.206184X25verkehrsrot RAL 3020strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.206184X30verkehrsrot RAL 3020strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.206184X40verkehrsrot RAL 3020strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.206184X50verkehrsrot RAL 3020strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.206184X60verkehrsrot RAL 3020strukturmatt2M613,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.208184X15verkehrsrot RAL 3020strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12015 9,20 €
B0242.208184X20verkehrsrot RAL 3020strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.208184X25verkehrsrot RAL 3020strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.208184X30verkehrsrot RAL 3020strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.208184X40verkehrsrot RAL 3020strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.208184X50verkehrsrot RAL 3020strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.208184X60verkehrsrot RAL 3020strukturmatt2M813,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.210184X20verkehrsrot RAL 3020strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12020 9,20 €
B0242.210184X25verkehrsrot RAL 3020strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12025 9,20 €
B0242.210184X30verkehrsrot RAL 3020strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12030 9,20 €
B0242.210184X40verkehrsrot RAL 3020strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12040 9,90 €
B0242.210184X50verkehrsrot RAL 3020strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12050 9,90 €
B0242.210184X60verkehrsrot RAL 3020strukturmatt2M1013,518,519,128,56,517,829,232,26574,510,12060 9,90 €
B0242.308184X20verkehrsrot RAL 3020strukturmatt3M81621,222371023,83842809111,72220 10,56 €
B0242.308184X25verkehrsrot RAL 3020strukturmatt3M81621,222371023,83842809111,72225 10,56 €
B0242.308184X30verkehrsrot RAL 3020strukturmatt3M81621,222371023,83842809111,72230 10,56 €
B0242.308184X40verkehrsrot RAL 3020strukturmatt3M81621,222371023,83842809111,72240 11,27 €
B0242.308184X50verkehrsrot RAL 3020strukturmatt3M81621,222371023,83842809111,72250 11,27 €
B0242.308184X60verkehrsrot RAL 3020strukturmatt3M81621,222371023,83842809111,72260 11,27 €
B0242.310184X20verkehrsrot RAL 3020strukturmatt3M101621,222371023,83842809111,72220 10,56 €
B0242.310184X25verkehrsrot RAL 3020strukturmatt3M101621,222371023,83842809111,72225 10,56 €
B0242.310184X30verkehrsrot RAL 3020strukturmatt3M101621,222371023,83842809111,72230 10,56 €
B0242.310184X40verkehrsrot RAL 3020strukturmatt3M101621,222371023,83842809111,72240 11,27 €
B0242.310184X50verkehrsrot RAL 3020strukturmatt3M101621,222371023,83842809111,72250 11,27 €
B0242.310184X60verkehrsrot RAL 3020strukturmatt3M101621,222371023,83842809111,72260 11,27 €
