Klemmhebel Zinkdruckguss mit Außengewinde und Schutzkappe, Gewindeeinsatz Stahl brüniert
B0232

Klemmhebel Zinkdruckguss mit Außengewinde und Schutzkappe,...

zurück

Artikelbeschreibung/Produktabbildungen

BeschreibungWerkstoff:

Griffhebel aus Zinkdruckguss nach DIN EN 12844.
Stahlteile Festigkeitsklasse 5.8.
Schutzkappe aus Edelstahl 1.4305.

Ausführung:Griffhebel kunststoffbeschichtet.
Stahlteile brüniert.
Schutzkappe Edelstahl, blank.
Hinweis:Es werden serienmäßig geliefert:
schwarz seidenmatt, orange RAL 2004.

Bei L ≥ 60 mm beträgt die Gewindelänge 60 mm.
Auf Anfrage:Weitere Außengewinde, Schraubenlängen, Farben sowie Sonderausführungen.
Maß "H1" auf Wunsch in anderen Längen gegen Aufpreis lieferbar.

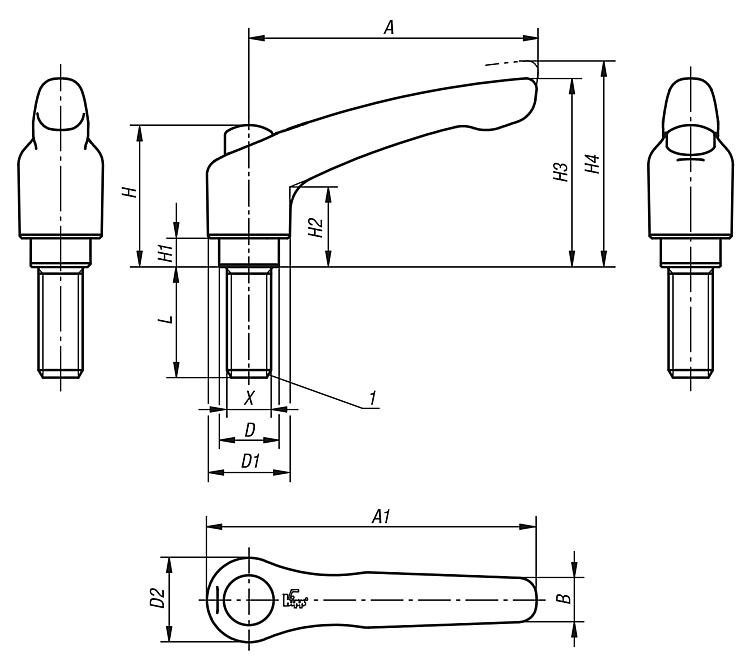

Zeichnungshinweis:
1) Kegelkuppe DIN EN ISO 4753
Besonderheiten:
RoHS
DownloadHier gibt es die Informationen gesammelt als PDF:

Suchen Sie CAD Daten? Diese finden Sie direkt in der Produkttabelle.
 Datenblatt B0232 Klemmhebel Zinkdruckguss mit Außengewinde und Schutzkappe, Gewindeeinsatz Stahl brüniert 323 kB

Zeichnungen

Klemmhebel Zinkdruckguss mit Außengewinde und Schutzkappe, Gewindeeinsatz Stahl brüniert

Artikelübersicht (komprimiert)

Artikelauswahl/-filter
BestellnummerGrößeFarbe
Grundkörper
XLDD1D2BAA1HH1H2H3H4Zähnezahl

CADZub.PreisBestellen
B0232.92061X152schwarz RAL 9005M61513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92062X152reinorange RAL 2004M61513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92061X202schwarz RAL 9005M62013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92062X202reinorange RAL 2004M62013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92061X252schwarz RAL 9005M62513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92062X252reinorange RAL 2004M62513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92061X302schwarz RAL 9005M63013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92062X302reinorange RAL 2004M63013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92061X352schwarz RAL 9005M63513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92062X352reinorange RAL 2004M63513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92061X402schwarz RAL 9005M64013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92062X402reinorange RAL 2004M64013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92061X452schwarz RAL 9005M64513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92062X452reinorange RAL 2004M64513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92061X502schwarz RAL 9005M65013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92062X502reinorange RAL 2004M65013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92061X552schwarz RAL 9005M65513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92062X552reinorange RAL 2004M65513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92061X602schwarz RAL 9005M66013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92062X602reinorange RAL 2004M66013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92081X152schwarz RAL 9005M81513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92082X152reinorange RAL 2004M81513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92081X202schwarz RAL 9005M82013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92082X202reinorange RAL 2004M82013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92081X252schwarz RAL 9005M82513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92082X252reinorange RAL 2004M82513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92081X302schwarz RAL 9005M83013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92082X302reinorange RAL 2004M83013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92081X352schwarz RAL 9005M83513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92082X352reinorange RAL 2004M83513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92081X402schwarz RAL 9005M84013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92082X402reinorange RAL 2004M84013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92081X452schwarz RAL 9005M84513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92082X452reinorange RAL 2004M84513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92081X502schwarz RAL 9005M85013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92082X502reinorange RAL 2004M85013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92081X552schwarz RAL 9005M85513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92082X552reinorange RAL 2004M85513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92081X602schwarz RAL 9005M86013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92082X602reinorange RAL 2004M86013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92101X152schwarz RAL 9005M101513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92102X152reinorange RAL 2004M101513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92101X202schwarz RAL 9005M102013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92102X202reinorange RAL 2004M102013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92101X252schwarz RAL 9005M102513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92102X252reinorange RAL 2004M102513,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92101X302schwarz RAL 9005M103013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92102X302reinorange RAL 2004M103013,518,5199,56574,5326,517,542,545,520 7,70 €
B0232.92101X352schwarz RAL 9005M103513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92102X352reinorange RAL 2004M103513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92101X402schwarz RAL 9005M104013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92102X402reinorange RAL 2004M104013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92101X452schwarz RAL 9005M104513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92102X452reinorange RAL 2004M104513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92101X502schwarz RAL 9005M105013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92102X502reinorange RAL 2004M105013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92101X552schwarz RAL 9005M105513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92102X552reinorange RAL 2004M105513,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92101X602schwarz RAL 9005M106013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.92102X602reinorange RAL 2004M106013,518,5199,56574,5326,517,542,545,520 8,12 €
B0232.93081X153schwarz RAL 9005M81516212211809141,5102454,558,522 8,55 €
B0232.93082X153reinorange RAL 2004M81516212211809141,5102454,558,522 8,55 €
B0232.93081X203schwarz RAL 9005M82016212211809141,5102454,558,522 8,55 €
B0232.93082X203reinorange RAL 2004M82016212211809141,5102454,558,522 8,55 €
B0232.93081X253schwarz RAL 9005M82516212211809141,5102454,558,522 8,55 €
B0232.93082X253reinorange RAL 2004M82516212211809141,5102454,558,522 8,55 €
B0232.93081X303schwarz RAL 9005M83016212211809141,5102454,558,522 8,55 €
B0232.93082X303reinorange RAL 2004M83016212211809141,5102454,558,522 8,55 €
B0232.93081X353schwarz RAL 9005M83516212211809141,5102454,558,522 9,02 €
B0232.93082X353reinorange RAL 2004M83516212211809141,5102454,558,522 9,02 €
B0232.93081X403schwarz RAL 9005M84016212211809141,5102454,558,522 9,02 €
B0232.93082X403reinorange RAL 2004M84016212211809141,5102454,558,522 9,02 €
B0232.93081X453schwarz RAL 9005M84516212211809141,5102454,558,522 9,02 €
B0232.93082X453reinorange RAL 2004M84516212211809141,5102454,558,522 9,02 €
B0232.93081X503schwarz RAL 9005M85016212211809141,5102454,558,522 9,02 €
B0232.93082X503reinorange RAL 2004M85016212211809141,5102454,558,522 9,02 €
B0232.93081X553schwarz RAL 9005M85516212211809141,5102454,558,522 9,02 €
B0232.93082X553reinorange RAL 2004M85516212211809141,5102454,558,522 9,02 €
B0232.93081X603schwarz RAL 9005M86016212211809141,5102454,558,522 9,02 €
B0232.93082X603reinorange RAL 2004M86016212211809141,5102454,558,522 9,02 €
B0232.93101X153schwarz RAL 9005M101516212211809141,5102454,558,522 8,55 €
B0232.93102X153reinorange RAL 2004M101516212211809141,5102454,558,522 8,55 €
B0232.93101X203schwarz RAL 9005M102016212211809141,5102454,558,522 8,55 €
B0232.93102X203reinorange RAL 2004M102016212211809141,5102454,558,522 8,55 €
B0232.93101X253schwarz RAL 9005M102516212211809141,5102454,558,522 8,55 €
B0232.93102X253reinorange RAL 2004M102516212211809141,5102454,558,522 8,55 €
B0232.93101X303schwarz RAL 9005M103016212211809141,5102454,558,522 8,55 €
B0232.93102X303reinorange RAL 2004M103016212211809141,5102454,558,522 8,55 €
B0232.93101X353schwarz RAL 9005M103516212211809141,5102454,558,522 9,02 €
B0232.93102X353reinorange RAL 2004M103516212211809141,5102454,558,522 9,02 €
B0232.93101X403schwarz RAL 9005M104016212211809141,5102454,558,522 9,02 €
B0232.93102X403reinorange RAL 2004M104016212211809141,5102454,558,522 9,02 €
B0232.93101X453schwarz RAL 9005M104516212211809141,5102454,558,522 9,02 €
B0232.93102X453reinorange RAL 2004M104516212211809141,5102454,558,522 9,02 €
B0232.93101X503schwarz RAL 9005M105016212211809141,5102454,558,522 9,02 €
B0232.93102X503reinorange RAL 2004M105016212211809141,5102454,558,522 9,02 €
B0232.93101X553schwarz RAL 9005M105516212211809141,5102454,558,522 9,02 €
B0232.93102X553reinorange RAL 2004M105516212211809141,5102454,558,522 9,02 €
B0232.93101X603schwarz RAL 9005M106016212211809141,5102454,558,522 9,02 €
B0232.93102X603reinorange RAL 2004M106016212211809141,5102454,558,522 9,02 €
