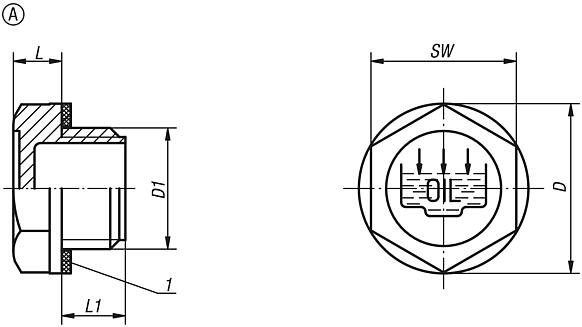

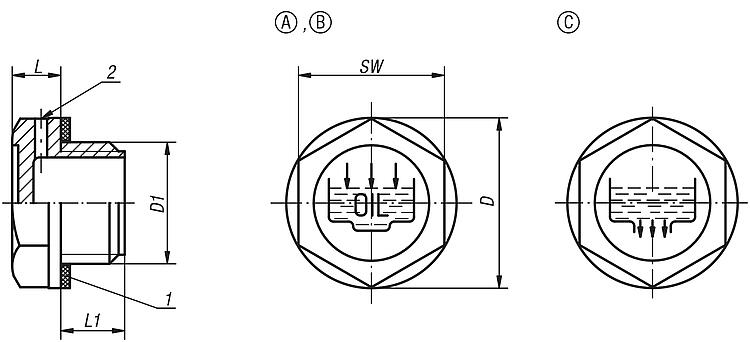

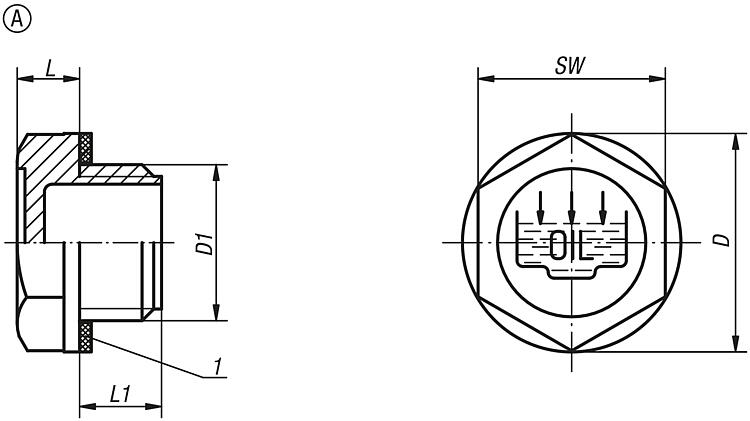

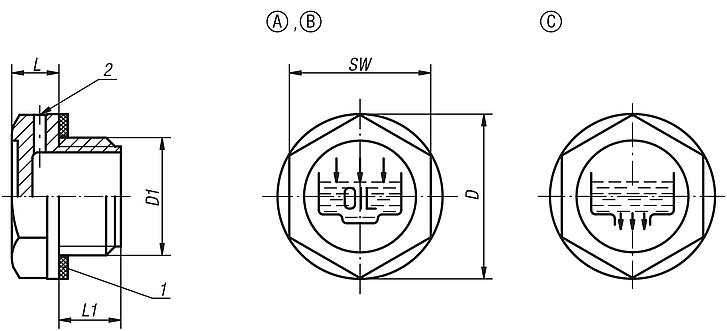

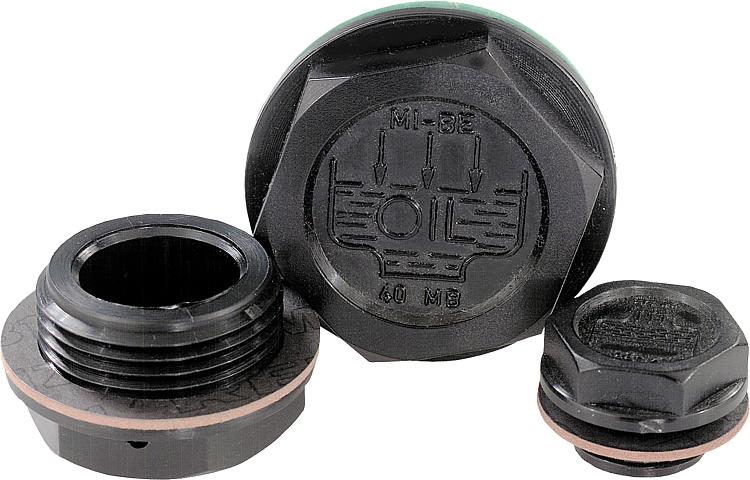

DescriptionMaterial:Thermoplastic polyamide 66Version:Black. Flat seal asbestos-freeTemperature range:Temperature resistant with oil up to 100°C.Drawing reference:Form A: with fill symbol

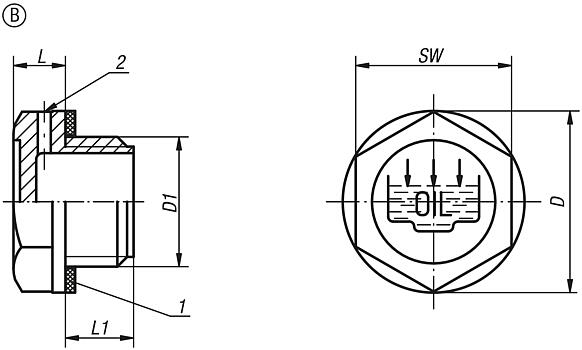

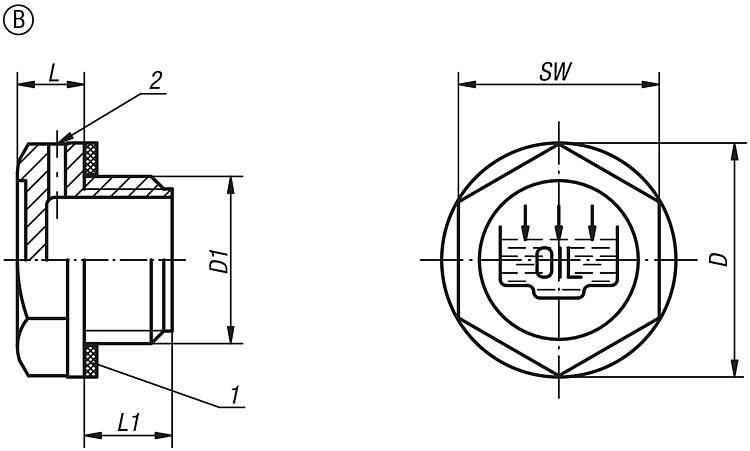

Form B: with fill symbol and vent hole

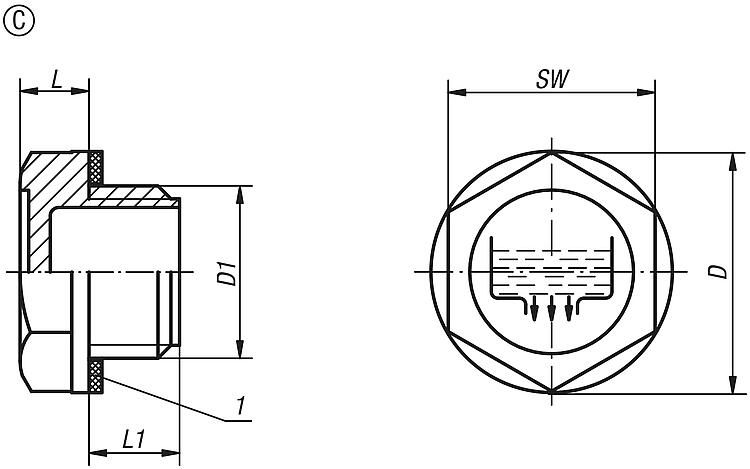

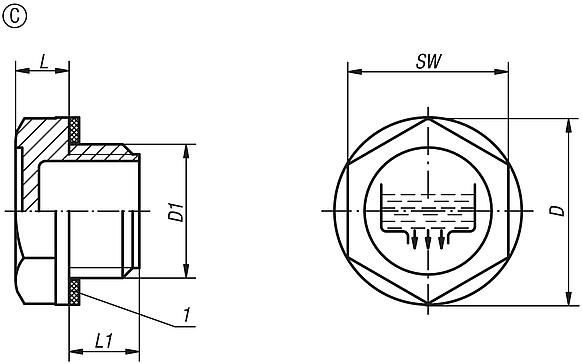

Form C: with drain symbol
1) flat seal
2) vent hole Form B only DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Form | Version 2 | Version 1 | D | D1 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0477.119014 | A | with fill symbol | without vent | 19,5 | G1/4 | 7 | 9 | 17 | 5 |  | | 0.44 € | | | B0477.122038 | A | with fill symbol | without vent | 22 | G3/8 | 7,5 | 10 | 18 | 8 | | | 0.52 € | | | B0477.128012 | A | with fill symbol | without vent | 28 | G1/2 | 7,5 | 11 | 24 | 9 | | | 0.59 € | | | B0477.134034 | A | with fill symbol | without vent | 34 | G3/4 | 9 | 11 | 30 | 11 | | | 0.82 € | | | B0477.142100 | A | with fill symbol | without vent | 42 | G1 | 10,5 | 12 | 35 | - | | | 1.16 € | | | B0477.151114 | A | with fill symbol | without vent | 51 | G1 1/4 | 12 | 13,5 | 42 | - | | | 1.68 € | | | B0477.158112 | A | with fill symbol | without vent | 58 | G1 1/2 | 10 | 14,5 | 50 | - | | | 1.91 € | | | B0477.174200 | A | with fill symbol | without vent | 74 | G2 | 13,5 | 16 | 64 | - | | | 3.16 € | | | B0477.1191415 | A | with fill symbol | without vent | 19,5 | M14X1,5 | 7 | 8 | 17 | 5 | | | 0.44 € | | | B0477.1211615 | A | with fill symbol | without vent | 21 | M16X1,5 | 7,5 | 10 | 18 | 6 | | | 0.52 € | | | B0477.1261815 | A | with fill symbol | without vent | 26 | M18X1,5 | 7,5 | 10 | 21 | 7 | | | 0.54 € | | | B0477.1282015 | A | with fill symbol | without vent | 28 | M20X1,5 | 8 | 10 | 24 | 8 | | | 0.59 € | | | B0477.1282215 | A | with fill symbol | without vent | 28 | M22X1,5 | 8 | 11 | 24 | 10 | | | 0.59 € | | | B0477.1524015 | A | with fill symbol | without vent | 52 | M40X1,5 | 10 | 13 | 42 | - | | | 1.49 € | |
|
| Order No. | Form | Version 2 | Version 1 | D | D1 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0477.219014 | B | with fill symbol | with ventilation | 19,5 | G1/4 | 7 | 9 | 17 | 5 | | | 0.49 € | | | B0477.222038 | B | with fill symbol | with ventilation | 22 | G3/8 | 7,5 | 10 | 18 | 8 | | | 0.54 € | | | B0477.228012 | B | with fill symbol | with ventilation | 28 | G1/2 | 7,5 | 11 | 24 | 9 | | | 0.63 € | | | B0477.234034 | B | with fill symbol | with ventilation | 34 | G3/4 | 9 | 11 | 30 | 11 | | | 0.90 € | | | B0477.242100 | B | with fill symbol | with ventilation | 42 | G1 | 10,5 | 12 | 35 | - | | | 1.19 € | | | B0477.251114 | B | with fill symbol | with ventilation | 51 | G1 1/4 | 12 | 13,5 | 42 | - | | | 1.76 € | | | B0477.258112 | B | with fill symbol | with ventilation | 58 | G1 1/2 | 10 | 14,5 | 50 | - | | | 2.22 € | | | B0477.274200 | B | with fill symbol | with ventilation | 74 | G2 | 13,5 | 16 | 64 | - | | | 3.20 € | | | B0477.2191415 | B | with fill symbol | with ventilation | 19,5 | M14X1,5 | 7 | 9 | 17 | 5 | | | 0.49 € | | | B0477.2211615 | B | with fill symbol | with ventilation | 21 | M16X1,5 | 7,5 | 10 | 18 | 6 | | | 0.56 € | | | B0477.2261815 | B | with fill symbol | with ventilation | 26 | M18X1,5 | 7,5 | 10 | 21 | 7 | | | 0.56 € | | | B0477.2282015 | B | with fill symbol | with ventilation | 28 | M20X1,5 | 8 | 10 | 24 | 8 | | | 0.63 € | | | B0477.2282215 | B | with fill symbol | with ventilation | 28 | M22X1,5 | 8 | 11 | 24 | 10 | | | 0.64 € | | | B0477.2524015 | B | with fill symbol | with ventilation | 52 | M40X1,5 | 10 | 13 | 42 | - | | | 1.58 € | |
|
| Order No. | Form | Version 2 | Version 1 | D | D1 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0477.319014 | C | with drain symbol | without vent | 19,5 | G1/4 | 7 | 9 | 17 | 5 | | | 0.44 € | | | B0477.322038 | C | with drain symbol | without vent | 22 | G3/8 | 7,5 | 10 | 18 | 8 | | | 0.52 € | | | B0477.328012 | C | with drain symbol | without vent | 28 | G1/2 | 7,5 | 11 | 24 | 9 | | | 0.59 € | | | B0477.334034 | C | with drain symbol | without vent | 34 | G3/4 | 9 | 11 | 30 | 11 | | | 0.82 € | | | B0477.342100 | C | with drain symbol | without vent | 42 | G1 | 10,5 | 12 | 35 | - | | | 1.16 € | | | B0477.351114 | C | with drain symbol | without vent | 51 | G1 1/4 | 12 | 13,5 | 42 | - | | | 1.68 € | | | B0477.358112 | C | with drain symbol | without vent | 58 | G1 1/2 | 10 | 14,5 | 50 | - | | | 1.91 € | | | B0477.374200 | C | with drain symbol | without vent | 74 | G2 | 13,5 | 16 | 64 | - | | | 3.16 € | | | B0477.3191415 | C | with drain symbol | without vent | 19,5 | M14X1,5 | 7 | 9 | 17 | 5 | | | 0.44 € | | | B0477.3211615 | C | with drain symbol | without vent | 21 | M16X1,5 | 7,5 | 10 | 18 | 6 | | | 0.52 € | | | B0477.3261815 | C | with drain symbol | without vent | 26 | M18X1,5 | 7,5 | 10 | 21 | 7 | | | 0.54 € | | | B0477.3282015 | C | with drain symbol | without vent | 28 | M20X1,5 | 8 | 10 | 24 | 8 | | | 0.59 € | | | B0477.3282215 | C | with drain symbol | without vent | 28 | M22X1,5 | 8 | 11 | 24 | 10 | | | 0.59 € | | | B0477.3524015 | C | with drain symbol | without vent | 52 | M40X1,5 | 10 | 13 | 42 | - | | | 1.49 € | |
|
