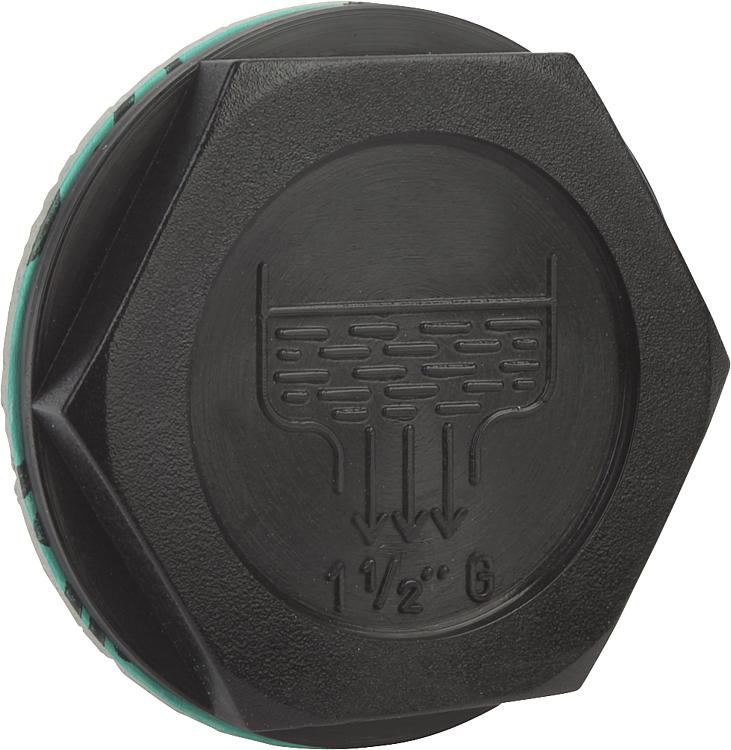

B0477_CScrew plugs Form C, with drain symbol |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic polyamide 66Version:Black. Flat seal asbestos-freeTemperature range:Temperature resistant with oil up to 100°C.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 2 | Version 1 | D | D1 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0477.319014 | C | with drain symbol | without vent | 19,5 | G1/4 | 7 | 9 | 17 | 5 |  | | 0.44 € | | | B0477.322038 | C | with drain symbol | without vent | 22 | G3/8 | 7,5 | 10 | 18 | 8 | | | 0.52 € | | | B0477.328012 | C | with drain symbol | without vent | 28 | G1/2 | 7,5 | 11 | 24 | 9 | | | 0.59 € | | | B0477.334034 | C | with drain symbol | without vent | 34 | G3/4 | 9 | 11 | 30 | 11 | | | 0.82 € | | | B0477.342100 | C | with drain symbol | without vent | 42 | G1 | 10,5 | 12 | 35 | - | | | 1.16 € | | | B0477.351114 | C | with drain symbol | without vent | 51 | G1 1/4 | 12 | 13,5 | 42 | - | | | 1.68 € | | | B0477.358112 | C | with drain symbol | without vent | 58 | G1 1/2 | 10 | 14,5 | 50 | - | | | 1.91 € | | | B0477.374200 | C | with drain symbol | without vent | 74 | G2 | 13,5 | 16 | 64 | - | | | 3.16 € | | | B0477.3191415 | C | with drain symbol | without vent | 19,5 | M14X1,5 | 7 | 9 | 17 | 5 | | | 0.44 € | | | B0477.3211615 | C | with drain symbol | without vent | 21 | M16X1,5 | 7,5 | 10 | 18 | 6 | | | 0.52 € | | | B0477.3261815 | C | with drain symbol | without vent | 26 | M18X1,5 | 7,5 | 10 | 21 | 7 | | | 0.54 € | | | B0477.3282015 | C | with drain symbol | without vent | 28 | M20X1,5 | 8 | 10 | 24 | 8 | | | 0.59 € | | | B0477.3282215 | C | with drain symbol | without vent | 28 | M22X1,5 | 8 | 11 | 24 | 10 | | | 0.59 € | | | B0477.3524015 | C | with drain symbol | without vent | 52 | M40X1,5 | 10 | 13 | 42 | - | | | 1.49 € | |
