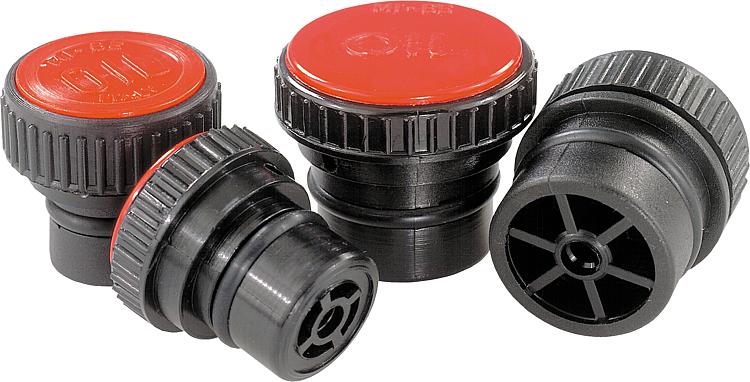

DescriptionMaterial:Housing and cap thermoplastic polyamide 66.
Air filter polyurethane (PU foam).
O-ring rubber (NBR).
Version:Housing black.
Cap red.
Filter mesh 50 µm.

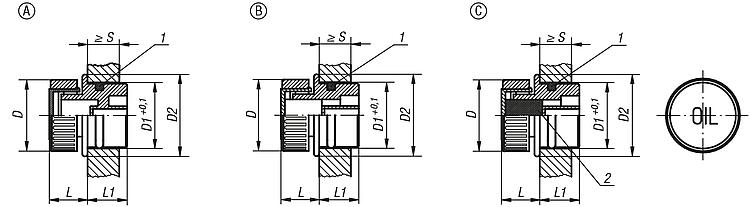

Temperature range:Temperature resistant with oil up to 100°C.Drawing reference:
Form A: without vent
Form B: with vent
Form C: with vent and air filter

1) O-ring
2) air filter Form C only
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0474 Press-in plugs 223 kB

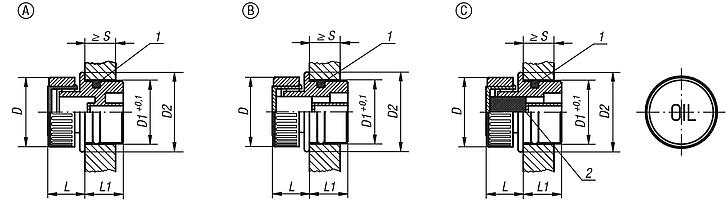

Drawings (total overview)

Press-in plugs

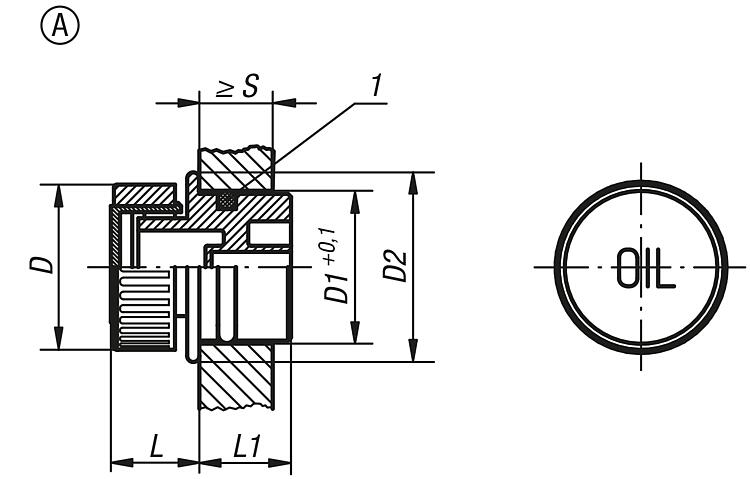

Press-in plugs Form A, without vent

More information

Drawings

Press-in plugs Form A, without vent

Item selection/filter

Order No.FormDD1D2LL1S
min.
CADAcc.PriceOrder
B0474.13018A30182314148 1.22 €
B0474.13020A3020241415,58 1.40 €
B0474.13026A3026301416,59,5 1.68 €
B0474.13030A30303414179,5 2.17 €

Press-in plugs Form B, with vent

More information

Drawings

Press-in plugs Form B, with vent

Item selection/filter

Order No.FormDD1D2LL1S
min.
CADAcc.PriceOrder
B0474.23018B30182314148 1.23 €
B0474.23020B3020241415,58 1.46 €
B0474.23026B3026301416,59,5 1.72 €
B0474.23030B30303414179,5 2.22 €

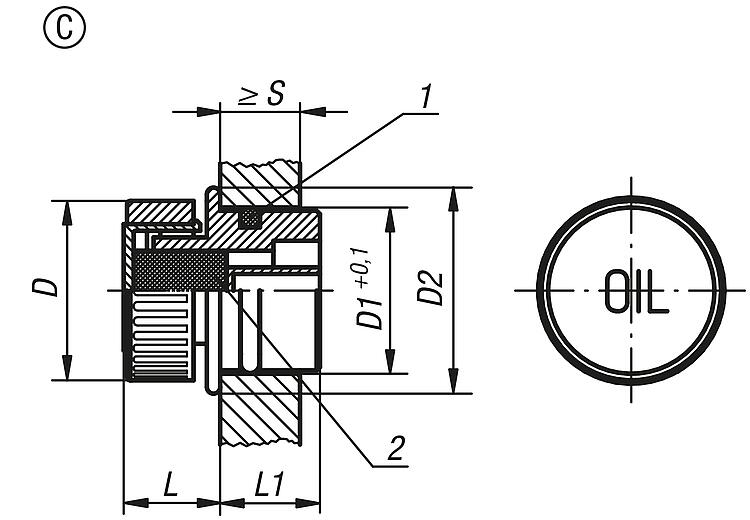

Press-in plugs Form C, with vent and air filter

More information

Drawings

Press-in plugs Form C, with vent and air filter

Item selection/filter

Order No.FormDD1D2LL1S
min.
CADAcc.PriceOrder
B0474.33018C30182314148 1.42 €
B0474.33020C3020241415,58 1.63 €
B0474.33026C3026301416,59,5 1.91 €
B0474.33030C30303414179,5 2.47 €
