B0478Screw plugs Form A, with fill symbol |
go back |
|

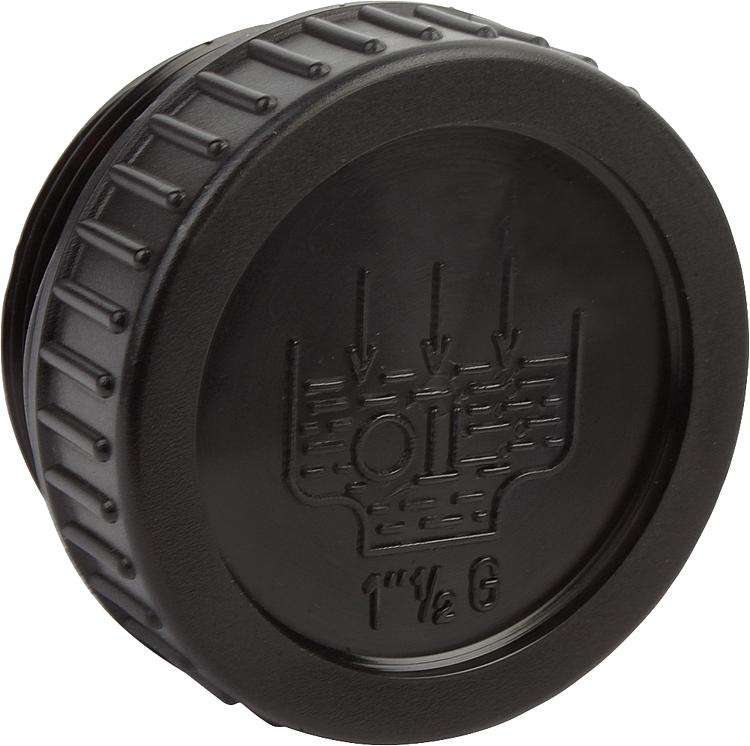

Item description/product images |
|
|
DescriptionMaterial:Thermoplastic polyamide 66;

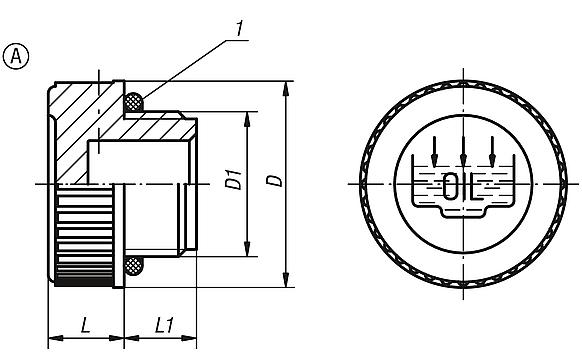

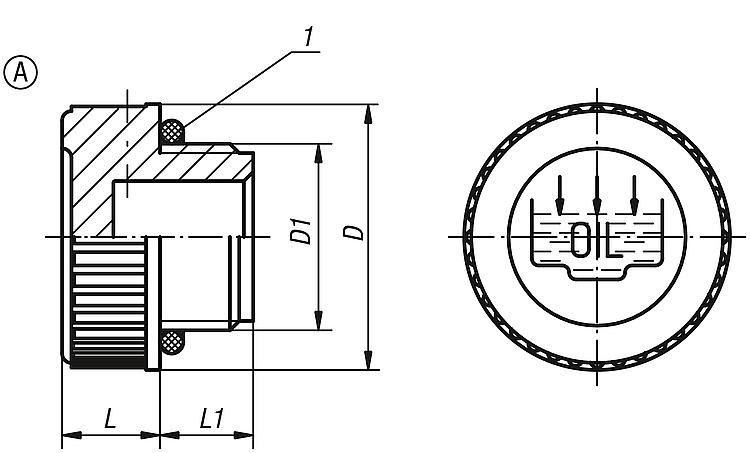

O-ring in rubber (NBR)Version:black.Temperature range:Temperature resistant with oil up to 100°C.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | L | L1 | CAD | Acc. | Price | Order |
|---|
| B0478.120014 | A | 20 | G1/4 | 9 | 9 |  | | 0.44 € | | | B0478.120038 | A | 20,5 | G3/8 | 9 | 10 | | | 0.52 € | | | B0478.128012 | A | 28 | G1/2 | 10,5 | 10,5 | | | 0.59 € | | | B0478.131034 | A | 31 | G3/4 | 12 | 11 | | | 0.82 € | | | B0478.139100 | A | 39 | G1 | 12 | 12 | | | 1.16 € | | | B0478.149114 | A | 49 | G1 1/4 | 13 | 13,5 | | | 1.68 € | | | B0478.155112 | A | 55 | G1 1/2 | 14,7 | 14,5 | | | 1.91 € | | | B0478.168200 | A | 68,5 | G2 | 15 | 16 | | | 3.16 € | | | B0478.1201415 | A | 20 | M14X1,5 | 9 | 9 | | | 0.44 € | | | B0478.1201615 | A | 20 | M16X1,5 | 9 | 10 | | | 0.52 € | | | B0478.1281815 | A | 28 | M18X1,5 | 10,5 | 10 | | | 0.54 € | | | B0478.1282015 | A | 28 | M20X1,5 | 10,5 | 10 | | | 0.59 € | | | B0478.1282215 | A | 28 | M22X1,5 | 10,5 | 10 | | | 0.59 € | |
