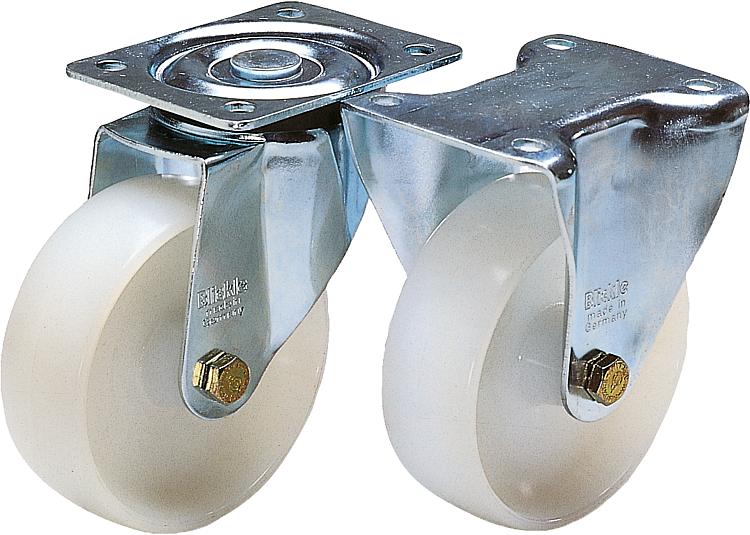

B0489Steel plate swivel and fixed castors with polyamide wheels,... |
go back |
|
|
DescriptionMaterial:Housing steel plate.
Wheels PA 6.Version:Housing press formed.
Double ball bearing with ball shield in the castor head.
Plain bearings in the wheels.Note:The PA 6 wheels have a low rolling resistance, are non-corroding, resist abrasion and are particularly shock and impact proof. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

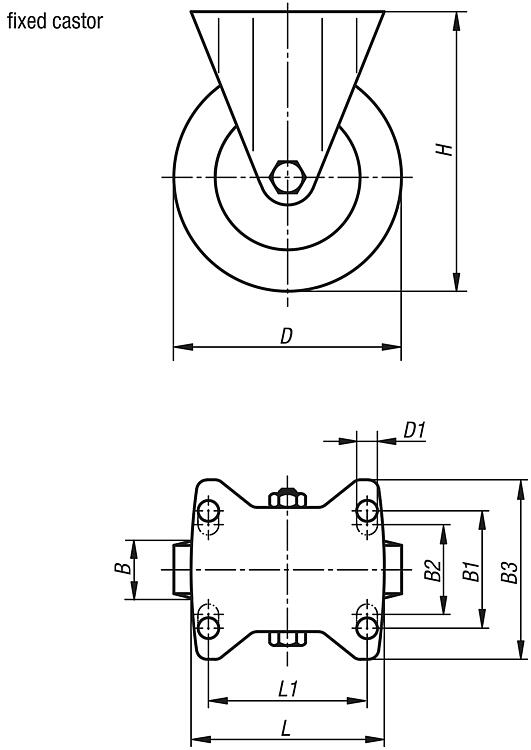

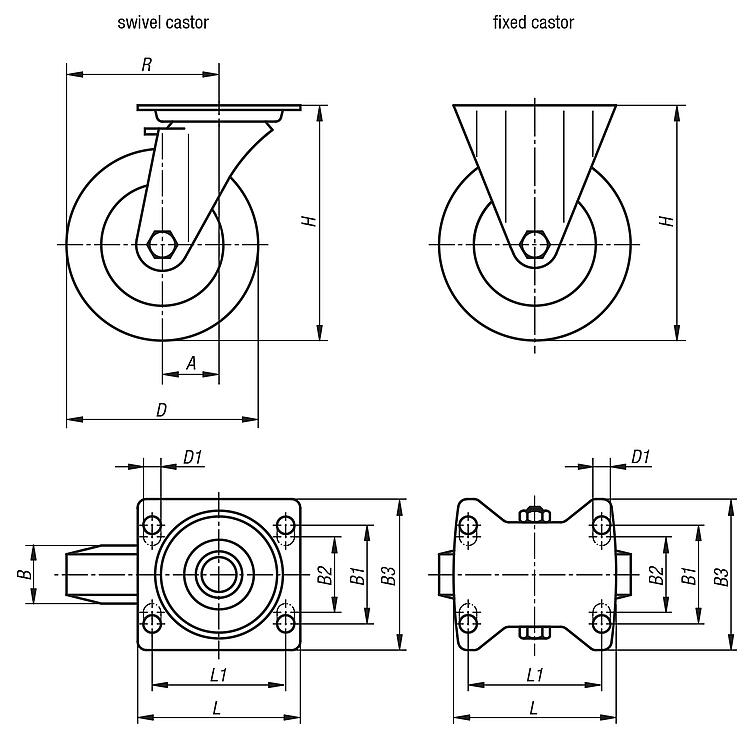

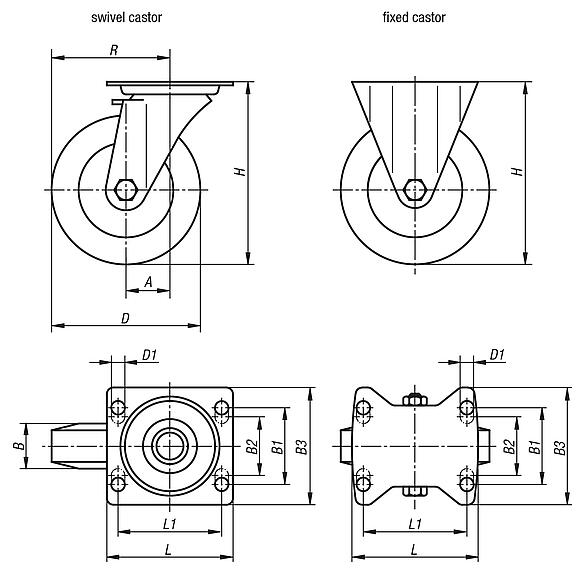

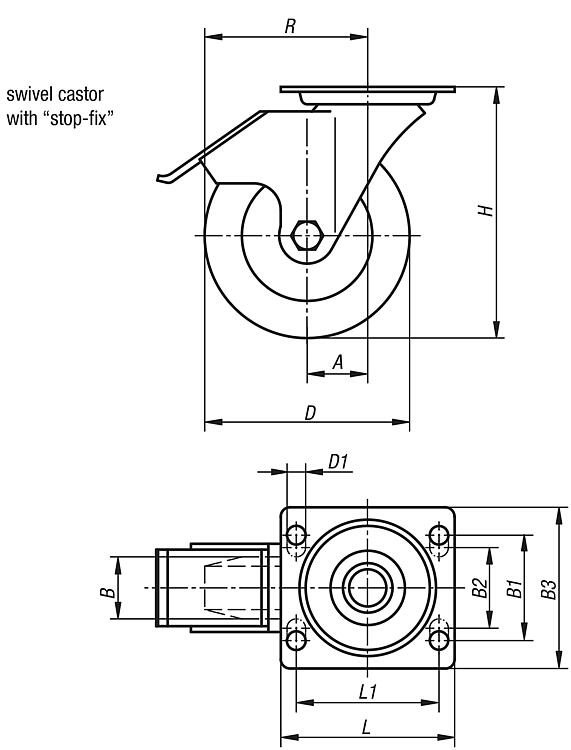

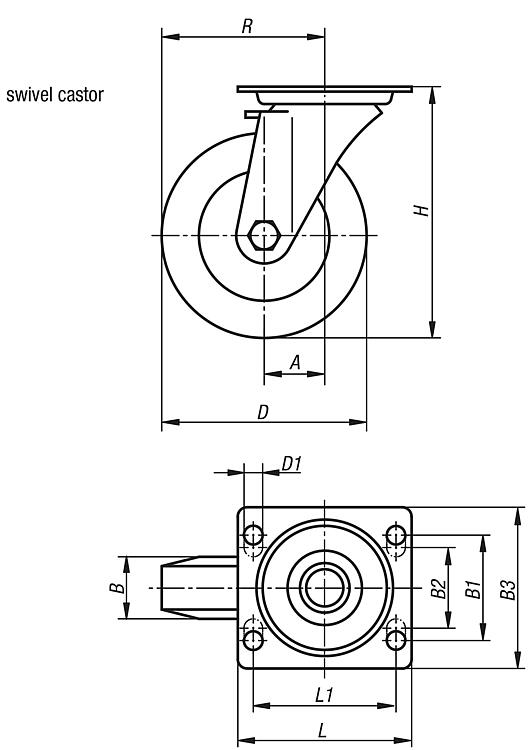

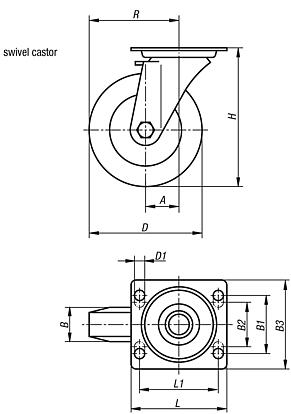

Drawings (total overview) |
