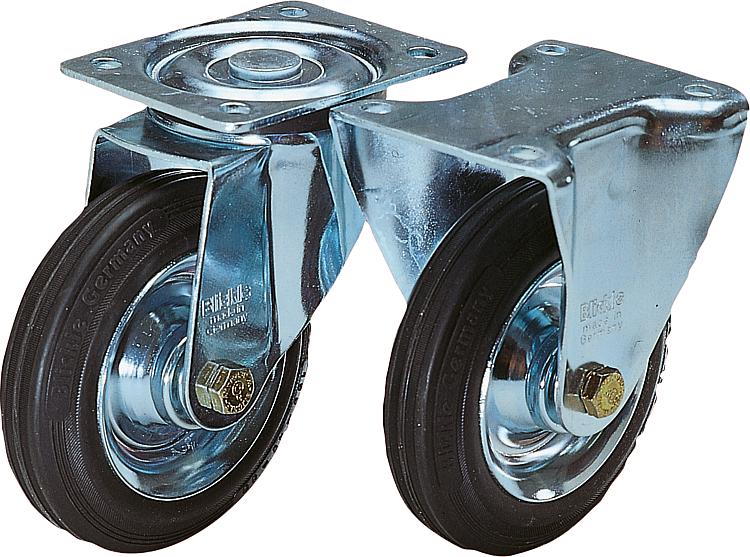

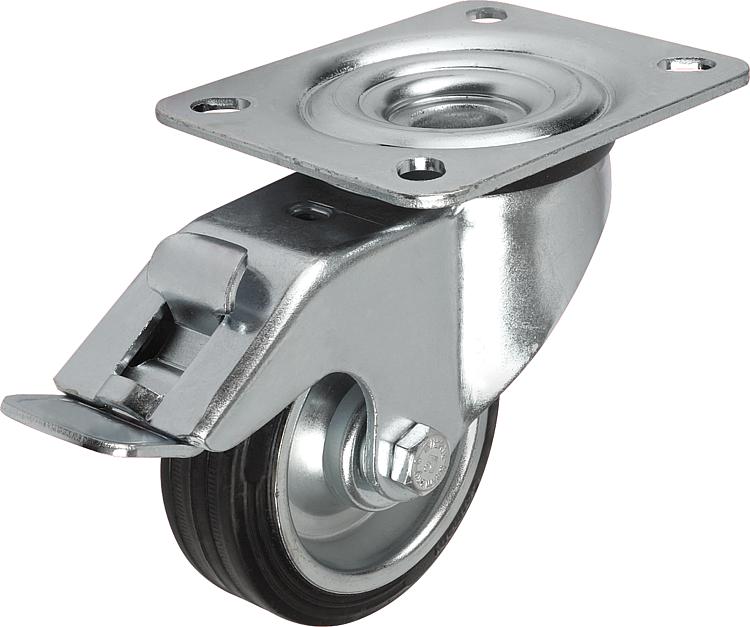

B0482Sheet steel swivel and fixed castors with solid rubber tyres,... |
go back |
|
|
DescriptionMaterial:Housing and wheel rim steel plate.
Tyres solid rubber.
Wheel hub steel tube.Version:Housing and rim press formed.
Double ball bearing with ball shield in castor head.
Roller bearings in the wheels.Note:Wheel axle bolted. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

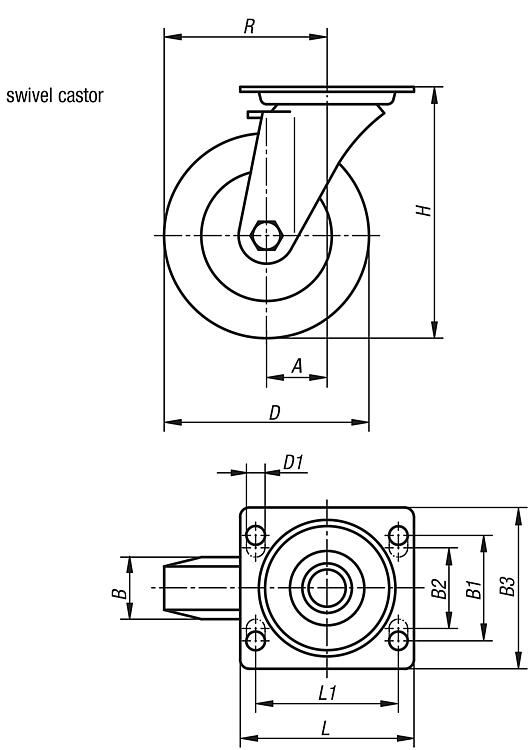

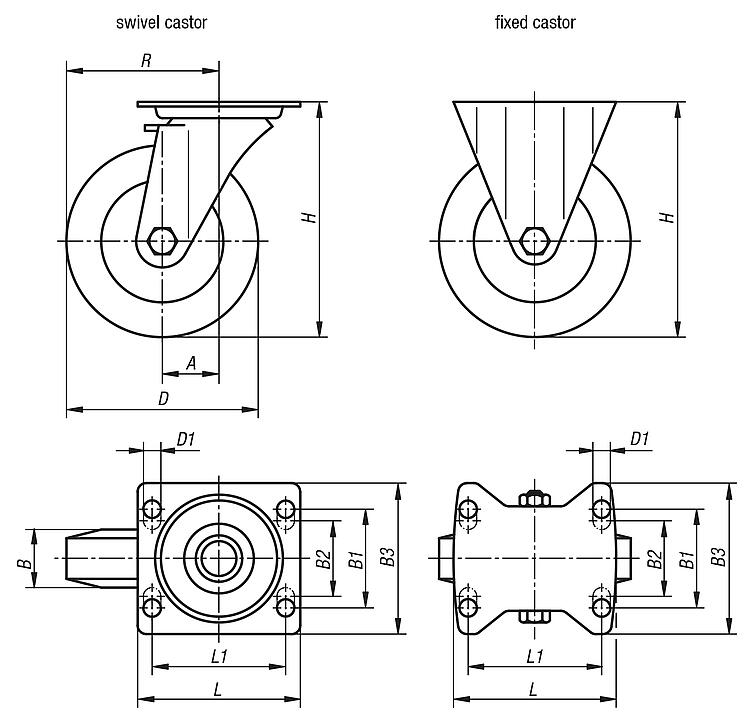

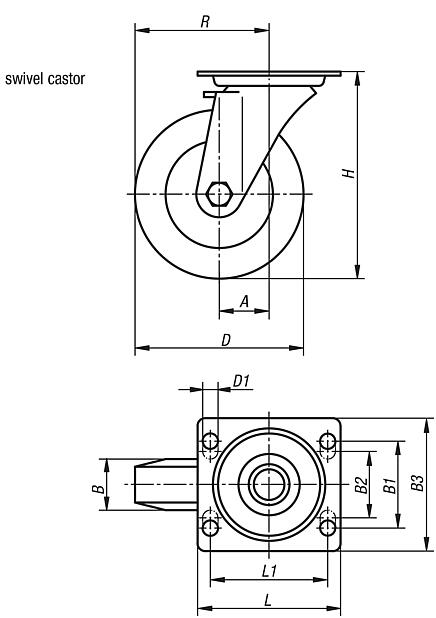

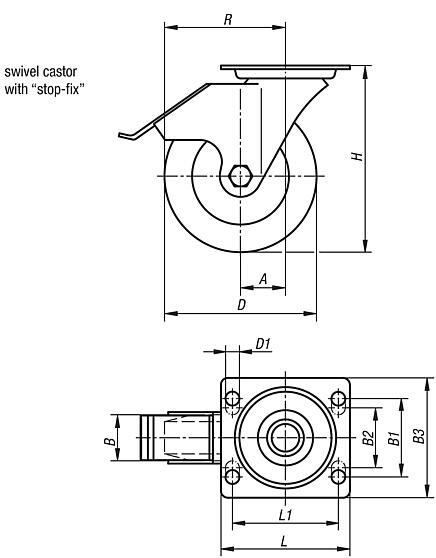

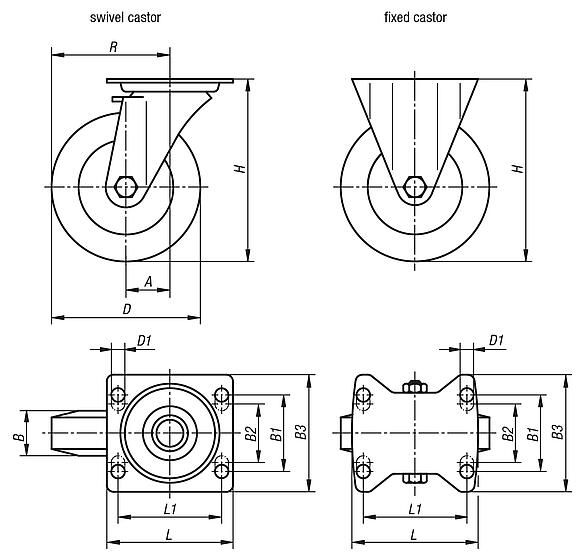

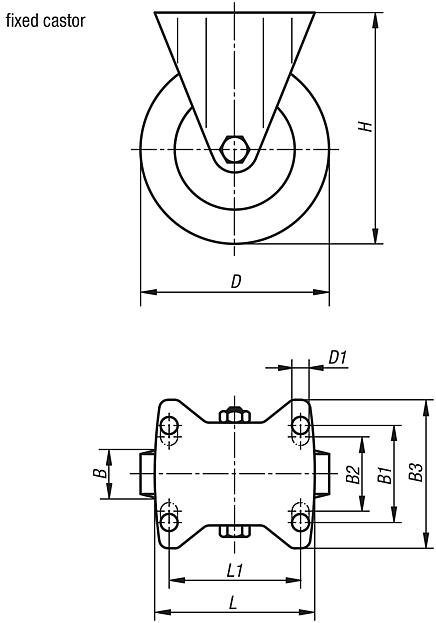

Drawings (total overview) |
