B0606_A

Ball pressure screws without head with fine thread form A

go back

Products
- Product overview
  - Locating elements, stop elements, support elements
    - Thrust screws
      - Ball-end thrust screws without head with fine thread

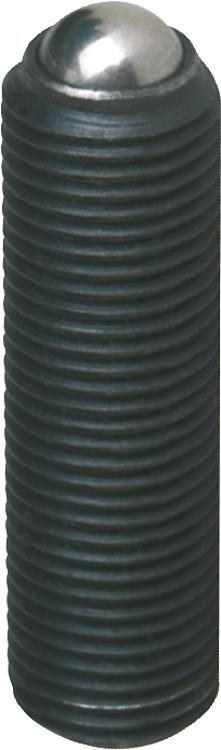

        Ball pressure screws without head with fine thread form A

Item description/product images

DescriptionMaterial:Screw carbon steel, grade min. 10.9
Ball, ball-bearing steel.Version:Screw black.
Ball hardened and bright.Note:Form A with full ball is used when a clean, polished pressure surface is required.

Fine thread enables extremely sensitive alignment of the ball pressure screws.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0606_A Ball pressure screws without head with fine thread form A

118 kB

Drawings

Item selection/filter

Order No.	Form	D1	L1	Ball Ø	SW	Load rating max. kN (static load only)	Price
B0606.10406	A	M4x0,5	6	2,5	2	3,5	2.27 €
B0606.10410	A	M4x0,5	10	2,5	2	3,5	2.28 €
B0606.10508	A	M5x0,5	8	3	2,5	4,5	2.17 €
B0606.10512	A	M5x0,5	12	3	2,5	4,5	2.17 €
B0606.10610	A	M6x0,5	10,8	4	3	9	2.17 €
B0606.10612	A	M6x0,5	12,8	4	3	9	2.17 €
B0606.10616	A	M6x0,5	16,8	4	3	9	2.20 €
B0606.10620	A	M6x0,5	20,8	4	3	9	2.20 €
B0606.10625	A	M6x0,5	25,8	4	3	9	2.20 €
B0606.10810	A	M8x1	11,2	5,5	4	10	2.03 €
B0606.10820	A	M8x1	21,2	5,5	4	15	2.03 €
B0606.11012	A	M10x1	13,7	7	5	20	2.37 €
B0606.11025	A	M10x1	26,7	7	5	20	2.49 €
B0606.11216	A	M12x1,5	18	8,5	6	30	2.70 €
B0606.11230	A	M12x1,5	32	8,5	6	30	2.89 €
B0606.11620	A	M16x1,5	23,3	12	8	60	4.33 €
B0606.11635	A	M16x1,5	38,3	12	8	60	4.60 €
B0606.12030	A	M20x1,5	34,2	15	10	90	9.93 €
B0606.12040	A	M20x1,5	44,2	15	10	90	10.17 €
