B0159Ball-end thrust screws without head with flattened ball and... |
go back |
|
Item description/product images |
|
|

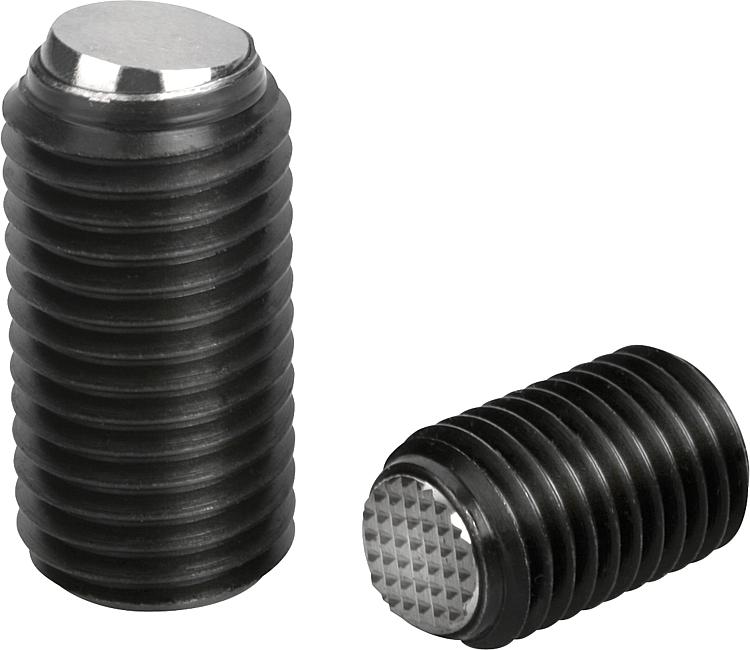

DescriptionMaterial:Screw carbon steel, grade min. 10.9
Ball, ball-bearing steel.Version:Screw black.
Ball hardened and bright.Note:Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.

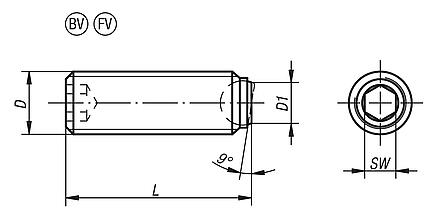

Longer versions have been designed especially to be glued in. This enables mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.Drawing reference:Form BV: flattened ball non-rotating
Form FV: flattened ball diamond grip non-rotating DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | L | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0159.50612 | BV | M6 | 3 | 12,1 | 4 | 3 | 6 |  | | 7.26 € | | | B0159.50616 | BV | M6 | 3 | 16,1 | 4 | 3 | 6 | | | 7.32 € | | | B0159.50620 | BV | M6 | 3 | 20,1 | 4 | 3 | 6 | | | 7.48 € | | | B0159.50625 | BV | M6 | 3 | 25,1 | 4 | 3 | 6 | | | 7.55 € | | | B0159.50816 | BV | M8 | 4,1 | 16,3 | 5,5 | 4 | 9 | | | 8.29 € | | | B0159.50820 | BV | M8 | 4,1 | 20,3 | 5,5 | 4 | 9 | | | 8.77 € | | | B0159.50825 | BV | M8 | 4,1 | 25,3 | 5,5 | 4 | 9 | | | 8.77 € | | | B0159.50830 | BV | M8 | 4,1 | 30,3 | 5,5 | 4 | 9 | | | 8.81 € | | | B0159.51020 | BV | M10 | 5,6 | 20,3 | 7 | 5 | 12 | | | 9.29 € | | | B0159.51025 | BV | M10 | 5,6 | 25,3 | 7 | 5 | 12 | | | 9.62 € | | | B0159.51035 | BV | M10 | 5,6 | 35,3 | 7 | 5 | 12 | | | 9.72 € | | | B0159.51040 | BV | M10 | 5,6 | 40,2 | 7 | 5 | 12 | | | 9.86 € | | | B0159.51230 | BV | M12 | 7 | 30,2 | 8,5 | 6 | 18 | | | 11.38 € | | | B0159.51220 | BV | M12 | 7 | 20,2 | 8,5 | 6 | 18 | | | 10.78 € | | | B0159.51240 | BV | M12 | 7 | 40,2 | 8,5 | 6 | 18 | | | 11.49 € | | | B0159.51250 | BV | M12 | 7 | 50 | 8,5 | 6 | 18 | | | 11.66 € | | | B0159.51620 | BV | M16 | 10,7 | 20 | 12 | 8 | 36 | | | 14.04 € | | | B0159.51625 | BV | M16 | 10,7 | 25 | 12 | 8 | 36 | | | 14.14 € | | | B0159.51635 | BV | M16 | 10,7 | 35 | 12 | 8 | 36 | | | 14.48 € | | | B0159.51650 | BV | M16 | 10,7 | 50 | 12 | 8 | 36 | | | 14.83 € | | | B0159.52030 | BV | M20 | 13,5 | 30 | 15 | 10 | 60 | | | 21.31 € | | | B0159.52040 | BV | M20 | 13,5 | 40 | 15 | 10 | 60 | | | 21.39 € | | | B0159.52050 | BV | M20 | 13,5 | 50 | 15 | 10 | 60 | | | 21.72 € | | | B0159.52060 | BV | M20 | 13,5 | 60 | 15 | 10 | 60 | | | 21.82 € | | | B0159.52435 | BV | M24 | 15,8 | 35 | 18 | 12 | 80 | | | 27.77 € | | | B0159.52450 | BV | M24 | 15,8 | 50 | 18 | 12 | 80 | | | 28.30 € | | | B0159.52480 | BV | M24 | 15,8 | 80 | 18 | 12 | 80 | | | 30.05 € | | | B0159.60816 | FV | M8 | 4,1 | 16,3 | 5,5 | 4 | 9 | | | 15.24 € | | | B0159.60820 | FV | M8 | 4,1 | 20,3 | 5,5 | 4 | 9 | | | 15.24 € | | | B0159.60825 | FV | M8 | 4,1 | 25,3 | 5,5 | 4 | 9 | | | 15.31 € | | | B0159.60830 | FV | M8 | 4,1 | 30,3 | 5,5 | 4 | 9 | | | 15.36 € | | | B0159.61020 | FV | M10 | 5,6 | 20,3 | 7 | 5 | 12 | | | 19.31 € | | | B0159.61025 | FV | M10 | 5,6 | 25,3 | 7 | 5 | 12 | | | 20.16 € | | | B0159.61035 | FV | M10 | 5,6 | 35,3 | 7 | 5 | 12 | | | 20.31 € | | | B0159.61040 | FV | M10 | 5,6 | 40,2 | 7 | 5 | 12 | | | 20.67 € | | | B0159.61220 | FV | M12 | 7 | 20,2 | 8,5 | 6 | 18 | | | 20.99 € | | | B0159.61230 | FV | M12 | 7 | 30,2 | 8,5 | 6 | 18 | | | 22.01 € | | | B0159.61240 | FV | M12 | 7 | 40,2 | 8,5 | 6 | 18 | | | 22.19 € | | | B0159.61250 | FV | M12 | 7 | 50 | 8,5 | 6 | 18 | | | 22.57 € | | | B0159.61620 | FV | M16 | 10,7 | 20 | 12 | 8 | 36 | | | 23.09 € | | | B0159.61625 | FV | M16 | 10,7 | 25 | 12 | 8 | 36 | | | 23.25 € | | | B0159.61635 | FV | M16 | 10,7 | 35 | 12 | 8 | 36 | | | 25.32 € | | | B0159.61650 | FV | M16 | 10,7 | 50 | 12 | 8 | 36 | | | 25.64 € | | | B0159.62030 | FV | M20 | 13,5 | 30 | 15 | 10 | 60 | | | 29.76 € | | | B0159.62040 | FV | M20 | 13,5 | 40 | 15 | 10 | 60 | | | 30.37 € | | | B0159.62050 | FV | M20 | 13,5 | 50 | 15 | 10 | 60 | | | 30.60 € | | | B0159.62060 | FV | M20 | 13,5 | 60 | 15 | 10 | 60 | | | 31.15 € | | | B0159.62435 | FV | M24 | 15,8 | 35 | 18 | 12 | 80 | | | 35.58 € | | | B0159.62450 | FV | M24 | 15,8 | 50 | 18 | 12 | 80 | | | 36.54 € | | | B0159.62480 | FV | M24 | 15,8 | 80 | 18 | 12 | 80 | | | 38.68 € | |
