B0160Ball-end thrust screws without head stainless steel with... |
go back |
|

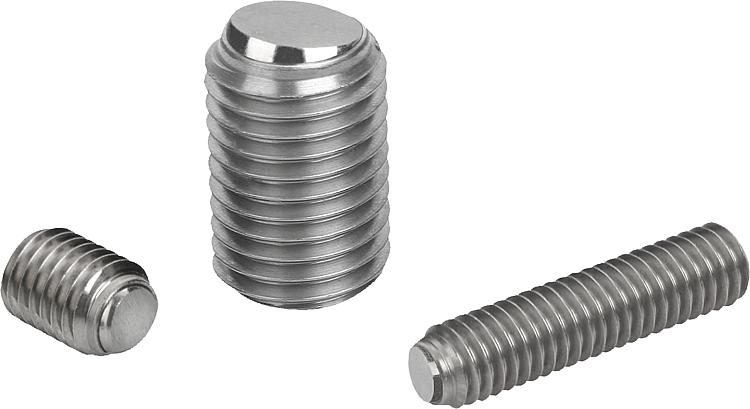

Item description/product images |
|
|
DescriptionMaterial:Screw and ball stainless steel.Version:Stainless steel bright.Note:Ball has rotation lock.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

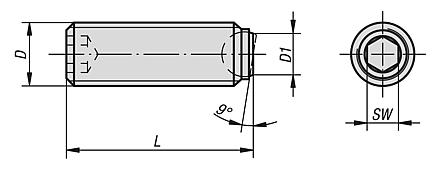

| Form | D | D1 | L | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0160.50612 | BV | M6 | 3 | 12,1 | 4 | 3 | 6 |  | | 8.02 € | | | B0160.50616 | BV | M6 | 3 | 16,1 | 4 | 3 | 6 | | | 8.12 € | | | B0160.50620 | BV | M6 | 3 | 20,1 | 4 | 3 | 6 | | | 8.25 € | | | B0160.50625 | BV | M6 | 3 | 25,1 | 4 | 3 | 6 | | | 8.32 € | | | B0160.50816 | BV | M8 | 4,1 | 16,3 | 5,5 | 4 | 9 | | | 9.35 € | | | B0160.50820 | BV | M8 | 4,1 | 20,3 | 5,5 | 4 | 9 | | | 9.41 € | | | B0160.50825 | BV | M8 | 4,1 | 25,3 | 5,5 | 4 | 9 | | | 9.41 € | | | B0160.50830 | BV | M8 | 4,1 | 30,3 | 5,5 | 4 | 9 | | | 9.48 € | | | B0160.51020 | BV | M10 | 5,6 | 20,3 | 7 | 5 | 12 | | | 10.46 € | | | B0160.51025 | BV | M10 | 5,6 | 25,3 | 7 | 5 | 12 | | | 10.55 € | | | B0160.51035 | BV | M10 | 5,6 | 35,3 | 7 | 5 | 12 | | | 10.60 € | | | B0160.51040 | BV | M10 | 5,6 | 40,2 | 7 | 5 | 12 | | | 10.72 € | | | B0160.51220 | BV | M12 | 7 | 20,2 | 8,5 | 6 | 18 | | | 12.38 € | | | B0160.51230 | BV | M12 | 7 | 30,2 | 8,5 | 6 | 18 | | | 12.54 € | | | B0160.51240 | BV | M12 | 7 | 40,2 | 8,5 | 6 | 18 | | | 12.67 € | | | B0160.51250 | BV | M12 | 7 | 50 | 8,5 | 6 | 18 | | | 12.72 € | | | B0160.51635 | BV | M16 | 10,7 | 35 | 12 | 8 | 36 | | | 18.07 € | | | B0160.51650 | BV | M16 | 10,7 | 50 | 12 | 8 | 36 | | | 18.28 € | |
