B0606Ball-end thrust screws without head with fine thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Screw carbon steel, grade min. 10.9
Ball, ball-bearing steel.Version:Screw black.
Ball hardened and bright.Note:Form A with full ball is used when a clean, polished pressure surface is required. Surfaces which are not plane and parallel can be firmly clamped or supported with Form B with flattened ball because the movable ball can adapt itself up to 9°.

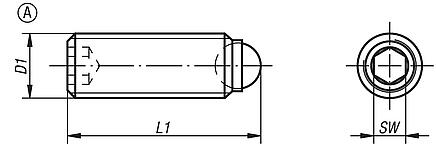

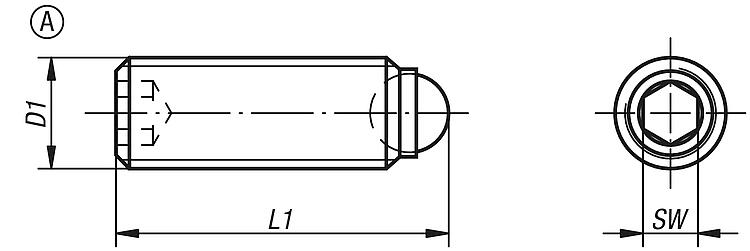

Fine thread enables extremely sensitive alignment of the ball-end thrust screws.Drawing reference:Form A: with full ball

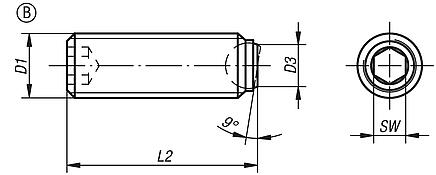

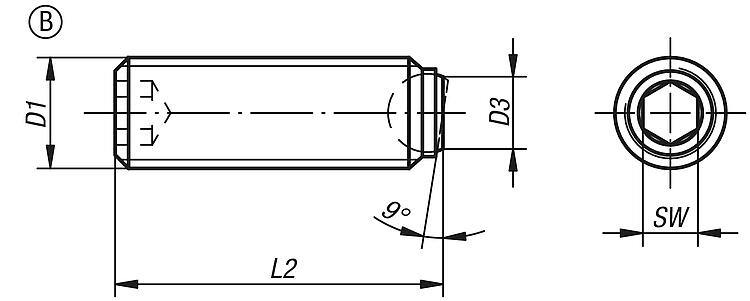

Form B: with flattened ball DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

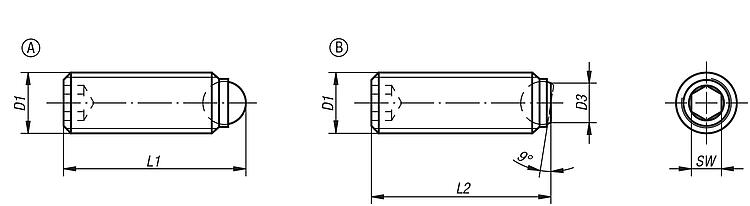

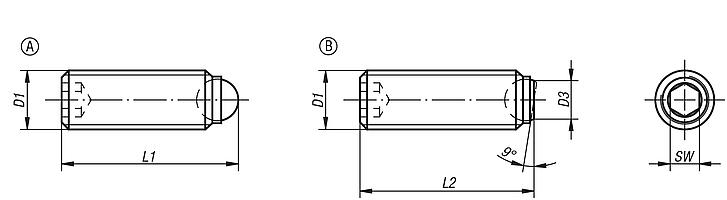

Drawings (total overview) |
| Order No. | Form | D1 | L1 | Ball Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0606.10406 | A | M4x0,5 | 6 | 2,5 | 2 | 3,5 |  | | 2.27 € | | | B0606.10410 | A | M4x0,5 | 10 | 2,5 | 2 | 3,5 | | | 2.28 € | | | B0606.10508 | A | M5x0,5 | 8 | 3 | 2,5 | 4,5 | | | 2.17 € | | | B0606.10512 | A | M5x0,5 | 12 | 3 | 2,5 | 4,5 | | | 2.17 € | | | B0606.10610 | A | M6x0,5 | 10,8 | 4 | 3 | 9 | | | 2.17 € | | | B0606.10612 | A | M6x0,5 | 12,8 | 4 | 3 | 9 | | | 2.17 € | | | B0606.10616 | A | M6x0,5 | 16,8 | 4 | 3 | 9 | | | 2.20 € | | | B0606.10620 | A | M6x0,5 | 20,8 | 4 | 3 | 9 | | | 2.20 € | | | B0606.10625 | A | M6x0,5 | 25,8 | 4 | 3 | 9 | | | 2.20 € | | | B0606.10810 | A | M8x1 | 11,2 | 5,5 | 4 | 10 | | | 2.03 € | | | B0606.10820 | A | M8x1 | 21,2 | 5,5 | 4 | 15 | | | 2.03 € | | | B0606.11012 | A | M10x1 | 13,7 | 7 | 5 | 20 | | | 2.37 € | | | B0606.11025 | A | M10x1 | 26,7 | 7 | 5 | 20 | | | 2.49 € | | | B0606.11216 | A | M12x1,5 | 18 | 8,5 | 6 | 30 | | | 2.70 € | | | B0606.11230 | A | M12x1,5 | 32 | 8,5 | 6 | 30 | | | 2.89 € | | | B0606.11620 | A | M16x1,5 | 23,3 | 12 | 8 | 60 | | | 4.33 € | | | B0606.11635 | A | M16x1,5 | 38,3 | 12 | 8 | 60 | | | 4.60 € | | | B0606.12030 | A | M20x1,5 | 34,2 | 15 | 10 | 90 | | | 9.93 € | | | B0606.12040 | A | M20x1,5 | 44,2 | 15 | 10 | 90 | | | 10.17 € | |
|
| Order No. | Form | D1 | D3 | L2 | Ball Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0606.20406 | B | M4x0,5 | 1,3 | 5,6 | 2,5 | 2 | 3,5 | | | 4.07 € | | | B0606.20410 | B | M4x0,5 | 1,3 | 9,6 | 2,5 | 2 | 3,5 | | | 4.13 € | | | B0606.20508 | B | M5x0,5 | 2,2 | 7,5 | 3 | 2,5 | 4,5 | | | 4.13 € | | | B0606.20512 | B | M5x0,5 | 2,2 | 11,5 | 3 | 2,5 | 4,5 | | | 4.18 € | | | B0606.20610 | B | M6x0,5 | 3,2 | 10 | 4 | 3 | 9 | | | 3.75 € | | | B0606.20612 | B | M6x0,5 | 3,2 | 12 | 4 | 3 | 9 | | | 3.75 € | | | B0606.20616 | B | M6x0,5 | 3,2 | 16 | 4 | 3 | 9 | | | 3.75 € | | | B0606.20620 | B | M6x0,5 | 3,2 | 20 | 4 | 3 | 9 | | | 3.82 € | | | B0606.20625 | B | M6x0,5 | 3,2 | 25 | 4 | 3 | 9 | | | 3.82 € | | | B0606.20810 | B | M8x1 | 4,1 | 10,3 | 5,5 | 4 | 10 | | | 3.84 € | | | B0606.20820 | B | M8x1 | 4,1 | 20,3 | 5,5 | 4 | 15 | | | 3.84 € | | | B0606.21012 | B | M10x1 | 5,6 | 12,3 | 7 | 5 | 20 | | | 4.30 € | | | B0606.21025 | B | M10x1 | 5,6 | 25,3 | 7 | 5 | 20 | | | 4.33 € | | | B0606.21216 | B | M12x1,5 | 7 | 16,2 | 8,5 | 6 | 30 | | | 5.74 € | | | B0606.21230 | B | M12x1,5 | 7 | 30,2 | 8,5 | 6 | 30 | | | 6.49 € | | | B0606.21620 | B | M16x1,5 | 10,7 | 20 | 12 | 8 | 60 | | | 9.15 € | | | B0606.21635 | B | M16x1,5 | 10,7 | 35 | 12 | 8 | 60 | | | 10.01 € | | | B0606.22030 | B | M20x1,5 | 13,5 | 30 | 15 | 10 | 90 | | | 16.50 € | | | B0606.22040 | B | M20x1,5 | 13,5 | 40 | 15 | 10 | 90 | | | 16.64 € | |
|
