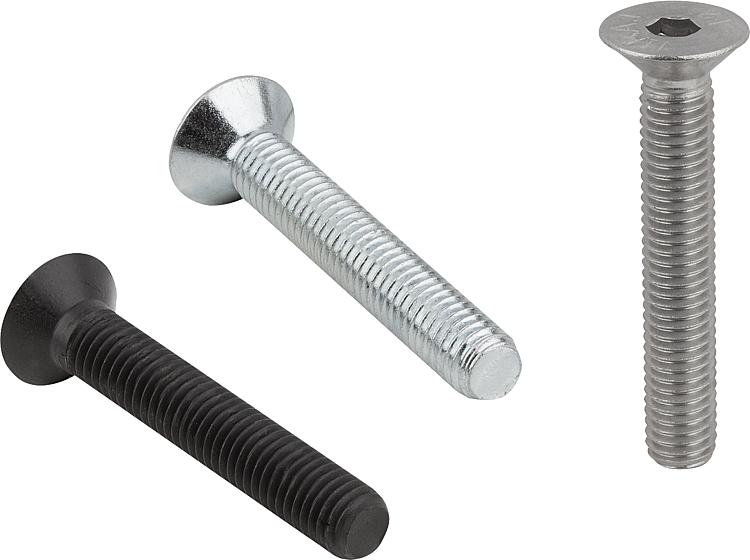

B0122Screws with countersunk head hexagon socket DIN EN ISO 10642 |
go back |
|
|
DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 8.8, bright (black) or electro zinc-plated.
Steel grade 10.9, bright (black).
Stainless steel A2-70, bright.
Stainless steel A4-70, bright.Note:As per the standard, the screws have a full length or partial length thread depending on the thread size and screw length.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

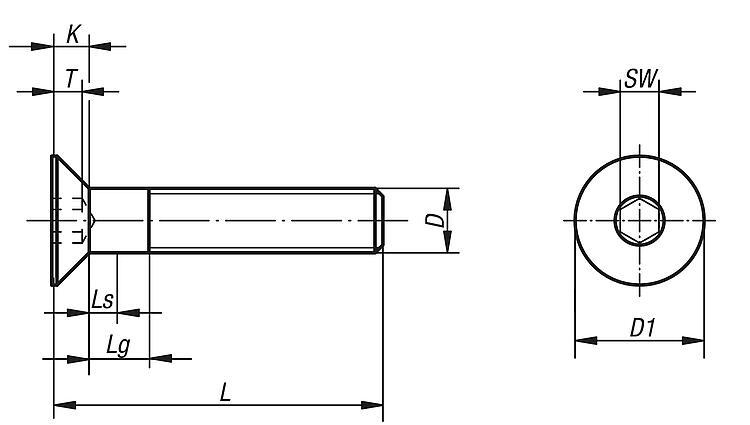

Drawings (total overview) |
Screws with countersunk head hexagon socket DIN EN ISO 10642, steel |
More information |
| Order No. | Material | Surface finish
body | Grade | D
| L | Ls
min. | Lg
max. | K max. | T
max. | D1
max. | SW | CAD | Acc. | Price | Order |
|---|
| B0122.03X10 | steel | bright (black) | 8.8 | M3 | 10 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 |  | | 0.40 € | | | B0122.03X12 | steel | bright (black) | 8.8 | M3 | 12 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.45 € | | | B0122.03X16 | steel | bright (black) | 8.8 | M3 | 16 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.47 € | | | B0122.03X20 | steel | bright (black) | 8.8 | M3 | 20 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.47 € | | | B0122.03X25 | steel | bright (black) | 8.8 | M3 | 25 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.53 € | | | B0122.04X10 | steel | bright (black) | 8.8 | M4 | 10 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.41 € | | | B0122.04X12 | steel | bright (black) | 8.8 | M4 | 12 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.46 € | | | B0122.04X16 | steel | bright (black) | 8.8 | M4 | 16 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.49 € | | | B0122.04X20 | steel | bright (black) | 8.8 | M4 | 20 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.49 € | | | B0122.04X25 | steel | bright (black) | 8.8 | M4 | 25 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.54 € | | | B0122.05X10 | steel | bright (black) | 8.8 | M5 | 10 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.31 € | | | B0122.05X12 | steel | bright (black) | 8.8 | M5 | 12 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.33 € | | | B0122.05X16 | steel | bright (black) | 8.8 | M5 | 16 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.33 € | | | B0122.05X20 | steel | bright (black) | 8.8 | M5 | 20 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.33 € | | | B0122.05X25 | steel | bright (black) | 8.8 | M5 | 25 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.37 € | | | B0122.05X30 | steel | bright (black) | 8.8 | M5 | 30 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.39 € | | | B0122.06X10 | steel | bright (black) | 8.8 | M6 | 10 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.32 € | | | B0122.06X12 | steel | bright (black) | 8.8 | M6 | 12 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.32 € | | | B0122.06X16 | steel | bright (black) | 8.8 | M6 | 16 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.32 € | | | B0122.06X20 | steel | bright (black) | 8.8 | M6 | 20 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.33 € | | | B0122.06X25 | steel | bright (black) | 8.8 | M6 | 25 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.33 € | | | B0122.06X30 | steel | bright (black) | 8.8 | M6 | 30 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.37 € | | | B0122.06X35 | steel | bright (black) | 8.8 | M6 | 35 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.41 € | | | B0122.06X40 | steel | bright (black) | 8.8 | M6 | 40 | 11 | 16 | 3,72 | 2,5 | 12,16 | 4 | | | 0.72 € | | | B0122.06X45 | steel | bright (black) | 8.8 | M6 | 45 | 16 | 21 | 3,72 | 2,5 | 12,16 | 4 | | | 0.72 € | | | B0122.06X50 | steel | bright (black) | 8.8 | M6 | 50 | 21 | 26 | 3,72 | 2,5 | 12,16 | 4 | | | 0.81 € | | | B0122.06X60 | steel | bright (black) | 8.8 | M6 | 60 | 31 | 36 | 3,72 | 2,5 | 12,16 | 4 | | | 0.91 € | | | B0122.08X16 | steel | bright (black) | 8.8 | M8 | 16 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.40 € | | | B0122.08X20 | steel | bright (black) | 8.8 | M8 | 20 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.40 € | | | B0122.08X25 | steel | bright (black) | 8.8 | M8 | 25 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.40 € | | | B0122.08X30 | steel | bright (black) | 8.8 | M8 | 30 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.41 € | | | B0122.08X35 | steel | bright (black) | 8.8 | M8 | 35 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.49 € | | | B0122.08X40 | steel | bright (black) | 8.8 | M8 | 40 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.49 € | | | B0122.08X45 | steel | bright (black) | 8.8 | M8 | 45 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.54 € | | | B0122.08X50 | steel | bright (black) | 8.8 | M8 | 50 | 15,75 | 22 | 4,96 | 3,2 | 16,43 | 5 | | | 0.85 € | | | B0122.08X60 | steel | bright (black) | 8.8 | M8 | 60 | 25,75 | 32 | 4,96 | 3,2 | 16,43 | 5 | | | 0.93 € | | | B0122.10X16 | steel | bright (black) | 8.8 | M10 | 16 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.71 € | | | B0122.10X20 | steel | bright (black) | 8.8 | M10 | 20 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.71 € | | | B0122.10X25 | steel | bright (black) | 8.8 | M10 | 25 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.72 € | | | B0122.10X30 | steel | bright (black) | 8.8 | M10 | 30 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.72 € | | | B0122.10X35 | steel | bright (black) | 8.8 | M10 | 35 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.84 € | | | B0122.10X40 | steel | bright (black) | 8.8 | M10 | 40 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.84 € | | | B0122.10X45 | steel | bright (black) | 8.8 | M10 | 45 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.93 € | | | B0122.10X50 | steel | bright (black) | 8.8 | M10 | 50 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.31 € | | | B0122.10X60 | steel | bright (black) | 8.8 | M10 | 60 | 20,5 | 28 | 6,2 | 3,9 | 20,69 | 6 | | | 1.31 € | | | B0122.10X70 | steel | bright (black) | 8.8 | M10 | 70 | 30,5 | 38 | 6,2 | 3,9 | 20,69 | 6 | | | 1.66 € | | | B0122.12X20 | steel | bright (black) | 8.8 | M12 | 20 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.87 € | | | B0122.12X25 | steel | bright (black) | 8.8 | M12 | 25 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.87 € | | | B0122.12X30 | steel | bright (black) | 8.8 | M12 | 30 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.87 € | | | B0122.12X35 | steel | bright (black) | 8.8 | M12 | 35 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.89 € | | | B0122.12X40 | steel | bright (black) | 8.8 | M12 | 40 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.91 € | | | B0122.12X45 | steel | bright (black) | 8.8 | M12 | 45 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.93 € | | | B0122.12X50 | steel | bright (black) | 8.8 | M12 | 50 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.93 € | | | B0122.12X60 | steel | bright (black) | 8.8 | M12 | 60 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.91 € | | | B0122.12X70 | steel | bright (black) | 8.8 | M12 | 70 | 25,25 | 34 | 7,44 | 4,9 | 24,81 | 8 | | | 2.35 € | | | B0122.12X80 | steel | bright (black) | 8.8 | M12 | 80 | 35,25 | 44 | 7,44 | 4,9 | 24,81 | 8 | | | 2.68 € | | | B0122.16X30 | steel | bright (black) | 8.8 | M16 | 30 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.63 € | | | B0122.16X35 | steel | bright (black) | 8.8 | M16 | 35 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.63 € | | | B0122.16X40 | steel | bright (black) | 8.8 | M16 | 40 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.63 € | | | B0122.16X45 | steel | bright (black) | 8.8 | M16 | 45 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.70 € | | | B0122.16X50 | steel | bright (black) | 8.8 | M16 | 50 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.70 € | | | B0122.16X60 | steel | bright (black) | 8.8 | M16 | 60 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.93 € | | | B0122.16X70 | steel | bright (black) | 8.8 | M16 | 70 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 3.92 € | | | B0122.16X80 | steel | bright (black) | 8.8 | M16 | 80 | 22 | 32 | 8,8 | 5,4 | 30,61 | 10 | | | currently not available | | | B0122.403X10 | steel | electro zinc-plated | 8.8 | M3 | 10 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.41 € | | | B0122.403X12 | steel | electro zinc-plated | 8.8 | M3 | 12 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.46 € | | | B0122.403X16 | steel | electro zinc-plated | 8.8 | M3 | 16 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.49 € | | | B0122.403X20 | steel | electro zinc-plated | 8.8 | M3 | 20 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.49 € | | | B0122.403X25 | steel | electro zinc-plated | 8.8 | M3 | 25 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.54 € | | | B0122.404X10 | steel | electro zinc-plated | 8.8 | M4 | 10 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.42 € | | | B0122.404X12 | steel | electro zinc-plated | 8.8 | M4 | 12 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.49 € | | | B0122.404X16 | steel | electro zinc-plated | 8.8 | M4 | 16 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.50 € | | | B0122.404X20 | steel | electro zinc-plated | 8.8 | M4 | 20 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.50 € | | | B0122.404X25 | steel | electro zinc-plated | 8.8 | M4 | 25 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.56 € | | | B0122.405X10 | steel | electro zinc-plated | 8.8 | M5 | 10 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.32 € | | | B0122.405X12 | steel | electro zinc-plated | 8.8 | M5 | 12 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.34 € | | | B0122.405X16 | steel | electro zinc-plated | 8.8 | M5 | 16 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.34 € | | | B0122.405X20 | steel | electro zinc-plated | 8.8 | M5 | 20 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.34 € | | | B0122.405X25 | steel | electro zinc-plated | 8.8 | M5 | 25 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.39 € | | | B0122.405X30 | steel | electro zinc-plated | 8.8 | M5 | 30 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.40 € | | | B0122.406X10 | steel | electro zinc-plated | 8.8 | M6 | 10 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.33 € | | | B0122.406X12 | steel | electro zinc-plated | 8.8 | M6 | 12 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.33 € | | | B0122.406X16 | steel | electro zinc-plated | 8.8 | M6 | 16 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.33 € | | | B0122.406X20 | steel | electro zinc-plated | 8.8 | M6 | 20 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.34 € | | | B0122.406X25 | steel | electro zinc-plated | 8.8 | M6 | 25 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.34 € | | | B0122.406X30 | steel | electro zinc-plated | 8.8 | M6 | 30 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.39 € | | | B0122.406X35 | steel | electro zinc-plated | 8.8 | M6 | 35 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.43 € | | | B0122.406X40 | steel | electro zinc-plated | 8.8 | M6 | 40 | 11 | 16 | 3,72 | 2,5 | 12,16 | 4 | | | 0.74 € | | | B0122.406X45 | steel | electro zinc-plated | 8.8 | M6 | 45 | 16 | 21 | 3,72 | 2,5 | 12,16 | 4 | | | 0.74 € | | | B0122.406X50 | steel | electro zinc-plated | 8.8 | M6 | 50 | 21 | 26 | 3,72 | 2,5 | 12,16 | 4 | | | 0.84 € | | | B0122.406X60 | steel | electro zinc-plated | 8.8 | M6 | 60 | 31 | 36 | 3,72 | 2,5 | 12,16 | 4 | | | 0.94 € | | | B0122.408X16 | steel | electro zinc-plated | 8.8 | M8 | 16 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.42 € | | | B0122.408X20 | steel | electro zinc-plated | 8.8 | M8 | 20 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.42 € | | | B0122.408X25 | steel | electro zinc-plated | 8.8 | M8 | 25 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.42 € | | | B0122.408X30 | steel | electro zinc-plated | 8.8 | M8 | 30 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.43 € | | | B0122.408X35 | steel | electro zinc-plated | 8.8 | M8 | 35 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.52 € | | | B0122.408X40 | steel | electro zinc-plated | 8.8 | M8 | 40 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.52 € | | | B0122.408X45 | steel | electro zinc-plated | 8.8 | M8 | 45 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.57 € | | | B0122.408X50 | steel | electro zinc-plated | 8.8 | M8 | 50 | 15,75 | 22 | 4,96 | 3,2 | 16,43 | 5 | | | 0.88 € | | | B0122.408X60 | steel | electro zinc-plated | 8.8 | M8 | 60 | 25,75 | 32 | 4,96 | 3,2 | 16,43 | 5 | | | 0.95 € | | | B0122.410X16 | steel | electro zinc-plated | 8.8 | M10 | 16 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.73 € | | | B0122.410X20 | steel | electro zinc-plated | 8.8 | M10 | 20 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.73 € | | | B0122.410X25 | steel | electro zinc-plated | 8.8 | M10 | 25 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.74 € | | | B0122.410X30 | steel | electro zinc-plated | 8.8 | M10 | 30 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.74 € | | | B0122.410X35 | steel | electro zinc-plated | 8.8 | M10 | 35 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.87 € | | | B0122.410X40 | steel | electro zinc-plated | 8.8 | M10 | 40 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.87 € | | | B0122.410X45 | steel | electro zinc-plated | 8.8 | M10 | 45 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.95 € | | | B0122.410X50 | steel | electro zinc-plated | 8.8 | M10 | 50 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.33 € | | | B0122.410X60 | steel | electro zinc-plated | 8.8 | M10 | 60 | 20,5 | 28 | 6,2 | 3,9 | 20,69 | 6 | | | 1.33 € | | | B0122.410X70 | steel | electro zinc-plated | 8.8 | M10 | 70 | 30,5 | 38 | 6,2 | 3,9 | 20,69 | 6 | | | 1.68 € | | | B0122.412X20 | steel | electro zinc-plated | 8.8 | M12 | 20 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.89 € | | | B0122.412X25 | steel | electro zinc-plated | 8.8 | M12 | 25 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.89 € | | | B0122.412X30 | steel | electro zinc-plated | 8.8 | M12 | 30 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.89 € | | | B0122.412X35 | steel | electro zinc-plated | 8.8 | M12 | 35 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.91 € | | | B0122.412X40 | steel | electro zinc-plated | 8.8 | M12 | 40 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.94 € | | | B0122.412X45 | steel | electro zinc-plated | 8.8 | M12 | 45 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.95 € | | | B0122.412X50 | steel | electro zinc-plated | 8.8 | M12 | 50 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 0.95 € | | | B0122.412X60 | steel | electro zinc-plated | 8.8 | M12 | 60 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.93 € | | | B0122.412X70 | steel | electro zinc-plated | 8.8 | M12 | 70 | 25,25 | 34 | 7,44 | 4,9 | 24,81 | 8 | | | 2.37 € | | | B0122.412X80 | steel | electro zinc-plated | 8.8 | M12 | 80 | 35,25 | 44 | 7,44 | 4,9 | 24,81 | 8 | | | 2.70 € | | | B0122.416X30 | steel | electro zinc-plated | 8.8 | M16 | 30 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.67 € | | | B0122.416X35 | steel | electro zinc-plated | 8.8 | M16 | 35 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.67 € | | | B0122.416X40 | steel | electro zinc-plated | 8.8 | M16 | 40 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.67 € | | | B0122.416X45 | steel | electro zinc-plated | 8.8 | M16 | 45 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.73 € | | | B0122.416X50 | steel | electro zinc-plated | 8.8 | M16 | 50 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.73 € | | | B0122.416X60 | steel | electro zinc-plated | 8.8 | M16 | 60 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 1.97 € | | | B0122.416X70 | steel | electro zinc-plated | 8.8 | M16 | 70 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 3.97 € | | | B0122.416X80 | steel | electro zinc-plated | 8.8 | M16 | 80 | 22 | 32 | 8,8 | 5,4 | 30,61 | 10 | | | 4.17 € | | | B0122.303X10 | steel | bright (black) | 10.9 | M3 | 10 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.58 € | | | B0122.303X12 | steel | bright (black) | 10.9 | M3 | 12 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.65 € | | | B0122.303X16 | steel | bright (black) | 10.9 | M3 | 16 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.67 € | | | B0122.303X20 | steel | bright (black) | 10.9 | M3 | 20 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.67 € | | | B0122.303X25 | steel | bright (black) | 10.9 | M3 | 25 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.72 € | | | B0122.304X10 | steel | bright (black) | 10.9 | M4 | 10 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.59 € | | | B0122.304X12 | steel | bright (black) | 10.9 | M4 | 12 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.67 € | | | B0122.304X16 | steel | bright (black) | 10.9 | M4 | 16 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.69 € | | | B0122.304X20 | steel | bright (black) | 10.9 | M4 | 20 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.69 € | | | B0122.304X25 | steel | bright (black) | 10.9 | M4 | 25 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.74 € | | | B0122.305X10 | steel | bright (black) | 10.9 | M5 | 10 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.41 € | | | B0122.305X12 | steel | bright (black) | 10.9 | M5 | 12 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.44 € | | | B0122.305X16 | steel | bright (black) | 10.9 | M5 | 16 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.44 € | | | B0122.305X20 | steel | bright (black) | 10.9 | M5 | 20 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.44 € | | | B0122.305X25 | steel | bright (black) | 10.9 | M5 | 25 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.54 € | | | B0122.305X30 | steel | bright (black) | 10.9 | M5 | 30 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.56 € | | | B0122.306X10 | steel | bright (black) | 10.9 | M6 | 10 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.43 € | | | B0122.306X12 | steel | bright (black) | 10.9 | M6 | 12 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.43 € | | | B0122.306X16 | steel | bright (black) | 10.9 | M6 | 16 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.43 € | | | B0122.306X20 | steel | bright (black) | 10.9 | M6 | 20 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.44 € | | | B0122.306X25 | steel | bright (black) | 10.9 | M6 | 25 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.44 € | | | B0122.306X30 | steel | bright (black) | 10.9 | M6 | 30 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.54 € | | | B0122.306X35 | steel | bright (black) | 10.9 | M6 | 35 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.59 € | | | B0122.306X40 | steel | bright (black) | 10.9 | M6 | 40 | 11 | 16 | 3,72 | 2,5 | 12,16 | 4 | | | 1.00 € | | | B0122.306X45 | steel | bright (black) | 10.9 | M6 | 45 | 16 | 21 | 3,72 | 2,5 | 12,16 | 4 | | | 1.00 € | | | B0122.306X50 | steel | bright (black) | 10.9 | M6 | 50 | 21 | 26 | 3,72 | 2,5 | 12,16 | 4 | | | 1.11 € | | | B0122.306X60 | steel | bright (black) | 10.9 | M6 | 60 | 31 | 36 | 3,72 | 2,5 | 12,16 | 4 | | | 1.27 € | | | B0122.308X16 | steel | bright (black) | 10.9 | M8 | 16 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.57 € | | | B0122.308X20 | steel | bright (black) | 10.9 | M8 | 20 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.57 € | | | B0122.308X25 | steel | bright (black) | 10.9 | M8 | 25 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.57 € | | | B0122.308X30 | steel | bright (black) | 10.9 | M8 | 30 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.59 € | | | B0122.308X35 | steel | bright (black) | 10.9 | M8 | 35 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.69 € | | | B0122.308X40 | steel | bright (black) | 10.9 | M8 | 40 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.69 € | | | B0122.308X45 | steel | bright (black) | 10.9 | M8 | 45 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.74 € | | | B0122.308X50 | steel | bright (black) | 10.9 | M8 | 50 | 15,75 | 22 | 4,96 | 3,2 | 16,43 | 5 | | | 1.19 € | | | B0122.308X60 | steel | bright (black) | 10.9 | M8 | 60 | 25,75 | 32 | 4,96 | 3,2 | 16,43 | 5 | | | 1.30 € | | | B0122.310X16 | steel | bright (black) | 10.9 | M10 | 16 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.98 € | | | B0122.310X20 | steel | bright (black) | 10.9 | M10 | 20 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.98 € | | | B0122.310X25 | steel | bright (black) | 10.9 | M10 | 25 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.00 € | | | B0122.310X30 | steel | bright (black) | 10.9 | M10 | 30 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.00 € | | | B0122.310X35 | steel | bright (black) | 10.9 | M10 | 35 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.18 € | | | B0122.310X40 | steel | bright (black) | 10.9 | M10 | 40 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.18 € | | | B0122.310X45 | steel | bright (black) | 10.9 | M10 | 45 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.30 € | | | B0122.310X50 | steel | bright (black) | 10.9 | M10 | 50 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.82 € | | | B0122.310X60 | steel | bright (black) | 10.9 | M10 | 60 | 20,5 | 28 | 6,2 | 3,9 | 20,69 | 6 | | | 1.82 € | | | B0122.310X70 | steel | bright (black) | 10.9 | M10 | 70 | 30,5 | 38 | 6,2 | 3,9 | 20,69 | 6 | | | 2.30 € | | | B0122.312X20 | steel | bright (black) | 10.9 | M12 | 20 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.21 € | | | B0122.312X25 | steel | bright (black) | 10.9 | M12 | 25 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.21 € | | | B0122.312X30 | steel | bright (black) | 10.9 | M12 | 30 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.21 € | | | B0122.312X35 | steel | bright (black) | 10.9 | M12 | 35 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.24 € | | | B0122.312X40 | steel | bright (black) | 10.9 | M12 | 40 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.27 € | | | B0122.312X45 | steel | bright (black) | 10.9 | M12 | 45 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.30 € | | | B0122.312X50 | steel | bright (black) | 10.9 | M12 | 50 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.30 € | | | B0122.312X60 | steel | bright (black) | 10.9 | M12 | 60 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 2.48 € | | | B0122.312X70 | steel | bright (black) | 10.9 | M12 | 70 | 25,25 | 34 | 7,44 | 4,9 | 24,81 | 8 | | | 3.08 € | | | B0122.312X80 | steel | bright (black) | 10.9 | M12 | 80 | 35,25 | 44 | 7,44 | 4,9 | 24,81 | 8 | | | 3.50 € | | | B0122.316X30 | steel | bright (black) | 10.9 | M16 | 30 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 2.27 € | | | B0122.316X35 | steel | bright (black) | 10.9 | M16 | 35 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 2.27 € | | | B0122.316X40 | steel | bright (black) | 10.9 | M16 | 40 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 2.27 € | | | B0122.316X45 | steel | bright (black) | 10.9 | M16 | 45 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 2.36 € | | | B0122.316X50 | steel | bright (black) | 10.9 | M16 | 50 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 2.36 € | | | B0122.316X60 | steel | bright (black) | 10.9 | M16 | 60 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 2.70 € | | | B0122.316X70 | steel | bright (black) | 10.9 | M16 | 70 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 5.12 € | | | B0122.316X80 | steel | bright (black) | 10.9 | M16 | 80 | 22 | 32 | 8,8 | 5,4 | 30,61 | 10 | | | 5.37 € | |
|
Screws with countersunk head hexagon socket DIN EN ISO 10642, stainless steel |
More information |
| Order No. | Main
material | Grade | Surface finish
body | D
| L | Ls
min. | Lg
max. | K max. | T
max. | D1
max. | SW | CAD | Acc. | Price | Order |
|---|
| B0122.103X10 | stainless steel A2 | 70 | bright | M3 | 10 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.49 € | | | B0122.103X12 | stainless steel A2 | 70 | bright | M3 | 12 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.49 € | | | B0122.103X16 | stainless steel A2 | 70 | bright | M3 | 16 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.38 € | | | B0122.103X20 | stainless steel A2 | 70 | bright | M3 | 20 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.45 € | | | B0122.103X25 | stainless steel A2 | 70 | bright | M3 | 25 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.47 € | | | B0122.104X10 | stainless steel A2 | 70 | bright | M4 | 10 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.52 € | | | B0122.104X12 | stainless steel A2 | 70 | bright | M4 | 12 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.52 € | | | B0122.104X16 | stainless steel A2 | 70 | bright | M4 | 16 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.39 € | | | B0122.104X20 | stainless steel A2 | 70 | bright | M4 | 20 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.46 € | | | B0122.104X25 | stainless steel A2 | 70 | bright | M4 | 25 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.49 € | | | B0122.105X10 | stainless steel A2 | 70 | bright | M5 | 10 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.52 € | | | B0122.105X12 | stainless steel A2 | 70 | bright | M5 | 12 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.52 € | | | B0122.105X16 | stainless steel A2 | 70 | bright | M5 | 16 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.39 € | | | B0122.105X20 | stainless steel A2 | 70 | bright | M5 | 20 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.46 € | | | B0122.105X25 | stainless steel A2 | 70 | bright | M5 | 25 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.49 € | | | B0122.105X30 | stainless steel A2 | 70 | bright | M5 | 30 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.52 € | | | B0122.106X10 | stainless steel A2 | 70 | bright | M6 | 10 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.61 € | | | B0122.106X12 | stainless steel A2 | 70 | bright | M6 | 12 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.61 € | | | B0122.106X16 | stainless steel A2 | 70 | bright | M6 | 16 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.52 € | | | B0122.106X20 | stainless steel A2 | 70 | bright | M6 | 20 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.52 € | | | B0122.106X25 | stainless steel A2 | 70 | bright | M6 | 25 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.54 € | | | B0122.106X30 | stainless steel A2 | 70 | bright | M6 | 30 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.62 € | | | B0122.106X35 | stainless steel A2 | 70 | bright | M6 | 35 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.67 € | | | B0122.106X40 | stainless steel A2 | 70 | bright | M6 | 40 | 11 | 16 | 3,72 | 2,5 | 12,16 | 4 | | | 0.72 € | | | B0122.106X45 | stainless steel A2 | 70 | bright | M6 | 45 | 16 | 21 | 3,72 | 2,5 | 12,16 | 4 | | | 0.87 € | | | B0122.106X50 | stainless steel A2 | 70 | bright | M6 | 50 | 21 | 26 | 3,72 | 2,5 | 12,16 | 4 | | | 0.90 € | | | B0122.106X60 | stainless steel A2 | 70 | bright | M6 | 60 | 31 | 36 | 3,72 | 2,5 | 12,16 | 4 | | | 1.51 € | | | B0122.108X16 | stainless steel A2 | 70 | bright | M8 | 16 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.84 € | | | B0122.108X20 | stainless steel A2 | 70 | bright | M8 | 20 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.87 € | | | B0122.108X25 | stainless steel A2 | 70 | bright | M8 | 25 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.72 € | | | B0122.108X30 | stainless steel A2 | 70 | bright | M8 | 30 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.77 € | | | B0122.108X35 | stainless steel A2 | 70 | bright | M8 | 35 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.85 € | | | B0122.108X40 | stainless steel A2 | 70 | bright | M8 | 40 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.93 € | | | B0122.108X45 | stainless steel A2 | 70 | bright | M8 | 45 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.93 € | | | B0122.108X50 | stainless steel A2 | 70 | bright | M8 | 50 | 15,75 | 22 | 4,96 | 3,2 | 16,43 | 5 | | | 1.00 € | | | B0122.108X60 | stainless steel A2 | 70 | bright | M8 | 60 | 25,75 | 32 | 4,96 | 3,2 | 16,43 | 5 | | | 1.55 € | | | B0122.110X16 | stainless steel A2 | 70 | bright | M10 | 16 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.22 € | | | B0122.110X20 | stainless steel A2 | 70 | bright | M10 | 20 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.95 € | | | B0122.110X25 | stainless steel A2 | 70 | bright | M10 | 25 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.93 € | | | B0122.110X30 | stainless steel A2 | 70 | bright | M10 | 30 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.93 € | | | B0122.110X35 | stainless steel A2 | 70 | bright | M10 | 35 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 0.97 € | | | B0122.110X40 | stainless steel A2 | 70 | bright | M10 | 40 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.09 € | | | B0122.110X45 | stainless steel A2 | 70 | bright | M10 | 45 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.16 € | | | B0122.110X50 | stainless steel A2 | 70 | bright | M10 | 50 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.23 € | | | B0122.110X60 | stainless steel A2 | 70 | bright | M10 | 60 | 20,5 | 28 | 6,2 | 3,9 | 20,69 | 6 | | | 1.66 € | | | B0122.110X70 | stainless steel A2 | 70 | bright | M10 | 70 | 30,5 | 38 | 6,2 | 3,9 | 20,69 | 6 | | | 2.12 € | | | B0122.112X20 | stainless steel A2 | 70 | bright | M12 | 20 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.40 € | | | B0122.112X25 | stainless steel A2 | 70 | bright | M12 | 25 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.34 € | | | B0122.112X30 | stainless steel A2 | 70 | bright | M12 | 30 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.35 € | | | B0122.112X35 | stainless steel A2 | 70 | bright | M12 | 35 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.41 € | | | B0122.112X40 | stainless steel A2 | 70 | bright | M12 | 40 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.51 € | | | B0122.112X45 | stainless steel A2 | 70 | bright | M12 | 45 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.72 € | | | B0122.112X50 | stainless steel A2 | 70 | bright | M12 | 50 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.85 € | | | B0122.112X60 | stainless steel A2 | 70 | bright | M12 | 60 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 2.03 € | | | B0122.112X70 | stainless steel A2 | 70 | bright | M12 | 70 | 25,25 | 34 | 7,44 | 4,9 | 24,81 | 8 | | | 2.94 € | | | B0122.112X80 | stainless steel A2 | 70 | bright | M12 | 80 | 35,25 | 44 | 7,44 | 4,9 | 24,81 | 8 | | | 2.94 € | | | B0122.116X30 | stainless steel A2 | 70 | bright | M16 | 30 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 4.80 € | | | B0122.116X35 | stainless steel A2 | 70 | bright | M16 | 35 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 5.15 € | | | B0122.116X40 | stainless steel A2 | 70 | bright | M16 | 40 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 5.76 € | | | B0122.116X45 | stainless steel A2 | 70 | bright | M16 | 45 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 6.00 € | | | B0122.116X50 | stainless steel A2 | 70 | bright | M16 | 50 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 6.17 € | | | B0122.116X60 | stainless steel A2 | 70 | bright | M16 | 60 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 6.82 € | | | B0122.116X70 | stainless steel A2 | 70 | bright | M16 | 70 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 7.95 € | | | B0122.116X80 | stainless steel A2 | 70 | bright | M16 | 80 | 22 | 32 | 8,8 | 5,4 | 30,61 | 10 | | | 9.12 € | | | B0122.603X10 | stainless steel A4 | 70 | bright | M3 | 10 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.66 € | | | B0122.603X12 | stainless steel A4 | 70 | bright | M3 | 12 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.66 € | | | B0122.603X16 | stainless steel A4 | 70 | bright | M3 | 16 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.52 € | | | B0122.603X20 | stainless steel A4 | 70 | bright | M3 | 20 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.63 € | | | B0122.603X25 | stainless steel A4 | 70 | bright | M3 | 25 | 0 | 1 | 1,86 | 1,65 | 5,81 | 2 | | | 0.64 € | | | B0122.604X10 | stainless steel A4 | 70 | bright | M4 | 10 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.67 € | | | B0122.604X12 | stainless steel A4 | 70 | bright | M4 | 12 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.67 € | | | B0122.604X16 | stainless steel A4 | 70 | bright | M4 | 16 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.52 € | | | B0122.604X20 | stainless steel A4 | 70 | bright | M4 | 20 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.63 € | | | B0122.604X25 | stainless steel A4 | 70 | bright | M4 | 25 | 0 | 1,4 | 2,48 | 1,65 | 7,96 | 2,5 | | | 0.64 € | | | B0122.605X10 | stainless steel A4 | 70 | bright | M5 | 10 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.67 € | | | B0122.605X12 | stainless steel A4 | 70 | bright | M5 | 12 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.67 € | | | B0122.605X16 | stainless steel A4 | 70 | bright | M5 | 16 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.52 € | | | B0122.605X20 | stainless steel A4 | 70 | bright | M5 | 20 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.63 € | | | B0122.605X25 | stainless steel A4 | 70 | bright | M5 | 25 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.64 € | | | B0122.605X30 | stainless steel A4 | 70 | bright | M5 | 30 | 0 | 1,6 | 3,1 | 2 | 10,07 | 3 | | | 0.67 € | | | B0122.606X10 | stainless steel A4 | 70 | bright | M6 | 10 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.77 € | | | B0122.606X12 | stainless steel A4 | 70 | bright | M6 | 12 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.77 € | | | B0122.606X16 | stainless steel A4 | 70 | bright | M6 | 16 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.67 € | | | B0122.606X20 | stainless steel A4 | 70 | bright | M6 | 20 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.67 € | | | B0122.606X25 | stainless steel A4 | 70 | bright | M6 | 25 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.69 € | | | B0122.606X30 | stainless steel A4 | 70 | bright | M6 | 30 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.78 € | | | B0122.606X35 | stainless steel A4 | 70 | bright | M6 | 35 | 0 | 2 | 3,72 | 2,5 | 12,16 | 4 | | | 0.89 € | | | B0122.606X40 | stainless steel A4 | 70 | bright | M6 | 40 | 11 | 16 | 3,72 | 2,5 | 12,16 | 4 | | | 0.95 € | | | B0122.606X45 | stainless steel A4 | 70 | bright | M6 | 45 | 16 | 21 | 3,72 | 2,5 | 12,16 | 4 | | | 1.10 € | | | B0122.606X50 | stainless steel A4 | 70 | bright | M6 | 50 | 21 | 26 | 3,72 | 2,5 | 12,16 | 4 | | | 1.17 € | | | B0122.606X60 | stainless steel A4 | 70 | bright | M6 | 60 | 31 | 36 | 3,72 | 2,5 | 12,16 | 4 | | | 1.96 € | | | B0122.608X16 | stainless steel A4 | 70 | bright | M8 | 16 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 1.07 € | | | B0122.608X20 | stainless steel A4 | 70 | bright | M8 | 20 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 1.10 € | | | B0122.608X25 | stainless steel A4 | 70 | bright | M8 | 25 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 0.95 € | | | B0122.608X30 | stainless steel A4 | 70 | bright | M8 | 30 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 1.02 € | | | B0122.608X35 | stainless steel A4 | 70 | bright | M8 | 35 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 1.09 € | | | B0122.608X40 | stainless steel A4 | 70 | bright | M8 | 40 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 1.21 € | | | B0122.608X45 | stainless steel A4 | 70 | bright | M8 | 45 | 0 | 2,5 | 4,96 | 3,2 | 16,43 | 5 | | | 1.21 € | | | B0122.608X50 | stainless steel A4 | 70 | bright | M8 | 50 | 15,75 | 22 | 4,96 | 3,2 | 16,43 | 5 | | | 1.30 € | | | B0122.608X60 | stainless steel A4 | 70 | bright | M8 | 60 | 25,75 | 32 | 4,96 | 3,2 | 16,43 | 5 | | | 2.00 € | | | B0122.610X16 | stainless steel A4 | 70 | bright | M10 | 16 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.58 € | | | B0122.610X20 | stainless steel A4 | 70 | bright | M10 | 20 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.23 € | | | B0122.610X25 | stainless steel A4 | 70 | bright | M10 | 25 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.21 € | | | B0122.610X30 | stainless steel A4 | 70 | bright | M10 | 30 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.21 € | | | B0122.610X35 | stainless steel A4 | 70 | bright | M10 | 35 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.26 € | | | B0122.610X40 | stainless steel A4 | 70 | bright | M10 | 40 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.42 € | | | B0122.610X45 | stainless steel A4 | 70 | bright | M10 | 45 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.50 € | | | B0122.610X50 | stainless steel A4 | 70 | bright | M10 | 50 | 0 | 3 | 6,2 | 3,9 | 20,69 | 6 | | | 1.60 € | | | B0122.610X60 | stainless steel A4 | 70 | bright | M10 | 60 | 20,5 | 28 | 6,2 | 3,9 | 20,69 | 6 | | | 2.16 € | | | B0122.610X70 | stainless steel A4 | 70 | bright | M10 | 70 | 30,5 | 38 | 6,2 | 3,9 | 20,69 | 6 | | | 2.76 € | | | B0122.612X20 | stainless steel A4 | 70 | bright | M12 | 20 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.84 € | | | B0122.612X25 | stainless steel A4 | 70 | bright | M12 | 25 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.73 € | | | B0122.612X30 | stainless steel A4 | 70 | bright | M12 | 30 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.75 € | | | B0122.612X35 | stainless steel A4 | 70 | bright | M12 | 35 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.85 € | | | B0122.612X40 | stainless steel A4 | 70 | bright | M12 | 40 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 1.96 € | | | B0122.612X45 | stainless steel A4 | 70 | bright | M12 | 45 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 2.25 € | | | B0122.612X50 | stainless steel A4 | 70 | bright | M12 | 50 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 2.40 € | | | B0122.612X60 | stainless steel A4 | 70 | bright | M12 | 60 | 0 | 3,5 | 7,44 | 4,9 | 24,81 | 8 | | | 2.64 € | | | B0122.612X70 | stainless steel A4 | 70 | bright | M12 | 70 | 25,25 | 34 | 7,44 | 4,9 | 24,81 | 8 | | | 3.82 € | | | B0122.612X80 | stainless steel A4 | 70 | bright | M12 | 80 | 35,25 | 44 | 7,44 | 4,9 | 24,81 | 8 | | | 3.82 € | | | B0122.616X30 | stainless steel A4 | 70 | bright | M16 | 30 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 6.22 € | | | B0122.616X35 | stainless steel A4 | 70 | bright | M16 | 35 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 6.70 € | | | B0122.616X40 | stainless steel A4 | 70 | bright | M16 | 40 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 7.47 € | | | B0122.616X45 | stainless steel A4 | 70 | bright | M16 | 45 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 7.79 € | | | B0122.616X50 | stainless steel A4 | 70 | bright | M16 | 50 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 8.02 € | | | B0122.616X60 | stainless steel A4 | 70 | bright | M16 | 60 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 8.87 € | | | B0122.616X70 | stainless steel A4 | 70 | bright | M16 | 70 | 0 | 4 | 8,8 | 5,4 | 30,61 | 10 | | | 10.32 € | | | B0122.616X80 | stainless steel A4 | 70 | bright | M16 | 80 | 22 | 32 | 8,8 | 5,4 | 30,61 | 10 | | | 11.86 € | |
|
