Ball transfer unitswith steel housing
B0504

Ball transfer units with steel housing

go back

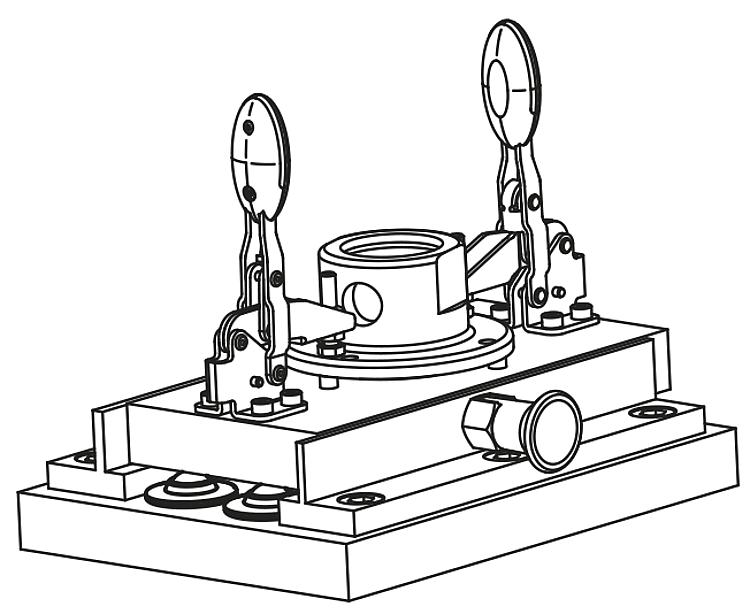

Item description/product images

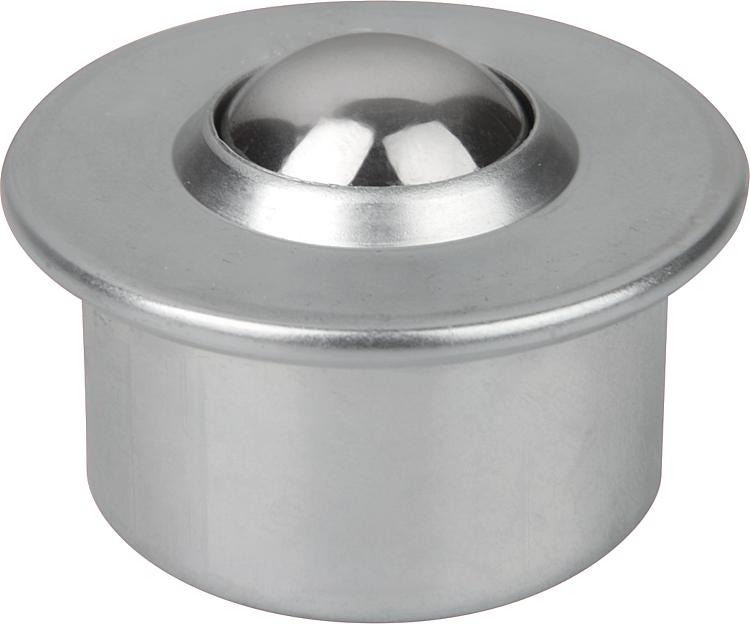

DescriptionMaterial:Electro zinc-plated steel or stainless steel.Note:Ball transfer units with steel housing have a felt seal to protect against dirt.Attention:B0504.115 has no felt seal.Drawing reference:

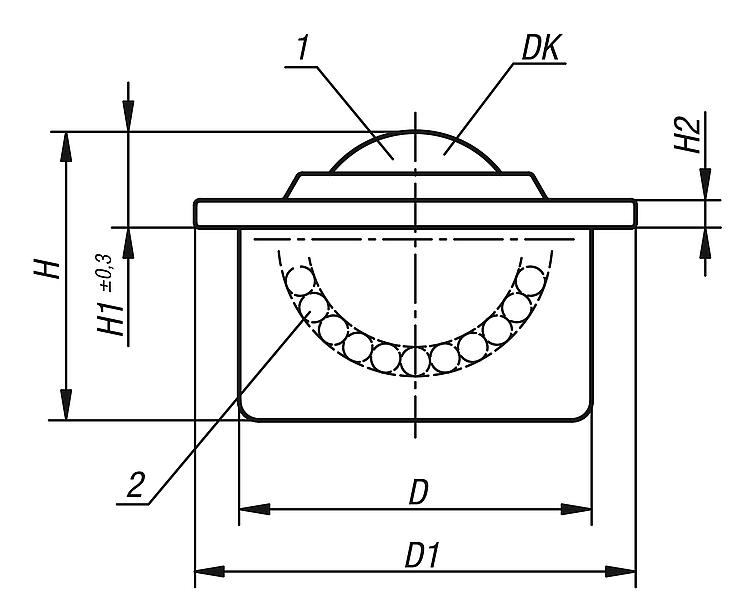

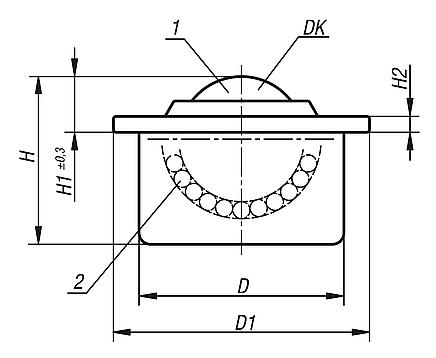

1) load ball
2) bearing balls

Form B: cap and housing electro zinc-plated, balls steel
Form C: cap and housing electro zinc-plated, balls stainless steel
Form D: cap, housing and balls stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0504 Ball transfer unitswith steel housing 268 kB
 BLOHM_TH_016_Kugelrollen_DE 437 kB

Drawings

Ball transfer unitswith steel housing

Item selection/filter

Order No.FormDKDD1HH1H2Load
rating C
(N)
Suitable
tolerance
ring
CADAcc.PriceOrder
B0504.115B15,824±0,231219,52,8600B0510.024  5.97 €
B0504.122B22,236±0,245309,82,81600B0510.036  9.53 €
B0504.130B3045±0,2553713,843000B0510.045  17.67 €
B0504.145B44,562±0,27553,51946100B0510.062  51.81 €
B0504.215C15,824±0,231219,52,8600B0510.024  12.23 €
B0504.222C22,236±0,245309,82,81600B0510.036  17.26 €
B0504.230C3045±0,2553713,843000B0510.045  28.90 €
B0504.245C44,562±0,27553,51946100B0510.062  97.46 €
B0504.315D15,824±0,231219,52,8380B0510.024  15.22 €
B0504.322D22,236±0,245309,82,81000B0510.036  22.63 €
B0504.330D3045±0,2553713,842000B0510.045  51.81 €
