Ball transfer unitswith steel housing and plastic ball
B0505

Ball transfer units with steel housing and plastic ball

go back

Item description/product images

DescriptionMaterial:Electro zinc-plated steel.
Polyamid PA 66 ball.
Note:Ball transfer units with plastic balls are particularly suitable for transporting sensitive materials such as polished aluminium, brass and steel sheets or glass.
They have a felt seal to protect against dirt.

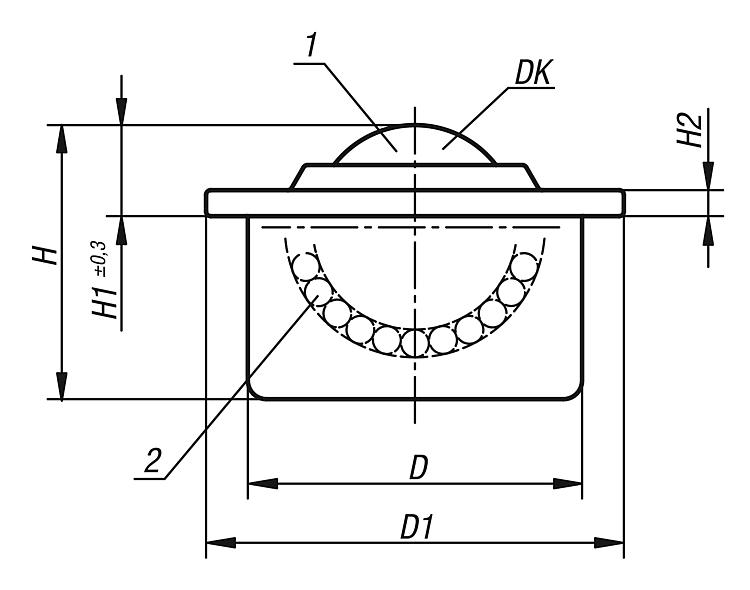

Drawing reference:
1) load ball
2) bearing balls

Form B: cap and housing electro zinc-plated, bearing balls steel.
Form C: cap and housing electro zinc-plated, bearing balls stainless steel
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0505 Ball transfer unitswith steel housing and plastic ball 231 kB
 BLOHM_TH_016_Kugelrollen_DE 437 kB

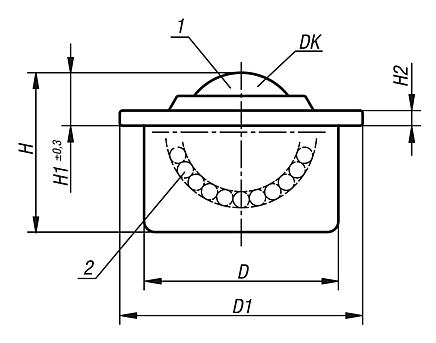

Drawings

Ball transfer unitswith steel housing and plastic ball

Item selection/filter

Order No.DKDD1HH1H2Load
rating C
(N)
Suitable
tolerance
ring
Material
Material
CADAcc.PriceOrder
B0505.11515,824±0,06531219,52,8100B0510.024Polyamidesteel  6.61 €
B0505.12222,236±0,08045309,62,8200B0510.036Polyamidesteel  9.56 €
B0505.1303045±0,080553713,64250B0510.045Polyamidesteel  43.45 €
B0505.21515,824±0,06531219,52,8100B0510.024PolyamideStainless steel  14.52 €
B0505.22222,236±0,08045309,62,8200B0510.036PolyamideStainless steel  22.25 €
B0505.2303045±0,080553713,64250B0510.045PolyamideStainless steel  52.66 €
