Ball transfer units mini
B0503

Ball transfer units mini

go back

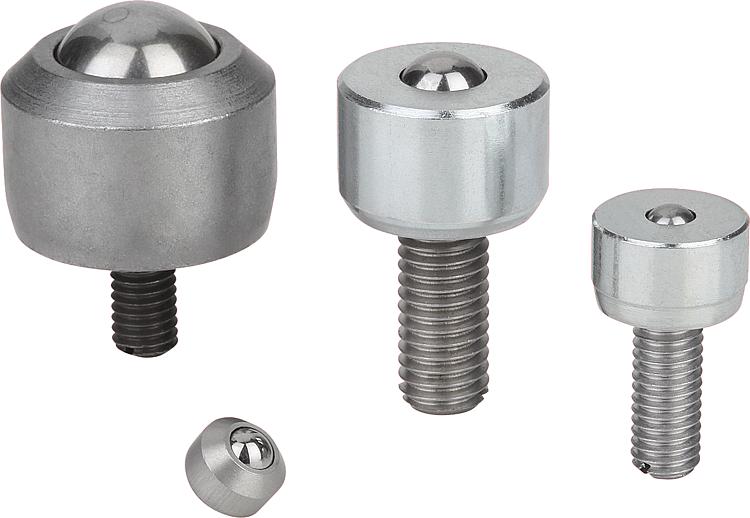

Item description/product images

DescriptionMaterial:Steel version:
Load ball steel.
Bearing balls steel.
Housing electro zinc-plated steel.
Cover electro zinc-plated steel.

Stainless steel version:
Load ball stainless steel.
Bearing balls stainless steel.
Housing stainless steel.
Cover aluminium.

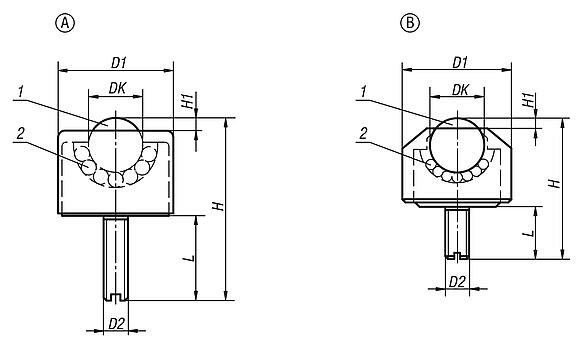

Note:The ball transfer units comprise a housing with integrated bearing shell, a cover, a load ball and several supporting balls. For use in measuring instruments, material conveyance in clean rooms and miniature mechanisms.Drawing reference:
1) load ball
2) bearing balls
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0503 Ball transfer units mini 180 kB

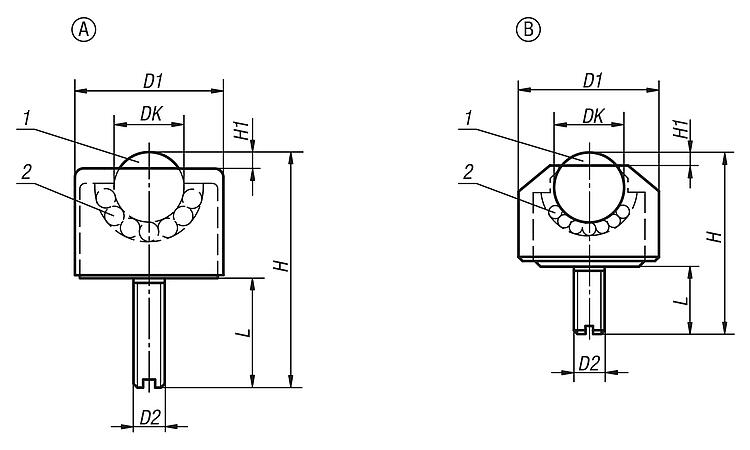

Drawings

Ball transfer units mini

Item selection/filter

Order No.Form

Main
material
DKD1D2HH1LLoad
rating C
(N)
CADAcc.PriceOrder
B0503.1105Asteel4,813M624115100 37.40 €
B0503.1106Asteel6,417M626215200 39.39 €
B0503.1108Asteel7,918M832218300 41.02 €
B0503.1110Asteel9,623M840220400 42.34 €
B0503.1113Asteel12,728M8483,523500 44.67 €
B0503.1216Bsteel15,824M632,5412700 52.95 €
B0503.2205Bstainless steel4,88M28,512,550 48.98 €
B0503.2206Bstainless steel6,413M316,526100 50.62 €
B0503.2208Bstainless steel7,915M420,528150 53.94 €
