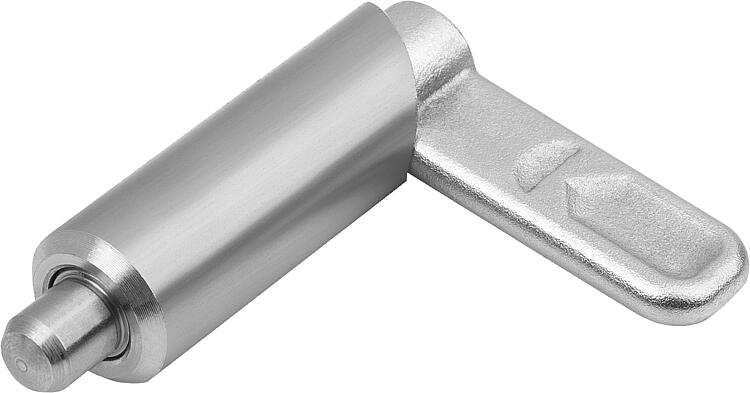

B0533_ECam-action indexing plungers, stainless steel, Form E, without... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.4308.
Sleeve 1.4301.
Indexing pin 1.4305.
Spring 1.4310.Version:Sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.Note:If the cam-action indexing plunger is to be welded on, the sleeve should be tack welded so that the spring is not thermally damaged from the high temperatures.Advantages:Turning the grip through 180° retracts the pin.
Smooth sleeve, Connecting option via adapter sleeveOn request:Special versions.
Accessory:Positioning bush B0063.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | L | L1 | B | B1 | H | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0533.1080410 | E | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 8 | 14 |  | | 13.62 € | | | B0533.1080510 | E | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 8 | 14 | | | 13.62 € | | | B0533.1080610 | E | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 8 | 14 | | | 13.62 € | | | B0533.1080512 | E | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 8 | 14 | | | 14.96 € | | | B0533.1080612 | E | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 8 | 14 | | | 14.96 € | | | B0533.1080812 | E | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 8 | 14 | | | 14.96 € | | | B0533.1080616 | E | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 15 | 35 | | | 16.34 € | | | B0533.1080816 | E | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 15 | 35 | | | 16.34 € | | | B0533.1081016 | E | 10 | 16 | 62,8 | 41,5 | 16,6 | 7 | 10 | 2,8 | 15 | 35 | | | 16.34 € | | | B0533.1080820 | E | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 20 | 60 | | | 19.45 € | | | B0533.1081020 | E | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 20 | 60 | | | 19.45 € | | | B0533.1081220 | E | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 20 | 60 | | | 19.45 € | |
