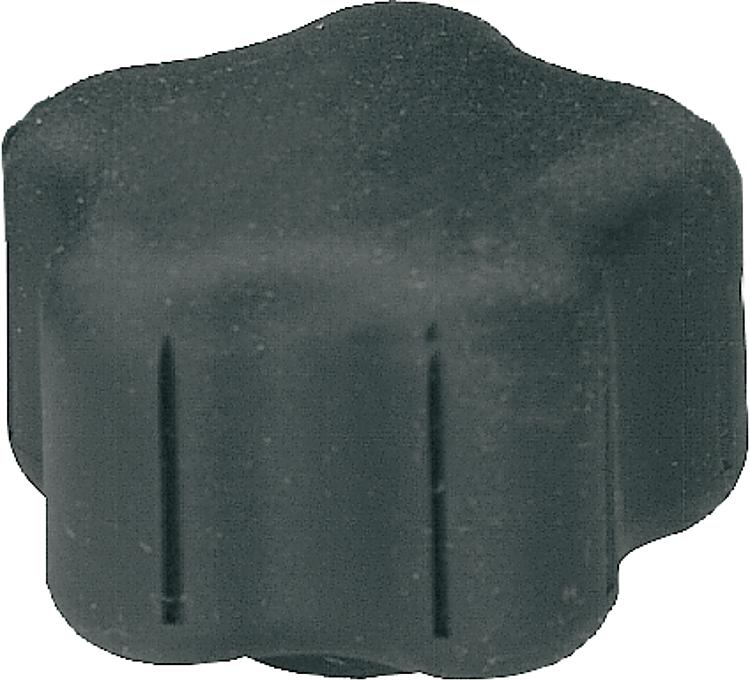

B0296_IGFive lobe grips with internal thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial, version:Base body in black hard thermoplastic,
coating in black soft thermoplastic,
internal thread in brass.Note:SYMPA TOUCH five lobe grips are available in 3 sizes with internal and external threads.On request:Other screw sizes, screw lengths, versions and colours.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | D | D1 | D2 | H | H1 | T | CAD | Acc. | Price | Order |
|---|
| B0296.4005 | K | M5 | 40 | 19 | 27,7 | 4,6 | 12,5 |  | | 2.05 € | | | B0296.4006 | K | M6 | 40 | 19 | 27,7 | 4,6 | 12,5 | | | 2.05 € | | | B0296.4008 | K | M8 | 40 | 19 | 27,7 | 4,6 | 12,5 | | | 2.15 € | | | B0296.4010 | K | M10 | 40 | 19 | 27,7 | 4,6 | 12,5 | | | 2.15 € | | | B0296.5006 | K | M6 | 50 | 23,5 | 27,7 | 4,6 | 12,5 | | | 2.18 € | | | B0296.5008 | K | M8 | 50 | 23,5 | 27,7 | 4,6 | 12,5 | | | 2.21 € | | | B0296.5010 | K | M10 | 50 | 23,5 | 27,7 | 4,6 | 12,5 | | | 2.26 € | | | B0296.6006 | K | M6 | 60 | 31,8 | 27,7 | 4,6 | 12,5 | | | 2.66 € | | | B0296.6008 | K | M8 | 60 | 31,8 | 27,7 | 4,6 | 12,5 | | | 2.71 € | | | B0296.6010 | K | M10 | 60 | 31,8 | 27,7 | 4,6 | 12,5 | | | 2.71 € | |
