B0289

Star grips similar to DIN 6336, metal parts stainless steel

go back

Products
- Product overview
  - Handles and knobs
    - Palm grips, star grips, clamping grips
      - Star grips similar to DIN 6336, metal parts stainless steel

Item description/product images

Show/filter all items

DescriptionMaterial:

Black thermoplastic.
Bush and screw stainless steel 1.4305 (AISI 303 equivalent).

Version:Bush and screw bright.On request:Other colours or designs, such as company logo.Drawing reference:

Form D: tapped bush without cap
Form K: tapped bush with cap
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0289 Star grips similar to DIN 6336, metal parts stainless steel

221 kB

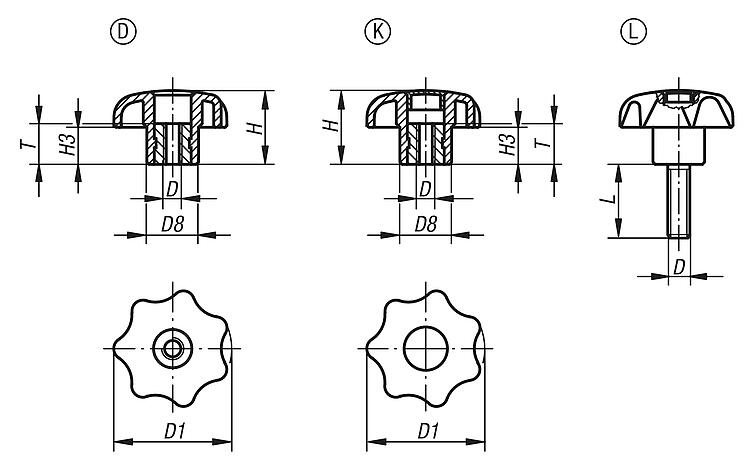

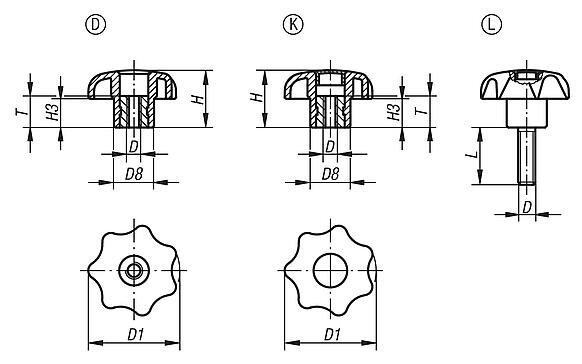

Drawings (total overview)

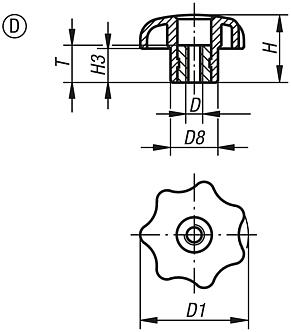

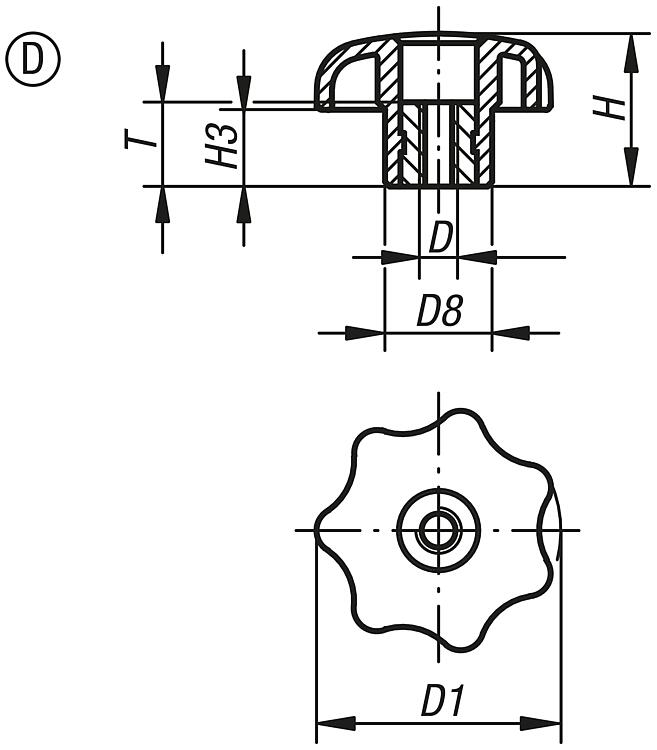

Star grips similar to DIN 6336, metal parts stainless steel, internal thread, without cap, Form D

More information

Drawings

Star grips similar to DIN 6336, metal parts stainless steel, internal thread, without cap, Form D

Item selection/filter

Order No.	Form	D	D1	D8	H	H3	T	Price
B0289.505	D	M5	25	12	16	8	10	1.13 €
B0289.506	D	M6	32	14	20	10	10	1.16 €
B0289.508	D	M8	40	18	25	13	14	1.36 €
B0289.510	D	M10	50	22	32	17	14	2.00 €
B0289.512	D	M12	63	26	40	21	18	3.69 €

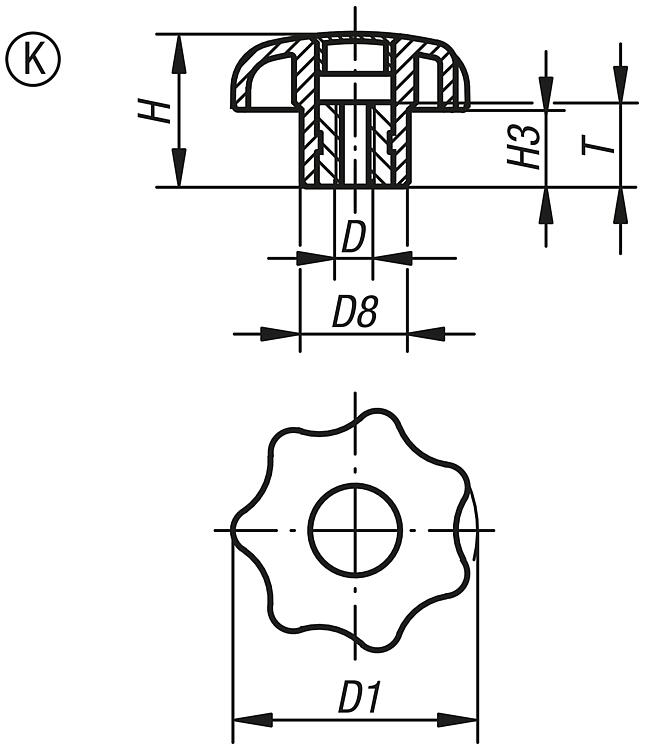

Star grips similar to DIN 6336, metal parts stainless steel, internal thread, with cap, Form K

More information

Drawings

Star grips similar to DIN 6336, metal parts stainless steel, internal thread, with cap, Form K

Item selection/filter

Order No.	Colour Cap	Form	D	D1	D8	H	H3	T	Price

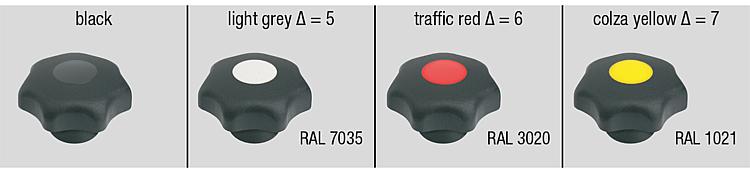

B0289.205	black grey RAL 7021	K	M5	25	12	16	8	10	1.17 €
B0289.2055	light grey RAL 7035	K	M5	25	12	16	8	10	1.17 €
B0289.2056	traffic red RAL 3020	K	M5	25	12	16	8	10	1.17 €
B0289.2057	colza yellow RAL 1021	K	M5	25	12	16	8	10	1.17 €
B0289.206	black grey RAL 7021	K	M6	32	14	20	10	10	1.19 €
B0289.2065	light grey RAL 7035	K	M6	32	14	20	10	10	1.19 €
B0289.2066	traffic red RAL 3020	K	M6	32	14	20	10	10	1.19 €
B0289.2067	colza yellow RAL 1021	K	M6	32	14	20	10	10	1.19 €
B0289.208	black grey RAL 7021	K	M8	40	18	25	13	14	1.43 €
B0289.2085	light grey RAL 7035	K	M8	40	18	25	13	14	1.43 €
B0289.2086	traffic red RAL 3020	K	M8	40	18	25	13	14	1.43 €
B0289.2087	colza yellow RAL 1021	K	M8	40	18	25	13	14	1.43 €
B0289.210	black grey RAL 7021	K	M10	50	22	32	17	14	2.09 €
B0289.2105	light grey RAL 7035	K	M10	50	22	32	17	14	2.09 €
B0289.2106	traffic red RAL 3020	K	M10	50	22	32	17	14	2.09 €
B0289.2107	colza yellow RAL 1021	K	M10	50	22	32	17	14	2.09 €
B0289.212	black grey RAL 7021	K	M12	63	26	40	21	18	3.83 €
B0289.2125	light grey RAL 7035	K	M12	63	26	40	21	18	3.83 €
B0289.2126	traffic red RAL 3020	K	M12	63	26	40	21	18	3.83 €
B0289.2127	colza yellow RAL 1021	K	M12	63	26	40	21	18	3.83 €

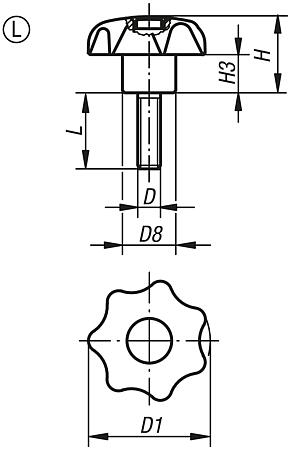

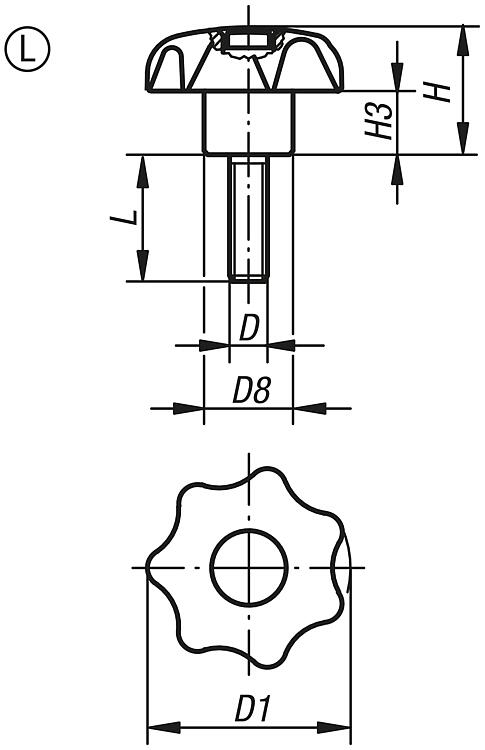

Star grips similar to DIN 6336, metal parts stainless steel with external thread, Form L

More information

Drawings

Star grips similar to DIN 6336, metal parts stainless steel with external thread, Form L

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	L	Price
B0289.405X15	L	black grey RAL 7021	M5	25	12	16	8	15	0.90 €
B0289.4055X15	L	light grey RAL 7035	M5	25	12	16	8	15	0.90 €
B0289.4056X15	L	traffic red RAL 3020	M5	25	12	16	8	15	0.90 €
B0289.4057X15	L	colza yellow RAL 1021	M5	25	12	16	8	15	0.90 €
B0289.405X20	L	black grey RAL 7021	M5	25	12	16	8	20	0.91 €
B0289.4055X20	L	light grey RAL 7035	M5	25	12	16	8	20	0.91 €
B0289.4056X20	L	traffic red RAL 3020	M5	25	12	16	8	20	0.91 €
B0289.4057X20	L	colza yellow RAL 1021	M5	25	12	16	8	20	0.91 €
B0289.406X20	L	black grey RAL 7021	M6	32	14	20	10	20	1.18 €
B0289.4065X20	L	light grey RAL 7035	M6	32	14	20	10	20	1.18 €
B0289.4066X20	L	traffic red RAL 3020	M6	32	14	20	10	20	1.18 €
B0289.4067X20	L	colza yellow RAL 1021	M6	32	14	20	10	20	1.18 €
B0289.406X30	L	black grey RAL 7021	M6	32	14	20	10	30	1.23 €
B0289.4065X30	L	light grey RAL 7035	M6	32	14	20	10	30	1.23 €
B0289.4066X30	L	traffic red RAL 3020	M6	32	14	20	10	30	1.23 €
B0289.4067X30	L	colza yellow RAL 1021	M6	32	14	20	10	30	1.23 €
B0289.408X15	L	black grey RAL 7021	M8	40	18	25	13	15	1.82 €
B0289.4085X15	L	light grey RAL 7035	M8	40	18	25	13	15	1.82 €
B0289.4086X15	L	traffic red RAL 3020	M8	40	18	25	13	15	1.82 €
B0289.4087X15	L	colza yellow RAL 1021	M8	40	18	25	13	15	1.82 €
B0289.408X20	L	black grey RAL 7021	M8	40	18	25	13	20	1.83 €
B0289.4085X20	L	light grey RAL 7035	M8	40	18	25	13	20	1.83 €
B0289.4086X20	L	traffic red RAL 3020	M8	40	18	25	13	20	1.83 €
B0289.4087X20	L	colza yellow RAL 1021	M8	40	18	25	13	20	1.83 €
B0289.408X25	L	black grey RAL 7021	M8	40	18	25	13	25	1.86 €
B0289.4085X25	L	light grey RAL 7035	M8	40	18	25	13	25	1.86 €
B0289.4086X25	L	traffic red RAL 3020	M8	40	18	25	13	25	1.86 €
B0289.4087X25	L	colza yellow RAL 1021	M8	40	18	25	13	25	1.86 €
B0289.408X30	L	black grey RAL 7021	M8	40	18	25	13	30	1.87 €
B0289.4085X30	L	light grey RAL 7035	M8	40	18	25	13	30	1.87 €
B0289.4086X30	L	traffic red RAL 3020	M8	40	18	25	13	30	1.87 €
B0289.4087X30	L	colza yellow RAL 1021	M8	40	18	25	13	30	1.87 €
B0289.408X40	L	black grey RAL 7021	M8	40	18	25	13	40	1.92 €
B0289.4085X40	L	light grey RAL 7035	M8	40	18	25	13	40	1.92 €
B0289.4086X40	L	traffic red RAL 3020	M8	40	18	25	13	40	1.92 €
B0289.4087X40	L	colza yellow RAL 1021	M8	40	18	25	13	40	1.92 €
B0289.408X60	L	black grey RAL 7021	M8	40	18	25	13	60	2.03 €
B0289.4085X60	L	light grey RAL 7035	M8	40	18	25	13	60	2.03 €
B0289.4086X60	L	traffic red RAL 3020	M8	40	18	25	13	60	2.03 €
B0289.4087X60	L	colza yellow RAL 1021	M8	40	18	25	13	60	2.03 €
B0289.410X25	L	black grey RAL 7021	M10	50	22	32	17	25	2.31 €
B0289.4105X25	L	light grey RAL 7035	M10	50	22	32	17	25	2.31 €
B0289.4106X25	L	traffic red RAL 3020	M10	50	22	32	17	25	2.31 €
B0289.4107X25	L	colza yellow RAL 1021	M10	50	22	32	17	25	2.31 €
B0289.410X30	L	black grey RAL 7021	M10	50	22	32	17	30	2.44 €
B0289.4105X30	L	light grey RAL 7035	M10	50	22	32	17	30	2.44 €
B0289.4106X30	L	traffic red RAL 3020	M10	50	22	32	17	30	2.44 €
B0289.4107X30	L	colza yellow RAL 1021	M10	50	22	32	17	30	2.44 €
B0289.410X40	L	black grey RAL 7021	M10	50	22	32	17	40	2.53 €
B0289.4105X40	L	light grey RAL 7035	M10	50	22	32	17	40	2.53 €
B0289.4106X40	L	traffic red RAL 3020	M10	50	22	32	17	40	2.53 €
B0289.4107X40	L	colza yellow RAL 1021	M10	50	22	32	17	40	2.53 €
B0289.410X50	L	black grey RAL 7021	M10	50	22	32	17	50	2.62 €
B0289.4105X50	L	light grey RAL 7035	M10	50	22	32	17	50	2.62 €
B0289.4106X50	L	traffic red RAL 3020	M10	50	22	32	17	50	2.62 €
B0289.4107X50	L	colza yellow RAL 1021	M10	50	22	32	17	50	2.62 €
B0289.410X60	L	black grey RAL 7021	M10	50	22	32	17	60	2.72 €
B0289.4105X60	L	light grey RAL 7035	M10	50	22	32	17	60	2.72 €
B0289.4106X60	L	traffic red RAL 3020	M10	50	22	32	17	60	2.72 €
B0289.4107X60	L	colza yellow RAL 1021	M10	50	22	32	17	60	2.72 €
