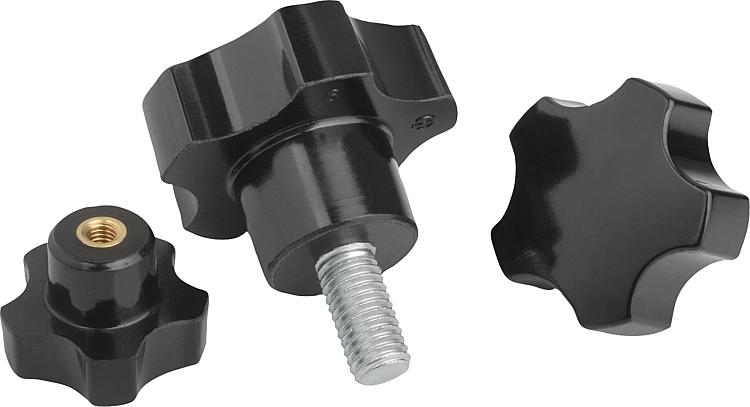

B0297Five lobe grips, plastic (thermoset), threaded insert steel |
go back |
|
|
DescriptionMaterial:Thermoset PF 31, black.
Steel bush and stud, electro zinc-plated.Version:High-gloss polished.Note:The versions B0297.3205 and B0297.3206 have a brass bush.On request:Other screw sizes, screw lengths and colours.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

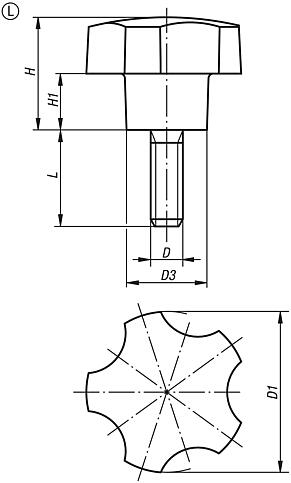

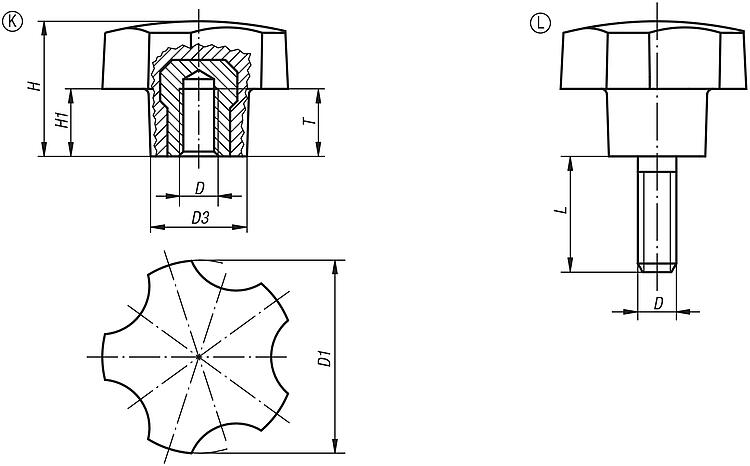

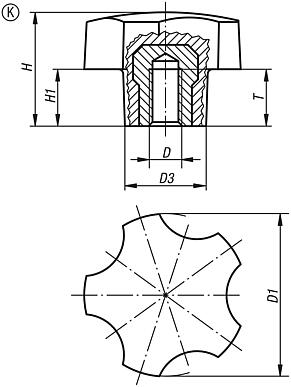

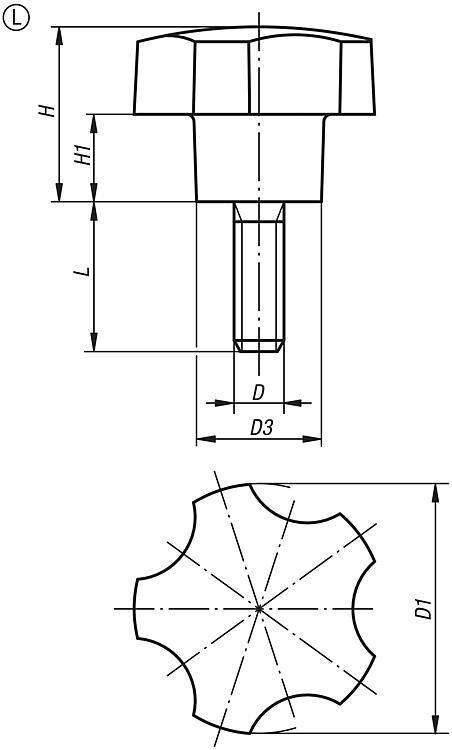

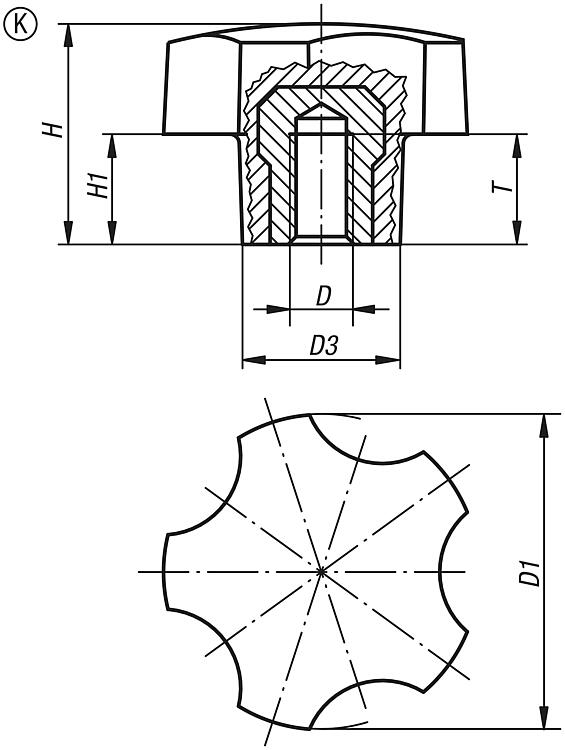

Drawings (total overview) |
|
Five lobe grips, plastic (thermoset), threaded insert steel, with external thread |
More information |
| Order No. | Form | D | D1 | D3 | H | H1 | L | CAD | Acc. | Price | Order |
|---|
| B0297.3206X12 | L | M6 | 32 | 16 | 22,4 | 11,2 | 12 |  | | 1.16 € | | | B0297.3206X18 | L | M6 | 32 | 16 | 22,4 | 11,2 | 18 | | | 1.16 € | | | B0297.3208X16 | L | M8 | 32 | 16 | 22,4 | 11,2 | 16 | | | 1.16 € | | | B0297.3208X24 | L | M8 | 32 | 16 | 22,4 | 11,2 | 24 | | | 1.16 € | | | B0297.4006X18 | L | M6 | 40 | 20 | 28 | 14 | 18 | | | 1.34 € | | | B0297.4008X16 | L | M8 | 40 | 20 | 28 | 14 | 16 | | | 1.34 € | | | B0297.4008X20 | L | M8 | 40 | 20 | 28 | 14 | 20 | | | 1.34 € | | | B0297.4008X24 | L | M8 | 40 | 20 | 28 | 14 | 24 | | | 1.34 € | | | B0297.4010X30 | L | M10 | 40 | 20 | 28 | 14 | 30 | | | 1.67 € | | | B0297.5008X16 | L | M8 | 50 | 25 | 35 | 17,5 | 16 | | | 1.92 € | | | B0297.5008X24 | L | M8 | 50 | 25 | 35 | 17,5 | 24 | | | 1.92 € | | | B0297.5010X20 | L | M10 | 50 | 25 | 35 | 17,5 | 20 | | | 1.92 € | | | B0297.5010X30 | L | M10 | 50 | 25 | 35 | 17,5 | 30 | | | 1.92 € | |
|
