B0256

Tension levers external thread, stainless steel

go back

Products
- Product overview
  - Clamping levers, tension levers, cam levers
    - Tension lever
      - Tension levers external thread, stainless steel

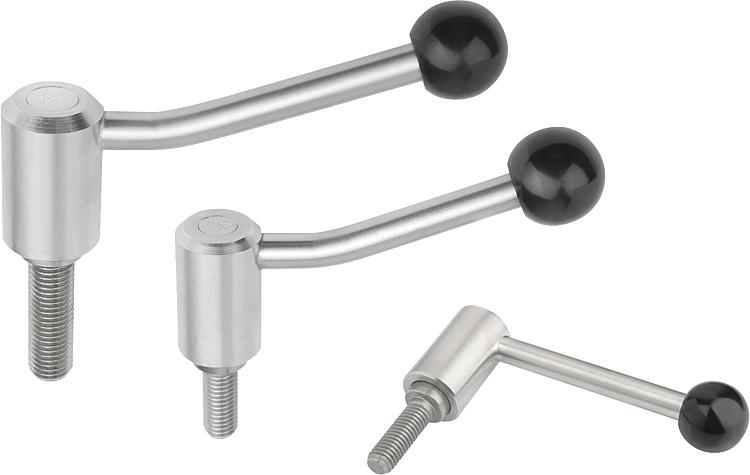

Item description/product images

Show/filter all items

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Stainless steel parts bright.
Ball knob polished.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:

1) flat point DIN EN ISO 4753

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0256 Tension leversexternal thread, stainless steel

261 kB

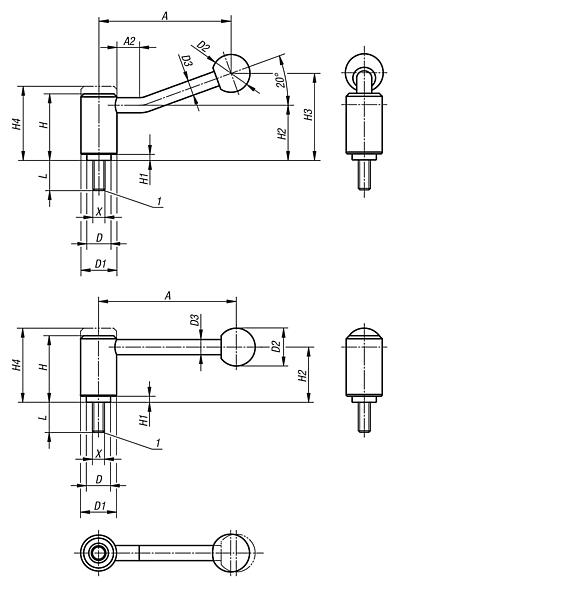

Drawings (total overview)

Tension Levers in stainless steel with external thread, 0 degrees

More information

Drawings

Tension Levers in stainless steel with external thread, 0 degrees

Overview of items (compressed)

Item selection/filter

Order No.	Form	X	L	A=Handle length	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
B0256.1082X15	0°	M8	15	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1082X20	0°	M8	20	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1082X25	0°	M8	25	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1082X30	0°	M8	30	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1082X40	0°	M8	40	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.1082X50	0°	M8	50	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.1082X60	0°	M8	60	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.1102X15	0°	M10	15	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1102X20	0°	M10	20	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1102X25	0°	M10	25	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1102X30	0°	M10	30	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1102X40	0°	M10	40	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.1102X50	0°	M10	50	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.1102X60	0°	M10	60	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.1122X15	0°	M12	15	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1122X20	0°	M12	20	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1122X25	0°	M12	25	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1122X30	0°	M12	30	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.03 €
B0256.1122X40	0°	M12	40	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.1122X50	0°	M12	50	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.1122X60	0°	M12	60	92	-	16	24	25	10	44,5	4,5	37	-	49,5	22	27.83 €
B0256.2122X20	0°	M12	20	111	-	19	28	32	12	51,5	5,5	42	-	57,5	24	33.18 €
B0256.2122X25	0°	M12	25	111	-	19	28	32	12	51,5	5,5	42	-	57,5	24	33.18 €
B0256.2122X30	0°	M12	30	111	-	19	28	32	12	51,5	5,5	42	-	57,5	24	33.18 €
B0256.2122X40	0°	M12	40	111	-	19	28	32	12	51,5	5,5	42	-	57,5	24	34.55 €
B0256.2122X50	0°	M12	50	111	-	19	28	32	12	51,5	5,5	42	-	57,5	24	34.55 €
B0256.2122X60	0°	M12	60	111	-	19	28	32	12	51,5	5,5	42	-	57,5	24	34.55 €
B0256.3122X20	0°	M12	20	134,5	-	23	33	32	13	58	6	47	-	65	26	43.47 €
B0256.3122X25	0°	M12	25	134,5	-	23	33	32	13	58	6	47	-	65	26	43.47 €
B0256.3122X30	0°	M12	30	134,5	-	23	33	32	13	58	6	47	-	65	26	43.47 €
B0256.3122X40	0°	M12	40	134,5	-	23	33	32	13	58	6	47	-	65	26	44.73 €
B0256.3122X50	0°	M12	50	134,5	-	23	33	32	13	58	6	47	-	65	26	44.73 €
B0256.3122X60	0°	M12	60	134,5	-	23	33	32	13	58	6	47	-	65	26	44.73 €
B0256.3122X70	0°	M12	70	134,5	-	23	33	32	13	58	6	47	-	65	26	46.34 €
B0256.3122X80	0°	M12	80	134,5	-	23	33	32	13	58	6	47	-	65	26	46.34 €
B0256.3122X90	0°	M12	90	134,5	-	23	33	32	13	58	6	47	-	65	26	46.34 €
B0256.3162X20	0°	M16	20	134,5	-	23	33	32	13	58	6	47	-	65	26	43.47 €
B0256.3162X25	0°	M16	25	134,5	-	23	33	32	13	58	6	47	-	65	26	43.47 €
B0256.3162X30	0°	M16	30	134,5	-	23	33	32	13	58	6	47	-	65	26	43.47 €
B0256.3162X40	0°	M16	40	134,5	-	23	33	32	13	58	6	47	-	65	26	44.73 €
B0256.3162X50	0°	M16	50	134,5	-	23	33	32	13	58	6	47	-	65	26	44.73 €
B0256.3162X60	0°	M16	60	134,5	-	23	33	32	13	58	6	47	-	65	26	44.73 €
B0256.3162X70	0°	M16	70	134,5	-	23	33	32	13	58	6	47	-	65	26	46.34 €
B0256.3162X80	0°	M16	80	134,5	-	23	33	32	13	58	6	47	-	65	26	46.34 €
B0256.3162X90	0°	M16	90	134,5	-	23	33	32	13	58	6	47	-	65	26	46.34 €
B0256.4162X30	0°	M16	30	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	50.84 €
B0256.4162X40	0°	M16	40	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	52.73 €
B0256.4162X50	0°	M16	50	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	52.73 €
B0256.4162X60	0°	M16	60	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	52.73 €
B0256.4162X70	0°	M16	70	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	54.80 €
B0256.4162X80	0°	M16	80	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	54.80 €
B0256.4162X90	0°	M16	90	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	54.80 €
B0256.4202X30	0°	M20	30	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	50.84 €
B0256.4202X40	0°	M20	40	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	52.73 €
B0256.4202X50	0°	M20	50	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	52.73 €
B0256.4202X60	0°	M20	60	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	52.73 €
B0256.4202X70	0°	M20	70	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	54.80 €
B0256.4202X80	0°	M20	80	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	54.80 €
B0256.4202X90	0°	M20	90	134	-	30	41	32	13	68,5	7,5	56,5	-	76,5	36	54.80 €

Tension levers stainless steel with external thread, 20°

More information

Drawings

Tension levers stainless steel with external thread, 20°

Item selection/filter

Order No.	Form	X	L	A=Handle length	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
B0256.1081X15	20°	M8	15	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1081X20	20°	M8	20	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1081X25	20°	M8	25	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1081X30	20°	M8	30	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1081X40	20°	M8	40	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.1081X50	20°	M8	50	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.1081X60	20°	M8	60	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.1101X15	20°	M10	15	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1101X20	20°	M10	20	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1101X25	20°	M10	25	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1101X30	20°	M10	30	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1101X40	20°	M10	40	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.1101X50	20°	M10	50	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.1101X60	20°	M10	60	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.1121X15	20°	M12	15	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1121X20	20°	M12	20	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1121X25	20°	M12	25	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1121X30	20°	M12	30	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.03 €
B0256.1121X40	20°	M12	40	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.1121X50	20°	M12	50	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.1121X60	20°	M12	60	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	27.83 €
B0256.2121X20	20°	M12	20	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	24	33.18 €
B0256.2121X25	20°	M12	25	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	24	33.18 €
B0256.2121X30	20°	M12	30	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	24	33.18 €
B0256.2121X40	20°	M12	40	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	24	34.55 €
B0256.2121X50	20°	M12	50	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	24	34.55 €
B0256.2121X60	20°	M12	60	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	24	34.55 €
B0256.3121X20	20°	M12	20	128,5	15	23	33	32	13	58	6	47	81	65	26	43.47 €
B0256.3121X25	20°	M12	25	128,5	15	23	33	32	13	58	6	47	81	65	26	43.47 €
B0256.3121X30	20°	M12	30	128,5	15	23	33	32	13	58	6	47	81	65	26	43.47 €
B0256.3121X40	20°	M12	40	128,5	15	23	33	32	13	58	6	47	81	65	26	44.73 €
B0256.3121X50	20°	M12	50	128,5	15	23	33	32	13	58	6	47	81	65	26	44.73 €
B0256.3121X60	20°	M12	60	128,5	15	23	33	32	13	58	6	47	81	65	26	44.73 €
B0256.3121X70	20°	M12	70	128,5	15	23	33	32	13	58	6	47	81	65	26	46.34 €
B0256.3121X80	20°	M12	80	128,5	15	23	33	32	13	58	6	47	81	65	26	46.34 €
B0256.3121X90	20°	M12	90	128,5	15	23	33	32	13	58	6	47	81	65	26	46.34 €
B0256.3161X20	20°	M16	20	128,5	15	23	33	32	13	58	6	47	81	65	26	43.47 €
B0256.3161X25	20°	M16	25	128,5	15	23	33	32	13	58	6	47	81	65	26	43.47 €
B0256.3161X30	20°	M16	30	128,5	15	23	33	32	13	58	6	47	81	65	26	43.47 €
B0256.3161X40	20°	M16	40	128,5	15	23	33	32	13	58	6	47	81	65	26	44.73 €
B0256.3161X50	20°	M16	50	128,5	15	23	33	32	13	58	6	47	81	65	26	44.73 €
B0256.3161X60	20°	M16	60	128,5	15	23	33	32	13	58	6	47	81	65	26	44.73 €
B0256.3161X70	20°	M16	70	128,5	15	23	33	32	13	58	6	47	81	65	26	46.34 €
B0256.3161X80	20°	M16	80	128,5	15	23	33	32	13	58	6	47	81	65	26	46.34 €
B0256.3161X90	20°	M16	90	128,5	15	23	33	32	13	58	6	47	81	65	26	46.34 €
B0256.4161X30	20°	M16	30	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	50.84 €
B0256.4161X40	20°	M16	40	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	52.73 €
B0256.4161X50	20°	M16	50	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	52.73 €
B0256.4161X60	20°	M16	60	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	52.73 €
B0256.4161X70	20°	M16	70	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	54.80 €
B0256.4161X80	20°	M16	80	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	54.80 €
B0256.4161X90	20°	M16	90	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	54.80 €
B0256.4201X30	20°	M20	30	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	50.84 €
B0256.4201X40	20°	M20	40	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	52.73 €
B0256.4201X50	20°	M20	50	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	52.73 €
B0256.4201X60	20°	M20	60	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	52.73 €
B0256.4201X70	20°	M20	70	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	54.80 €
B0256.4201X80	20°	M20	80	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	54.80 €
B0256.4201X90	20°	M20	90	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	54.80 €
