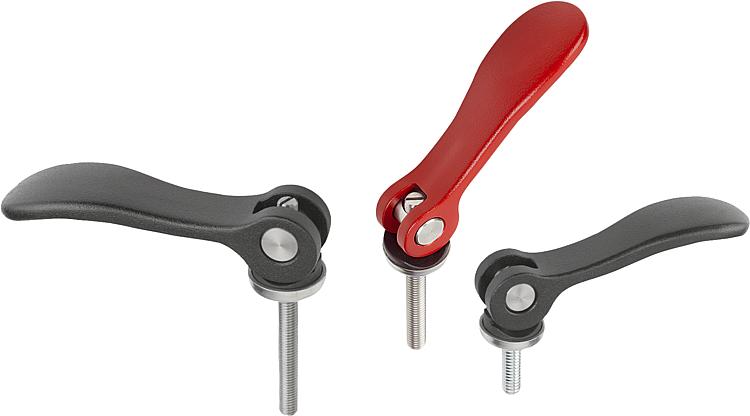

B0261Cam levers, aluminium, adjustable with external thread, plastic... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handles cast aluminium EN AC-46200.
Thrust washer fibreglass reinforced plastic PA 66 GF 35-X.
Hinge pins 1.4305 stainless steel.
Screw and washer steel grade 5.8 or 1.4305 stainless steel. Version:Handles fine structured powder-coated, black or red RAL 3003.
Thrust washer black.
Hinge pin bright.
Studs and washer blue passivated steel or bright stainless steel.Note:Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).Drawing reference:1) setscrew for fine adjustment of lever DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Material
| Main
colour | D | D1 | D2 | B | B1 | H | H1 | A | A1 | Travel
S | L | Clamping
force
F (kN) | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| B0261.9501103X10 | steel | black | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 10 | 1,5 | 90 |  | | 7.39 € | | | B0261.9501103X15 | steel | black | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 15 | 1,5 | 90 | | | 7.39 € | | | B0261.9501103X30 | steel | black | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 30 | 1,5 | 90 | | | 7.39 € | | | B0261.9501104X10 | steel | black | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 10 | 1,5 | 90 | | | 7.39 € | | | B0261.9501104X15 | steel | black | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 15 | 1,5 | 90 | | | 7.39 € | | | B0261.9501104X30 | steel | black | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 30 | 1,5 | 90 | | | 7.39 € | | | B0261.0501104X15 | steel | black | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 15 | 2,5 | 100 | | | 7.65 € | | | B0261.0501104X20 | steel | black | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 20 | 2,5 | 100 | | | 7.65 € | | | B0261.0501104X30 | steel | black | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 30 | 2,5 | 100 | | | 7.65 € | | | B0261.0501105X20 | steel | black | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 20 | 2,5 | 100 | | | 7.65 € | | | B0261.0501105X30 | steel | black | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 30 | 2,5 | 100 | | | 7.65 € | | | B0261.0501105X40 | steel | black | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 40 | 2,5 | 100 | | | 8.18 € | | | B0261.0501105X50 | steel | black | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 50 | 2,5 | 100 | | | 8.18 € | | | B0261.1501105X20 | steel | black | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 20 | 4 | 120 | | | 8.09 € | | | B0261.1501105X30 | steel | black | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 30 | 4 | 120 | | | 8.09 € | | | B0261.1501105X40 | steel | black | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 40 | 4 | 120 | | | 8.65 € | | | B0261.1501105X50 | steel | black | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 50 | 4 | 120 | | | 8.65 € | | | B0261.1501106X20 | steel | black | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 20 | 4 | 120 | | | 8.09 € | | | B0261.1501106X30 | steel | black | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 30 | 4 | 120 | | | 8.09 € | | | B0261.1501106X40 | steel | black | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 40 | 4 | 120 | | | 8.65 € | | | B0261.1501106X50 | steel | black | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 50 | 4 | 120 | | | 8.65 € | | | B0261.2501108X25 | steel | black | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 25 | 8 | 350 | | | 8.92 € | | | B0261.2501108X30 | steel | black | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 30 | 8 | 350 | | | 8.92 € | | | B0261.2501108X40 | steel | black | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 40 | 8 | 350 | | | 9.27 € | | | B0261.2501108X50 | steel | black | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 50 | 8 | 350 | | | 9.27 € | | | B0261.2501110X25 | steel | black | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 25 | 8 | 350 | | | 8.92 € | | | B0261.2501110X30 | steel | black | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 30 | 8 | 350 | | | 8.92 € | | | B0261.2501110X40 | steel | black | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 40 | 8 | 350 | | | 9.27 € | | | B0261.2501110X50 | steel | black | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 50 | 8 | 350 | | | 9.27 € | | | B0261.9511103X10 | stainless steel | black | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 10 | 1,5 | 90 | | | 10.45 € | | | B0261.9511103X15 | stainless steel | black | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 15 | 1,5 | 90 | | | 10.45 € | | | B0261.9511103X30 | stainless steel | black | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 30 | 1,5 | 90 | | | 10.45 € | | | B0261.9511104X10 | stainless steel | black | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 10 | 1,5 | 90 | | | 10.45 € | | | B0261.9511104X15 | stainless steel | black | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 15 | 1,5 | 90 | | | 10.45 € | | | B0261.9511104X30 | stainless steel | black | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 30 | 1,5 | 90 | | | 10.45 € | | | B0261.0511104X15 | stainless steel | black | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 15 | 2,5 | 100 | | | 10.92 € | | | B0261.0511104X20 | stainless steel | black | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 20 | 2,5 | 100 | | | 10.92 € | | | B0261.0511104X30 | stainless steel | black | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 30 | 2,5 | 100 | | | 10.92 € | | | B0261.0511105X20 | stainless steel | black | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 20 | 2,5 | 100 | | | 10.92 € | | | B0261.0511105X30 | stainless steel | black | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 30 | 2,5 | 100 | | | 10.92 € | | | B0261.0511105X40 | stainless steel | black | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 40 | 2,5 | 100 | | | 11.60 € | | | B0261.0511105X50 | stainless steel | black | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 50 | 2,5 | 100 | | | 11.60 € | | | B0261.1511105X20 | stainless steel | black | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 20 | 4 | 120 | | | 12.15 € | | | B0261.1511105X30 | stainless steel | black | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 30 | 4 | 120 | | | 12.15 € | | | B0261.1511105X40 | stainless steel | black | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 40 | 4 | 120 | | | 12.97 € | | | B0261.1511105X50 | stainless steel | black | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 50 | 4 | 120 | | | 12.97 € | | | B0261.1511106X20 | stainless steel | black | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 20 | 4 | 120 | | | 12.15 € | | | B0261.1511106X30 | stainless steel | black | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 30 | 4 | 120 | | | 12.15 € | | | B0261.1511106X40 | stainless steel | black | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 40 | 4 | 120 | | | 12.97 € | | | B0261.1511106X50 | stainless steel | black | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 50 | 4 | 120 | | | 12.97 € | | | B0261.2511108X25 | stainless steel | black | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 25 | 8 | 350 | | | 13.40 € | | | B0261.2511108X30 | stainless steel | black | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 30 | 8 | 350 | | | 13.40 € | | | B0261.2511108X40 | stainless steel | black | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 40 | 8 | 350 | | | 14.31 € | | | B0261.2511108X50 | stainless steel | black | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 50 | 8 | 350 | | | 14.31 € | | | B0261.2511110X25 | stainless steel | black | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 25 | 8 | 350 | | | 13.40 € | | | B0261.2511110X30 | stainless steel | black | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 30 | 8 | 350 | | | 13.40 € | | | B0261.2511110X40 | stainless steel | black | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 40 | 8 | 350 | | | 14.31 € | | | B0261.2511110X50 | stainless steel | black | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 50 | 8 | 350 | | | 14.31 € | | | B0261.9501403X10 | steel | ruby red | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 10 | 1,5 | 90 | | | 7.39 € | | | B0261.9501403X15 | steel | ruby red | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 15 | 1,5 | 90 | | | 7.39 € | | | B0261.9501403X30 | steel | ruby red | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 30 | 1,5 | 90 | | | 7.39 € | | | B0261.9501404X10 | steel | ruby red | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 10 | 1,5 | 90 | | | 7.39 € | | | B0261.9501404X15 | steel | ruby red | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 15 | 1,5 | 90 | | | 7.39 € | | | B0261.9501404X30 | steel | ruby red | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 30 | 1,5 | 90 | | | 7.39 € | | | B0261.0501404X15 | steel | ruby red | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 15 | 2,5 | 100 | | | 7.65 € | | | B0261.0501404X20 | steel | ruby red | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 20 | 2,5 | 100 | | | 7.65 € | | | B0261.0501404X30 | steel | ruby red | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 30 | 2,5 | 100 | | | 7.65 € | | | B0261.0501405X20 | steel | ruby red | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 20 | 2,5 | 100 | | | 7.65 € | | | B0261.0501405X30 | steel | ruby red | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 30 | 2,5 | 100 | | | 7.65 € | | | B0261.0501405X40 | steel | ruby red | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 40 | 2,5 | 100 | | | 8.18 € | | | B0261.0501405X50 | steel | ruby red | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 50 | 2,5 | 100 | | | 8.18 € | | | B0261.1501405X20 | steel | ruby red | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 20 | 4 | 120 | | | 8.09 € | | | B0261.1501405X30 | steel | ruby red | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 30 | 4 | 120 | | | 8.09 € | | | B0261.1501405X40 | steel | ruby red | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 40 | 4 | 120 | | | 8.65 € | | | B0261.1501405X50 | steel | ruby red | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 50 | 4 | 120 | | | 8.65 € | | | B0261.1501406X20 | steel | ruby red | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 20 | 4 | 120 | | | 8.09 € | | | B0261.1501406X30 | steel | ruby red | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 30 | 4 | 120 | | | 8.09 € | | | B0261.1501406X40 | steel | ruby red | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 40 | 4 | 120 | | | 8.65 € | | | B0261.1501406X50 | steel | ruby red | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 50 | 4 | 120 | | | 8.65 € | | | B0261.2501408X25 | steel | ruby red | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 25 | 8 | 350 | | | 8.92 € | | | B0261.2501408X30 | steel | ruby red | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 30 | 8 | 350 | | | 8.92 € | | | B0261.2501408X40 | steel | ruby red | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 40 | 8 | 350 | | | 9.27 € | | | B0261.2501408X50 | steel | ruby red | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 50 | 8 | 350 | | | 9.27 € | | | B0261.2501410X25 | steel | ruby red | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 25 | 8 | 350 | | | 8.92 € | | | B0261.2501410X30 | steel | ruby red | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 30 | 8 | 350 | | | 8.92 € | | | B0261.2501410X40 | steel | ruby red | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 40 | 8 | 350 | | | 9.27 € | | | B0261.2501410X50 | steel | ruby red | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 50 | 8 | 350 | | | 9.27 € | | | B0261.9511403X10 | stainless steel | ruby red | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 10 | 1,5 | 90 | | | 10.45 € | | | B0261.9511403X15 | stainless steel | ruby red | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 15 | 1,5 | 90 | | | 10.45 € | | | B0261.9511403X30 | stainless steel | ruby red | M3 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 30 | 1,5 | 90 | | | 10.45 € | | | B0261.9511404X10 | stainless steel | ruby red | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 10 | 1,5 | 90 | | | 10.45 € | | | B0261.9511404X15 | stainless steel | ruby red | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 15 | 1,5 | 90 | | | 10.45 € | | | B0261.9511404X30 | stainless steel | ruby red | M4 | 12 | 6 | 14,4 | 11,5 | 9 | 13 | 36,2 | 41,7 | 1 | 30 | 1,5 | 90 | | | 10.45 € | | | B0261.0511404X15 | stainless steel | ruby red | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 15 | 2,5 | 100 | | | 10.92 € | | | B0261.0511404X20 | stainless steel | ruby red | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 20 | 2,5 | 100 | | | 10.92 € | | | B0261.0511404X30 | stainless steel | ruby red | M4 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 30 | 2,5 | 100 | | | 10.92 € | | | B0261.0511405X20 | stainless steel | ruby red | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 20 | 2,5 | 100 | | | 10.92 € | | | B0261.0511405X30 | stainless steel | ruby red | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 30 | 2,5 | 100 | | | 10.92 € | | | B0261.0511405X40 | stainless steel | ruby red | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 40 | 2,5 | 100 | | | 11.60 € | | | B0261.0511405X50 | stainless steel | ruby red | M5 | 15,4 | 8 | 18 | 13 | 11,2 | 17 | 52,3 | 59,1 | 1 | 50 | 2,5 | 100 | | | 11.60 € | | | B0261.1511405X20 | stainless steel | ruby red | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 20 | 4 | 120 | | | 12.15 € | | | B0261.1511405X30 | stainless steel | ruby red | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 30 | 4 | 120 | | | 12.15 € | | | B0261.1511405X40 | stainless steel | ruby red | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 40 | 4 | 120 | | | 12.97 € | | | B0261.1511405X50 | stainless steel | ruby red | M5 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 50 | 4 | 120 | | | 12.97 € | | | B0261.1511406X20 | stainless steel | ruby red | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 20 | 4 | 120 | | | 12.15 € | | | B0261.1511406X30 | stainless steel | ruby red | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 30 | 4 | 120 | | | 12.15 € | | | B0261.1511406X40 | stainless steel | ruby red | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 40 | 4 | 120 | | | 12.97 € | | | B0261.1511406X50 | stainless steel | ruby red | M6 | 18,1 | 9 | 21,5 | 15 | 14,5 | 22 | 70,4 | 79,2 | 1,2 | 50 | 4 | 120 | | | 12.97 € | | | B0261.2511408X25 | stainless steel | ruby red | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 25 | 8 | 350 | | | 13.40 € | | | B0261.2511408X30 | stainless steel | ruby red | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 30 | 8 | 350 | | | 13.40 € | | | B0261.2511408X40 | stainless steel | ruby red | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 40 | 8 | 350 | | | 14.31 € | | | B0261.2511408X50 | stainless steel | ruby red | M8 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 50 | 8 | 350 | | | 14.31 € | | | B0261.2511410X25 | stainless steel | ruby red | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 25 | 8 | 350 | | | 13.40 € | | | B0261.2511410X30 | stainless steel | ruby red | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 30 | 8 | 350 | | | 13.40 € | | | B0261.2511410X40 | stainless steel | ruby red | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 40 | 8 | 350 | | | 14.31 € | | | B0261.2511410X50 | stainless steel | ruby red | M10 | 27,1 | 11 | 33,3 | 24 | 18 | 28,5 | 96 | 108 | 1,5 | 50 | 8 | 350 | | | 14.31 € | |
