B0264

Cam levers, stainless steel with internal or external thread,...

go back

Products
- Product overview
  - Clamping levers, tension levers, cam levers
    - Cam levers

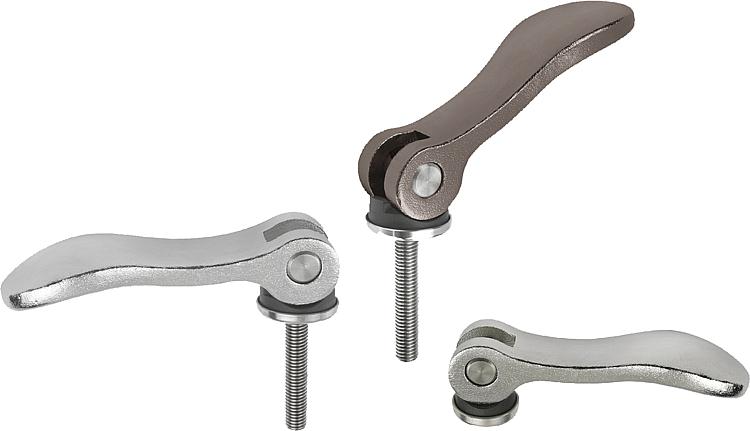

      - Cam levers, stainless steel with internal or external thread, plastic thrust washer and stainless steel stud

Item description/product images

DescriptionMaterial:

Handles 1.4308 stainless steel.
Thrust washer plastic PA 66 GF 35-X, fibreglass reinforced.
Hinge pin, washer and screw 1.4305 stainless steel.

Version:Handle electropolished or blasted.
Thrust washer black.
Hinge pin, washer and screw bright.Note:Plastics are subject to creeping under load (retardation).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0264 Cam levers, stainless steel with internal or external thread, plastic thrust washer and stainless steel stud

172 kB

Drawings (total overview)

Cam levers, stainless steel with internal thread, plastic thrust washer

More information

Drawings

Cam levers, stainless steel with internal thread, plastic thrust washer

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	Travel S	Clamping force F (kN)	Hand force FH N	Price
B0264.9512003	electropolished	M3	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90	12.43 €
B0264.9512004	electropolished	M4	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90	12.43 €
B0264.0512004	electropolished	M4	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	13.20 €
B0264.0512005	electropolished	M5	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	13.20 €
B0264.1512005	electropolished	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	15.57 €
B0264.1512006	electropolished	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	15.57 €
B0264.2512008	electropolished	M8	27,1	11	33,3	24	18	28,5	96	108	1,5	8	350	21.56 €
B0264.9512303	blasted	M3	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90	11.20 €
B0264.9512304	blasted	M4	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90	11.20 €
B0264.0512304	blasted	M4	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	11.90 €
B0264.0512305	blasted	M5	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	11.90 €
B0264.1512305	blasted	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	14.01 €
B0264.1512306	blasted	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	14.01 €
B0264.2512308	blasted	M8	27,1	11	33,3	24	18	28,5	96	108	1,5	8	350	19.42 €

Cam levers, stainless steel with external thread, plastic thrust washer and stainless steel stud

More information

Drawings

Cam levers, stainless steel with external thread, plastic thrust washer and stainless steel stud

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	L	Travel S	Clamping force F (kN)	Hand force FH N	Price
B0264.9512003X10	electropolished	M3	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90	12.85 €
B0264.9512003X15	electropolished	M3	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90	12.85 €
B0264.9512003X30	electropolished	M3	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90	12.85 €
B0264.9512004X10	electropolished	M4	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90	12.85 €
B0264.9512004X15	electropolished	M4	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90	12.85 €
B0264.9512004X30	electropolished	M4	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90	12.85 €
B0264.0512004X15	electropolished	M4	15,4	8	18	13	11,2	17	52,3	59,1	15	1	2,5	100	13.67 €
B0264.0512004X20	electropolished	M4	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100	13.67 €
B0264.0512004X30	electropolished	M4	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100	13.67 €
B0264.0512005X20	electropolished	M5	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100	13.67 €
B0264.0512005X30	electropolished	M5	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100	13.67 €
B0264.0512005X40	electropolished	M5	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100	14.18 €
B0264.0512005X50	electropolished	M5	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100	14.18 €
B0264.1512005X20	electropolished	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120	16.07 €
B0264.1512005X30	electropolished	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120	16.07 €
B0264.1512005X40	electropolished	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120	16.68 €
B0264.1512005X50	electropolished	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120	16.68 €
B0264.1512006X20	electropolished	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120	16.07 €
B0264.1512006X30	electropolished	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120	16.07 €
B0264.1512006X40	electropolished	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120	16.68 €
B0264.1512006X50	electropolished	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120	16.68 €
B0264.2512008X25	electropolished	M8	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350	21.87 €
B0264.2512008X30	electropolished	M8	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350	21.87 €
B0264.2512008X40	electropolished	M8	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350	22.53 €
B0264.2512008X50	electropolished	M8	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350	22.53 €
B0264.2512010X25	electropolished	M10	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350	21.87 €
B0264.2512010X30	electropolished	M10	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350	21.87 €
B0264.2512010X40	electropolished	M10	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350	22.53 €
B0264.2512010X50	electropolished	M10	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350	22.53 €
B0264.9512303X10	blasted	M3	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90	11.57 €
B0264.9512303X15	blasted	M3	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90	11.57 €
B0264.9512303X30	blasted	M3	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90	11.57 €
B0264.9512304X10	blasted	M4	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90	11.57 €
B0264.9512304X15	blasted	M4	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90	11.57 €
B0264.9512304X30	blasted	M4	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90	11.57 €
B0264.0512304X15	blasted	M4	15,4	8	18	13	11,2	17	52,3	59,1	15	1	2,5	100	12.28 €
B0264.0512304X20	blasted	M4	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100	12.28 €
B0264.0512304X30	blasted	M4	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100	12.28 €
B0264.0512305X20	blasted	M5	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100	12.28 €
B0264.0512305X30	blasted	M5	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100	12.28 €
B0264.0512305X40	blasted	M5	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100	12.76 €
B0264.0512305X50	blasted	M5	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100	12.76 €
B0264.1512305X20	blasted	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120	14.46 €
B0264.1512305X30	blasted	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120	14.46 €
B0264.1512305X40	blasted	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120	15.01 €
B0264.1512305X50	blasted	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120	15.01 €
B0264.1512306X20	blasted	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120	14.46 €
B0264.1512306X30	blasted	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120	14.46 €
B0264.1512306X40	blasted	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120	15.01 €
B0264.1512306X50	blasted	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120	15.01 €
B0264.2512308X25	blasted	M8	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350	19.66 €
B0264.2512308X30	blasted	M8	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350	19.66 €
B0264.2512308X40	blasted	M8	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350	20.28 €
B0264.2512308X50	blasted	M8	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350	20.28 €
B0264.2512310X25	blasted	M10	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350	19.66 €
B0264.2512310X30	blasted	M10	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350	19.66 €
B0264.2512310X40	blasted	M10	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350	20.28 €
B0264.2512310X50	blasted	M10	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350	20.28 €
