B0259Cam levers, plastic, adjustable with external thread, plastic... |
go back |
|

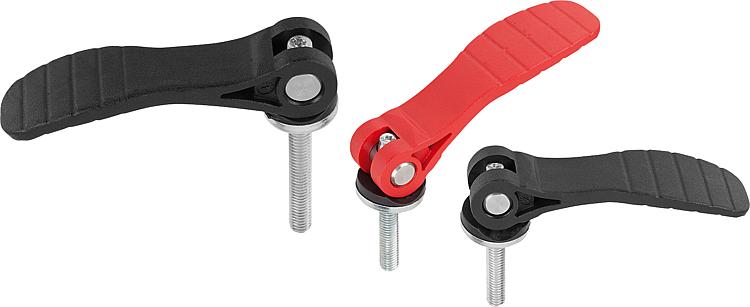

Item description/product images |
|
|
DescriptionMaterial:Handles and thrust washer fibreglass reinforced plastic PA 66.
Hinge pins 1.4305 stainless steel.
Screw and washer steel quality class 5.8 or 1.4305 stainless steel. Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue-passivated or bright stainless steel.Note:Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.

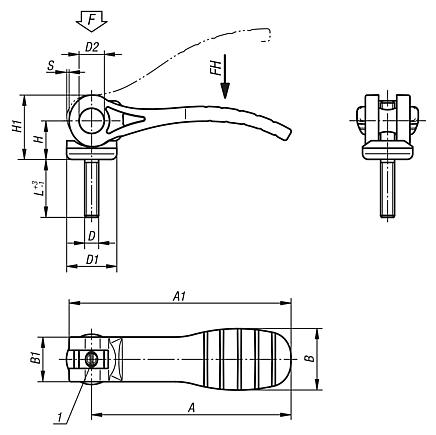

Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.Drawing reference:1) setscrew for fine adjustment of lever DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Component
material | Main
colour | D | D1 | D2 | B | B1 | H | H1 | A | A1 | L | Travel
S | Clamping
force
F (kN) | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| B0259.1521105X20 | steel | black | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 6.47 € | | | B0259.1521105X30 | steel | black | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 6.47 € | | | B0259.1521105X40 | steel | black | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 6.91 € | | | B0259.1521105X50 | steel | black | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 6.91 € | | | B0259.1521106X20 | steel | black | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 6.47 € | | | B0259.1521106X30 | steel | black | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 6.47 € | | | B0259.1521106X40 | steel | black | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 6.91 € | | | B0259.1521106X50 | steel | black | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 6.91 € | | | B0259.2521108X25 | steel | black | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 7.59 € | | | B0259.2521108X30 | steel | black | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 7.59 € | | | B0259.2521108X40 | steel | black | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 7.90 € | | | B0259.2521108X50 | steel | black | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 7.90 € | | | B0259.2521110X25 | steel | black | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 7.59 € | | | B0259.2521110X30 | steel | black | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 7.59 € | | | B0259.2521110X40 | steel | black | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 7.90 € | | | B0259.2521110X50 | steel | black | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 7.90 € | | | B0259.1531105X20 | stainless steel | black | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 9.70 € | | | B0259.1531105X30 | stainless steel | black | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 9.70 € | | | B0259.1531105X40 | stainless steel | black | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 10.39 € | | | B0259.1531105X50 | stainless steel | black | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 10.39 € | | | B0259.1531106X20 | stainless steel | black | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 9.70 € | | | B0259.1531106X30 | stainless steel | black | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 9.70 € | | | B0259.1531106X40 | stainless steel | black | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 10.39 € | | | B0259.1531106X50 | stainless steel | black | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 10.39 € | | | B0259.2531108X25 | stainless steel | black | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 11.37 € | | | B0259.2531108X30 | stainless steel | black | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 11.37 € | | | B0259.2531108X40 | stainless steel | black | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 12.17 € | | | B0259.2531108X50 | stainless steel | black | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 12.17 € | | | B0259.2531110X25 | stainless steel | black | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 11.37 € | | | B0259.2531110X30 | stainless steel | black | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 11.37 € | | | B0259.2531110X40 | stainless steel | black | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 12.17 € | | | B0259.2531110X50 | stainless steel | black | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 12.17 € | | | B0259.15218405X20 | steel | red RAL 3020 | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 6.47 € | | | B0259.15218405X30 | steel | red RAL 3020 | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 6.47 € | | | B0259.15218405X40 | steel | red RAL 3020 | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 6.91 € | | | B0259.15218405X50 | steel | red RAL 3020 | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 6.91 € | | | B0259.15218406X20 | steel | red RAL 3020 | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 6.47 € | | | B0259.15218406X30 | steel | red RAL 3020 | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 6.47 € | | | B0259.15218406X40 | steel | red RAL 3020 | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 6.91 € | | | B0259.15218406X50 | steel | red RAL 3020 | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 6.91 € | | | B0259.25218408X25 | steel | red RAL 3020 | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 7.59 € | | | B0259.25218408X30 | steel | red RAL 3020 | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 7.59 € | | | B0259.25218408X40 | steel | red RAL 3020 | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 7.90 € | | | B0259.25218408X50 | steel | red RAL 3020 | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 7.90 € | | | B0259.25218410X25 | steel | red RAL 3020 | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 7.59 € | | | B0259.25218410X30 | steel | red RAL 3020 | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 7.59 € | | | B0259.25218410X40 | steel | red RAL 3020 | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 7.90 € | | | B0259.25218410X50 | steel | red RAL 3020 | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 7.90 € | | | B0259.15318405X20 | stainless steel | red RAL 3020 | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 9.70 € | | | B0259.15318405X30 | stainless steel | red RAL 3020 | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 9.70 € | | | B0259.15318405X40 | stainless steel | red RAL 3020 | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 10.39 € | | | B0259.15318405X50 | stainless steel | red RAL 3020 | M5 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 10.39 € | | | B0259.15318406X20 | stainless steel | red RAL 3020 | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 9.70 € | | | B0259.15318406X30 | stainless steel | red RAL 3020 | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 9.70 € | | | B0259.15318406X40 | stainless steel | red RAL 3020 | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 10.39 € | | | B0259.15318406X50 | stainless steel | red RAL 3020 | M6 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 10.39 € | | | B0259.25318408X25 | stainless steel | red RAL 3020 | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 11.37 € | | | B0259.25318408X30 | stainless steel | red RAL 3020 | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 11.37 € | | | B0259.25318408X40 | stainless steel | red RAL 3020 | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 12.17 € | | | B0259.25318408X50 | stainless steel | red RAL 3020 | M8 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 12.17 € | | | B0259.25318410X25 | stainless steel | red RAL 3020 | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 11.37 € | | | B0259.25318410X30 | stainless steel | red RAL 3020 | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 11.37 € | | | B0259.25318410X40 | stainless steel | red RAL 3020 | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 12.17 € | | | B0259.25318410X50 | stainless steel | red RAL 3020 | M10 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 12.17 € | |
