B0258

Cam levers, plastic with internal or external thread, plastic...

go back

Products
- Product overview
  - Clamping levers, tension levers, cam levers
    - Cam levers
      - Cam levers, plastic with internal or external thread, plastic thrust washer and steel or stainless steel stud

Item description/product images

Show/filter all items

DescriptionMaterial:

Grip and thrust washer plastic PA 66 fibreglass reinforced.
Hinge pins stainless steel 1.4305.
Studs and washer steel grade 5.8 or stainless steel 1.4305.

Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue-passivated or bright stainless steel.Note:Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0258 Cam levers, plastic with internal or external thread, plastic thrust washer and steel or stainless steel stud

163 kB

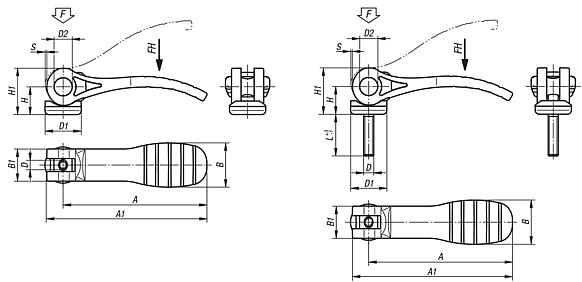

Drawings (total overview)

Cam levers, plastic with internal thread, plastic thrust washer

More information

Drawings

Cam levers, plastic with internal thread, plastic thrust washer

Item selection/filter

Order No.	Component material	Main colour	D	D1	D2	B	B1	H	H1	A	A1	Travel S	Clamping force F (kN)	Hand force FH N	Price
B0258.1521105	steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	5.04 €
B0258.1521106	steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	5.04 €
B0258.2521108	steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	1,5	5	170	5.90 €
B0258.1531105	stainless steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	7.61 €
B0258.1531106	stainless steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	7.61 €
B0258.2531108	stainless steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	1,5	5	170	8.85 €
B0258.15218405	steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	5.04 €
B0258.15218406	steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	5.04 €
B0258.25218408	steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	1,5	5	170	5.90 €
B0258.15318405	stainless steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	7.61 €
B0258.15318406	stainless steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	7.61 €
B0258.25318408	stainless steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	1,5	5	170	8.85 €

Cam levers, plastic with external thread, plastic thrust washer and steel or stainless steel stud

More information

Drawings

Cam levers, plastic with external thread, plastic thrust washer and steel or stainless steel stud

Item selection/filter

Order No.	Component material	Main colour	D	D1	D2	B	B1	H	H1	A	A1	L	Travel S	Clamping force F (kN)	Hand force FH N	Price
B0258.1521105X20	steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	20	1,15	2,5	125	5.41 €
B0258.1521105X30	steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	30	1,15	2,5	125	5.41 €
B0258.1521105X40	steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	40	1,15	2,5	125	5.75 €
B0258.1521105X50	steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	50	1,15	2,5	125	5.75 €
B0258.1521106X20	steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	20	1,15	2,5	125	5.41 €
B0258.1521106X30	steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	30	1,15	2,5	125	5.41 €
B0258.1521106X40	steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	40	1,15	2,5	125	5.75 €
B0258.1521106X50	steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	50	1,15	2,5	125	5.75 €
B0258.2521108X25	steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	25	1,5	5	170	6.31 €
B0258.2521108X30	steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	30	1,5	5	170	6.31 €
B0258.2521108X40	steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	40	1,5	5	170	6.77 €
B0258.2521108X50	steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	50	1,5	5	170	6.77 €
B0258.2521110X25	steel	black	M10	27,1	11	33	24,2	16,2	27,7	100	110	25	1,5	5	170	6.31 €
B0258.2521110X30	steel	black	M10	27,1	11	33	24,2	16,2	27,7	100	110	30	1,5	5	170	6.31 €
B0258.2521110X40	steel	black	M10	27,1	11	33	24,2	16,2	27,7	100	110	40	1,5	5	170	6.77 €
B0258.2521110X50	steel	black	M10	27,1	11	33	24,2	16,2	27,7	100	110	50	1,5	5	170	6.77 €
B0258.1531105X20	stainless steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	20	1,15	2,5	125	8.10 €
B0258.1531105X30	stainless steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	30	1,15	2,5	125	8.10 €
B0258.1531105X40	stainless steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	40	1,15	2,5	125	8.65 €
B0258.1531105X50	stainless steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	50	1,15	2,5	125	8.65 €
B0258.1531106X20	stainless steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	20	1,15	2,5	125	8.10 €
B0258.1531106X30	stainless steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	30	1,15	2,5	125	8.10 €
B0258.1531106X40	stainless steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	40	1,15	2,5	125	8.65 €
B0258.1531106X50	stainless steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	50	1,15	2,5	125	8.65 €
B0258.2531108X25	stainless steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	25	1,5	5	170	9.48 €
B0258.2531108X30	stainless steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	30	1,5	5	170	9.48 €
B0258.2531108X40	stainless steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	40	1,5	5	170	10.14 €
B0258.2531108X50	stainless steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	50	1,5	5	170	10.14 €
B0258.2531110X25	stainless steel	black	M10	27,1	11	33	24,2	16,2	27,7	100	110	25	1,5	5	170	9.48 €
B0258.2531110X30	stainless steel	black	M10	27,1	11	33	24,2	16,2	27,7	100	110	30	1,5	5	170	9.48 €
B0258.2531110X40	stainless steel	black	M10	27,1	11	33	24,2	16,2	27,7	100	110	40	1,5	5	170	10.14 €
B0258.2531110X50	stainless steel	black	M10	27,1	11	33	24,2	16,2	27,7	100	110	50	1,5	5	170	10.14 €
B0258.15218405X20	steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	20	1,15	2,5	125	5.41 €
B0258.15218405X30	steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	30	1,15	2,5	125	5.41 €
B0258.15218405X40	steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	40	1,15	2,5	125	5.75 €
B0258.15218405X50	steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	50	1,15	2,5	125	5.75 €
B0258.15218406X20	steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	20	1,15	2,5	125	5.41 €
B0258.15218406X30	steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	30	1,15	2,5	125	5.41 €
B0258.15218406X40	steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	40	1,15	2,5	125	5.75 €
B0258.15218406X50	steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	50	1,15	2,5	125	5.75 €
B0258.25218408X25	steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	25	1,5	5	170	6.31 €
B0258.25218408X30	steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	30	1,5	5	170	6.31 €
B0258.25218408X40	steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	40	1,5	5	170	6.77 €
B0258.25218408X50	steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	50	1,5	5	170	6.77 €
B0258.25218410X25	steel	traffic red RAL 3020	M10	27,1	11	33	24,2	16,2	27,7	100	110	25	1,5	5	170	6.31 €
B0258.25218410X30	steel	traffic red RAL 3020	M10	27,1	11	33	24,2	16,2	27,7	100	110	30	1,5	5	170	6.31 €
B0258.25218410X40	steel	traffic red RAL 3020	M10	27,1	11	33	24,2	16,2	27,7	100	110	40	1,5	5	170	6.77 €
B0258.25218410X50	steel	traffic red RAL 3020	M10	27,1	11	33	24,2	16,2	27,7	100	110	50	1,5	5	170	6.77 €
B0258.15318405X20	stainless steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	20	1,15	2,5	125	8.10 €
B0258.15318405X30	stainless steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	30	1,15	2,5	125	8.10 €
B0258.15318405X40	stainless steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	40	1,15	2,5	125	8.65 €
B0258.15318405X50	stainless steel	traffic red RAL 3020	M5	18,1	9	22	16	14	23,4	71,5	79,6	50	1,15	2,5	125	8.65 €
B0258.15318406X20	stainless steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	20	1,15	2,5	125	8.10 €
B0258.15318406X30	stainless steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	30	1,15	2,5	125	8.10 €
B0258.15318406X40	stainless steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	40	1,15	2,5	125	8.65 €
B0258.15318406X50	stainless steel	traffic red RAL 3020	M6	18,1	9	22	16	14	23,4	71,5	79,6	50	1,15	2,5	125	8.65 €
B0258.25318408X25	stainless steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	25	1,5	5	170	9.48 €
B0258.25318408X30	stainless steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	30	1,5	5	170	9.48 €
B0258.25318408X40	stainless steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	40	1,5	5	170	10.14 €
B0258.25318408X50	stainless steel	traffic red RAL 3020	M8	27,1	11	33	24,2	16,2	27,7	100	110	50	1,5	5	170	10.14 €
B0258.25318410X25	stainless steel	traffic red RAL 3020	M10	27,1	11	33	24,2	16,2	27,7	100	110	25	1,5	5	170	9.48 €
B0258.25318410X30	stainless steel	traffic red RAL 3020	M10	27,1	11	33	24,2	16,2	27,7	100	110	30	1,5	5	170	9.48 €
B0258.25318410X40	stainless steel	traffic red RAL 3020	M10	27,1	11	33	24,2	16,2	27,7	100	110	40	1,5	5	170	10.14 €
B0258.25318410X50	stainless steel	traffic red RAL 3020	M10	27,1	11	33	24,2	16,2	27,7	100	110	50	1,5	5	170	10.14 €
