B0262

Cam levers, steel, with internal and external thread,...

go back

Products
- Product overview
  - Clamping levers, tension levers, cam levers
    - Cam levers
      - Cam levers, steel, with internal and external thread, plastic-metal thrust washer and steel stud

Item description/product images

DescriptionMaterial:

Handle steel 1.0401.
Thrust washer plastic PA 66 GF 35-X fibreglass reinforced.
Hinge pin stainless steel 1.4305.
Stud and washer steel, grade 5.8.

Version:Handle, stud and washer trivalent blue-passivated.
Thrust washer black.
Hinge pin bright.Note:Plastics are subject to creeping under load (retardation).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0262 Cam levers, steel, with internal and external thread, plastic-metal thrust washer and steel stud

156 kB

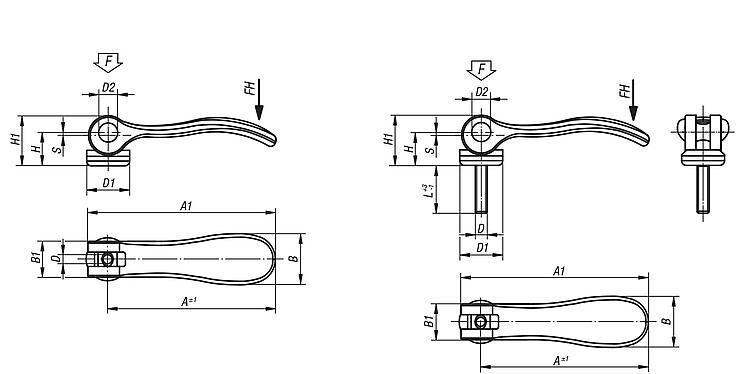

Drawings (total overview)

Cam levers, steel, with internal thread, plastic-metal thrust washer

More information

Drawings

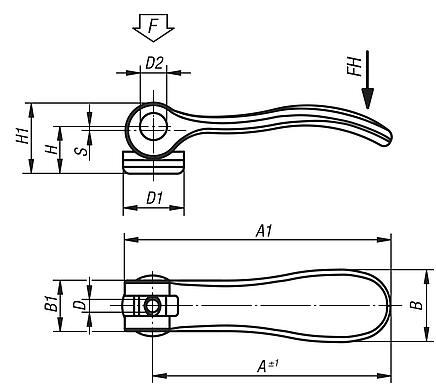

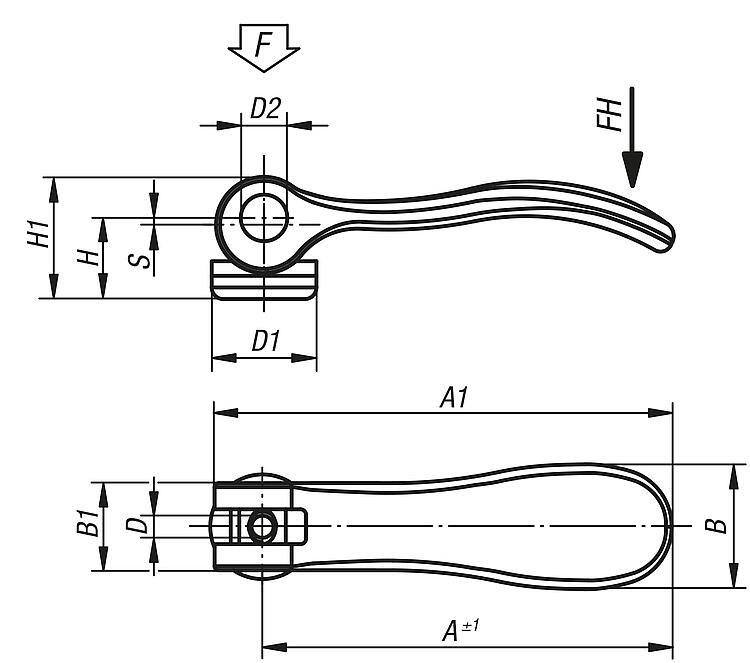

Cam levers, steel, with internal thread, plastic-metal thrust washer

Item selection/filter

Order No.	D	D1	D2	B	B1	H	H1	A	A1	Travel S	Clamping force F (kN)	Hand force FH N	Price
B0262.1502205	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	8.13 €
B0262.1502206	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	8.13 €
B0262.2502208	M8	27,1	11	33,2	24	18	28,5	96	108	1,5	8	350	14.29 €

Cam levers, steel, with external thread, plastic-metal thrust washer and steel stud

More information

Drawings

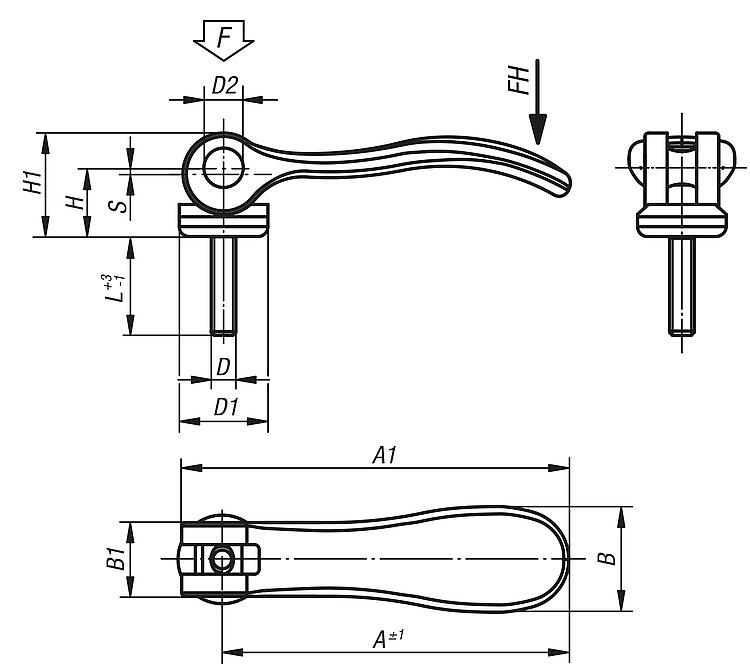

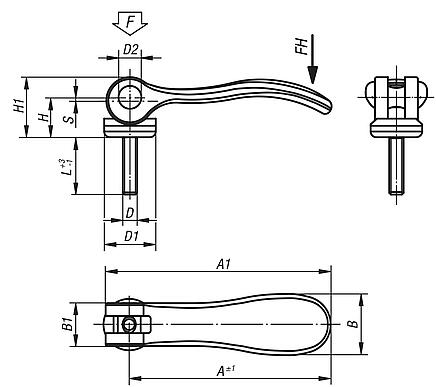

Cam levers, steel, with external thread, plastic-metal thrust washer and steel stud

Item selection/filter

Order No.	Size	D	D1	D2	B	B1	H	H1	A	A1	L	Clamping force F (kN)	Hand force FH N	Travel S	Price
B0262.1502205X20	1	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	20	4	120	1,2	9.73 €
B0262.1502205X30	1	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	30	4	120	1,2	9.73 €
B0262.1502205X40	1	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	40	4	120	1,2	9.98 €
B0262.1502205X50	1	M5	18,1	9	21,5	15	14,5	22	70,4	79,2	50	4	120	1,2	9.98 €
B0262.1502206X20	1	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	20	4	120	1,2	9.73 €
B0262.1502206X30	1	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	30	4	120	1,2	9.73 €
B0262.1502206X40	1	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	40	4	120	1,2	9.98 €
B0262.1502206X50	1	M6	18,1	9	21,5	15	14,5	22	70,4	79,2	50	4	120	1,2	9.98 €
B0262.2502208X25	2	M8	27,1	11	33,2	24	18	28,5	96	108	25	8	350	1,5	15.97 €
B0262.2502208X30	2	M8	27,1	11	33,2	24	18	28,5	96	108	30	8	350	1,5	15.97 €
B0262.2502208X40	2	M8	27,1	11	33,2	24	18	28,5	96	108	40	8	350	1,5	17.08 €
B0262.2502208X50	2	M8	27,1	11	33,2	24	18	28,5	96	108	50	8	350	1,5	17.08 €
B0262.2502210X25	2	M10	27,1	11	33,2	24	18	28,5	96	108	25	8	350	1,5	15.97 €
B0262.2502210X30	2	M10	27,1	11	33,2	24	18	28,5	96	108	30	8	350	1,5	15.97 €
B0262.2502210X40	2	M10	27,1	11	33,2	24	18	28,5	96	108	40	8	350	1,5	17.08 €
B0262.2502210X50	2	M10	27,1	11	33,2	24	18	28,5	96	108	50	8	350	1,5	17.08 €
