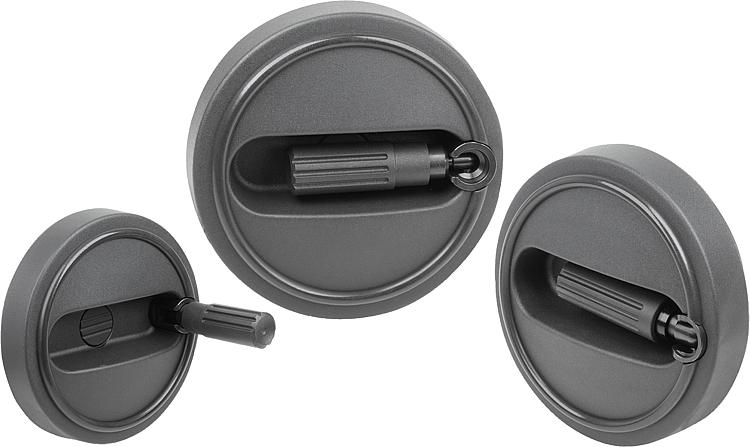

B0326Handwheels with fold-down cylinder grip |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handwheel body and grip thermoplastic.
Hub and grip axle steel, strength class 5.8, or stainless steel 1.4404. Version:Thermoplastic black grey.
Steel parts black oxidised.
Stainless steel bright.Note:The hub cover is supplied loose.

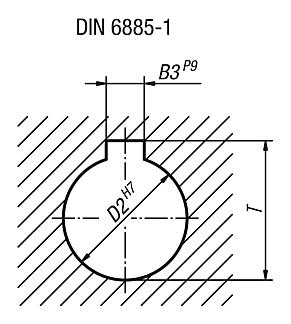

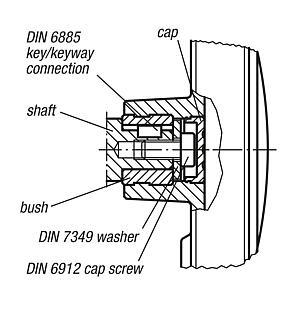

The handwheels can be secured using a transverse pin or by parallel key connection together with a DIN 6912 socket head screw and a DIN 7349 washer.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
For assembly example, see B0324.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version
| Version 2 | Component

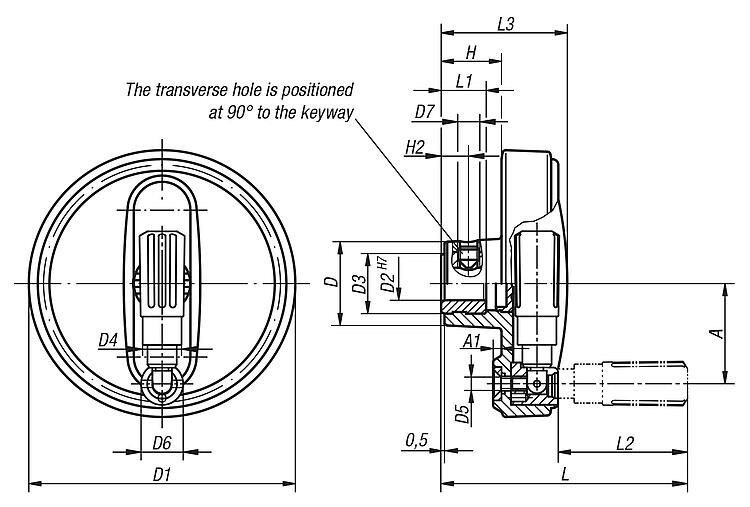

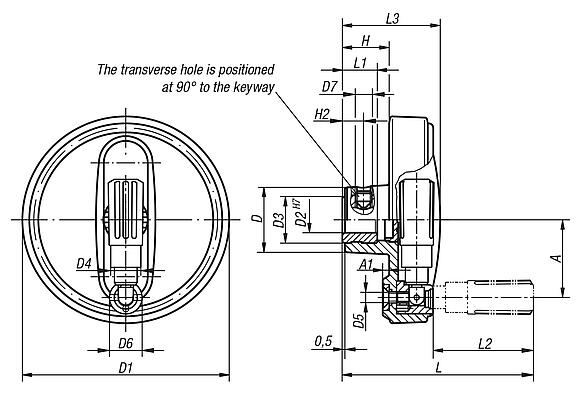

material | D | D1 | D2 | D3 | D4 | D5 | D6 | D7 | A | A1 | H | H2 | L | L1 | L2 | L3 | B3
| T
| CAD | Acc. | Price | Order |
|---|
| B0326.108008 | reamed hole | - | steel | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - |  | | 31.34 € | | | B0326.108010 | reamed hole | - | steel | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 31.34 € | | | B0326.108012 | reamed hole | - | steel | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 31.34 € | | | B0326.210010 | reamed hole | - | steel | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 90,1 | 13 | 49 | 43,5 | - | - | | | 36.93 € | | | B0326.210012 | reamed hole | - | steel | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 90,1 | 13 | 49 | 43,5 | - | - | | | 36.93 € | | | B0326.312512 | reamed hole | - | steel | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 39.46 € | | | B0326.312514 | reamed hole | - | steel | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 39.46 € | | | B0326.312516 | reamed hole | - | steel | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 39.46 € | | | B0326.416014 | reamed hole | - | steel | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 143,5 | 18,5 | 83 | 63,8 | - | - | | | 42.04 € | | | B0326.416016 | reamed hole | - | steel | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 143,5 | 18,5 | 83 | 63,8 | - | - | | | 42.04 € | | | B0326.10800802 | reamed hole with slot | - | steel | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 2 | 9 | | | 34.00 € | | | B0326.10801003 | reamed hole with slot | - | steel | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 3 | 11,4 | | | 34.00 € | | | B0326.10801204 | reamed hole with slot | - | steel | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 4 | 13,8 | | | 34.00 € | | | B0326.21001003 | reamed hole with slot | - | steel | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 90,1 | 13 | 49 | 43,5 | 3 | 11,4 | | | 39.60 € | | | B0326.21001204 | reamed hole with slot | - | steel | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 90,1 | 13 | 49 | 43,5 | 4 | 13,8 | | | 39.60 € | | | B0326.31251204 | reamed hole with slot | - | steel | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | 4 | 13,8 | | | 42.14 € | | | B0326.31251405 | reamed hole with slot | - | steel | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | 5 | 16,3 | | | 42.14 € | | | B0326.31251605 | reamed hole with slot | - | steel | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | 5 | 18,3 | | | 42.14 € | | | B0326.41601405 | reamed hole with slot | - | steel | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 143,5 | 18,5 | 83 | 63,8 | 5 | 16,3 | | | 44.73 € | | | B0326.41601605 | reamed hole with slot | - | steel | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 143,5 | 18,5 | 83 | 63,8 | 5 | 18,3 | | | 44.73 € | | | B0326.1080086 | reamed hole | with transverse bore | steel | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 34.69 € | | | B0326.1080106 | reamed hole | with transverse bore | steel | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 34.69 € | | | B0326.1080126 | reamed hole | with transverse bore | steel | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 34.69 € | | | B0326.2100106 | reamed hole | with transverse bore | steel | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 90,1 | 13 | 49 | 43,5 | - | - | | | 40.27 € | | | B0326.2100126 | reamed hole | with transverse bore | steel | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 90,1 | 13 | 49 | 43,5 | - | - | | | 40.27 € | | | B0326.3125126 | reamed hole | with transverse bore | steel | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 42.81 € | | | B0326.3125146 | reamed hole | with transverse bore | steel | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 42.81 € | | | B0326.3125166 | reamed hole | with transverse bore | steel | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 42.81 € | | | B0326.4160146 | reamed hole | with transverse bore | steel | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 143,5 | 18,5 | 83 | 63,8 | - | - | | | 45.39 € | | | B0326.4160166 | reamed hole | with transverse bore | steel | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 143,5 | 18,5 | 83 | 63,8 | - | - | | | 45.39 € | | | B0326.108008026 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 2 | 9 | | | 37.34 € | | | B0326.108010036 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 3 | 11,4 | | | 37.34 € | | | B0326.108012046 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 4 | 13,8 | | | 37.34 € | | | B0326.210010036 | reamed hole with slot | with transverse bore | steel | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 90,1 | 13 | 49 | 43,5 | 3 | 11,4 | | | 42.96 € | | | B0326.210012046 | reamed hole with slot | with transverse bore | steel | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 90,1 | 13 | 49 | 43,5 | 4 | 13,8 | | | 42.96 € | | | B0326.312512046 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | 4 | 13,8 | | | 45.48 € | | | B0326.312514056 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | 5 | 16,3 | | | 45.48 € | | | B0326.312516056 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | 5 | 18,3 | | | 45.48 € | | | B0326.416014056 | reamed hole with slot | with transverse bore | steel | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 143,5 | 18,5 | 83 | 63,8 | 5 | 16,3 | | | 48.07 € | | | B0326.416016056 | reamed hole with slot | with transverse bore | steel | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 143,5 | 18,5 | 83 | 63,8 | 5 | 18,3 | | | 48.07 € | | | B0326.0108008 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 37.62 € | | | B0326.0108010 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 37.62 € | | | B0326.0108012 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 37.62 € | | | B0326.0210010 | reamed hole | without transverse hole | stainless steel | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 90,1 | 13 | 49 | 43,5 | - | - | | | 40.62 € | | | B0326.0210012 | reamed hole | without transverse hole | stainless steel | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 90,1 | 13 | 49 | 43,5 | - | - | | | 40.62 € | | | B0326.0312512 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 43.41 € | | | B0326.0312514 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 43.41 € | | | B0326.0312516 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 43.41 € | | | B0326.0416014 | reamed hole | without transverse hole | stainless steel | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 143,5 | 18,5 | 83 | 63,8 | - | - | | | 50.46 € | | | B0326.0416016 | reamed hole | without transverse hole | stainless steel | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 143,5 | 18,5 | 83 | 63,8 | - | - | | | 50.46 € | | | B0326.010800802 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 2 | 9 | | | 40.79 € | | | B0326.010801003 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 3 | 11,4 | | | 40.79 € | | | B0326.010801204 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 4 | 13,8 | | | 40.79 € | | | B0326.021001003 | reamed hole with slot | without transverse hole | stainless steel | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 90,1 | 13 | 49 | 43,5 | 3 | 11,4 | | | 43.57 € | | | B0326.021001204 | reamed hole with slot | without transverse hole | stainless steel | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 90,1 | 13 | 49 | 43,5 | 4 | 13,8 | | | 43.57 € | | | B0326.031251204 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | 4 | 13,8 | | | 46.35 € | | | B0326.031251405 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | 5 | 16,3 | | | 46.35 € | | | B0326.031251605 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 108,8 | 18,5 | 59,5 | 52,1 | 5 | 18,3 | | | 46.35 € | | | B0326.041601405 | reamed hole with slot | without transverse hole | stainless steel | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 143,5 | 18,5 | 83 | 63,8 | 5 | 16,3 | | | 53.67 € | | | B0326.041601605 | reamed hole with slot | without transverse hole | stainless steel | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 143,5 | 18,5 | 83 | 63,8 | 5 | 18,3 | | | 53.67 € | | | B0326.01080086 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 41.62 € | | | B0326.01080106 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 41.62 € | | | B0326.01080126 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 41.62 € | | | B0326.02100106 | reamed hole | with transverse bore | stainless steel | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 90,1 | 13 | 49 | 43,5 | - | - | | | 44.29 € | | | B0326.02100126 | reamed hole | with transverse bore | stainless steel | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 90,1 | 13 | 49 | 43,5 | - | - | | | 44.29 € | | | B0326.03125126 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 47.08 € | | | B0326.03125146 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 47.08 € | | | B0326.03125166 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | - | - | | | 47.08 € | | | B0326.04160146 | reamed hole | with transverse bore | stainless steel | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 143,5 | 18,5 | 83 | 63,8 | - | - | | | 54.47 € | | | B0326.04160166 | reamed hole | with transverse bore | stainless steel | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 143,5 | 18,5 | 83 | 63,8 | - | - | | | 54.47 € | | | B0326.0108008026 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 2 | 9 | | | 44.81 € | | | B0326.0108010036 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 3 | 11,4 | | | 44.81 € | | | B0326.0108012046 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 4 | 13,8 | | | 44.81 € | | | B0326.0210010036 | reamed hole with slot | with transverse bore | stainless steel | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 90,1 | 13 | 49 | 43,5 | 3 | 11,4 | | | 47.26 € | | | B0326.0210012046 | reamed hole with slot | with transverse bore | stainless steel | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 90,1 | 13 | 49 | 43,5 | 4 | 13,8 | | | 47.26 € | | | B0326.0312512046 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | 4 | 13,8 | | | 50.04 € | | | B0326.0312514056 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | 5 | 16,3 | | | 50.04 € | | | B0326.0312516056 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 108,8 | 18,5 | 59,5 | 52,1 | 5 | 18,3 | | | 50.04 € | | | B0326.0416014056 | reamed hole with slot | with transverse bore | stainless steel | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 143,5 | 18,5 | 83 | 63,8 | 5 | 16,3 | | | 57.69 € | | | B0326.0416016056 | reamed hole with slot | with transverse bore | stainless steel | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 143,5 | 18,5 | 83 | 63,8 | 5 | 18,3 | | | 57.69 € | |
