B0340Crank handles with fold-down cylinder grip |
go back |
|

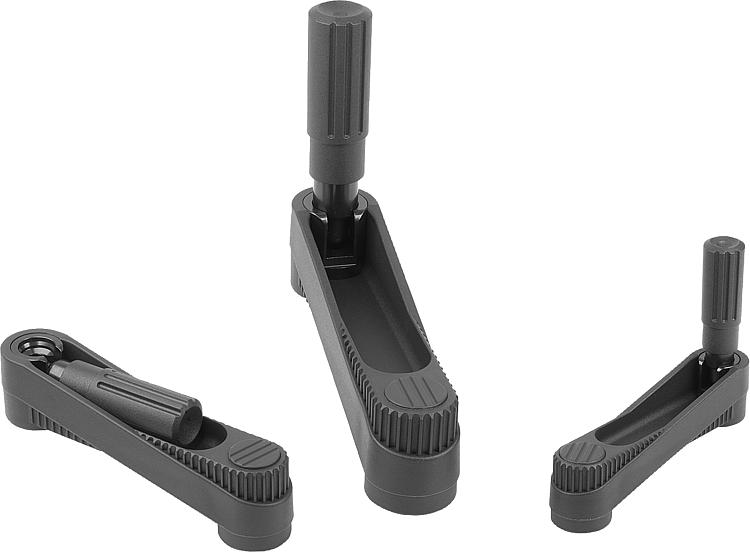

Item description/product images |
|
|
DescriptionMaterial:Crank and grip thermoplastic.
Hub and grip axle steel, strength class 5.8, or stainless steel 1.4404. Version:Thermoplastic black grey.
Steel parts black oxidised.
Stainless steel bright.Note:The hub cover is supplied unassembled.
The crank handles can be secured to the shaft by cross-pinning or by parallel key together with a DIN 6912 socket head screw and DIN 7349 washer.

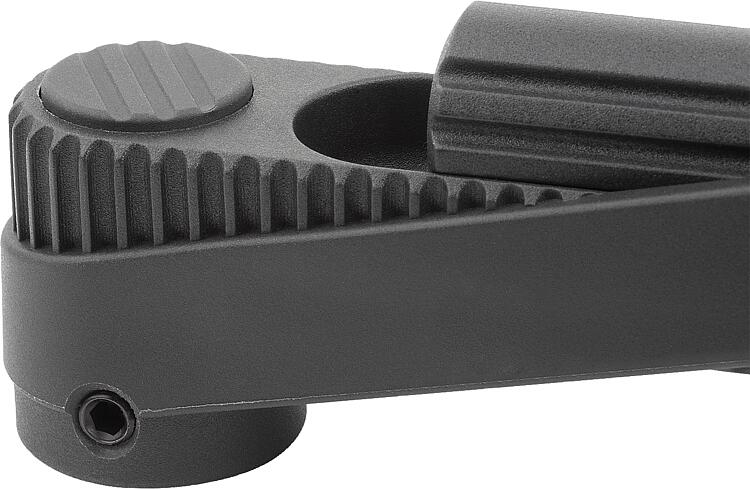

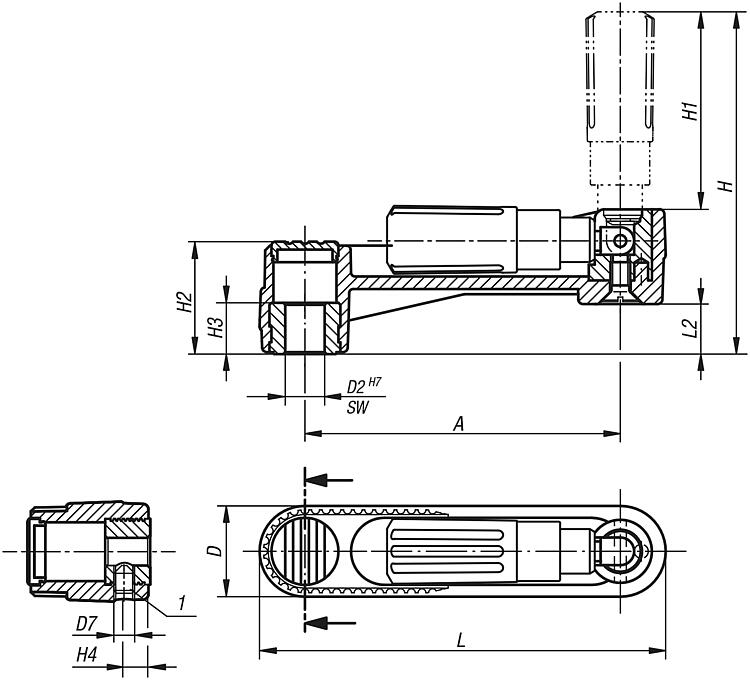

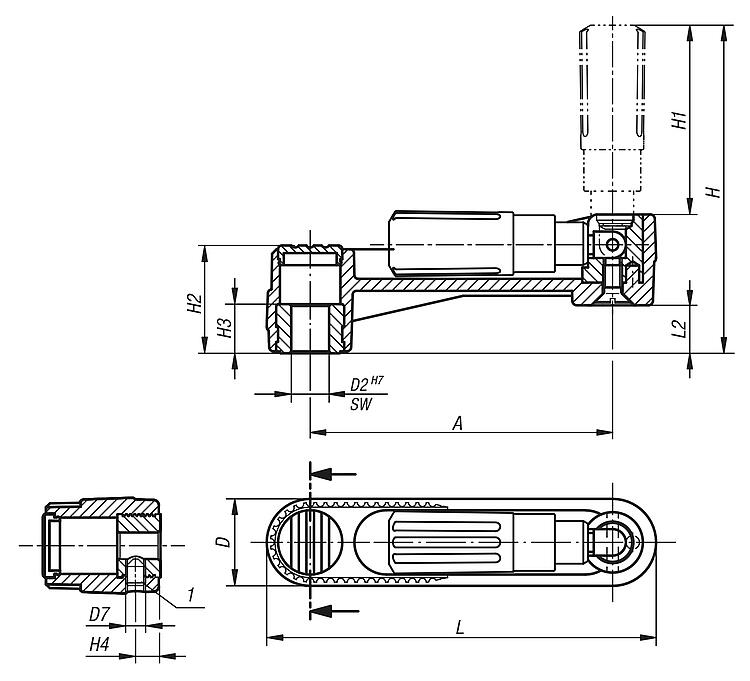

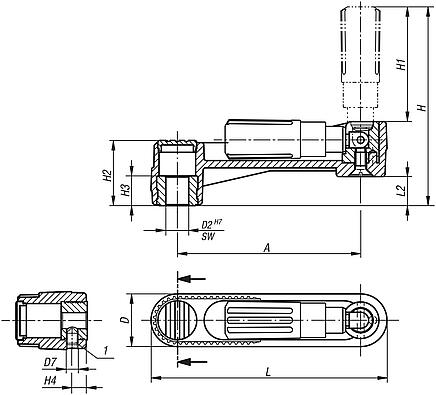

Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Accessory:B0127 Cap screws with low head DIN 6912Drawing reference:1) Position of the transverse bore to the keyway is offset by 90°. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

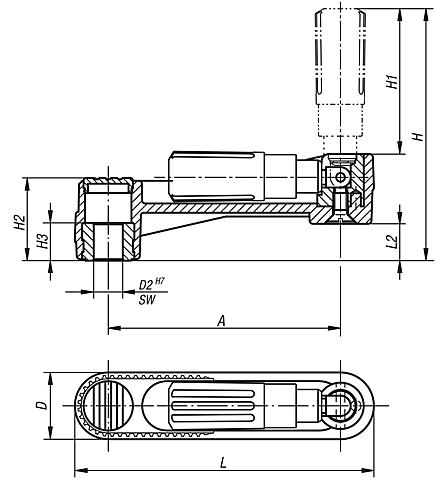

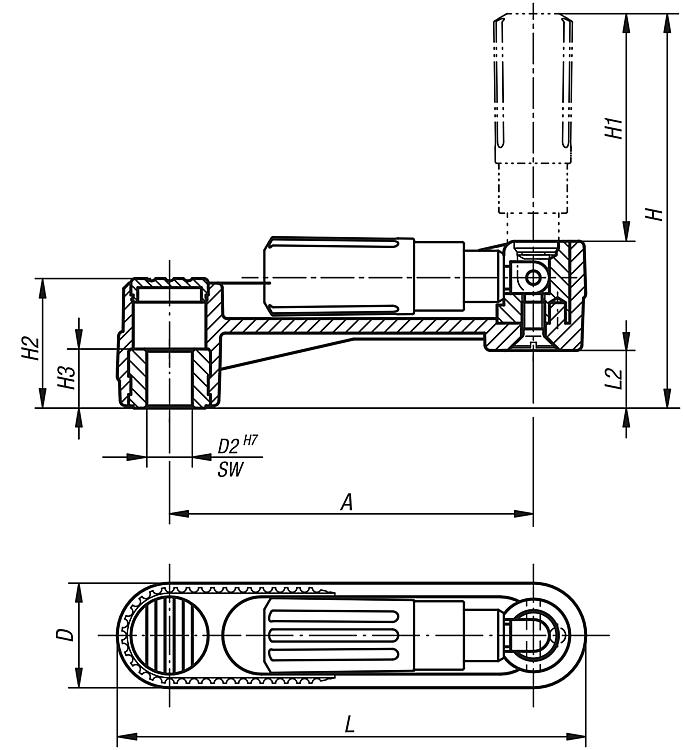

Drawings (total overview) |
Order No.
| Version 1 | Version 2 | Component
material | A | D | D2 | D7 | H | H1 | H2 | H3 | H4 | L | L2 | CAD | Acc. | Price | Order |
|---|
| B0340.1108 | reamed hole | without transverse hole | steel | 80 | 24 | 8 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 |  | | 31.90 € | | | B0340.1110 | reamed hole | without transverse hole | steel | 80 | 24 | 10 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | | | 31.90 € | | | B0340.1210 | reamed hole | without transverse hole | steel | 100 | 29 | 10 | - | 105,2 | 49 | 35,5 | 13 | - | 129 | 15,7 | | | 34.34 € | | | B0340.1212 | reamed hole | without transverse hole | steel | 100 | 29 | 12 | - | 105,2 | 59,5 | 35,5 | 13 | - | 129 | 15,7 | | | 34.34 € | | | B0340.1312 | reamed hole | without transverse hole | steel | 125 | 36 | 12 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | | | 37.56 € | | | B0340.1314 | reamed hole | without transverse hole | steel | 125 | 36 | 14 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | | | 37.56 € | | | B0340.11086 | reamed hole | with transverse bore | steel | 80 | 24 | 8 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | | | 34.97 € | | | B0340.11106 | reamed hole | with transverse bore | steel | 80 | 24 | 10 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | | | 34.97 € | | | B0340.12106 | reamed hole | with transverse bore | steel | 100 | 29 | 10 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | | | 37.40 € | | | B0340.12126 | reamed hole | with transverse bore | steel | 100 | 29 | 12 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | | | 37.40 € | | | B0340.13126 | reamed hole | with transverse bore | steel | 125 | 36 | 12 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | | | 40.62 € | | | B0340.13146 | reamed hole | with transverse bore | steel | 125 | 36 | 14 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | | | 40.62 € | | | B0340.01108 | reamed hole | without transverse hole | stainless steel | 80 | 24 | 8 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | | | 44.66 € | | | B0340.01110 | reamed hole | without transverse hole | stainless steel | 80 | 24 | 10 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | | | 44.66 € | | | B0340.01210 | reamed hole | without transverse hole | stainless steel | 100 | 29 | 10 | - | 105,2 | 49 | 35,5 | 13 | - | 129 | 15,7 | | | 48.07 € | | | B0340.01212 | reamed hole | without transverse hole | stainless steel | 100 | 29 | 12 | - | 105,2 | 59,5 | 35,5 | 13 | - | 129 | 15,7 | | | 48.07 € | | | B0340.01312 | reamed hole | without transverse hole | stainless steel | 125 | 36 | 12 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | | | 52.58 € | | | B0340.01314 | reamed hole | without transverse hole | stainless steel | 125 | 36 | 14 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | | | 52.58 € | | | B0340.011086 | reamed hole | with transverse bore | stainless steel | 80 | 24 | 8 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | | | 48.96 € | | | B0340.011106 | reamed hole | with transverse bore | stainless steel | 80 | 24 | 10 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | | | 48.96 € | | | B0340.012106 | reamed hole | with transverse bore | stainless steel | 100 | 29 | 10 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | | | 52.35 € | | | B0340.012126 | reamed hole | with transverse bore | stainless steel | 100 | 29 | 12 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | | | 52.35 € | | | B0340.013126 | reamed hole | with transverse bore | stainless steel | 125 | 36 | 12 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | | | 56.88 € | | | B0340.013146 | reamed hole | with transverse bore | stainless steel | 125 | 36 | 14 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | | | 56.88 € | |
|
Order No.
| Version 1 | Version 2 | Component
material | A | B3 | D | D2 | D7 | H | H1 | H2 | H3 | H4 | L | L2 | T | CAD | Acc. | Price | Order |
|---|
| B0340.110802 | reamed hole with slot | without transverse hole | steel | 80 | 2 | 24 | 8 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | 9 | | | 34.63 € | | | B0340.111003 | reamed hole with slot | without transverse hole | steel | 80 | 3 | 24 | 10 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | 11,4 | | | 34.63 € | | | B0340.121003 | reamed hole with slot | without transverse hole | steel | 100 | 3 | 29 | 10 | - | 105,2 | 59,5 | 35,5 | 13 | - | 129 | 15,7 | 11,4 | | | 37.08 € | | | B0340.121204 | reamed hole with slot | without transverse hole | steel | 100 | 4 | 29 | 12 | - | 105,2 | 59,5 | 35,5 | 13 | - | 129 | 15,7 | 13,8 | | | 37.08 € | | | B0340.131204 | reamed hole with slot | without transverse hole | steel | 125 | 4 | 36 | 12 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | 13,8 | | | 40.31 € | | | B0340.131405 | reamed hole with slot | without transverse hole | steel | 125 | 5 | 36 | 14 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | 16,3 | | | 40.31 € | | | B0340.1108026 | reamed hole with slot | with transverse bore | steel | 80 | 2 | 24 | 8 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | 9 | | | 37.70 € | | | B0340.1110036 | reamed hole with slot | with transverse bore | steel | 80 | 3 | 24 | 10 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | 11,4 | | | 37.70 € | | | B0340.1210036 | reamed hole with slot | with transverse bore | steel | 100 | 3 | 29 | 10 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | 11,4 | | | 40.16 € | | | B0340.1212046 | reamed hole with slot | with transverse bore | steel | 100 | 4 | 29 | 12 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | 13,8 | | | 40.16 € | | | B0340.1312046 | reamed hole with slot | with transverse bore | steel | 125 | 4 | 36 | 12 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | 13,8 | | | 43.39 € | | | B0340.1314056 | reamed hole with slot | with transverse bore | steel | 125 | 5 | 36 | 14 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | 16,3 | | | 43.39 € | | | B0340.0110802 | reamed hole with slot | without transverse hole | stainless steel | 80 | 2 | 24 | 8 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | 9 | | | 48.48 € | | | B0340.0111003 | reamed hole with slot | without transverse hole | stainless steel | 80 | 3 | 24 | 10 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | 11,4 | | | 48.48 € | | | B0340.0121003 | reamed hole with slot | without transverse hole | stainless steel | 100 | 3 | 29 | 10 | - | 105,2 | 59,5 | 35,5 | 13 | - | 129 | 15,7 | 11,4 | | | 51.92 € | | | B0340.0121204 | reamed hole with slot | without transverse hole | stainless steel | 100 | 4 | 29 | 12 | - | 105,2 | 59,5 | 35,5 | 13 | - | 129 | 15,7 | 13,8 | | | 51.92 € | | | B0340.0131204 | reamed hole with slot | without transverse hole | stainless steel | 125 | 4 | 36 | 12 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | 13,8 | | | 56.44 € | | | B0340.0131405 | reamed hole with slot | without transverse hole | stainless steel | 125 | 5 | 36 | 14 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | 16,3 | | | 56.44 € | | | B0340.01108026 | reamed hole with slot | with transverse bore | stainless steel | 80 | 2 | 24 | 8 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | 9 | | | 52.78 € | | | B0340.01110036 | reamed hole with slot | with transverse bore | stainless steel | 80 | 3 | 24 | 10 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | 11,4 | | | 52.78 € | | | B0340.01210036 | reamed hole with slot | with transverse bore | stainless steel | 100 | 3 | 29 | 10 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | 11,4 | | | 56.22 € | | | B0340.01212046 | reamed hole with slot | with transverse bore | stainless steel | 100 | 4 | 29 | 12 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | 13,8 | | | 56.22 € | | | B0340.01312046 | reamed hole with slot | with transverse bore | stainless steel | 125 | 4 | 36 | 12 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | 13,8 | | | 60.74 € | | | B0340.01314056 | reamed hole with slot | with transverse bore | stainless steel | 125 | 5 | 36 | 14 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | 16,3 | | | 60.74 € | |
|
Order No.
| Version 1 | Version 2 | Component
material | A | D | D7 | H | H1 | H2 | H3 | H4 | L | L2 | SW | CAD | Acc. | Price | Order |
|---|
| B0340.2108 | square socket | without transverse hole | steel | 80 | 24 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | 8 | | | 33.85 € | | | B0340.2110 | square socket | without transverse hole | steel | 80 | 24 | - | 85,7 | 49 | 28,5 | 13 | - | 104 | 12,7 | 10 | | | 33.85 € | | | B0340.2210 | square socket | without transverse hole | steel | 100 | 29 | - | 105,2 | 59,5 | 35,5 | 13 | - | 129 | 15,7 | 10 | | | 36.24 € | | | B0340.2212 | square socket | without transverse hole | steel | 100 | 29 | - | 105,2 | 59,5 | 35,5 | 13 | - | 129 | 15,7 | 12 | | | 36.24 € | | | B0340.2312 | square socket | without transverse hole | steel | 125 | 36 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | 12 | | | 39.51 € | | | B0340.2314 | square socket | without transverse hole | steel | 125 | 36 | - | 140 | 83 | 44 | 18,5 | - | 161 | 19,5 | 14 | | | 39.51 € | | | B0340.21086 | square socket | with transverse bore | steel | 80 | 24 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | 8 | | | 36.92 € | | | B0340.21106 | square socket | with transverse bore | steel | 80 | 24 | M6 | 85,7 | 49 | 28,5 | 13 | 7,5 | 104 | 12,7 | 10 | | | 36.92 € | | | B0340.22106 | square socket | with transverse bore | steel | 100 | 29 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | 10 | | | 39.32 € | | | B0340.22126 | square socket | with transverse bore | steel | 100 | 29 | M6 | 105,2 | 59,5 | 35,5 | 13 | 7,5 | 129 | 15,7 | 12 | | | 39.32 € | | | B0340.23126 | square socket | with transverse bore | steel | 125 | 36 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | 12 | | | 42.57 € | | | B0340.23146 | square socket | with transverse bore | steel | 125 | 36 | M6 | 140 | 83 | 44 | 18,5 | 7,5 | 161 | 19,5 | 14 | | | 42.57 € | |
|
