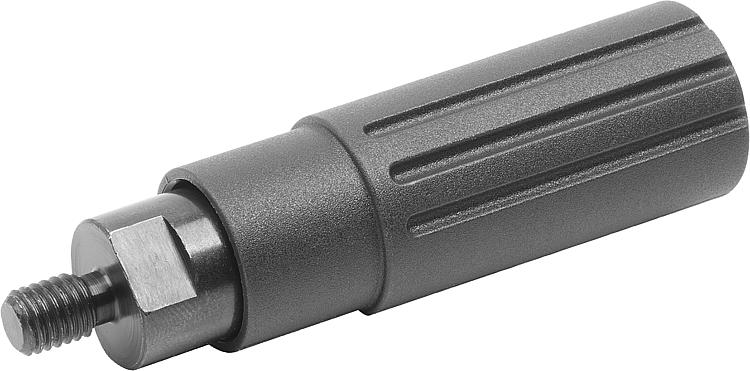

B0331_AGPlastic cylindrical grips, revolving, with external thread |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Cylindrical grips are supplied assembled and can be screwed onto handwheels, crank handles, etc.
The grooves and conical shape ensure that the cylindrical grips have optimised haptics and good grip.Material:Grip thermoplastic.
Centre pin steel grade 5.8 or stainless steel 1.4404. Version:Grip, black.
Steel parts, black oxidised.
Stainless steel bright.Advantages:Optimised haptics and good grip
Grips for handwheels and cranks
Various thread sizes
NOVO grip KIPP designSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Thread type | Component
material | Size | D
| D1 | D2 | L | L1 | L2 | SW | CAD | Acc. | Price | Order |
|---|
| B0331.104 | external thread | steel | 1 | M4 | 14 | 9 | 6 | 40 | 5 | 8 |  | | 2.36 € | | | B0331.205 | external thread | steel | 2 | M5 | 16 | 11 | 7,5 | 49,1 | 5,1 | 10 | | | 2.62 € | | | B0331.306 | external thread | steel | 3 | M6 | 20 | 14 | 9 | 61,4 | 6,4 | 12 | | | 2.84 € | | | B0331.408 | external thread | steel | 4 | M8 | 25 | 18 | 12 | 82,5 | 12,5 | 15 | | | 3.51 € | | | B0331.2104 | external thread | stainless steel | 1 | M4 | 14 | 9 | 6 | 40 | 5 | 8 | | | 5.35 € | | | B0331.2205 | external thread | stainless steel | 2 | M5 | 16 | 11 | 7,5 | 49,1 | 5,1 | 10 | | | 6.05 € | | | B0331.2306 | external thread | stainless steel | 3 | M6 | 20 | 14 | 9 | 61,4 | 6,4 | 12 | | | 6.91 € | | | B0331.2408 | external thread | stainless steel | 4 | M8 | 25 | 18 | 12 | 82,5 | 12,5 | 15 | | | 8.53 € | |
