B0332Plastic cylindrical grips, fold-away |
go back |
|
Item description/product images |
|
|

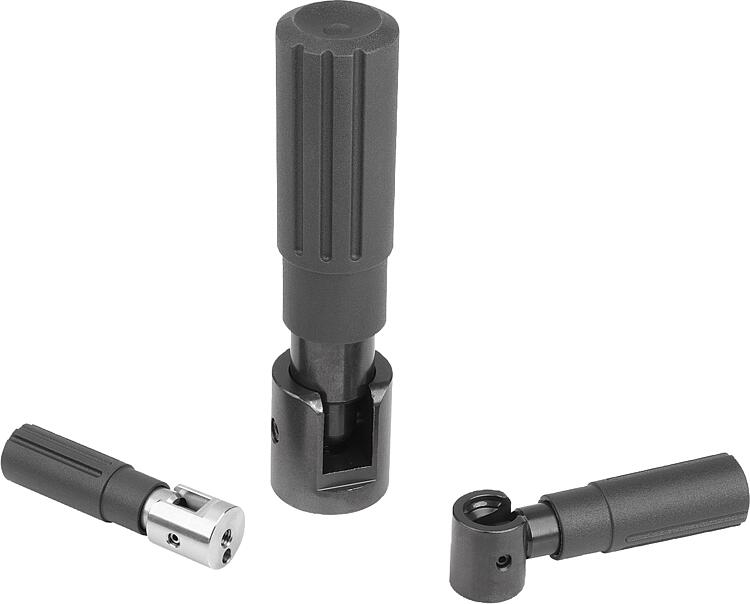

DescriptionProduct description:Cylindrical grips are supplied assembled and can be screwed onto handwheels, crank handles, etc.
The grooves and conical shape ensure that the cylindrical grips have optimised haptics and good grip.
The fold-down grip prevents protruding edges, which also minimises the risk of injury.Material:Grip thermoplastic.
Centre pin steel grade 5.8 or stainless steel 1.4404.
Dowel spring steel or stainless steel 1.4310.

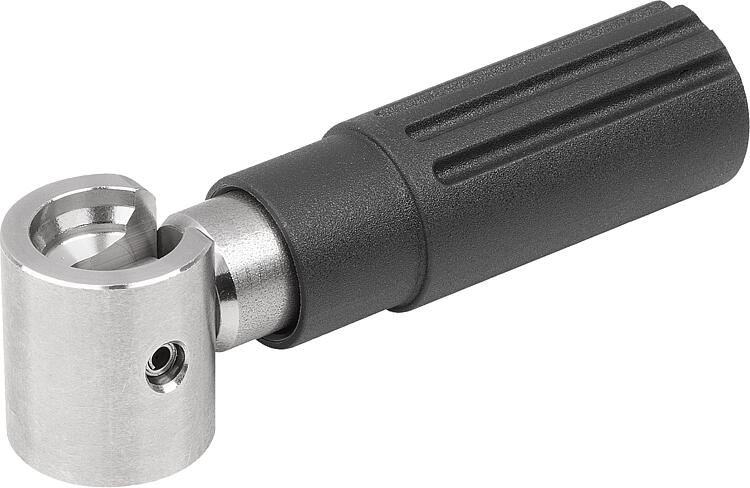

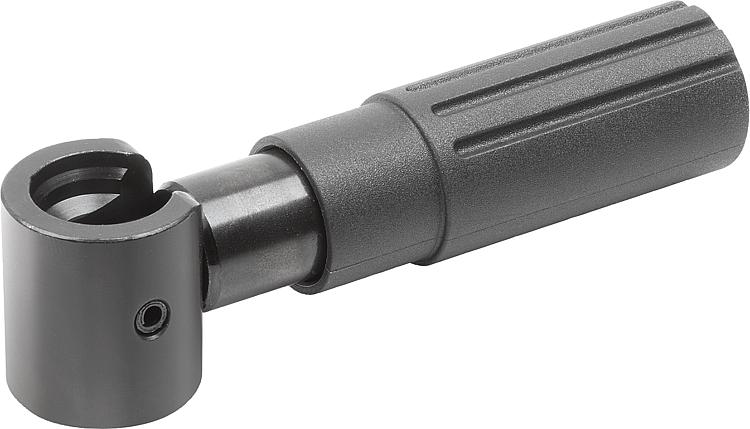

Spring spring steel or stainless steel 1.4568. Version:Grip, black.
Steel parts, black oxidised.
Stainless steel bright.Note:The hole D3 is used for positioning.Advantages:Optimised haptics and good grip
Protruding edges prevented
Grips for handwheels and cranks
Various thread sizes
NOVO grip KIPP designSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

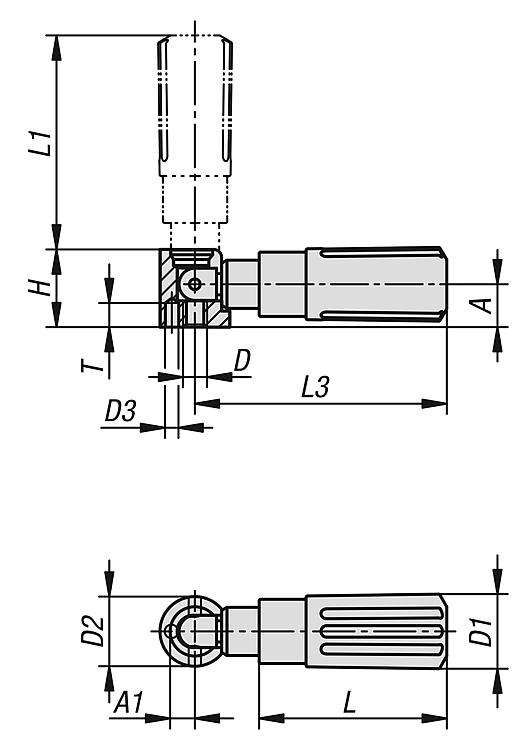

| Order No. | Component
material | Size | A | A1 | D
| D1 | D2 | D3 | H | L | L1 | L3 | T | CAD | Acc. | Price | Order |
|---|
| B0332.104 | steel | 1 | 8 | 4,3 | M4 | 14 | 13 | 2,5 | 14,5 | 35 | 40 | 47 | 4,5 |  | | 12.81 € | | | B0332.205 | steel | 2 | 10 | 5,3 | M5 | 16 | 16 | 3,5 | 18 | 44 | 49 | 58 | 4,5 | | | 14.08 € | | | B0332.306 | steel | 3 | 12,5 | 6,5 | M6 | 20 | 20 | 4,5 | 22,5 | 55 | 59,5 | 71,5 | 6 | | | 16.14 € | | | B0332.408 | steel | 4 | 16 | 9 | M8 | 25 | 26 | 5,5 | 29 | 70 | 83 | 98 | 6,5 | | | 18.50 € | | | B0332.1104 | stainless steel | 1 | 8 | 4,3 | M4 | 14 | 13 | 2,5 | 14,5 | 35 | 40 | 47 | 4,5 | | | 22.54 € | | | B0332.1205 | stainless steel | 2 | 10 | 5,3 | M5 | 16 | 16 | 3,5 | 18 | 44 | 49 | 58 | 4,5 | | | 24.74 € | | | B0332.1306 | stainless steel | 3 | 12,5 | 6,5 | M6 | 20 | 20 | 4,5 | 22,5 | 55 | 59,5 | 71,5 | 6 | | | 28.37 € | | | B0332.1408 | stainless steel | 4 | 16 | 9 | M8 | 25 | 26 | 5,5 | 29 | 70 | 83 | 98 | 6,5 | | | 32.53 € | |
