Crank handles offset similar to DIN 468
B0343

Crank handles offset similar to DIN 468

go back

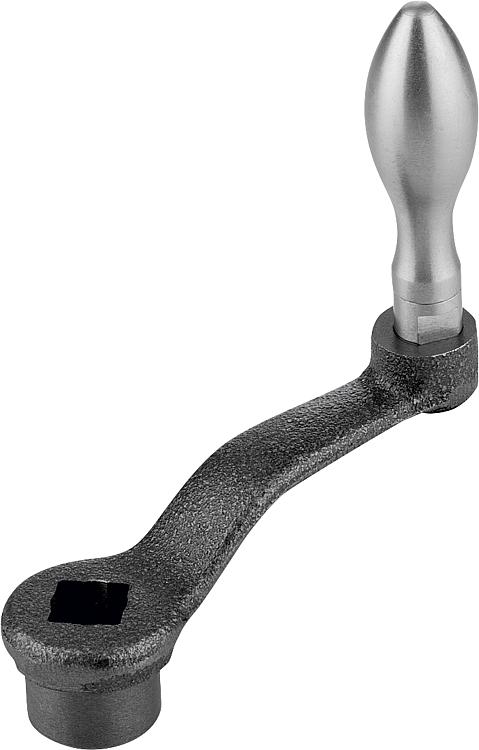

Item description/product images

Show/filter all items
DescriptionMaterial:Crank arm malleable or ductile iron.Version:Blasted.Drawing reference:
Form D: with revolving handle
Form F: with fixed handle
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0343 Crank handles offset similar to DIN 468 157 kB

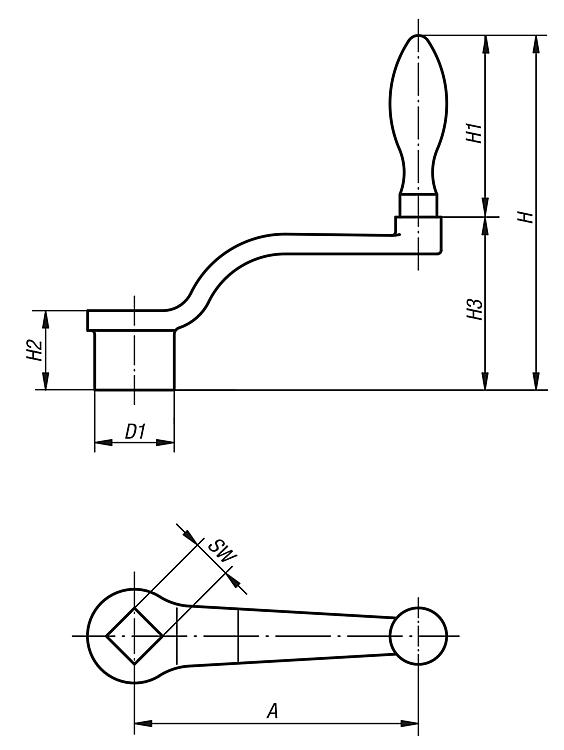

Drawings (total overview)

Crank handles offset similar to DIN 468

Crank handles offset similar to DIN 468, Form D, with revolving grip

More information

Drawings

Crank handles offset similar to DIN 468, Form D, with revolving grip

Item selection/filter

Order No.

Form

AD1HH1H2H3SWGrip
Ø
CADAcc.PriceOrder
B0343.206X10D63209252204010+0,216 18.38 €
B0343.208X10D802410965244410+0,220 20.66 €
B0343.208X12D802410965244412+0,220 20.66 €
B0343.210X12D1002812065285512+0,220 21.32 €
B0343.210X14D1002812065285514+0,320 21.32 €
B0343.212X14D1253414183345814+0,325 26.92 €
B0343.212X17D1253414183345817+0,325 26.92 €
B0343.216X17D1603715383387017+0,325 29.87 €
B0343.216X19D1603715383387019+0,325 29.87 €
B0343.220X19D20040189105448419+0,332 43.61 €
B0343.220X22D20040189105448422+0,332 43.61 €

Crank handles offset similar to DIN 468, Form F, with fixed grip

More information

Drawings

Crank handles offset similar to DIN 468, Form F, with fixed grip

Item selection/filter

Order No.

Form

AD1HH1H2H3SWGrip
Ø
CADAcc.PriceOrder
B0343.106X10F63209252204010+0,216 12.35 €
B0343.108X10F802410965244410+0,220 13.97 €
B0343.108X12F802410965244412+0,220 13.97 €
B0343.110X12F1002812065285512+0,220 15.05 €
B0343.110X14F1002812065285514+0,320 15.05 €
B0343.112X14F1253414183345814+0,325 19.93 €
B0343.112X17F1253414183345817+0,325 19.93 €
B0343.116X17F1603715383387017+0,325 25.42 €
B0343.116X19F1603715383387019+0,325 25.42 €
B0343.120X19F20040189105448419+0,332 35.22 €
B0343.120X22F20040189105448422+0,332 35.22 €
