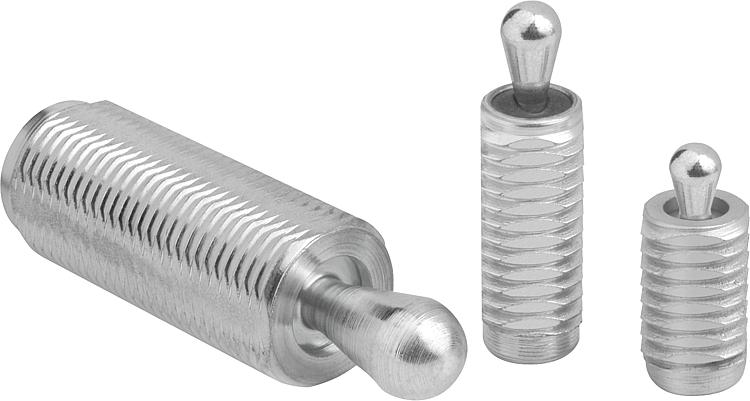

B0041Lateral spring plungers with threaded sleeve |
go back |
|
|
DescriptionMaterial:Steel.Version:Thrust pin steel, hardened and electro zinc-plated.

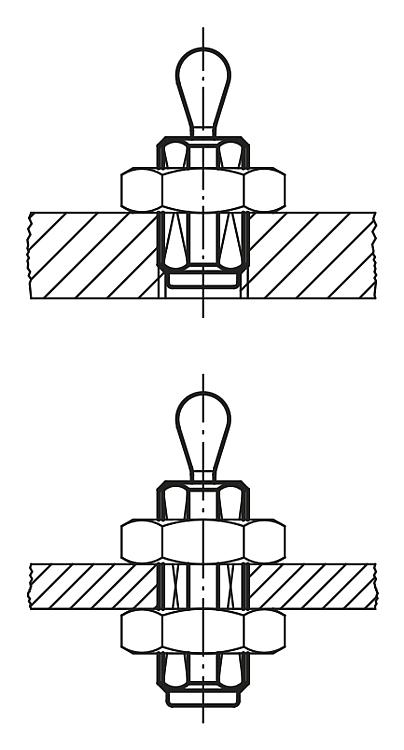

Sleeve blue electro zinc-plated.Note:Lateral spring plungers with threaded sleeve can be individually adjusted to suit the the part being held. The threaded sleeve is also suitable for screwing into thin sheet metal as it can be fastened with one or two nuts.
W and Z are customer specified.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

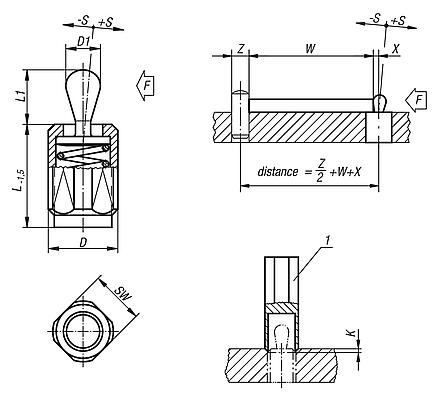

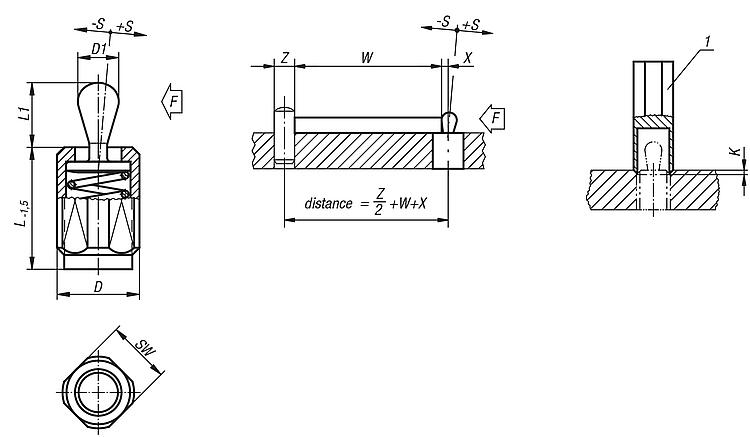

Drawings (total overview) |
| Order No. | Version 2 | D | D1
| K | L | L1 | ±S | SW | X | F
ca.N | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| B0041.1020X12 | without seal | M12 | 5 | 2x60° | 11,5 | 6,7 | 0,8 | 10 | 1,6 | 20 | B0045.06 |  |  | 6.76 € | | | B0041.1020X20 | without seal | M12 | 5 | 2x60° | 19 | 6,7 | 0,8 | 10 | 1,6 | 20 | B0045.06 | | | 7.12 € | | | B0041.1020X27 | without seal | M12 | 5 | 2x60° | 26,5 | 6,7 | 0,8 | 10 | 1,6 | 20 | B0045.06 | | | 7.46 € | | | B0041.1050X12 | without seal | M12 | 5 | 2x60° | 11,5 | 6,7 | 0,8 | 10 | 1,6 | 50 | B0045.06 | | | 6.76 € | | | B0041.1050X20 | without seal | M12 | 5 | 2x60° | 19 | 6,7 | 0,8 | 10 | 1,6 | 50 | B0045.06 | | | 7.12 € | | | B0041.1050X27 | without seal | M12 | 5 | 2x60° | 26,5 | 6,7 | 0,8 | 10 | 1,6 | 50 | B0045.06 | | | 7.46 € | | | B0041.1100X12 | without seal | M12 | 5 | 2x60° | 11,5 | 6,7 | 0,8 | 10 | 1,6 | 100 | B0045.06 | | | 6.76 € | | | B0041.1100X20 | without seal | M12 | 5 | 2x60° | 19 | 6,7 | 0,8 | 10 | 1,6 | 100 | B0045.06 | | | 7.12 € | | | B0041.1100X27 | without seal | M12 | 5 | 2x60° | 26,5 | 6,7 | 0,8 | 10 | 1,6 | 100 | B0045.06 | | | 7.46 € | | | B0041.1040X12 | without seal | M12 | 6 | 2x60° | 11,5 | 10,7 | 1 | 10 | 1,8 | 40 | B0045.06 | | | 7.12 € | | | B0041.1040X20 | without seal | M12 | 6 | 2x60° | 19 | 10,7 | 1 | 10 | 1,8 | 40 | B0045.06 | | | 7.46 € | | | B0041.1040X27 | without seal | M12 | 6 | 2x60° | 26,5 | 10,7 | 1 | 10 | 1,8 | 40 | B0045.06 | | | 7.79 € | | | B0041.1075X12 | without seal | M12 | 6 | 2x60° | 11,5 | 10,7 | 1 | 10 | 1,8 | 75 | B0045.06 | | | 7.12 € | | | B0041.1075X20 | without seal | M12 | 6 | 2x60° | 19 | 10,7 | 1 | 10 | 1,8 | 75 | B0045.06 | | | 7.46 € | | | B0041.1075X27 | without seal | M12 | 6 | 2x60° | 26,5 | 10,7 | 1 | 10 | 1,8 | 75 | B0045.06 | | | 7.79 € | | | B0041.1150X12 | without seal | M12 | 6 | 2x60° | 11,5 | 10,7 | 1 | 10 | 1,8 | 100 | B0045.06 | | | 7.12 € | | | B0041.1150X20 | without seal | M12 | 6 | 2x60° | 19 | 10,7 | 1 | 10 | 1,8 | 100 | B0045.06 | | | 7.46 € | | | B0041.1150X27 | without seal | M12 | 6 | 2x60° | 26,5 | 10,7 | 1 | 10 | 1,8 | 100 | B0045.06 | | | 7.79 € | | | B0041.1100X16 | without seal | M18X1,5 | 10 | 2,5x60° | 18 | 16,7 | 1,6 | 16 | 3,2 | 100 | B0045.10 | | | 7.46 € | | | B0041.1100X29 | without seal | M18X1,5 | 10 | 2,5x60° | 31,5 | 16,7 | 1,6 | 16 | 3,2 | 100 | B0045.10 | | | 8.12 € | | | B0041.1100X43 | without seal | M18X1,5 | 10 | 2,5x60° | 45 | 16,7 | 1,6 | 16 | 3,2 | 100 | B0045.10 | | | 8.84 € | | | B0041.1200X16 | without seal | M18X1,5 | 10 | 2,5x60° | 18 | 16,7 | 1,6 | 16 | 3,2 | 150 | B0045.10 | | | 7.46 € | | | B0041.1200X29 | without seal | M18X1,5 | 10 | 2,5x60° | 31,5 | 16,7 | 1,6 | 16 | 3,2 | 150 | B0045.10 | | | 8.12 € | | | B0041.1200X43 | without seal | M18X1,5 | 10 | 2,5x60° | 45 | 16,7 | 1,6 | 16 | 3,2 | 150 | B0045.10 | | | 8.84 € | | | B0041.1300X16 | without seal | M18X1,5 | 10 | 2,5x60° | 18 | 16,7 | 1,6 | 16 | 3,2 | 200 | B0045.10 | | | 7.46 € | | | B0041.1300X29 | without seal | M18X1,5 | 10 | 2,5x60° | 31,5 | 16,7 | 1,6 | 16 | 3,2 | 200 | B0045.10 | | | 8.12 € | | | B0041.1300X43 | without seal | M18X1,5 | 10 | 2,5x60° | 45 | 16,7 | 1,6 | 16 | 3,2 | 200 | B0045.10 | | | 8.84 € | |
|
| Order No. | Version 2 | D | D1
| K | L | L1 | ±S | SW | X | F
ca.N | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| B0041.3020X12 | with seal | M12 | 5 | 2x60° | 11,5 | 6 | 0,8 | 10 | 1,6 | 20 | B0045.06 | | | 7.60 € | | | B0041.3020X20 | with seal | M12 | 5 | 2x60° | 19 | 6 | 0,8 | 10 | 1,6 | 20 | B0045.06 | | | 7.94 € | | | B0041.3020X27 | with seal | M12 | 5 | 2x60° | 26,5 | 6 | 0,8 | 10 | 1,6 | 20 | B0045.06 | | | 8.33 € | | | B0041.3050X12 | with seal | M12 | 5 | 2x60° | 11,5 | 6 | 0,8 | 10 | 1,6 | 50 | B0045.06 | | | 7.60 € | | | B0041.3050X20 | with seal | M12 | 5 | 2x60° | 19 | 6 | 0,8 | 10 | 1,6 | 50 | B0045.06 | | | 7.94 € | | | B0041.3050X27 | with seal | M12 | 5 | 2x60° | 26,5 | 6 | 0,8 | 10 | 1,6 | 50 | B0045.06 | | | 8.33 € | | | B0041.3100X12 | with seal | M12 | 5 | 2x60° | 11,5 | 6 | 0,8 | 10 | 1,6 | 100 | B0045.06 | | | 7.60 € | | | B0041.3100X20 | with seal | M12 | 5 | 2x60° | 19 | 6 | 0,8 | 10 | 1,6 | 100 | B0045.06 | | | 7.94 € | | | B0041.3100X27 | with seal | M12 | 5 | 2x60° | 26,5 | 6 | 0,8 | 10 | 1,6 | 100 | B0045.06 | | | 8.33 € | | | B0041.3040X12 | with seal | M12 | 6 | 2x60° | 11,5 | 10 | 1 | 10 | 1,8 | 40 | B0045.06 | | | 7.94 € | | | B0041.3040X20 | with seal | M12 | 6 | 2x60° | 19 | 10 | 1 | 10 | 1,8 | 40 | B0045.06 | | | 8.33 € | | | B0041.3040X27 | with seal | M12 | 6 | 2x60° | 26,5 | 10 | 1 | 10 | 1,8 | 40 | B0045.06 | | | 8.68 € | | | B0041.3075X12 | with seal | M12 | 6 | 2x60° | 11,5 | 10 | 1 | 10 | 1,8 | 75 | B0045.06 | | | 7.94 € | | | B0041.3075X20 | with seal | M12 | 6 | 2x60° | 19 | 10 | 1 | 10 | 1,8 | 75 | B0045.06 | | | 8.33 € | | | B0041.3075X27 | with seal | M12 | 6 | 2x60° | 26,5 | 10 | 1 | 10 | 1,8 | 75 | B0045.06 | | | 8.68 € | | | B0041.3150X12 | with seal | M12 | 6 | 2x60° | 11,5 | 10 | 1 | 10 | 1,8 | 100 | B0045.06 | | | 7.94 € | | | B0041.3150X20 | with seal | M12 | 6 | 2x60° | 19 | 10 | 1 | 10 | 1,8 | 100 | B0045.06 | | | 8.33 € | | | B0041.3150X27 | with seal | M12 | 6 | 2x60° | 26,5 | 10 | 1 | 10 | 1,8 | 100 | B0045.06 | | | 8.68 € | | | B0041.3100X16 | with seal | M18X1,5 | 10 | 2,5x60° | 18 | 16 | 1,6 | 16 | 3,2 | 100 | B0045.10 | | | 8.33 € | | | B0041.3100X29 | with seal | M18X1,5 | 10 | 2,5x60° | 31,5 | 16 | 1,6 | 16 | 3,2 | 100 | B0045.10 | | | 9.02 € | | | B0041.3100X43 | with seal | M18X1,5 | 10 | 2,5x60° | 45 | 16 | 1,6 | 16 | 3,2 | 100 | B0045.10 | | | 9.71 € | | | B0041.3200X16 | with seal | M18X1,5 | 10 | 2,5x60° | 18 | 16 | 1,6 | 16 | 3,2 | 150 | B0045.10 | | | 8.33 € | | | B0041.3200X29 | with seal | M18X1,5 | 10 | 2,5x60° | 31,5 | 16 | 1,6 | 16 | 3,2 | 150 | B0045.10 | | | 9.02 € | | | B0041.3200X43 | with seal | M18X1,5 | 10 | 2,5x60° | 45 | 16 | 1,6 | 16 | 3,2 | 150 | B0045.10 | | | 9.71 € | | | B0041.3300X16 | with seal | M18X1,5 | 10 | 2,5x60° | 18 | 16 | 1,6 | 16 | 3,2 | 200 | B0045.10 | | | 8.33 € | | | B0041.3300X29 | with seal | M18X1,5 | 10 | 2,5x60° | 31,5 | 16 | 1,6 | 16 | 3,2 | 200 | B0045.10 | | | 9.02 € | | | B0041.3300X43 | with seal | M18X1,5 | 10 | 2,5x60° | 45 | 16 | 1,6 | 16 | 3,2 | 200 | B0045.10 | | | 9.71 € | |
|
