B0039Lateral spring plungers with aluminium sleeve and plastic or... |
go back |
|
|
DescriptionMaterial:Sleeve aluminium.
Spring steel.
Thrust pin steel or POM.Version:Steel thrust pin hardened and electro zinc-plated.
Sleeve blue electro zinc-plated.Note:Lateral spring plungers are for positioning, clamping, holding and securing workpieces and parts for engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, assembling, mounting etc.
Suitable eccentric adjustment bush see B0043.
W and Z are customer specified.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

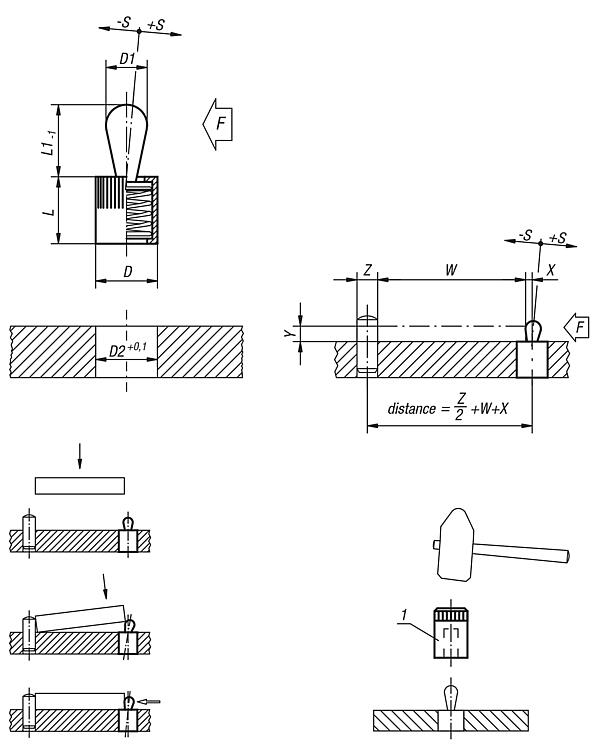

Drawings (total overview) |
Lateral spring plungers without seal, thrust pin and spring steel |
More information |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| B0039.21034 | 6 | 3 | 7 | 4 | 6 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | B0044.03 |  |  | 3.64 € | | | B0039.21036 | 6 | 3 | 7 | 4 | 6 | 0,5 | 20 | 0,8 | 1 | 1 | 1 | 1 | 1 | B0044.03 | | | 3.64 € | | | B0039.21038 | 6 | 3 | 7 | 4 | 6 | 0,5 | 40 | 0,8 | 1 | 1 | 1 | 1 | 1 | B0044.03 | | | 3.64 € | | | B0039.21054 | 10 | 5 | 11 | 6,7 | 10 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | B0044.05 | | | 3.96 € | | | B0039.21056 | 10 | 5 | 11 | 6,7 | 10 | 0,8 | 50 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | B0044.05 | | | 3.96 € | | | B0039.21058 | 10 | 5 | 11 | 6,7 | 10 | 0,8 | 100 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | B0044.05 | | | 3.96 € | | | B0039.21064 | 10 | 6 | 11 | 10,7 | 10 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | B0044.05 | | | 4.26 € | | | B0039.21066 | 10 | 6 | 11 | 10,7 | 10 | 1 | 75 | - | - | - | 1,7 | 1,9 | 1,9 | B0044.05 | | | 4.26 € | | | B0039.21068 | 10 | 6 | 11 | 10,7 | 10 | 1 | 100 | - | - | - | 1,7 | 1,9 | 1,9 | B0044.05 | | | 4.26 € | | | B0039.21084 | 12 | 8 | 13 | 13,9 | 12 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | B0044.08 | | | 4.66 € | | | B0039.21086 | 12 | 8 | 13 | 13,9 | 12 | 1,3 | 100 | - | - | - | - | 2,5 | 2,7 | B0044.08 | | | 4.66 € | | | B0039.21088 | 12 | 8 | 13 | 13,9 | 12 | 1,3 | 150 | - | - | - | - | 2,5 | 2,7 | B0044.08 | | | 4.66 € | | | B0039.21104 | 16 | 10 | 17 | 16,7 | 16 | 1,6 | 100 | - | - | - | - | - | 3,1 | B0044.10 | | | 5.11 € | | | B0039.21106 | 16 | 10 | 17 | 16,7 | 16 | 1,6 | 150 | - | - | - | - | - | 3,1 | B0044.10 | | | 5.11 € | | | B0039.21108 | 16 | 10 | 17 | 16,7 | 16 | 1,6 | 200 | - | - | - | - | - | 3,1 | B0044.10 | | | 5.11 € | |
|
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| B0039.22034 | 6 | 3 | 7 | 4 | 6 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | B0044.03 | | | 5.21 € | | | B0039.22036 | 6 | 3 | 7 | 4 | 6 | 0,5 | 20 | 0,8 | 1 | 1 | 1 | 1 | 1 | B0044.03 | | | 5.21 € | | | B0039.22038 | 6 | 3 | 7 | 4 | 6 | 0,5 | 40 | 0,8 | 1 | 1 | 1 | 1 | 1 | B0044.03 | | | 5.21 € | | | B0039.22054 | 10 | 5 | 12 | 6 | 10 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | B0044.05 | | | 5.43 € | | | B0039.22056 | 10 | 5 | 12 | 6 | 10 | 0,8 | 50 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | B0044.05 | | | 5.43 € | | | B0039.22058 | 10 | 5 | 12 | 6 | 10 | 0,8 | 100 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | B0044.05 | | | 5.43 € | | | B0039.22064 | 10 | 6 | 12 | 10 | 10 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | B0044.05 | | | 5.76 € | | | B0039.22066 | 10 | 6 | 12 | 10 | 10 | 1 | 75 | - | - | - | 1,7 | 1,9 | 1,9 | B0044.05 | | | 5.76 € | | | B0039.22068 | 10 | 6 | 12 | 10 | 10 | 1 | 100 | - | - | - | 1,7 | 1,9 | 1,9 | B0044.05 | | | 5.76 € | | | B0039.22084 | 12 | 8 | 14 | 13 | 12 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | B0044.08 | | | 6.16 € | | | B0039.22086 | 12 | 8 | 14 | 13 | 12 | 1,3 | 100 | - | - | - | - | 2,5 | 2,7 | B0044.08 | | | 6.16 € | | | B0039.22088 | 12 | 8 | 14 | 13 | 12 | 1,3 | 150 | - | - | - | - | 2,5 | 2,7 | B0044.08 | | | 6.16 € | | | B0039.22104 | 16 | 10 | 18 | 16 | 16 | 1,6 | 100 | - | - | - | - | - | 3,1 | B0044.10 | | | 6.62 € | | | B0039.22106 | 16 | 10 | 18 | 16 | 16 | 1,6 | 150 | - | - | - | - | - | 3,1 | B0044.10 | | | 6.62 € | | | B0039.22108 | 16 | 10 | 18 | 16 | 16 | 1,6 | 200 | - | - | - | - | - | 3,1 | B0044.10 | | | 6.62 € | |
|
Lateral spring plungers without seal, thrust pin POM, spring steel |
More information |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| B0039.71034 | 6 | 3 | 7 | 4 | 6 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | B0044.03 | | | 3.64 € | | | B0039.71054 | 10 | 5 | 11 | 6,7 | 10 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | B0044.05 | | | 3.96 € | | | B0039.71064 | 10 | 6 | 11 | 10,7 | 10 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | B0044.05 | | | 4.26 € | | | B0039.71084 | 12 | 8 | 13 | 13,9 | 12 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | B0044.08 | | | 4.66 € | | | B0039.71104 | 16 | 10 | 17 | 16,7 | 16 | 1,6 | 100 | - | - | - | - | - | 3,1 | B0044.10 | | | 5.11 € | |
|
Lateral spring plungers with seal, thrust pin POM, spring steel |
More information |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| B0039.72034 | 6 | 3 | 7 | 4 | 6 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | B0044.03 | | | 5.21 € | | | B0039.72054 | 10 | 5 | 12 | 6 | 10 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | B0044.05 | | | 5.43 € | | | B0039.72064 | 10 | 6 | 12 | 10 | 10 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | B0044.05 | | | 5.76 € | | | B0039.72084 | 12 | 8 | 14 | 13 | 12 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | B0044.08 | | | 6.16 € | | | B0039.72104 | 16 | 10 | 18 | 16 | 16 | 1,6 | 100 | - | - | - | - | - | 3,1 | B0044.10 | | | 6.62 € | |
|
