B0142Assembly tools for self-tapping threaded inserts |
go back |
|
Item description/product images |
|
|

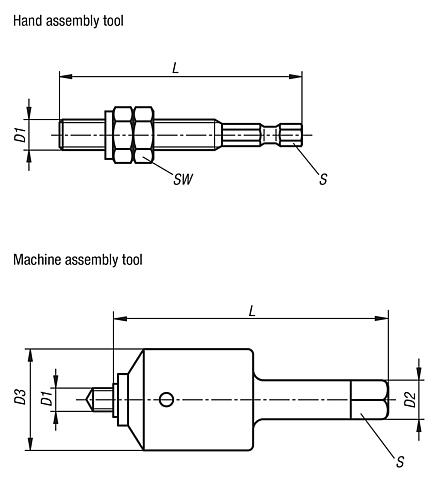

DescriptionMaterial:Steel.Version:Hand assembly tool, electro zinc-plated.
Machine assembly tool, black oxidised.Note:The turning in by hand is carried out with the manual assembly tool and a cordless screwdriver, ratchet, socket etc. Machine assembly is carried out with the machine assembly tool preferably on a thread-cutting machine.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Version 1 | D1
internal
thread | D2 | D3 | L
length | S | SW | Insertion torque
ref. values
Nm | RPM ref. values
for light metal | CAD | Acc. | Price | Order |
|---|
| B0142.803 | manual operation | M3 | - | - | 46 | 1/4 | 5,5 | 2,5 | - |  | | 12.31 € | | | B0142.804 | manual operation | M4 | - | - | 48 | 1/4 | 7 | 5,5 | - | | | 12.31 € | | | B0142.805 | manual operation | M5 | - | - | 57 | 1/4 | 8 | 10 | - | | | 12.31 € | | | B0142.806 | manual operation | M6 | - | - | 62 | 1/4 | 10 | 15 | - | | | 12.31 € | | | B0142.808 | manual operation | M8 | - | - | 72 | 1/4 | 13 | 28 | - | | | 14.92 € | | | B0142.810 | manual operation | M10 | - | - | 82 | 1/4 | 17 | 40 | - | | | 16.56 € | | | B0142.812 | manual operation | M12 | - | - | 92 | 1/4 | 19 | 60 | - | | | 18.05 € | | | B0142.903 | machine type | M3 | 8 | 18 | 80 | 6 | - | 2,5 | 650 - 900 | | | 108.92 € | | | B0142.904 | machine type | M4 | 8 | 18 | 80 | 6 | - | 5,5 | 400 - 600 | | | 108.92 € | | | B0142.905 | machine type | M5 | 12,5 | 30 | 96,5 | 10 | - | 10 | 400 - 600 | | | 136.52 € | | | B0142.906 | machine type | M6 | 12,5 | 30 | 96,5 | 10 | - | 15 | 280 - 400 | | | 136.52 € | | | B0142.908 | machine type | M8 | 12,5 | 30 | 96,5 | 10 | - | 28 | 280 - 400 | | | 136.52 € | | | B0142.910 | machine type | M10 | 13 | 40 | 110 | 10 | - | 40 | 200 - 300 | | | 177.87 € | | | B0142.912 | machine type | M12 | 13 | 40 | 110 | 10 | - | 60 | 200 - 300 | | | 177.87 € | | | B0142.916 | machine type | M16 | 13 | 40 | 110 | 10 | - | 160 | 150 - 200 | | | 343.32 € | |
