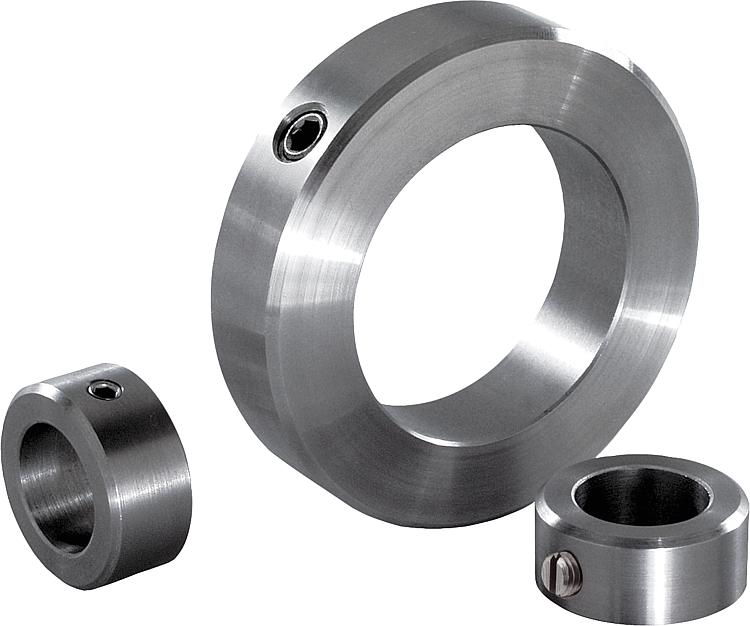

B0143Shaft collars set screw DIN 705, steel |
go back |
|
|
DescriptionMaterial:Version:Form A:
Shaft collar bright steel.
Grub screw steel grade 15H, bright.
Form E:
Shaft collar steel, bright or electro zinc-plated, blue passivated.
Grub screw steel grade 45H, bright (black) or electro zinc-plated, blue passivated.
Grub screw stainless steel A2-70, bright.Note:Form A: with DIN 553 grub screw (slit)
Form E: with DIN EN ISO 4027 grub screw (hex socket)
According to DIN 705, the stated tolerances apply to blank shaft collars. The tolerances cannot be guaranteed for with electro zinc-plated shaft collars. However, this has no influence on the function.Drawing reference:1) Second grub screw from D1 ≥ 75 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
|
Shaft collars set screw DIN 705, steel , Form E, hexagon socket |
More information |
| Order No. | Component
material | Surface finish
body | Form | D1 | B | D2 | D3
grub screw | CAD | Acc. | Price | Order |
|---|
| B0143.300301 | steel | bright | E | 3 | 5 | 7 | M2x3 |  | | 0.56 € | | | B0143.300401 | steel | bright | E | 4 | 5 | 8 | M2,5x3 | | | 0.56 € | | | B0143.300501 | steel | bright | E | 5 | 6 | 10 | M3x4 | | | 0.57 € | | | B0143.300601 | steel | bright | E | 6 | 8 | 12 | M4x5 | | | 0.57 € | | | B0143.300701 | steel | bright | E | 7 | 8 | 12 | M4x5 | | | 0.57 € | | | B0143.300801 | steel | bright | E | 8 | 8 | 16 | M4x6 | | | 0.62 € | | | B0143.300901 | steel | bright | E | 9 | 10 | 18 | M5x8 | | | 0.67 € | | | B0143.301001 | steel | bright | E | 10 | 10 | 20 | M5x8 | | | 0.77 € | | | B0143.301101 | steel | bright | E | 11 | 10 | 20 | M5x8 | | | 0.77 € | | | B0143.301201 | steel | bright | E | 12 | 12 | 22 | M6x8 | | | 0.88 € | | | B0143.301401 | steel | bright | E | 14 | 12 | 25 | M6x8 | | | 0.97 € | | | B0143.301501 | steel | bright | E | 15 | 12 | 25 | M6x8 | | | 0.97 € | | | B0143.301601 | steel | bright | E | 16 | 12 | 28 | M6x8 | | | 1.02 € | | | B0143.301801 | steel | bright | E | 18 | 14 | 32 | M6x8 | | | 1.34 € | | | B0143.302001 | steel | bright | E | 20 | 14 | 32 | M6x8 | | | 1.34 € | | | B0143.302401 | steel | bright | E | 24 | 16 | 40 | M8x12 | | | 2.02 € | | | B0143.302501 | steel | bright | E | 25 | 16 | 40 | M8x10 | | | 2.02 € | | | B0143.302601 | steel | bright | E | 26 | 16 | 40 | M8x10 | | | 2.02 € | | | B0143.302801 | steel | bright | E | 28 | 16 | 45 | M8x12 | | | 2.61 € | | | B0143.303001 | steel | bright | E | 30 | 16 | 45 | M8x10 | | | 2.67 € | | | B0143.303201 | steel | bright | E | 32 | 16 | 50 | M8x12 | | | 3.19 € | | | B0143.303501 | steel | bright | E | 35 | 16 | 56 | M8x12 | | | 3.59 € | | | B0143.303601 | steel | bright | E | 36 | 16 | 56 | M8x12 | | | 3.59 € | | | B0143.303801 | steel | bright | E | 38 | 16 | 56 | M8x12 | | | 3.85 € | | | B0143.304001 | steel | bright | E | 40 | 18 | 63 | M10x16 | | | 5.23 € | | | B0143.304201 | steel | bright | E | 42 | 18 | 63 | M10x16 | | | 5.23 € | | | B0143.304501 | steel | bright | E | 45 | 18 | 70 | M10x16 | | | 6.20 € | | | B0143.304801 | steel | bright | E | 48 | 18 | 70 | M10x16 | | | 6.20 € | | | B0143.305001 | steel | bright | E | 50 | 18 | 80 | M10x16 | | | 7.85 € | | | B0143.305201 | steel | bright | E | 52 | 18 | 80 | M10x16 | | | 7.85 € | | | B0143.305501 | steel | bright | E | 55 | 18 | 80 | M10x16 | | | 7.85 € | | | B0143.305601 | steel | bright | E | 56 | 18 | 80 | M10x16 | | | 7.85 € | | | B0143.305801 | steel | bright | E | 58 | 20 | 90 | M10x16 | | | 11.98 € | | | B0143.306001 | steel | bright | E | 60 | 20 | 90 | M10x16 | | | 11.98 € | | | B0143.306301 | steel | bright | E | 63 | 20 | 90 | M10x16 | | | 11.98 € | | | B0143.306501 | steel | bright | E | 65 | 20 | 100 | M10x20 | | | 14.78 € | | | B0143.306801 | steel | bright | E | 68 | 20 | 100 | M10x20 | | | 14.78 € | | | B0143.307001 | steel | bright | E | 70 | 20 | 100 | M10x20 | | | 14.78 € | | | B0143.307201 | steel | bright | E | 72 | 20 | 100 | M10x20 | | | 20.31 € | | | B0143.307501 | stainless steel A2 | bright | E | 75 | 22 | 110 | M12x20 | | | 20.31 € | | | B0143.308001 | stainless steel A2 | bright | E | 80 | 22 | 110 | M12x20 | | | 20.31 € | | | B0143.308501 | stainless steel A2 | bright | E | 85 | 22 | 125 | M12x25 | | | 37.06 € | | | B0143.309001 | stainless steel A2 | bright | E | 90 | 22 | 125 | M12x20 | | | 37.06 € | | | B0143.310001 | stainless steel A2 | bright | E | 100 | 25 | 140 | M12x25 | | | 43.89 € | | | B0143.300303 | steel | electro zinc-plated, blue-passivated | E | 3 | 5 | 7 | M2x3 | | | 0.87 € | | | B0143.300403 | steel | electro zinc-plated, blue-passivated | E | 4 | 5 | 8 | M2,5x3 | | | 0.87 € | | | B0143.300503 | steel | electro zinc-plated, blue-passivated | E | 5 | 6 | 10 | M3x4 | | | 0.89 € | | | B0143.300603 | steel | electro zinc-plated, blue-passivated | E | 6 | 8 | 12 | M4x5 | | | 0.89 € | | | B0143.300703 | steel | electro zinc-plated, blue-passivated | E | 7 | 8 | 12 | M4x5 | | | 0.96 € | | | B0143.300803 | steel | electro zinc-plated, blue-passivated | E | 8 | 8 | 16 | M4x6 | | | 0.98 € | | | B0143.300903 | steel | electro zinc-plated, blue-passivated | E | 9 | 10 | 18 | M5x8 | | | 1.06 € | | | B0143.301003 | steel | electro zinc-plated, blue-passivated | E | 10 | 10 | 20 | M5x8 | | | 1.15 € | | | B0143.301103 | steel | electro zinc-plated, blue-passivated | E | 11 | 10 | 20 | M5x8 | | | 1.15 € | | | B0143.301203 | steel | electro zinc-plated, blue-passivated | E | 12 | 12 | 22 | M6x8 | | | 1.19 € | | | B0143.301403 | steel | electro zinc-plated, blue-passivated | E | 14 | 12 | 25 | M6x8 | | | 1.21 € | | | B0143.301503 | steel | electro zinc-plated, blue-passivated | E | 15 | 12 | 25 | M6x8 | | | 1.21 € | | | B0143.301603 | steel | electro zinc-plated, blue-passivated | E | 16 | 12 | 28 | M6x8 | | | 1.27 € | | | B0143.301803 | steel | electro zinc-plated, blue-passivated | E | 18 | 14 | 32 | M6x8 | | | 1.36 € | | | B0143.302003 | steel | electro zinc-plated, blue-passivated | E | 20 | 14 | 32 | M6x8 | | | 1.36 € | | | B0143.302403 | steel | electro zinc-plated, blue-passivated | E | 24 | 16 | 40 | M8x12 | | | 2.07 € | | | B0143.302503 | steel | electro zinc-plated, blue-passivated | E | 25 | 16 | 40 | M8x10 | | | 2.07 € | | | B0143.302603 | steel | electro zinc-plated, blue-passivated | E | 26 | 16 | 40 | M8x10 | | | 2.07 € | | | B0143.302803 | steel | electro zinc-plated, blue-passivated | E | 28 | 16 | 45 | M8x12 | | | 2.61 € | | | B0143.303003 | steel | electro zinc-plated, blue-passivated | E | 30 | 16 | 45 | M8x10 | | | 2.67 € | | | B0143.303203 | steel | electro zinc-plated, blue-passivated | E | 32 | 16 | 50 | M8x12 | | | 3.90 € | | | B0143.303503 | steel | electro zinc-plated, blue-passivated | E | 35 | 16 | 56 | M8x12 | | | 4.53 € | | | B0143.303603 | steel | electro zinc-plated, blue-passivated | E | 36 | 16 | 56 | M8x12 | | | 5.26 € | | | B0143.303803 | steel | electro zinc-plated, blue-passivated | E | 38 | 16 | 56 | M8x12 | | | 6.25 € | | | B0143.304003 | steel | electro zinc-plated, blue-passivated | E | 40 | 18 | 63 | M10x16 | | | 5.94 € | | | B0143.304203 | steel | electro zinc-plated, blue-passivated | E | 42 | 18 | 63 | M10x16 | | | 6.37 € | | | B0143.304503 | steel | electro zinc-plated, blue-passivated | E | 45 | 18 | 70 | M10x16 | | | 8.06 € | | | B0143.304803 | steel | electro zinc-plated, blue-passivated | E | 48 | 18 | 70 | M10x16 | | | 8.82 € | | | B0143.305003 | steel | electro zinc-plated, blue-passivated | E | 50 | 18 | 80 | M10x16 | | | 8.96 € | | | B0143.305203 | steel | electro zinc-plated, blue-passivated | E | 52 | 18 | 80 | M10x16 | | | 8.96 € | | | B0143.305503 | steel | electro zinc-plated, blue-passivated | E | 55 | 18 | 80 | M10x16 | | | 8.96 € | | | B0143.305603 | steel | electro zinc-plated, blue-passivated | E | 56 | 18 | 80 | M10x16 | | | 12.93 € | | | B0143.305803 | steel | electro zinc-plated, blue-passivated | E | 58 | 20 | 90 | M10x16 | | | 17.71 € | | | B0143.306003 | steel | electro zinc-plated, blue-passivated | E | 60 | 20 | 90 | M10x16 | | | 15.20 € | | | B0143.306303 | steel | electro zinc-plated, blue-passivated | E | 63 | 20 | 90 | M10x16 | | | 17.71 € | | | B0143.306503 | steel | electro zinc-plated, blue-passivated | E | 65 | 20 | 100 | M10x20 | | | 19.98 € | | | B0143.306803 | steel | electro zinc-plated, blue-passivated | E | 68 | 20 | 100 | M10x20 | | | 19.98 € | | | B0143.307003 | steel | electro zinc-plated, blue-passivated | E | 70 | 20 | 100 | M10x20 | | | 19.98 € | | | B0143.307203 | steel | electro zinc-plated, blue-passivated | E | 72 | 20 | 100 | M10x20 | | | 26.14 € | | | B0143.307503 | steel | electro zinc-plated, blue-passivated | E | 75 | 22 | 110 | M12x20 | | | 26.14 € | | | B0143.308003 | steel | electro zinc-plated, blue-passivated | E | 80 | 22 | 110 | M12x20 | | | 26.14 € | | | B0143.308503 | steel | electro zinc-plated, blue-passivated | E | 85 | 22 | 125 | M12x25 | | | 40.61 € | | | B0143.309003 | steel | electro zinc-plated, blue-passivated | E | 90 | 22 | 125 | M12x20 | | | 40.61 € | | | B0143.310003 | steel | electro zinc-plated, blue-passivated | E | 100 | 25 | 140 | M12x25 | | | 43.96 € | |
|
Information about this article |
BLOHM shaft collars
Applications
Shaft collars are mainly used in drive technology in machine and plant construction. They act as versatile securing elements on shafts and axles to optimally hold moving parts in a certain lateral position. Application examples are e.g. mechanical stops or bearing seating faces. In drive technology they are also suitable for use as accessories for other components and are often found as components in engines and transmissions.
Versions
BLOHM has various types of shaft collars available. In addition to steel shaft collars, there are also stainless steel shaft collars available in the online shop. Two different screw types are available, Form A has a screw with slot and Form E has screws with hexagon sockets. Shaft collars with wing grip and intermediate plates for holding shaft collars complete the BLOHM product range. |
