B0144Shaft collars set screw DIN 705, stainless steel |
go back |
|
|

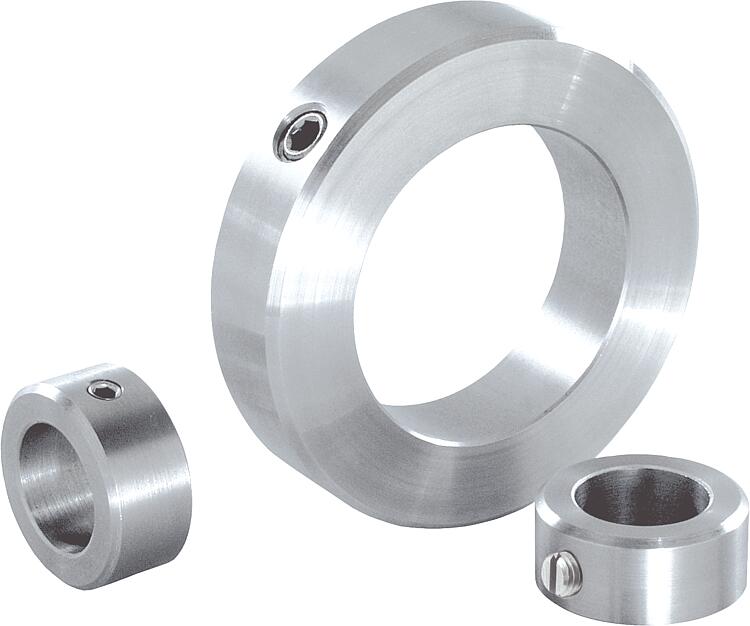

DescriptionMaterial:Shaft collar stainless steel1.4305.
Grub screw stainless steel A2.Version:Shaft collar and grub screw bright.Note:Form A: with DIN 553 grub screw (slit)
Form E: with DIN EN ISO 4027 grub screw (hex socket)

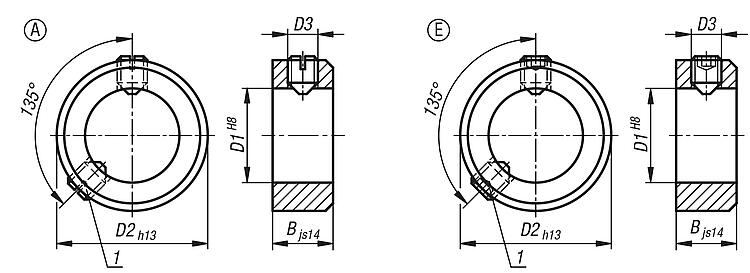

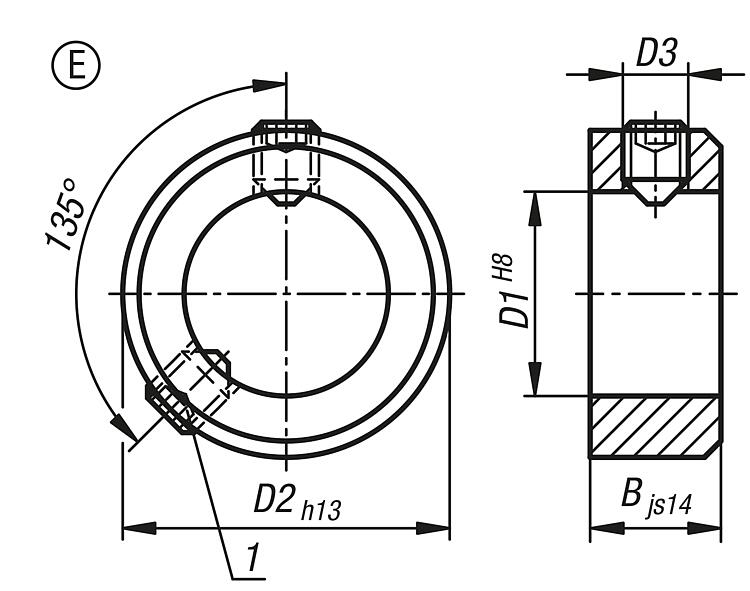

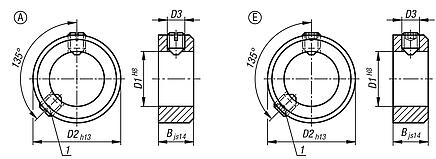

According to DIN 705, the stated tolerances apply to blank shaft collars. The tolerances cannot be guaranteed for with electro zinc-plated shaft collars. However, this has no influence on the function.Drawing reference:1) Second grub screw from D1 ≥ 75 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
