B0155_PSelf-aligning pads, adjustable with O-ring and hexagon socket,... |
go back |
|
Item description/product images |
|
|

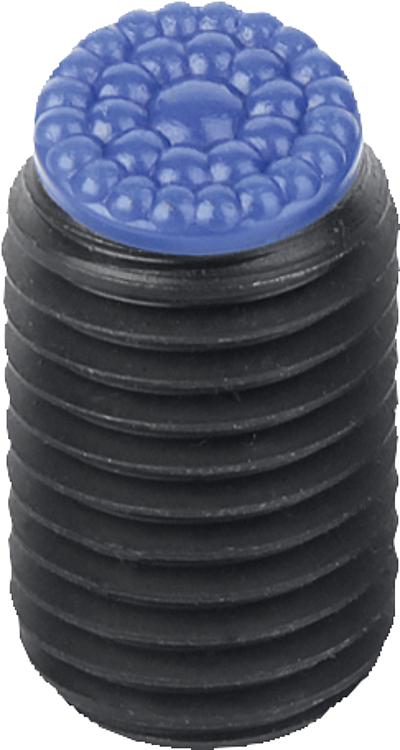

DescriptionMaterial:Body carbon steel.
Ball stainless steel with polyurethane surface.Version:Body tempered and black oxidised.
Ball polyurethane, hardness Shore 60.Note:The self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Ball secured against rotation.
Form P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion resistant and does not discolour. Offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.
The hexagon socket allows easy adjustment and positioning in through holes. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
