Ball knobs thermoplastic DIN 319 enhanced, Form C, with plastic thread

B0306_C

Ball knobs thermoplastic DIN 319 enhanced, Form C, with plastic...

Products
- Product overview
  - Handles and knobs
    - Ball knobs, spherical knobs
      - Ball knobs thermoplastic, DIN 319 enhanced
        Ball knobs thermoplastic DIN 319 enhanced, Form C, with plastic thread

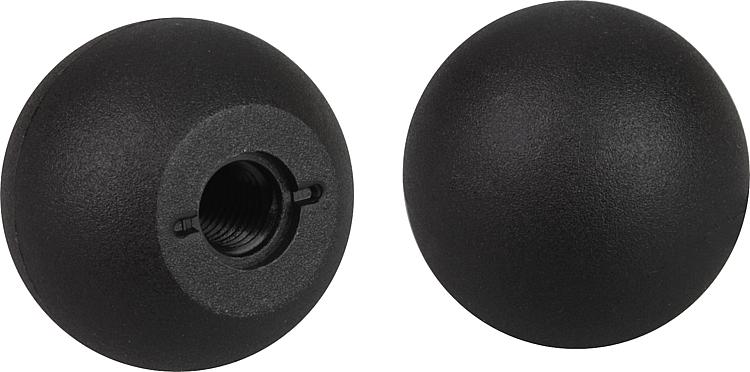

Item description/product images

DescriptionMaterial:Thermoplastic.Version:black.On request:Other colours.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0306_C Ball knobs thermoplastic DIN 319 enhanced, Form C, with plastic thread

Drawings

Ball knobs thermoplastic DIN 319 enhanced, Form C, with plastic thread

Item selection/filter

Order No.	Form	D	D1	D6	H	T	CAD	Acc.	Price	Order
B0306.11604	C	M4	16	8	15	6			0.41 €
B0306.11605	C	M5	16	8	15	7,5			0.41 €
B0306.12005	C	M5	20	12	18	7,5			0.42 €
B0306.12006	C	M6	20	12	18	9			0.42 €
B0306.12506	C	M6	25	15	22,5	9			0.50 €
B0306.12508	C	M8	25	15	22,5	12			0.50 €
B0306.13208	C	M8	32	18	29	12			0.63 €
B0306.13210	C	M10	32	18	29	15			0.63 €
B0306.14010	C	M10	40	22	37	15			1.06 €
B0306.14012	C	M12	40	22	37	15			1.19 €
