Ball knobs smoothDIN 319 enhanced

B0307

Ball knobs smooth DIN 319 enhanced

Products
- Product overview
  - Handles and knobs
    - Ball knobs, spherical knobs
      - Ball knobs smooth DIN 319 enhanced

Item description/product images

Show/filter all items

DescriptionMaterial:Black thermoset PF 31.
Bush electro zinc-plated steel.Version:High-gloss polished.Note:According to DIN319, for production reasons, the usual tolerances for metal threads cannot be held with plastic threads.Shank tolerance:Ball knobs with press-fit sleeve can be mounted on standard shafts with tolerance h9. The supplied press-fit sleeve assures a firm and reliable fit.Drawing reference:

Form C: moulded thread
Form E: tapped bush
Form L: press-fit sleeve
Form M: tapered hole

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0307 Ball knobs smoothDIN 319 enhanced

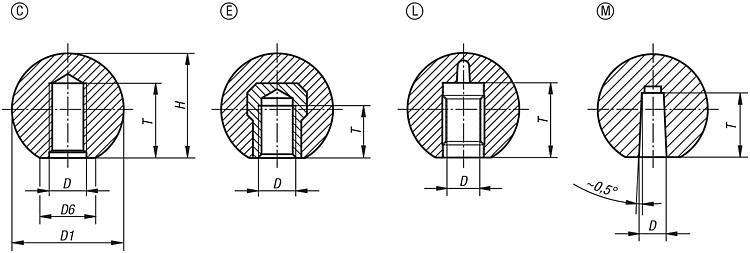

Drawings (total overview)

Ball knobs smoothDIN 319 enhanced

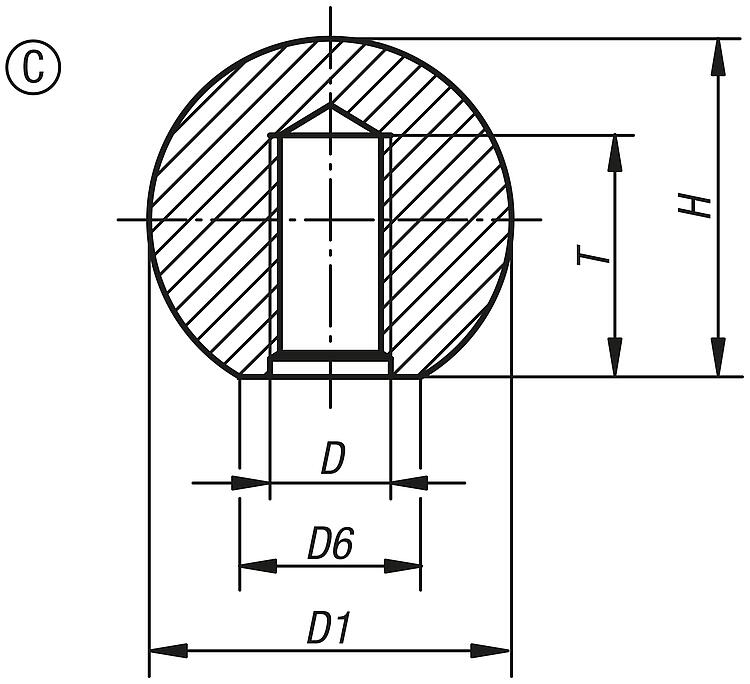

Ball knobs, smooth, DIN 319 enhanced, Form C, with molded thread

More information

Drawings

Ball knobs, smooth, DIN 319 enhanced, Form C, with molded thread

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	CAD	Acc.	Price	Order
B0307.11604	C	black	M4	16	8	15	9			0.39 €
B0307.11605	C	black	M5	16	8	15	11			0.39 €
B0307.11606	C	black	M6	16	8	15	12			0.42 €
B0307.12005	C	black	M5	20	12	18	11			0.40 €
B0307.12006	C	black	M6	20	12	18	14			0.40 €
B0307.12506	C	black	M6	25	15	22,5	15			0.49 €
B0307.12508	C	black	M8	25	15	22,5	17			0.49 €
B0307.13008	C	black	M8	30	15	28	19			0.81 €
B0307.13208	C	black	M8	32	18	29	17			0.62 €
B0307.13210	C	black	M10	32	18	29	22			0.62 €
B0307.13508	C	black	M8	36	16	34	17			0.93 €
B0307.13510	C	black	M10	36	16	34	23			0.93 €
B0307.14008	C	black	M8	40	22	37	17			1.07 €
B0307.14010	C	black	M10	40	22	37	23			1.07 €
B0307.14012	C	black	M12	40	22	37	26			1.07 €
B0307.14510	C	black	M10	45	17	43	22			1.44 €
B0307.14512	C	black	M12	45	17	43	27			1.44 €
B0307.15010	C	black	M10	50	29	46	23			1.68 €
B0307.15012	C	black	M12	50	29	46	25			1.68 €
B0307.116041	C	dark red	M4	16	8	15	6			0.52 €
B0307.116051	C	dark red	M5	16	8	15	7,5			0.52 €
B0307.120051	C	dark red	M5	20	12	18	7,5			0.58 €
B0307.120061	C	dark red	M6	20	12	18	9			0.58 €
B0307.125061	C	dark red	M6	25	15	23	9			0.64 €
B0307.125081	C	dark red	M8	25	15	23	12			0.64 €
B0307.130081	C	dark red	M8	30	16	28	12			1.05 €
B0307.132081	C	dark red	M8	32	18	29	12			0.93 €
B0307.140081	C	dark red	M8	40	20	37,5	12			1.51 €
B0307.135101	C	dark red	M10	36	17	33	15			1.30 €
B0307.140101	C	dark red	M10	40	20	37,5	15			1.51 €
B0307.150101	C	dark red	M10	50	22	48	15			2.35 €
B0307.150121	C	dark red	M12	50	28	48	18			2.35 €

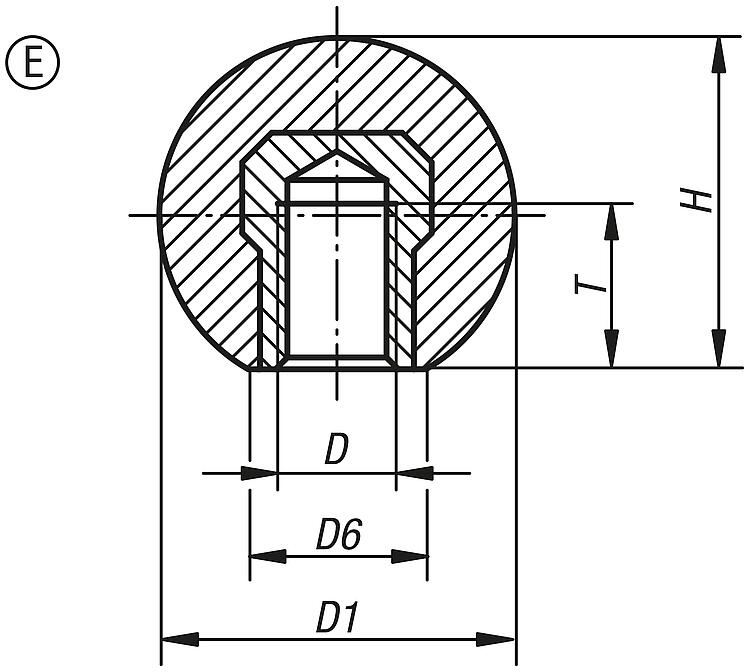

Ball knobs smooth DIN 319 enhanced, Form E, with tapped bush

More information

Drawings

Ball knobs smooth DIN 319 enhanced, Form E, with tapped bush

Item selection/filter

Order No.	Form	Main colour	Component material	D	D1	D6	H	T	CAD	Acc.	Price	Order
B0307.21604	E	black	brass	M4	16	8	15	10			0.50 €
B0307.22005	E	black	brass	M5	20	12	18	12			0.56 €
B0307.22006	E	black	steel	M6	20	12	18	15			0.56 €
B0307.22506	E	black	steel	M6	25	15	22,5	15			0.64 €
B0307.22508	E	black	steel	M8	25	15	22,5	18			0.69 €
B0307.23008	E	black	brass	M8	30	15	28	15			1.07 €
B0307.23208	E	black	steel	M8	32	18	29	18			1.22 €
B0307.23210	E	black	steel	M10	32	18	29	18			1.23 €
B0307.23508	E	black	steel	M8	36	16	34	18			1.21 €
B0307.23510	E	black	steel	M10	36	16	34	23			1.25 €
B0307.24008	E	black	steel	M8	40	22	37	18			1.47 €
B0307.24010	E	black	steel	M10	40	22	37	23			1.55 €
B0307.24012	E	black	steel	M12	40	22	37	25			1.75 €
B0307.24510	E	black	steel	M10	45	17	43	23			1.97 €
B0307.24512	E	black	steel	M12	45	17	43	25			2.03 €
B0307.25010	E	black	steel	M10	50	29	46	23			2.41 €
B0307.25012	E	black	steel	M12	50	29	46	25			2.47 €
B0307.220051	E	dark red	steel	M5	20	12	18	7,5			0.70 €
B0307.225061	E	dark red	steel	M6	25	15	23	9			0.84 €
B0307.230081	E	dark red	steel	M8	30	16	28	12			1.51 €
B0307.235101	E	dark red	steel	M10	36	17	33	14			1.87 €
B0307.240101	E	dark red	steel	M10	40	20	37,5	15			2.16 €
B0307.240121	E	dark red	steel	M12	40	20	37,5	18			2.46 €
B0307.250121	E	dark red	steel	M12	50	28	48	18			3.45 €

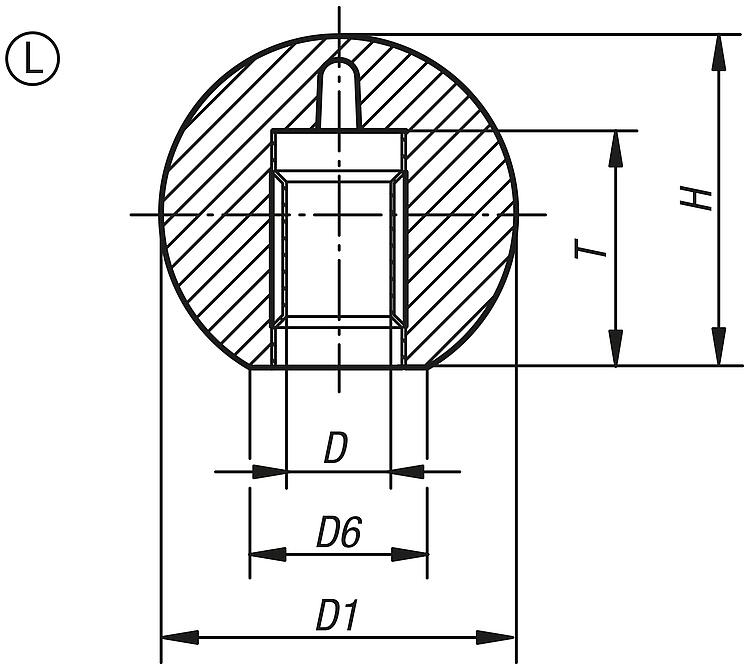

Ball knobs, smooth, DIN 319 enhanced, Form L, with clamping sleeve

More information

Drawings

Ball knobs, smooth, DIN 319 enhanced, Form L, with clamping sleeve

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	CAD	Acc.	Price	Order
B0307.42005	L	black	5	20	12	18	13			1.47 €
B0307.42506	L	black	6	25	15	23	16			1.38 €
B0307.42508	L	black	8	25	15	23	15			1.38 €
B0307.43208	L	black	8	32	18	29	15			1.69 €
B0307.43210	L	black	10	32	18	29	20			1.69 €
B0307.44010	L	black	10	40	20	37,5	20			2.30 €
B0307.44012	L	black	12	40	20	37,5	23			2.30 €
B0307.45012	L	black	12	50	28	48	20			3.59 €

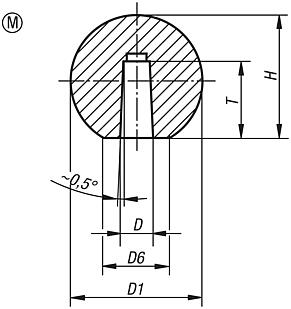

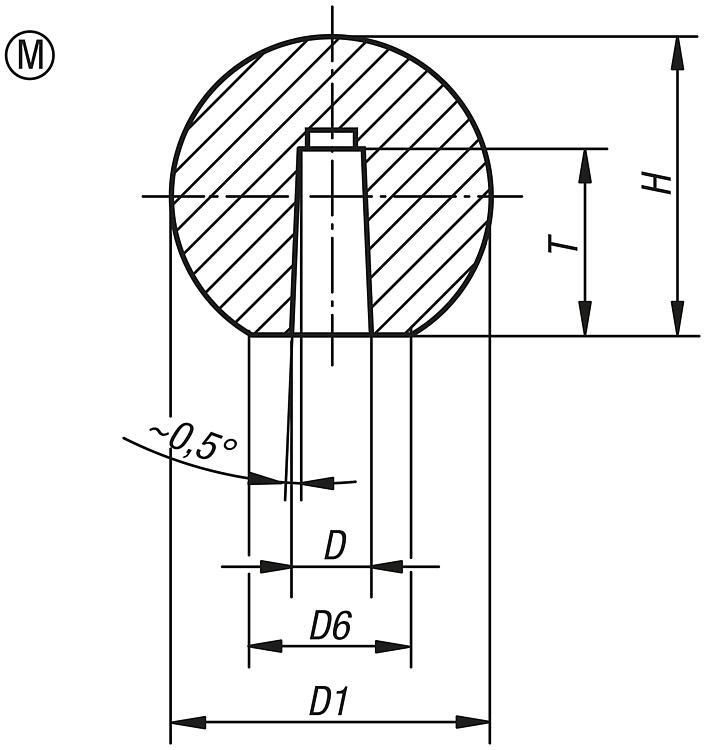

Ball knobs, smooth, DIN 319 enhanced, Form M, with tapered bore

More information

Drawings

Ball knobs, smooth, DIN 319 enhanced, Form M, with tapered bore

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	CAD	Acc.	Price	Order
B0307.31604	M	black	4	16	8	15	10			0.40 €
B0307.32005	M	black	5	20	12	18	11			0.42 €
B0307.32506	M	black	6	25	15	22,5	14			0.56 €
B0307.32508	M	black	8	25	15	22,5	14			0.56 €
B0307.33208	M	black	8	32	18	29	14			0.75 €
B0307.33210	M	black	10	32	18	29	14			0.75 €
B0307.34010	M	black	10	40	22	37	19			1.19 €
B0307.34012	M	black	12	40	22	37	19			1.19 €
B0307.35012	M	black	12	50	29	46	21			1.98 €
