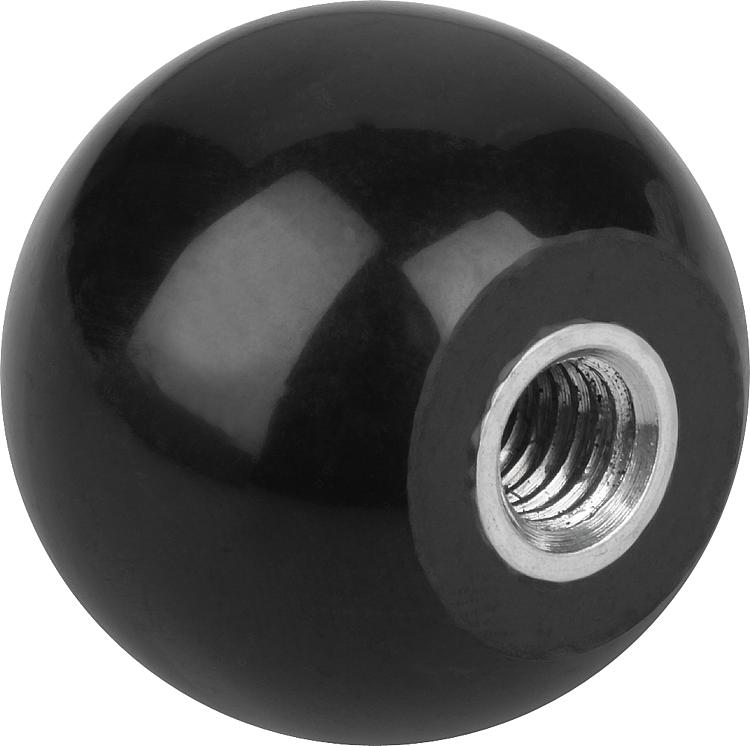

B0307_EBall knobs smooth DIN 319 enhanced, Form E, with tapped bush |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoset PF 31, black or dark red.
Bush electro zinc-plated steel.Version:High-gloss polished.Note:The version B0307.21604 has a brass bush.
The versions B0307.23008, B0307.230081, B0307.23508 and B0307.24008 have copper plated steel bushes. On request:* These versions are available from stock in dark red at extra charge. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
