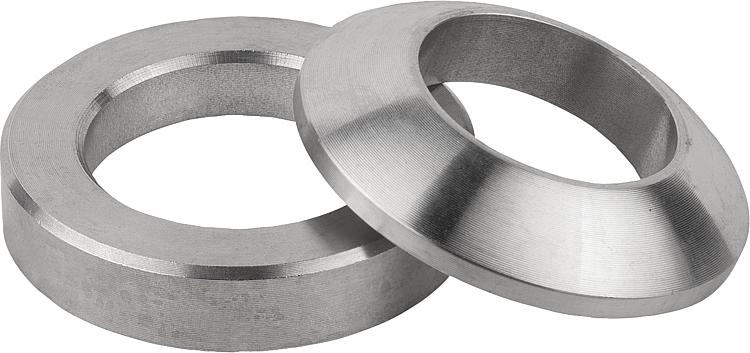

B0197Spherical washers DIN 6319, edition 10/01 |
go back |
|
|
DescriptionMaterial:Mild steel, QT steel or stainless steel.Version:Mild steel, case hardened, manganese-phosphated.
Tempered steel (HV 390 ±40), manganese-phosphated.
Stainless steel, bright.

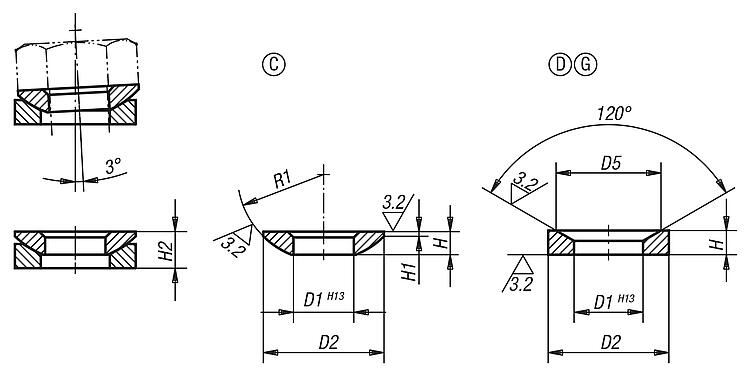

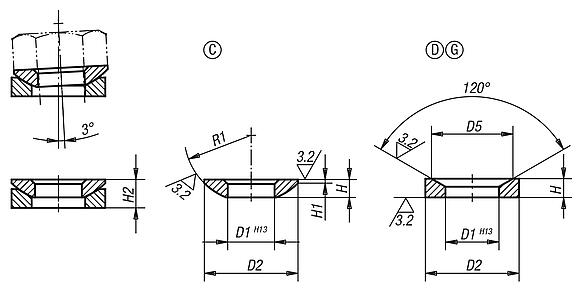

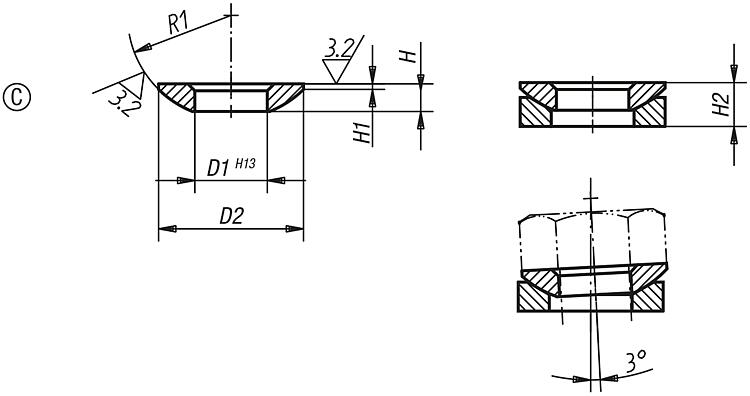

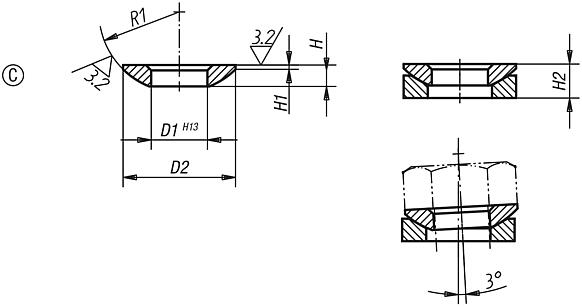

Note:Conical seat Form G should be used over slots.Drawing reference:Form C: spherical washer

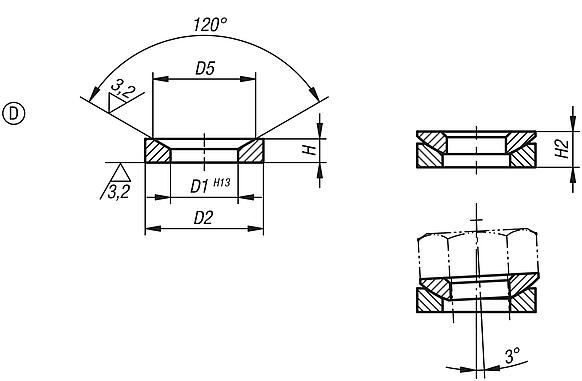

Form D: conical seat

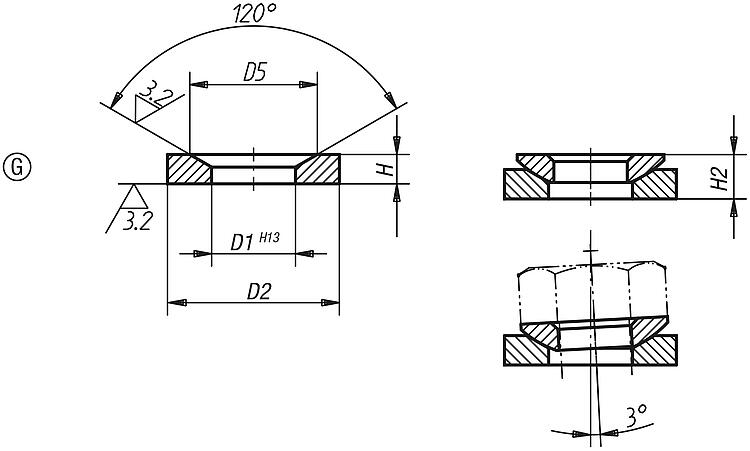

Form G: conical seat for slots DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Main
material | Surface finish
body | Form | G=thread / for thread | D1 | D2 | H | H1 | R1 | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0197.105 | mild steel | case-hardened | C | M5 | 5,25 | 10,5 | 2 | 0,4 | 7,5 | 6,5 |  | | 0.43 € | | | B0197.106 | mild steel | case-hardened | C | M6 | 6,4 | 12 | 2,3 | 0,7 | 9 | 9 | | | 0.34 € | | | B0197.108 | mild steel | case-hardened | C | M8 | 8,4 | 17 | 3,2 | 0,6 | 12 | 17 | | | 0.36 € | | | B0197.110 | mild steel | case-hardened | C | M10 | 10,5 | 21 | 4 | 0,8 | 15 | 26 | | | 0.54 € | | | B0197.112 | mild steel | case-hardened | C | M12 | 13 | 24 | 4,6 | 1,1 | 17 | 38 | | | 0.58 € | | | B0197.114 | mild steel | case-hardened | C | M14 | 15 | 28 | 5 | 1,2 | 22 | 53 | | | 0.89 € | | | B0197.116 | mild steel | case-hardened | C | M16 | 17 | 30 | 5,3 | 1,3 | 22 | 73 | | | 0.93 € | | | B0197.120 | mild steel | case-hardened | C | M20 | 21 | 36 | 6,3 | 2 | 27 | 117 | | | 1.32 € | | | B0197.124 | mild steel | case-hardened | C | M24 | 25 | 44 | 8,2 | 2,4 | 32 | 168 | | | 2.31 € | | | B0197.130 | mild steel | case-hardened | C | M30 | 31 | 56 | 11,2 | 3,6 | 41 | 269 | | | 3.88 € | | | B0197.136 | mild steel | case-hardened | C | M36 | 37 | 68 | 14 | 4,6 | 50 | 394 | | | 9.21 € | | | B0197.142 | mild steel | case-hardened | C | M42 | 43 | 78 | 17 | 6,5 | 58 | 542 | | | 13.08 € | | | B0197.148 | mild steel | case-hardened | C | M48 | 50 | 92 | 21 | 8 | 67 | 714 | | | 19.52 € | | | B0197.156 | mild steel | case-hardened | C | - | 58 | 103 | 23 | 9,5 | 79 | 960 | | | 33.29 € | | | B0197.164 | mild steel | case-hardened | C | - | 66 | 120 | 27 | 12 | 93 | 1269 | | | 45.14 € | | | B0197.0106 | stainless steel | bright | C | M6 | 6,4 | 12 | 2,3 | 0,7 | 9 | 6 | | | 1.00 € | | | B0197.0108 | stainless steel | bright | C | M8 | 8,4 | 17 | 3,2 | 0,6 | 12 | 12 | | | 1.42 € | | | B0197.0110 | stainless steel | bright | C | M10 | 10,5 | 21 | 4 | 0,8 | 15 | 16 | | | 1.93 € | | | B0197.0112 | stainless steel | bright | C | M12 | 13 | 24 | 4,6 | 1,1 | 17 | 24 | | | 2.28 € | | | B0197.0116 | stainless steel | bright | C | M16 | 17 | 30 | 5,3 | 1,3 | 22 | 45 | | | 3.51 € | | | B0197.0120 | stainless steel | bright | C | M20 | 21 | 36 | 6,3 | 2 | 27 | 71 | | | 4.84 € | | | B0197.0124 | stainless steel | bright | C | M24 | 25 | 44 | 8,2 | 2,4 | 32 | 105 | | | 7.71 € | | | B0197.0130 | stainless steel | bright | C | M30 | 31 | 56 | 11,2 | 3,6 | 41 | 191 | | | 12.54 € | | | B0197.0136 | stainless steel | bright | C | M36 | 37 | 68 | 14 | 4,6 | 50 | - | | | 19.06 € | | | B0197.0142 | stainless steel | bright | C | M42 | 43 | 78 | 17 | 6,5 | 58 | - | | | 36.74 € | | | B0197.0148 | stainless steel | bright | C | M48 | 50 | 92 | 21 | 8 | 67 | - | | | 53.46 € | |
|
| Order No. | Main
material | Surface finish
body | Form | G=thread / for thread | D1 | D2 | D5 | H | H2 | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0197.205 | mild steel | case-hardened | D | M5 | 6 | 10,5 | 9,25 | 2,1 | 3,1 | 6,5 | | | 0.42 € | | | B0197.206 | mild steel | case-hardened | D | M6 | 7,1 | 12 | 11 | 2,8 | 4,2 | 9 | | | 0.35 € | | | B0197.208 | mild steel | case-hardened | D | M8 | 9,6 | 17 | 14,5 | 3,5 | 5,6 | 17 | | | 0.39 € | | | B0197.210 | mild steel | case-hardened | D | M10 | 12 | 21 | 18,5 | 4,2 | 6,5 | 26 | | | 0.56 € | | | B0197.212 | mild steel | case-hardened | D | M12 | 14,2 | 24 | 20 | 5 | 8 | 38 | | | 0.60 € | | | B0197.214 | mild steel | case-hardened | D | M14 | 16,5 | 28 | 24,8 | 5,6 | 8,5 | 53 | | | 1.41 € | | | B0197.216 | mild steel | case-hardened | D | M16 | 19 | 30 | 26 | 6,2 | 9,5 | 73 | | | 1.00 € | | | B0197.220 | mild steel | case-hardened | D | M20 | 23,2 | 36 | 31 | 7,5 | 11,7 | 117 | | | 1.52 € | | | B0197.224 | mild steel | case-hardened | D | M24 | 28 | 44 | 37 | 9,5 | 15,2 | 168 | | | 2.54 € | | | B0197.230 | mild steel | case-hardened | D | M30 | 35 | 56 | 49 | 12 | 19,2 | 269 | | | 4.19 € | | | B0197.236 | mild steel | case-hardened | D | M36 | 42 | 68 | 60 | 15 | 23,5 | 394 | | | 9.58 € | | | B0197.242 | mild steel | case-hardened | D | M42 | 49 | 78 | 70 | 18 | 29 | 542 | | | 13.33 € | | | B0197.248 | mild steel | case-hardened | D | M48 | 56 | 92 | 82 | 22 | 35,5 | 714 | | | 19.99 € | | | B0197.256 | mild steel | case-hardened | D | - | 65 | 103 | 92 | 25 | 39,7 | 960 | | | 33.75 € | | | B0197.264 | mild steel | case-hardened | D | - | 75 | 120 | 110 | 30 | 46,5 | 1269 | | | 45.76 € | | | B0197.0206 | stainless steel | bright | D | M6 | 7,1 | 12 | 11 | 2,8 | 4,2 | 6 | | | 1.03 € | | | B0197.0208 | stainless steel | bright | D | M8 | 9,6 | 17 | 14,5 | 3,5 | 5,6 | 12 | | | 1.49 € | | | B0197.0210 | stainless steel | bright | D | M10 | 12 | 21 | 18,5 | 4,2 | 6,5 | 16 | | | 1.98 € | | | B0197.0212 | stainless steel | bright | D | M12 | 14,2 | 24 | 20 | 5 | 8 | 24 | | | 2.35 € | | | B0197.0216 | stainless steel | bright | D | M16 | 19 | 30 | 26 | 6,2 | 9,5 | 45 | | | 3.63 € | | | B0197.0220 | stainless steel | bright | D | M20 | 23,2 | 36 | 31 | 7,5 | 11,7 | 71 | | | 5.04 € | | | B0197.0224 | stainless steel | bright | D | M24 | 28 | 44 | 37 | 9,5 | 15,2 | 105 | | | 8.00 € | | | B0197.0230 | stainless steel | bright | D | M30 | 35 | 56 | 49 | 12 | 19,2 | 191 | | | 13.15 € | | | B0197.0236 | stainless steel | bright | D | M36 | 42 | 68 | 60 | 15 | 23,5 | - | | | 19.68 € | | | B0197.0242 | stainless steel | bright | D | M42 | 49 | 78 | 70 | 18 | 29 | - | | | 37.50 € | | | B0197.0248 | stainless steel | bright | D | M48 | 56 | 92 | 82 | 22 | 35,5 | - | | | 53.90 € | |
|
| Order No. | Main
material | Surface finish
body | Form | G=thread / for thread | D1 | D2 | D5 | H | H2 | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0197.305 | QT steel | tempered | G | M5 | 6 | 15 | 9,25 | 2,5 | 3,5 | 6,5 | | | 0.43 € | | | B0197.306 | QT steel | tempered | G | M6 | 7,1 | 17 | 11 | 4 | 5,4 | 9 | | | 0.69 € | | | B0197.308 | QT steel | tempered | G | M8 | 9,6 | 24 | 14,5 | 5 | 7,1 | 17 | | | 1.04 € | | | B0197.310 | QT steel | tempered | G | M10 | 12 | 30 | 18,5 | 5 | 7,3 | 26 | | | 1.32 € | | | B0197.312 | QT steel | tempered | G | M12 | 14,2 | 36 | 20 | 6 | 9 | 38 | | | 1.82 € | | | B0197.314 | QT steel | tempered | G | M14 | 16,5 | 40 | 24,8 | 6 | 9,5 | 53 | | | 2.40 € | | | B0197.316 | QT steel | tempered | G | M16 | 19 | 44 | 26 | 7 | 10,4 | 73 | | | 2.71 € | | | B0197.320 | QT steel | tempered | G | M20 | 23,2 | 50 | 31 | 8 | 12,2 | 117 | | | 3.79 € | | | B0197.324 | QT steel | tempered | G | M24 | 28 | 60 | 37 | 10 | 15,7 | 168 | | | 6.12 € | | | B0197.330 | QT steel | tempered | G | M30 | 35 | 68 | 49 | 12 | 19,7 | 269 | | | 11.36 € | | | B0197.336 | QT steel | tempered | G | M36 | 42 | 80 | 60 | 12 | 20,3 | 394 | | | 14.27 € | | | B0197.0306 | stainless steel | bright | G | M6 | 7,1 | 17 | 11 | 4 | 5,4 | 6 | | | 1.60 € | | | B0197.0308 | stainless steel | bright | G | M8 | 9,6 | 24 | 14,5 | 5 | 7,1 | 12 | | | 2.32 € | | | B0197.0310 | stainless steel | bright | G | M10 | 12 | 30 | 18,5 | 5 | 7,3 | 16 | | | 3.78 € | | | B0197.0312 | stainless steel | bright | G | M12 | 14,2 | 36 | 20 | 6 | 9 | 24 | | | 5.12 € | | | B0197.0316 | stainless steel | bright | G | M16 | 19 | 44 | 26 | 7 | 10,4 | 45 | | | 8.42 € | | | B0197.0320 | stainless steel | bright | G | M20 | 23,2 | 50 | 31 | 8 | 12,2 | 71 | | | 12.56 € | | | B0197.0324 | stainless steel | bright | G | M24 | 28 | 60 | 37 | 10 | 15,7 | 105 | | | 16.78 € | | | B0197.0330 | stainless steel | bright | G | M30 | 35 | 68 | 49 | 12 | 19,7 | 191 | | | 21.45 € | |
|
