B0277_IG

Knurled Knobs with internal thread

go back

Products
- Product overview
  - Handles and knobs
    - knurled nut, knurled screws, knurled knobs
      - Knurled knobs

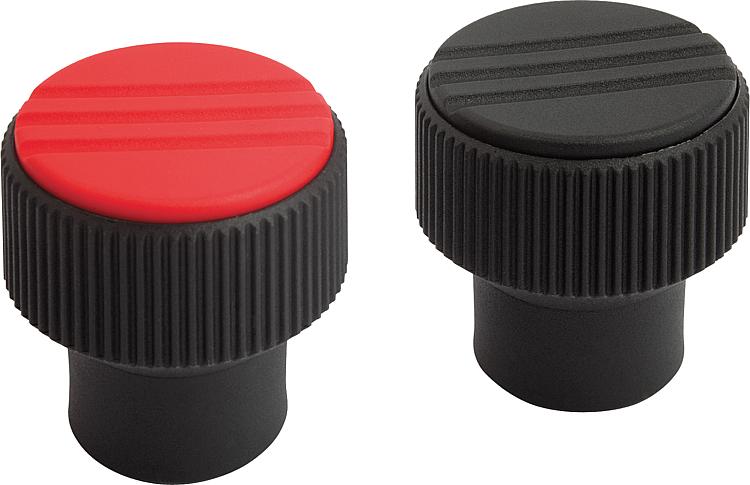

        Knurled Knobs with internal thread

Item description/product images

DescriptionMaterial:

Black thermoplastic.
Bush and screw 5.8 steel or 1.4305 stainless steel.

Version:Steel trivalent blue passivated, stainless steel bright.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0277_IG Knurled knobs with internal thread

238 kB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Component material	Colour Cap	D	D1	D2	D3	H	H1	T	Price
B0277.104	steel	black grey RAL 7021	M4	21	14	19	22	8	10	1.15 €
B0277.1041	steel	orange RAL 2004	M4	21	14	19	22	8	10	1.15 €
B0277.1042	steel	signal green RAL 6032	M4	21	14	19	22	8	10	1.15 €
B0277.1043	steel	blue RAL5017	M4	21	14	19	22	8	10	1.15 €
B0277.1045	steel	light grey RAL 7035	M4	21	14	19	22	8	10	1.15 €
B0277.1046	steel	traffic red RAL 3020	M4	21	14	19	22	8	10	1.15 €
B0277.1047	steel	colza yellow RAL 1021	M4	21	14	19	22	8	10	1.15 €
B0277.105	steel	black grey RAL 7021	M5	21	14	19	22	8	10	1.15 €
B0277.1051	steel	orange RAL 2004	M5	21	14	19	22	8	10	1.15 €
B0277.1052	steel	signal green RAL 6032	M5	21	14	19	22	8	10	1.15 €
B0277.1053	steel	blue RAL5017	M5	21	14	19	22	8	10	1.15 €
B0277.1055	steel	light grey RAL 7035	M5	21	14	19	22	8	10	1.15 €
B0277.1056	steel	traffic red RAL 3020	M5	21	14	19	22	8	10	1.15 €
B0277.1057	steel	colza yellow RAL 1021	M5	21	14	19	22	8	10	1.15 €
B0277.106	steel	black grey RAL 7021	M6	21	14	19	22	8	10	1.15 €
B0277.1061	steel	orange RAL 2004	M6	21	14	19	22	8	10	1.15 €
B0277.1062	steel	signal green RAL 6032	M6	21	14	19	22	8	10	1.15 €
B0277.1063	steel	blue RAL5017	M6	21	14	19	22	8	10	1.15 €
B0277.1065	steel	light grey RAL 7035	M6	21	14	19	22	8	10	1.15 €
B0277.1066	steel	traffic red RAL 3020	M6	21	14	19	22	8	10	1.15 €
B0277.1067	steel	colza yellow RAL 1021	M6	21	14	19	22	8	10	1.15 €
B0277.208	steel	black grey RAL 7021	M8	26	18	23	26	9,5	14	1.42 €
B0277.2081	steel	orange RAL 2004	M8	26	18	23	26	9,5	14	1.42 €
B0277.2082	steel	signal green RAL 6032	M8	26	18	23	26	9,5	14	1.42 €
B0277.2083	steel	blue RAL5017	M8	26	18	23	26	9,5	14	1.42 €
B0277.2085	steel	light grey RAL 7035	M8	26	18	23	26	9,5	14	1.42 €
B0277.2086	steel	traffic red RAL 3020	M8	26	18	23	26	9,5	14	1.42 €
B0277.2087	steel	colza yellow RAL 1021	M8	26	18	23	26	9,5	14	1.42 €
B0277.308	steel	black grey RAL 7021	M8	34	22	31	36	13	14	1.73 €
B0277.3081	steel	orange RAL 2004	M8	34	22	31	36	13	14	1.73 €
B0277.3082	steel	signal green RAL 6032	M8	34	22	31	36	13	14	1.73 €
B0277.3083	steel	blue RAL5017	M8	34	22	31	36	13	14	1.73 €
B0277.3085	steel	light grey RAL 7035	M8	34	22	31	36	13	14	1.73 €
B0277.3086	steel	traffic red RAL 3020	M8	34	22	31	36	13	14	1.73 €
B0277.3087	steel	colza yellow RAL 1021	M8	34	22	31	36	13	14	1.73 €
B0277.310	steel	black grey RAL 7021	M10	34	22	31	36	13	14	1.73 €
B0277.3101	steel	orange RAL 2004	M10	34	22	31	36	13	14	1.73 €
B0277.3102	steel	signal green RAL 6032	M10	34	22	31	36	13	14	1.73 €
B0277.3103	steel	blue RAL5017	M10	34	22	31	36	13	14	1.73 €
B0277.3105	steel	light grey RAL 7035	M10	34	22	31	36	13	14	1.73 €
B0277.3106	steel	traffic red RAL 3020	M10	34	22	31	36	13	14	1.73 €
B0277.3107	steel	colza yellow RAL 1021	M10	34	22	31	36	13	14	1.73 €
B0277.0104	stainless steel	black grey RAL 7021	M4	21	14	19	22	8	10	1.73 €
B0277.01041	stainless steel	orange RAL 2004	M4	21	14	19	22	8	10	1.73 €
B0277.01042	stainless steel	signal green RAL 6032	M4	21	14	19	22	8	10	1.73 €
B0277.01043	stainless steel	blue RAL5017	M4	21	14	19	22	8	10	1.73 €
B0277.01045	stainless steel	light grey RAL 7035	M4	21	14	19	22	8	10	1.73 €
B0277.01046	stainless steel	traffic red RAL 3020	M4	21	14	19	22	8	10	1.73 €
B0277.01047	stainless steel	colza yellow RAL 1021	M4	21	14	19	22	8	10	1.73 €
B0277.0105	stainless steel	black grey RAL 7021	M5	21	14	19	22	8	10	1.73 €
B0277.01051	stainless steel	orange RAL 2004	M5	21	14	19	22	8	10	1.73 €
B0277.01052	stainless steel	signal green RAL 6032	M5	21	14	19	22	8	10	1.73 €
B0277.01053	stainless steel	blue RAL5017	M5	21	14	19	22	8	10	1.73 €
B0277.01055	stainless steel	light grey RAL 7035	M5	21	14	19	22	8	10	1.73 €
B0277.01056	stainless steel	traffic red RAL 3020	M5	21	14	19	22	8	10	1.73 €
B0277.01057	stainless steel	colza yellow RAL 1021	M5	21	14	19	22	8	10	1.73 €
B0277.0106	stainless steel	black grey RAL 7021	M6	21	14	19	22	8	10	1.73 €
B0277.01061	stainless steel	orange RAL 2004	M6	21	14	19	22	8	10	1.73 €
B0277.01062	stainless steel	signal green RAL 6032	M6	21	14	19	22	8	10	1.73 €
B0277.01063	stainless steel	blue RAL5017	M6	21	14	19	22	8	10	1.73 €
B0277.01065	stainless steel	light grey RAL 7035	M6	21	14	19	22	8	10	1.73 €
B0277.01066	stainless steel	traffic red RAL 3020	M6	21	14	19	22	8	10	1.73 €
B0277.01067	stainless steel	colza yellow RAL 1021	M6	21	14	19	22	8	10	1.73 €
B0277.0208	stainless steel	black grey RAL 7021	M8	26	18	23	26	9,5	14	2.14 €
B0277.02081	stainless steel	orange RAL 2004	M8	26	18	23	26	9,5	14	2.14 €
B0277.02082	stainless steel	signal green RAL 6032	M8	26	18	23	26	9,5	14	2.14 €
B0277.02083	stainless steel	blue RAL5017	M8	26	18	23	26	9,5	14	2.14 €
B0277.02085	stainless steel	light grey RAL 7035	M8	26	18	23	26	9,5	14	2.14 €
B0277.02086	stainless steel	traffic red RAL 3020	M8	26	18	23	26	9,5	14	2.14 €
B0277.02087	stainless steel	colza yellow RAL 1021	M8	26	18	23	26	9,5	14	2.14 €
B0277.0308	stainless steel	black grey RAL 7021	M8	34	22	31	36	13	14	2.56 €
B0277.03081	stainless steel	orange RAL 2004	M8	34	22	31	36	13	14	2.56 €
B0277.03082	stainless steel	signal green RAL 6032	M8	34	22	31	36	13	14	2.56 €
B0277.03083	stainless steel	blue RAL5017	M8	34	22	31	36	13	14	2.56 €
B0277.03085	stainless steel	light grey RAL 7035	M8	34	22	31	36	13	14	2.56 €
B0277.03086	stainless steel	traffic red RAL 3020	M8	34	22	31	36	13	14	2.56 €
B0277.03087	stainless steel	colza yellow RAL 1021	M8	34	22	31	36	13	14	2.56 €
B0277.0310	stainless steel	black grey RAL 7021	M10	34	22	31	36	13	14	2.56 €
B0277.03101	stainless steel	orange RAL 2004	M10	34	22	31	36	13	14	2.56 €
B0277.03102	stainless steel	signal green RAL 6032	M10	34	22	31	36	13	14	2.56 €
B0277.03103	stainless steel	blue RAL5017	M10	34	22	31	36	13	14	2.56 €
B0277.03105	stainless steel	light grey RAL 7035	M10	34	22	31	36	13	14	2.56 €
B0277.03106	stainless steel	traffic red RAL 3020	M10	34	22	31	36	13	14	2.56 €
B0277.03107	stainless steel	colza yellow RAL 1021	M10	34	22	31	36	13	14	2.56 €
