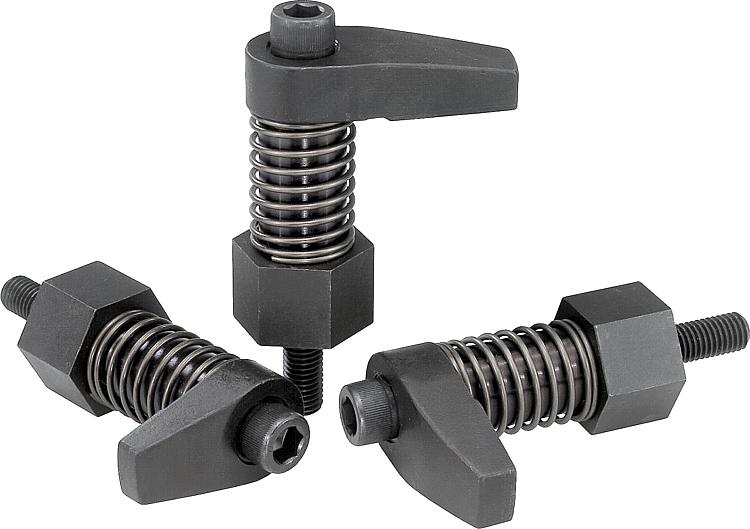

B0411Hook clamps with collar |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Hook clamps and hook clamp holders carbon steel, tempered.Version:Black oxidised.Note:Hook clamps with collar can be screwed directly into grid holes etc. without counterbore.
For suitable riser elements, see riser bars B0414.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

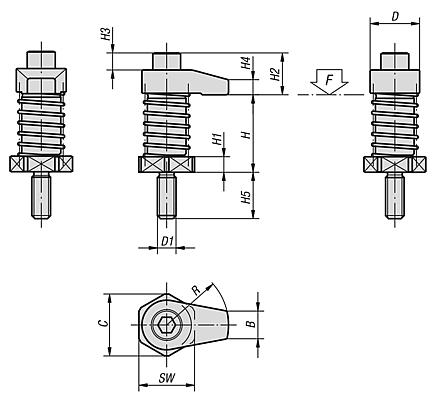

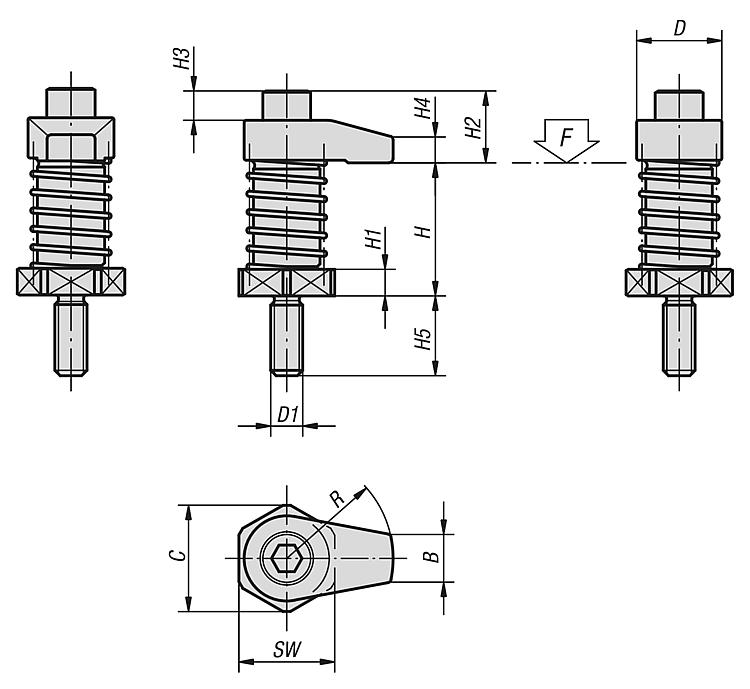

| Order No. | D
| D1 | H
clamping range
| H1 | H2 | H3 | H4 | H5 | B | C | R | SW | Tightening
torque
max. Nm
| F
max. kN
| CAD | Acc. | Price | Order |
|---|
| B0411.08020 | 22 | M8 | 35-45 | 6 | 14 | 2 | 7 | 19 | 10 | 25 | 20 | 22 | 20 | 7,9 |  | | 58.38 € | | | B0411.08025 | 22 | M8 | 35-45 | 6 | 14 | 2 | 7 | 19 | 10 | 25 | 25 | 22 | 20 | 7,3 | | | 58.78 € | | | B0411.08030 | 22 | M8 | 35-45 | 6 | 14 | 2 | 7 | 19 | 10 | 25 | 30 | 22 | 20 | 6,7 | | | 59.80 € | | | B0411.08120 | 22 | M8 | 45-55 | 16 | 14 | 2 | 7 | 19 | 10 | 25 | 20 | 22 | 20 | 7,9 | | | 59.80 € | | | B0411.08125 | 22 | M8 | 45-55 | 16 | 14 | 2 | 7 | 19 | 10 | 25 | 25 | 22 | 20 | 7,3 | | | 60.33 € | | | B0411.08130 | 22 | M8 | 45-55 | 16 | 14 | 2 | 7 | 19 | 10 | 25 | 30 | 22 | 20 | 6,7 | | | 60.90 € | | | B0411.12040 | 32 | M12 | 50-65 | 10 | 27 | 11 | 10 | 30 | 18 | 40 | 40 | 36 | 45 | 13,5 | | | 70.26 € | | | B0411.12050 | 32 | M12 | 50-65 | 10 | 29 | 11 | 12 | 30 | 18 | 40 | 50 | 36 | 45 | 12,6 | | | 73.31 € | | | B0411.12060 | 32 | M12 | 50-65 | 10 | 29 | 11 | 12 | 30 | 18 | 40 | 60 | 36 | 45 | 11,7 | | | 75.24 € | | | B0411.12140 | 32 | M12 | 65-80 | 25 | 27 | 11 | 10 | 30 | 18 | 40 | 40 | 36 | 45 | 13,5 | | | 78.54 € | | | B0411.12150 | 32 | M12 | 65-80 | 25 | 29 | 11 | 12 | 30 | 18 | 40 | 50 | 36 | 45 | 12,6 | | | 82.70 € | | | B0411.12160 | 32 | M12 | 65-80 | 25 | 29 | 11 | 12 | 30 | 18 | 40 | 60 | 36 | 45 | 11,7 | | | 84.31 € | | | B0411.16040 | 36 | M16 | 50-65 | 10 | 36 | 15 | 15 | 30 | 22 | 40 | 40 | 36 | 60 | 13,4 | | | 85.53 € | | | B0411.16050 | 36 | M16 | 50-65 | 10 | 36 | 15 | 15 | 30 | 22 | 40 | 50 | 36 | 60 | 12,4 | | | 92.26 € | | | B0411.16060 | 36 | M16 | 50-65 | 10 | 36 | 15 | 15 | 30 | 22 | 40 | 60 | 36 | 60 | 12 | | | 97.42 € | | | B0411.16140 | 36 | M16 | 65-80 | 25 | 36 | 15 | 15 | 30 | 22 | 40 | 40 | 36 | 60 | 13,4 | | | 88.09 € | | | B0411.16150 | 36 | M16 | 65-80 | 25 | 36 | 15 | 15 | 30 | 22 | 40 | 50 | 36 | 60 | 12,4 | | | 94.83 € | | | B0411.16160 | 36 | M16 | 65-80 | 25 | 36 | 15 | 15 | 30 | 22 | 40 | 60 | 36 | 60 | 12 | | | 99.99 € | |
