Item description/product images |
|
|
DescriptionMaterial:Carbon steel 1.1191Version:Black oxidised.Note:For suitable supports and adjustable rest pads, see B0193 and B0194.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

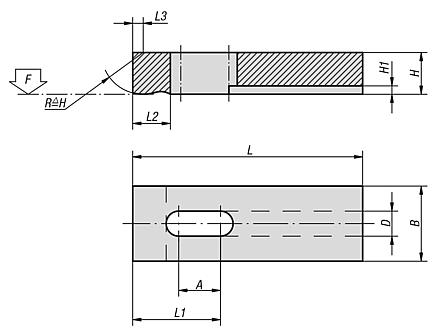

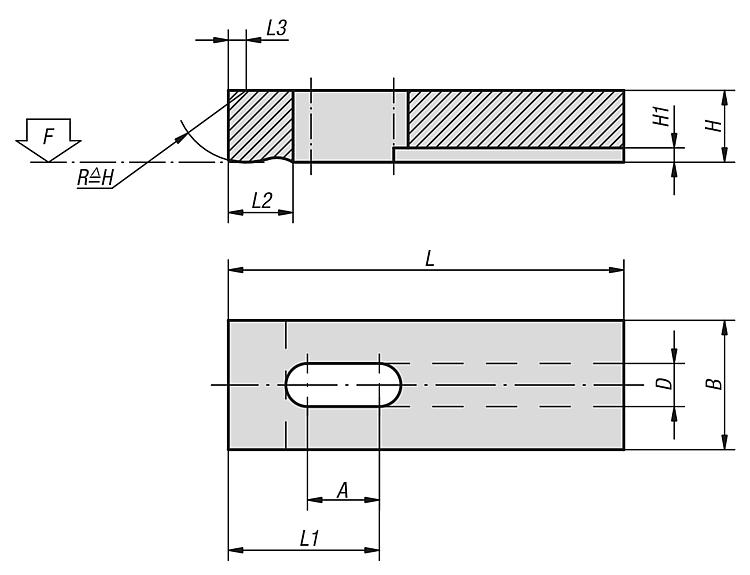

| A | B | D | H | H1 | L | L1 | L2 | L3 | F
kN | CAD | Acc. | Price | Order |
|---|
| B0405.05 | 8 | 12 | 5,5 | 8 | 3 | 32 | 14 | 8 | 1,2 | 3,42 |  | | 9.90 € | | | B0405.06 | 10 | 16 | 7 | 10 | 3 | 40 | 17 | 10 | 1,6 | 4,82 | | | 11.27 € | | | B0405.08 | 12 | 20 | 9 | 12 | 4 | 50 | 22 | 12 | 2 | 8,77 | | | 11.89 € | | | B0405.10 | 16 | 25 | 11 | 16 | 4,5 | 63 | 28 | 16 | 2,5 | 13,9 | | | 16.72 € | | | B0405.12 | 20 | 32 | 14 | 20 | 5 | 80 | 35 | 20 | 3 | 20,2 | | | 22.99 € | | | B0405.14 | 25 | 40 | 16 | 25 | 6 | 100 | 44 | 25 | 4 | 27,6 | | | 34.26 € | | | B0405.16 | 42 | 50 | 18 | 30 | 6 | 160 | 73 | 32 | 5 | 37,8 | | | 65.89 € | | | B0405.20 | 52 | 60 | 22 | 30 | 8 | 200 | 92 | 40 | 6 | 58,8 | | | 99.16 € | | | B0405.051 | 13 | 12 | 5,5 | 8 | 3 | 50 | 23 | 8 | 1,2 | 3,42 | | | 10.66 € | | | B0405.061 | 17 | 16 | 7 | 10 | 3 | 63 | 29 | 10 | 1,6 | 4,82 | | | 11.27 € | | | B0405.081 | 21 | 20 | 9 | 12 | 4 | 80 | 37 | 12 | 2 | 8,77 | | | 14.33 € | | | B0405.101 | 26 | 25 | 11 | 16 | 4,5 | 100 | 46 | 16 | 2,5 | 13,9 | | | 20.90 € | | | B0405.121 | 33 | 32 | 14 | 20 | 5 | 125 | 58 | 20 | 3 | 20,2 | | | 32.50 € | | | B0405.141 | 42 | 40 | 16 | 30 | 6 | 160 | 74 | 25 | 4 | 27,6 | | | 47.27 € | |
