B0430Hinge pins steel or stainless steel |
go back |
|
Item description/product images |
|
|

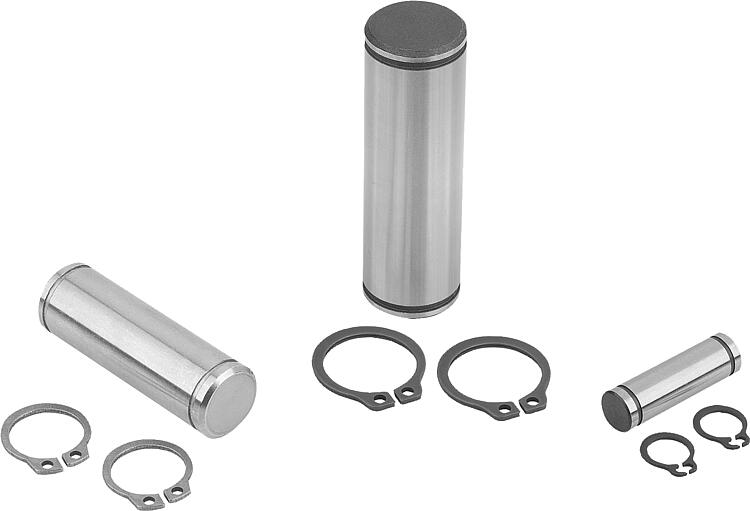

DescriptionMaterial:Steel or stainless steel.Version:Steel version:
tempered to 1000 - 1200 N/mm², black oxidised.
Stainless steel version:
tempered to 900 - 1050 N/mm², bright.Note for ordering:2 matching DIN 471 circlips are supplied.Note:For use with:

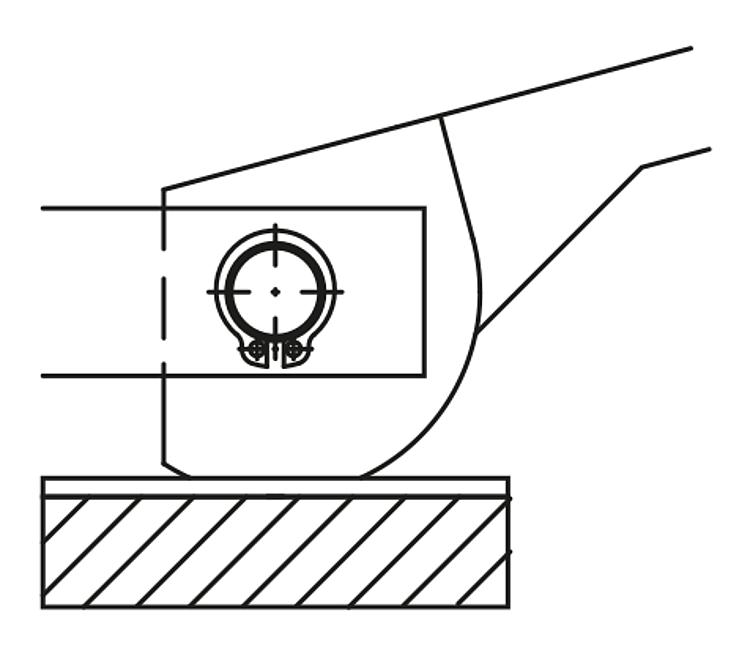

Cam levers B0426 and B0427.
Eye bolts B0129 and B0128.Advantages:Ground OD.
High dimensional accuracy.
Suitable for use as spare part.
Matching circlips included. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Main

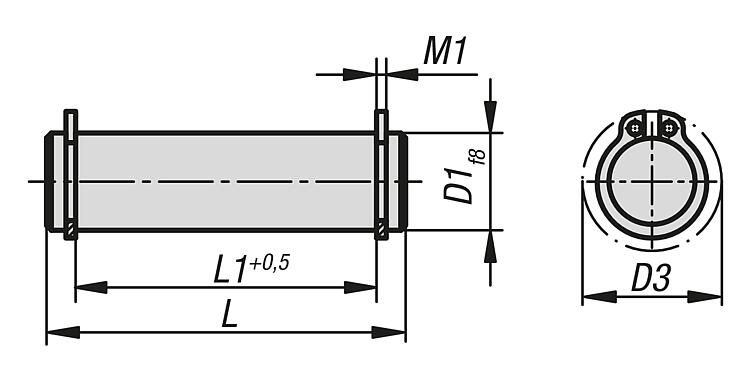

material | D1 | L | L1 | M1 | D3 | CAD | Acc. | Price | Order |
|---|
| B0430.05 | steel | 5 | 18 | 13 | 0,7 | 10,7 |  | | 3.13 € | | | B0430.06 | steel | 6 | 22 | 17 | 0,8 | 12,2 | | | 3.13 € | | | B0430.081 | steel | 8 | 20 | 16 | 0,9 | 15,2 | | | 3.13 € | | | B0430.082 | steel | 8 | 27 | 21 | 0,9 | 15,2 | | | 3.64 € | | | B0430.08 | steel | 8 | 30 | 25 | 0,9 | 15,2 | | | 3.13 € | | | B0430.101 | steel | 10 | 25 | 20 | 1,1 | 17,6 | | | 3.64 € | | | B0430.102 | steel | 10 | 35 | 29 | 1,1 | 17,6 | | | 5.05 € | | | B0430.10 | steel | 10 | 37 | 32 | 1,1 | 17,6 | | | 3.64 € | | | B0430.121 | steel | 12 | 31 | 25 | 1,1 | 19,6 | | | 4.36 € | | | B0430.122 | steel | 12 | 37 | 31 | 1,1 | 19,6 | | | 5.45 € | | | B0430.12 | steel | 12 | 46 | 40 | 1,1 | 19,6 | | | 4.36 € | | | B0430.14 | steel | 14 | 44 | 37 | 1,1 | 22 | | | 6.06 € | | | B0430.16 | steel | 16 | 48 | 41 | 1,1 | 24,4 | | | 6.45 € | | | B0430.18 | steel | 18 | 58 | 51 | 1,3 | 26,8 | | | 7.16 € | | | B0430.105 | stainless steel | 5 | 18 | 13 | 0,7 | 10,7 | | | 4.71 € | | | B0430.106 | stainless steel | 6 | 22 | 17 | 0,8 | 12,2 | | | 4.71 € | | | B0430.108 | stainless steel | 8 | 20 | 16 | 0,9 | 15,2 | | | 4.71 € | | | B0430.1081 | stainless steel | 8 | 27 | 21 | 0,9 | 15,2 | | | 4.71 € | | | B0430.1082 | stainless steel | 8 | 30 | 25 | 0,9 | 15,2 | | | 5.43 € | | | B0430.110 | stainless steel | 10 | 25 | 20 | 1,1 | 17,6 | | | 5.43 € | | | B0430.1101 | stainless steel | 10 | 35 | 29 | 1,1 | 17,6 | | | 5.43 € | | | B0430.1102 | stainless steel | 10 | 37 | 32 | 1,1 | 17,6 | | | 7.57 € | | | B0430.112 | stainless steel | 12 | 31 | 25 | 1,1 | 19,6 | | | 6.53 € | | | B0430.1121 | stainless steel | 12 | 37 | 31 | 1,1 | 19,6 | | | 6.53 € | | | B0430.1122 | stainless steel | 12 | 46 | 40 | 1,1 | 19,6 | | | 8.19 € | | | B0430.114 | stainless steel | 14 | 44 | 37 | 1,1 | 22 | | | 9.11 € | | | B0430.116 | stainless steel | 16 | 48 | 41 | 1,1 | 24,4 | | | 9.66 € | | | B0430.118 | stainless steel | 18 | 58 | 51 | 1,3 | 26,8 | | | 10.72 € | |
