B0588_IGT-grips, thermoplastic with internal thread |
go back |
|

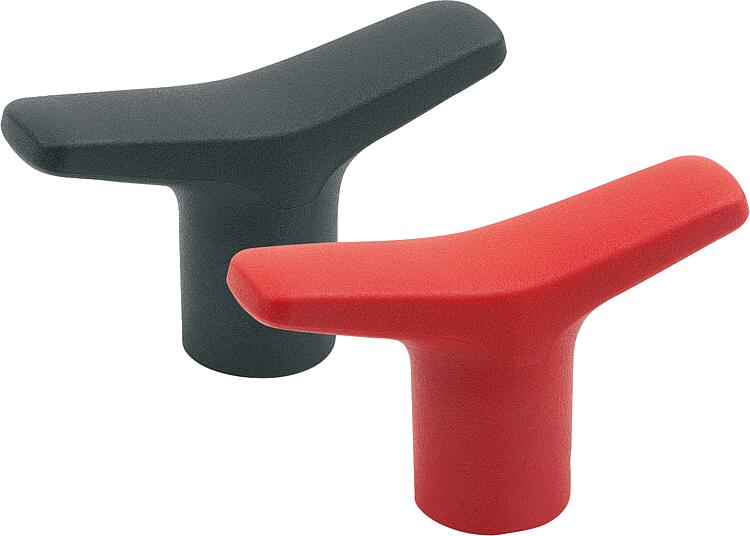

Item description/product images |
|
|
DescriptionMaterial:T-grip reinforced thermoplastic.
Bushes and threaded pins steel or stainless steel 1.4305. Version:Grip black grey RAL 7021 or red similar to RAL 3020.
Steel parts trivalent blue passivated.
Stainless steel bright.On request:Other screw sizes, screw lengths and colours.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | Component
material | Steel key | Main
colour | Surface finish
component | A | B | D | D3 | H | H1 | T | CAD | Acc. | Price | Order |
|---|
| B0588.5505 | K | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 10 |  | | 1.71 € | | | B0588.6506 | K | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 12 | | | 1.81 € | | | B0588.6508 | K | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 14 | | | 1.94 € | | | B0588.7508 | K | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 14 | | | 2.24 € | | | B0588.7510 | K | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 18 | | | 2.24 € | | | B0588.8510 | K | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 18 | | | 3.89 € | | | B0588.8512 | K | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 22 | | | 4.26 € | | | B0588.05505 | K | stainless steel | 1.4305 | black grey RAL 7021 | bright | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 10 | | | 2.56 € | | | B0588.06506 | K | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 12 | | | 2.72 € | | | B0588.06508 | K | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 14 | | | 2.91 € | | | B0588.07508 | K | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 14 | | | 3.35 € | | | B0588.07510 | K | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 18 | | | 3.35 € | | | B0588.08510 | K | stainless steel | 1.4305 | black grey RAL 7021 | bright | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 18 | | | 5.84 € | | | B0588.08512 | K | stainless steel | 1.4305 | black grey RAL 7021 | bright | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 22 | | | 6.39 € | | | B0588.65505 | K | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 10 | | | 1.71 € | | | B0588.66506 | K | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 12 | | | 1.81 € | | | B0588.66508 | K | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 14 | | | 1.94 € | | | B0588.67508 | K | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 14 | | | 2.24 € | | | B0588.67510 | K | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 18 | | | 2.24 € | | | B0588.68510 | K | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 18 | | | 3.89 € | | | B0588.68512 | K | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 22 | | | 4.26 € | | | B0588.065505 | K | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 10 | | | 2.56 € | | | B0588.066506 | K | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 12 | | | 2.72 € | | | B0588.066508 | K | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 14 | | | 2.91 € | | | B0588.067508 | K | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 14 | | | 3.35 € | | | B0588.067510 | K | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 18 | | | 3.35 € | | | B0588.068510 | K | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 18 | | | 5.84 € | | | B0588.068512 | K | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 22 | | | 6.39 € | |
